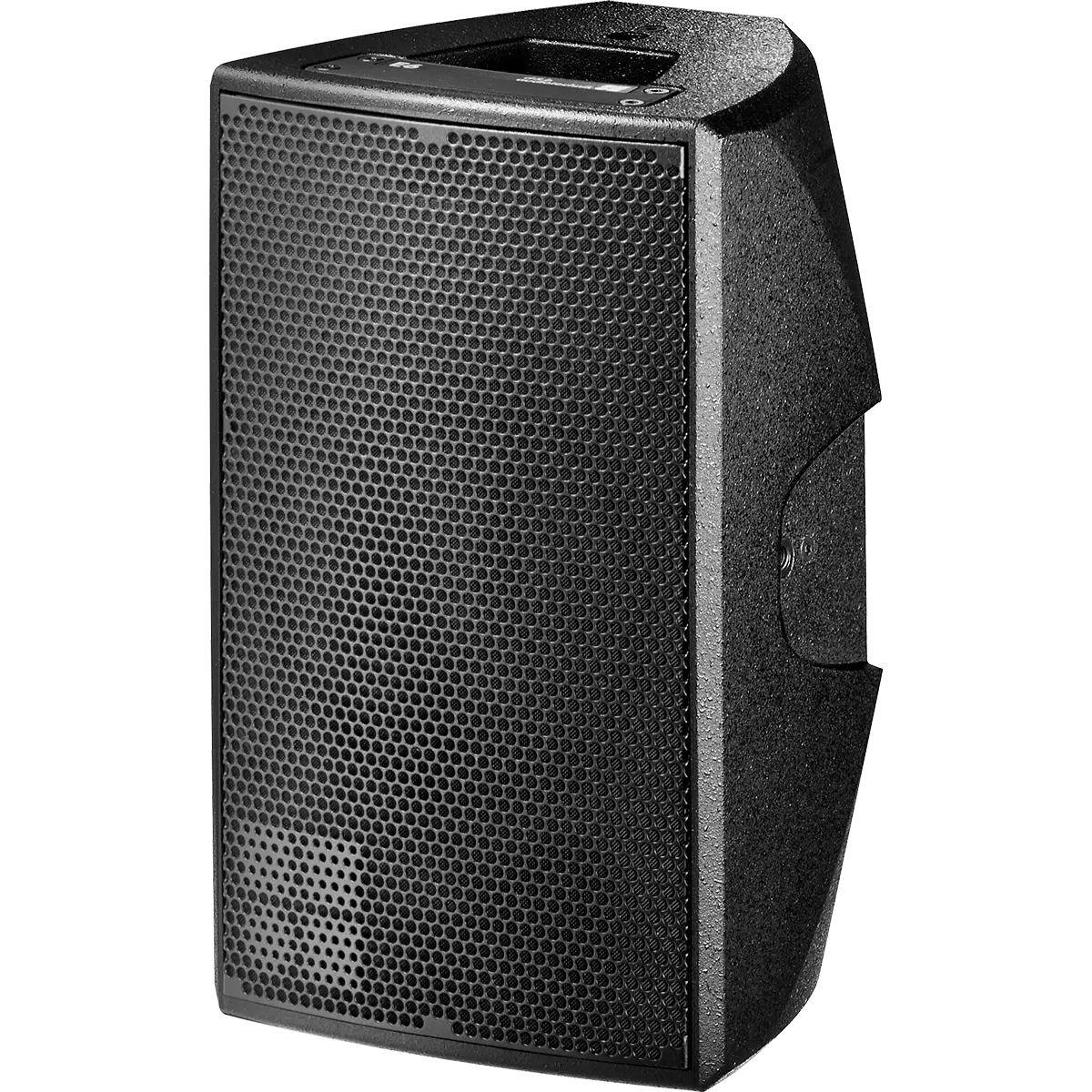

d&b audiotechnik E6 Loudspeaker
The E6 is a compact, high-performance multipurpose loudspeaker featuring an integrated coaxial driver. Its adaptable horn offers a 100° x 55° dispersion pattern that can be rotated 90° to a 55° x 100° configuration
The E6 is designed for compatibility with the larger E8, E12 models and can be paired with any E-Series subwoofer.
The E6 is available with NL4 Connections or NLT4 F/M Connections and weather-resistance.
Features:
- Components 6.5″/1″
- Dispersion 100° x 55° rotatable
- SPLmax 123 dB
- Weight 5 kg / 11 lb
Specifications:
- System data:
- Frequency response (–5 dB standard): 85 Hz – 20 kHz
- Frequency response (–5 dB CUT mode): 120 Hz – 20 kHz
- Max. sound pressure (1 m, free field) E6 with D12: 123 dB
- Max. sound pressure (1 m, free field) E6 with D6 or E-PAC: 120 dB (SPLmax peak, pink noise test signal with crest factor of 4)
- Input level (100 dB-SPL/1 m): –11 dBu
- Loudspeaker data:
- Nominal impedance: 20 ohms
- Power handling capacity (RMS / peak 10 ms): .150/800 W
- Nominal dispersion angle (hor. x vert.): .100° x 55°
- Components:
- 6.5“ driver with neodymium magnet
- coaxial 1” exit compression driver with 1.75“ coil and rotatable CD horn
- Passive crossover network
- Connections:
- Faston connector type 2
- Weight: 5.0 kg (11 lb)
- System data:
- Frequency response (–5 dB standard): 85 Hz – 20 kHz
- Frequency response (–5 dB CUT mode): 120 Hz – 20 kHz
- Max. sound pressure (1 m, free field) E6 with D12: 123 dB
- Max. sound pressure (1 m, free field) E6 with D6 or E-PAC: 120 dB (SPLmax peak, pink noise test signal with crest factor of 4)
- Input level (100 dB-SPL/1 m): –11 dBu
- Loudspeaker data:
- Nominal impedance: 20 ohms
- Power handling capacity (RMS / peak 10 ms): .150/800 W
- Nominal dispersion angle (hor. x vert.): .100° x 55°
- Components:
- 6.5“ driver with neodymium magnet
- coaxial 1” exit compression driver with 1.75“ coil and rotatable CD horn
- Passive crossover network
- Connections:
- Faston connector type 2
- Weight: 5.0 kg (11 lb)
