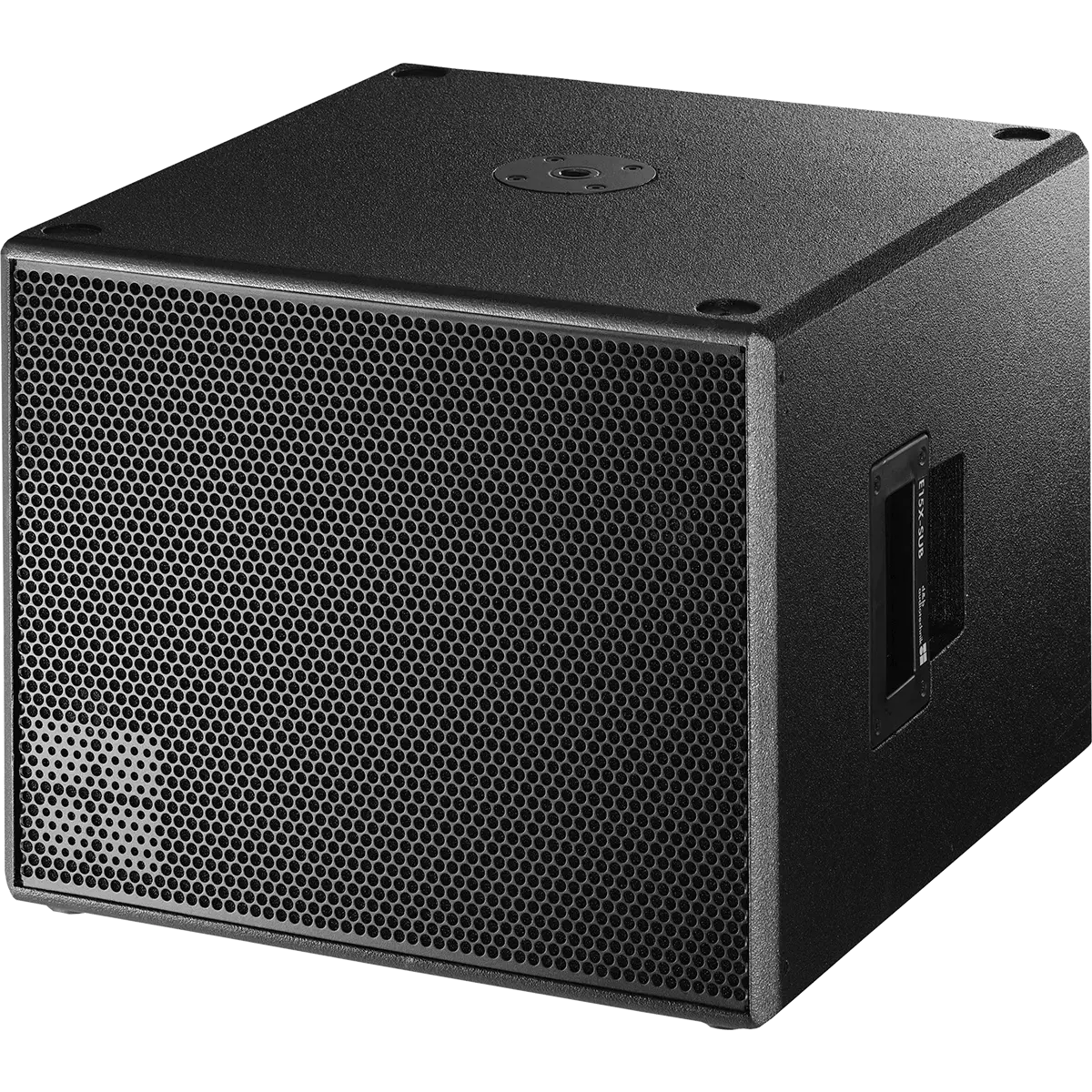

d&b audiotechnik E15X-Sub Subwoofer
The E15X-Sub is a compact, lightweight subwoofer designed for seamless integration with d&b E-Series loudspeakers.
The E15X-Sub features a built-in passive crossover network, and can operate in parallel with the E12 loudspeaker on the same amplifier channel. Alternatively, it supports active operation via its own amplifier channel without the need for any changes to the subwoofer.
The E15X-Sub is available with NL4 Connections or NLT4 F/M Connections and weather-resistance.
Features:
- Components 15"
- Dispersion Omni directional
- SPLmax 130 dB
- Weight 24 kg / 53 lb
Specifications:
- System data:
- Frequency response (-5 dB standard): 37Hz – 100Hz
- Frequency response (–5 dB 140 Hz mode): 37Hz – 140Hz
- Max. sound pressure:
- D6/10D: 127dB
- D20/30D: 130dB
- D80: 130dB
- Cabinets per amplifier channel: 2
- Loudspeaker data:
- Configuration: Compact subwoofer
- Nominal impedance: 8 ohm
- Power handling capacity (RMS/peak 10 ms): 300/1600W
- Components: 15″ drivers
- Connections: Faston connector type 2
- Dimensions (approx.):
- H: 16-13/16″ (426 mm)
- W: 20-15/16″ (530 mm)
- D: 21-11/16″ (550 mm)
- Weight: 53 lbs. (24 kg)
- System data:
- Frequency response (-5 dB standard): 37Hz – 100Hz
- Frequency response (–5 dB 140 Hz mode): 37Hz – 140Hz
- Max. sound pressure:
- D6/10D: 127dB
- D20/30D: 130dB
- D80: 130dB
- Cabinets per amplifier channel: 2
- Loudspeaker data:
- Configuration: Compact subwoofer
- Nominal impedance: 8 ohm
- Power handling capacity (RMS/peak 10 ms): 300/1600W
- Components: 15″ drivers
- Connections: Faston connector type 2
- Dimensions (approx.):
- H: 16-13/16″ (426 mm)
- W: 20-15/16″ (530 mm)
- D: 21-11/16″ (550 mm)
- Weight: 53 lbs. (24 kg)
