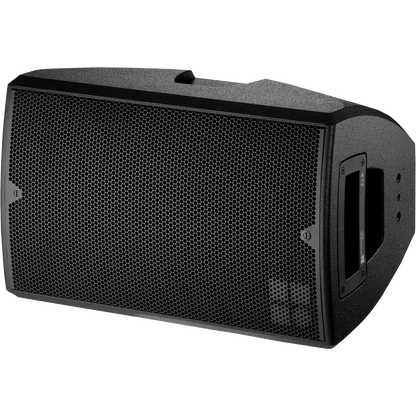

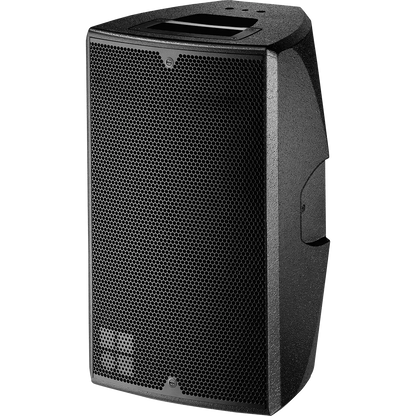

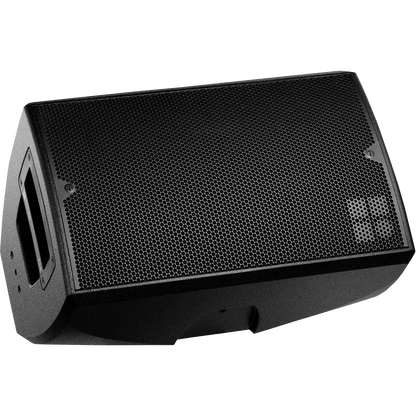

d&b audiotechnik E12 Loudspeaker
The E12 is a high-performance 2-way multipurpose system featuring an integrated coaxial driver.
The E12 is designed for both stand-alone full range use and integration into larger distributed setups.
The loudspeaker has an 80° x 50° dispersion pattern, and has easily rotatable horns through 90° providing 50° x 80° or 50° x 110° dispersion patterns.

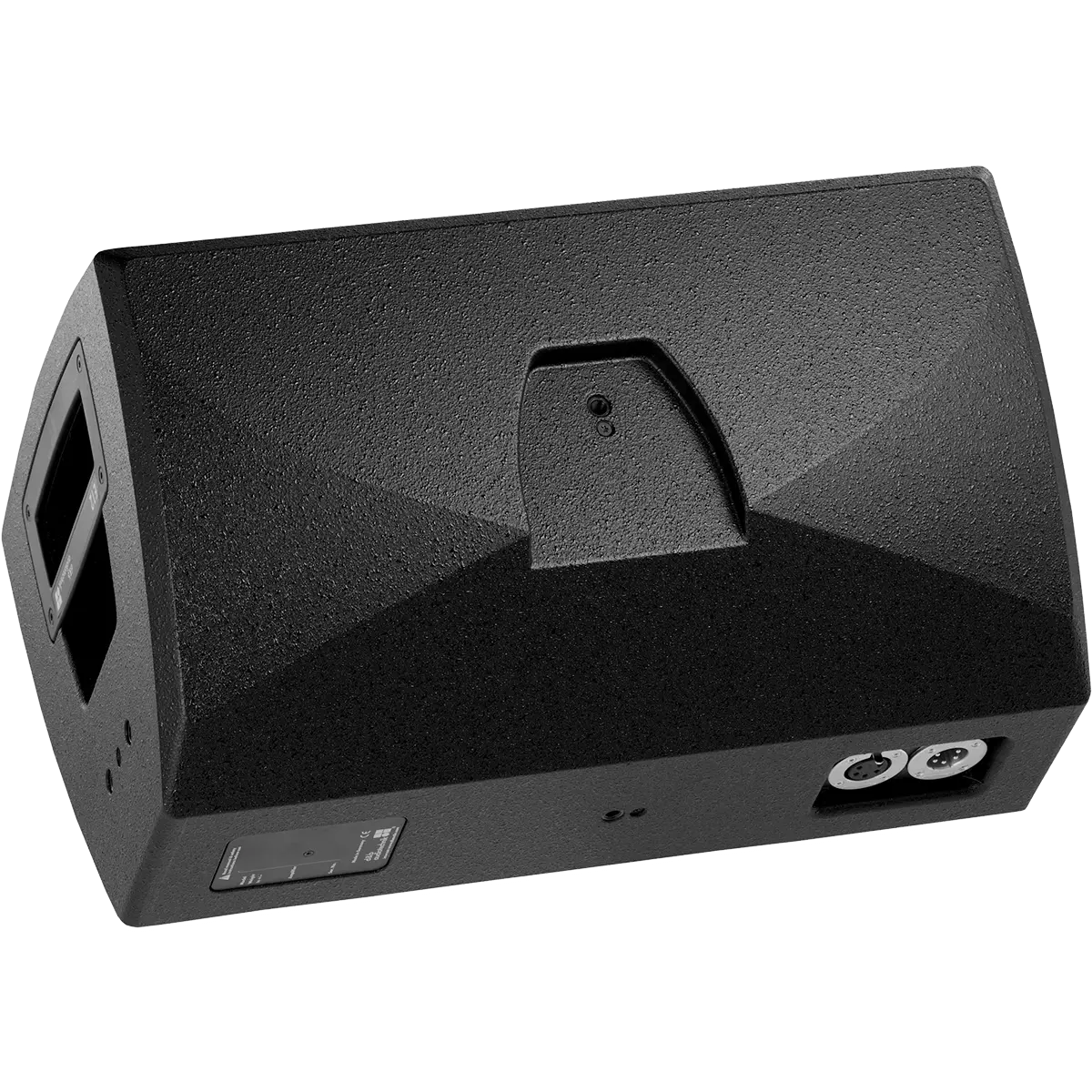

The E12 is available with NL4 Connections or NLT4 F/M Connections and weather-resistance.
Features:
- Components 12″/1.3″
- Dispersion 80° x 50° rotatable
- SPLmax 134 dB
- Weight 16 kg / 35 lb
Specifications:
- System data:
- Frequency response (–5 dB standard): 50 Hz – 18 kHz
- Frequency response (–5 dB CUT mode): 100 Hz – 18 kHz
- Max. sound pressure (1 m, free field): E12/E12-D with D6: 131/130 dB, E12/E12-D with D12: 134/133 dB
- Input level (100 dB-SPL/1 m): –17 dBu
- Loudspeaker data:
- Nominal impedance: 8 ohms
- Power handling capacity (RMS/peak 10 ms): 300/1600 W
- Nominal dispersion angle (hor. x vert.): 80° x 50°, 110° x 50°
- Components:
- 12" driver with neodymium magnet
- coaxial 1.3" exit compression driver with 3“ coil and rotatable CD horn
- Passive crossover network
- Connections:
- Faston connector type 2
- Weight: 16 kg (35 lb)
