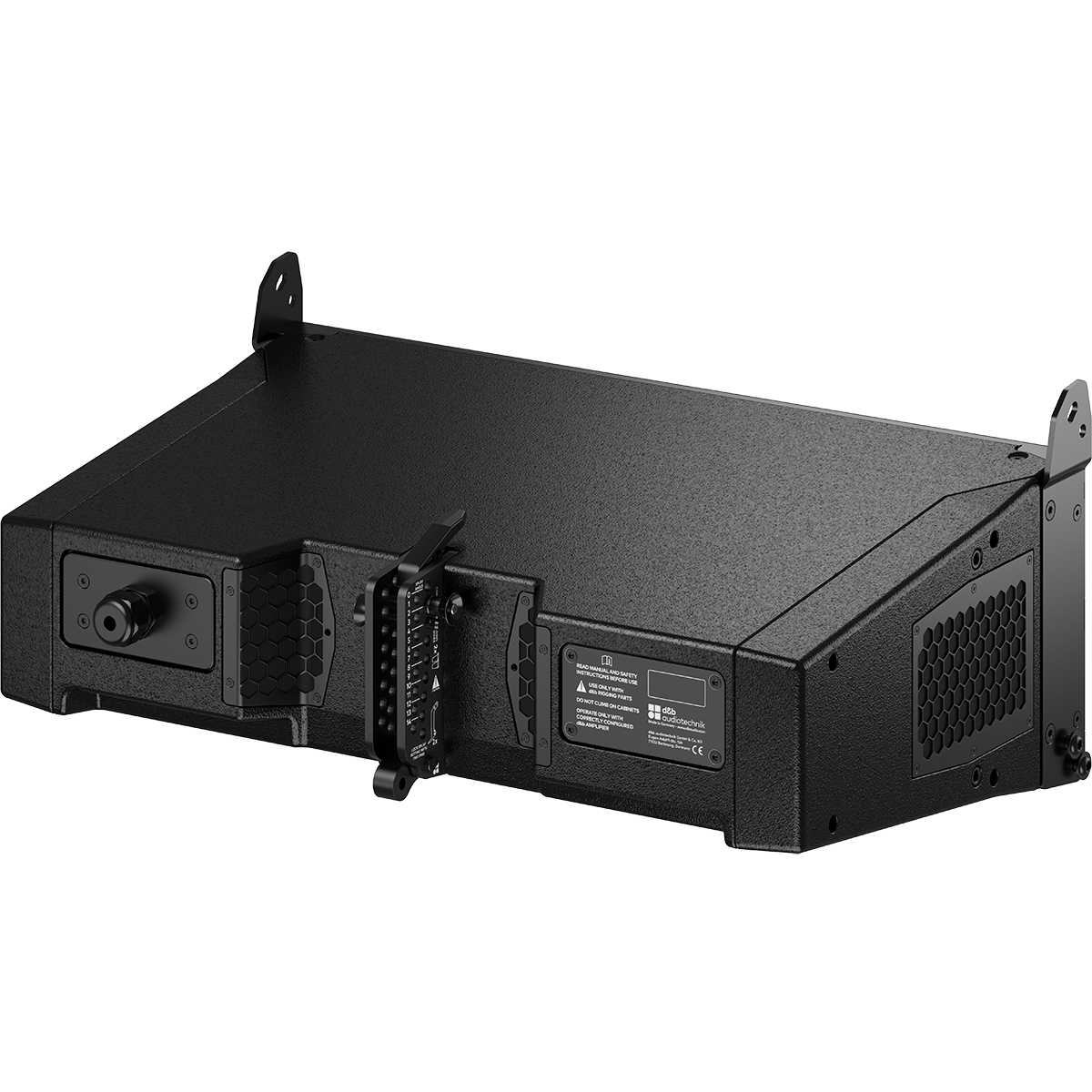

d&b audiotechnik CCLi8 Loudspeaker Installation-specific Compact Cardioid Line Array Loudspeaker
The d&b audiotechnik CCLi8 is a 2-way passive cardioid line array engineered for permanent installations.
Its compact, lightweight design offers passive cardioid technology providing broadband directivity from 60 Hz upward, enhancing speech clarity and minimising rear-stage feedback.
The two forward- and side-firing LF drivers ensure consistent horizontal dispersion across the full frequency range, whilst offering configurations of up to 24 cabinets with adjustable 0°–14° splay angles for precise coverage mapping.
The CCLi8 is built with durable ABS polycarbonate construction, weather protection, and hidden rigging hardware.
Features:
- Components LF: 2 x 7" + 2 x 5"; HF: 2 x 1.75"
- Dispersion 80°
- SPLmax 137 dB
- Weight 18.1 kg / 40 lb
Specifications:
System Data:
- Max. sound pressure
with D25/25D: 135 dB
with D40/D80/D90/40D: 137 dB - Frequency Response (-5 dB standard): 60 Hz - 18 kHz
- Frequency Response (-5 dB CUT mode): 90 Hz - 18 kHz
-
Frequency Response (-10 dB standard, IEC60268): 55 Hz - 20 kHz
-
Frequency Response (-10 dB CUT mode, IEC60268): 80 Hz - 20 kHz
-
Cabinets per D40/D80/D90 (ArrayProcessing): 4
-
Cabinets per D40/D80/D90 (Line or Arc mode): 8
Loudspeaker Data:
-
Nominal Impedance: 10 ohms
- Power Handling Capacity (RMS/peak 10 ms): 400/1200 W
- Nominal Dispersion Angle (Horizontal): 80°
-
Splay Angle Settings: 0 ... 14° (1° increment)
- Components: 2 x 7" front LF driver
2 x 5" side LF driver
2 x 1.75" HF compression driver
Passive crossover network
- Connections: Phoenix socket
Dimensions / Weight:
-
Dimensions (h x w x d): 209 x 593 x 355 mm
8.23 x 23.35 x 14"
- Weight: 18.1 kg
40 lb
Amplifiers:
Nominal Impedance: 10 ohms
2 x 5" side LF driver
2 x 1.75" HF compression driver
Passive crossover network
-
Dimensions (h x w x d): 209 x 593 x 355 mm
8.23 x 23.35 x 14" - Weight: 18.1 kg
40 lb
