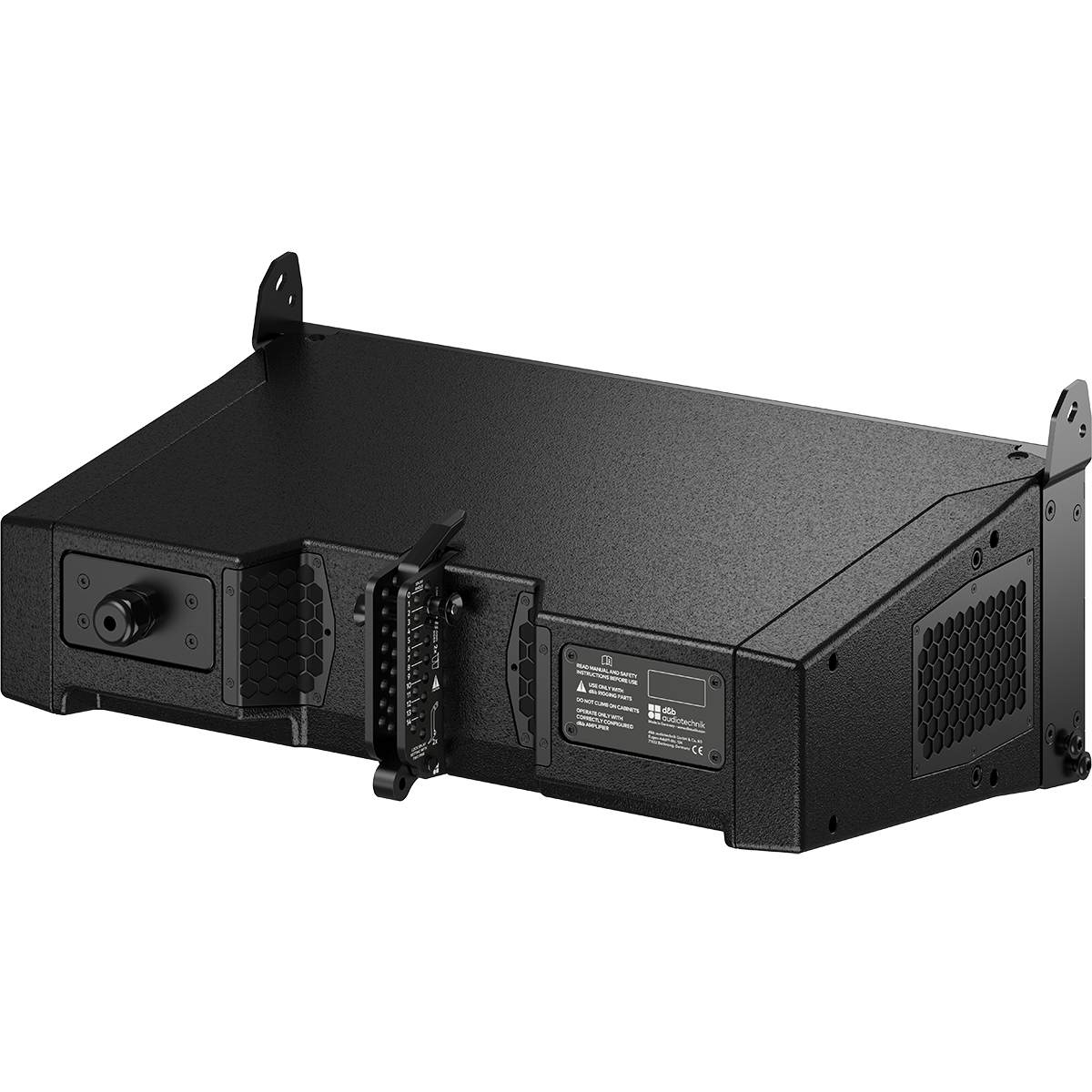

Name: d&b audiotechnik CCLi12 Loudspeaker
Brand: d&b audiotechnik

Description

d&b audiotechnik CCLi12 Loudspeaker Installation-specific Compact Cardioid Line Array Loudspeaker for Small to Medium-scale Sound Reinforcement

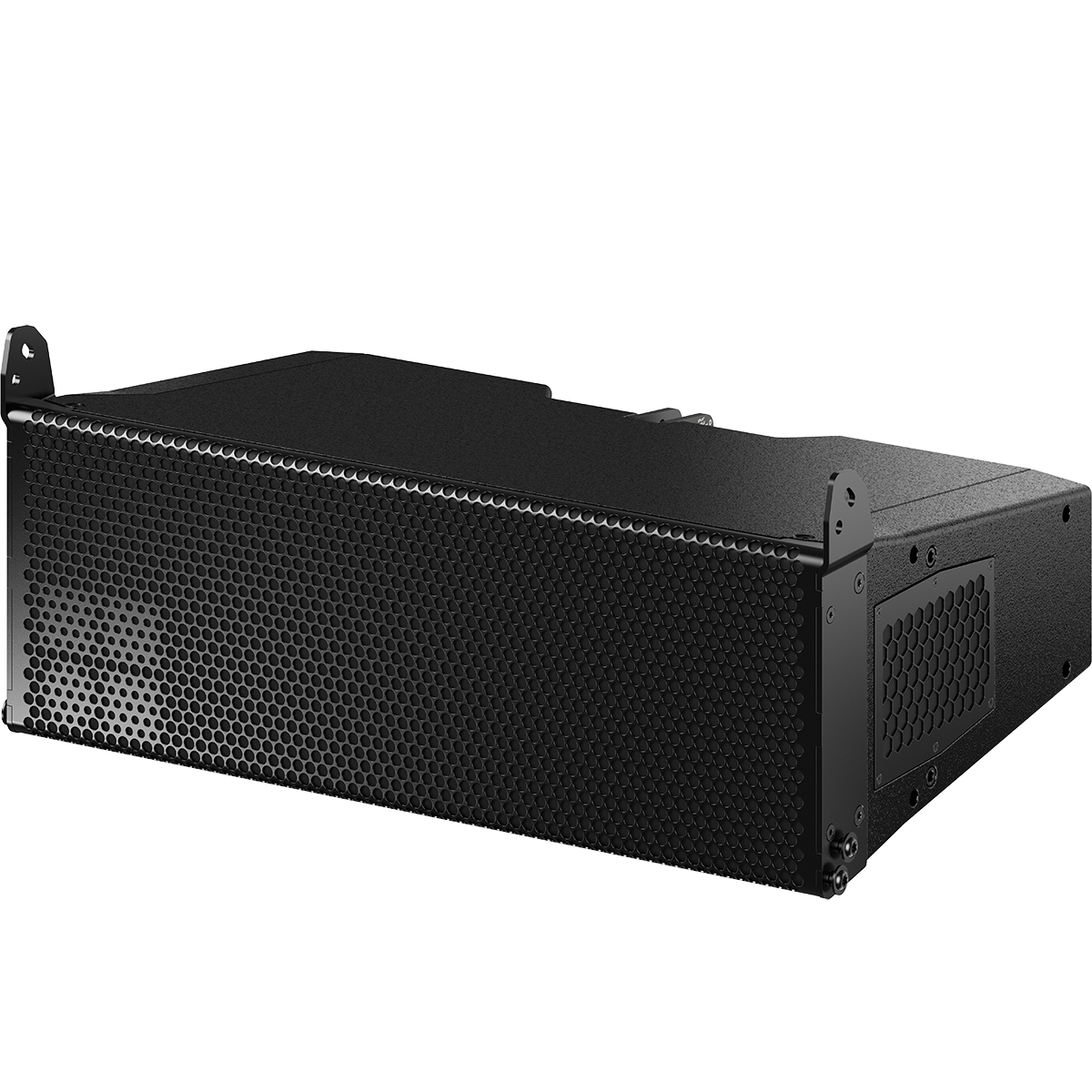

The d&b audiotechnik CCLi12 is a compact cardioid line array module engineered for fixed installations in small to medium venues.

The loudspeaker features passive cardioid technology with forward and side-firing LF drivers, and delivers broadband directivity down to 60 Hz for superior speech intelligibility and reduced rear energy.

It features a 2-way passive design combining 2×7" forward LF, 2×5" side LF, and 2×1.75" HF drivers for coherent, consistent coverage across 120° horizontal dispersion.

The CCLi12 has frequency response from 60 Hz–18 kHz+, and up to 24 cabinets can be flown using the CCLi frame with adjustable 0°–14° splay angles.

Features:

Components LF: 2 x 7" + 2 x 5"; HF: 2 x 1.75"
Dispersion 120°
SPLmax 136 dB
Weight 18.1 kg / 40 lb

Specifications:

System Data:

Max. sound pressure
with D25/25D: 134 dB
with D40/D80/D90/40D: 136 dB
Frequency Response (-5 dB standard): 60 Hz - 18 kHz
Frequency Response (-5 dB CUT mode): 90 Hz - 18 kHz
Frequency Response (-10 dB standard, IEC60268): 55 Hz - 20 kHz
Frequency Response (-10 dB CUT mode, IEC60269): 80 Hz - 20 kHz
Cabinets per D40.D80/D90 (ArrayProcessing): 4
Cabinets per D40/D80/D90 (Line or Arc mode): 8

Loudspeaker Data:

Nominal Impedance: 10 ohms
Power Handling Capacity (RMS/peak 10 ms): 400/1200 W
Nominal Dispersion Angle (Horizontal): 120°
Splay Angle Settings: 0 … 14° (1° increment)
Components: 2 x 7" front LF driver
2 x 5" side LF driver
2 x 1.75" HF compression driver
Passive crossover network
Connections: Phoenix socket
