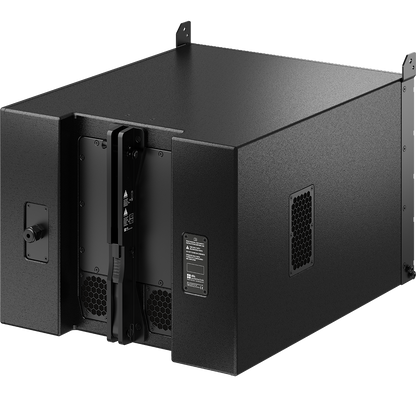

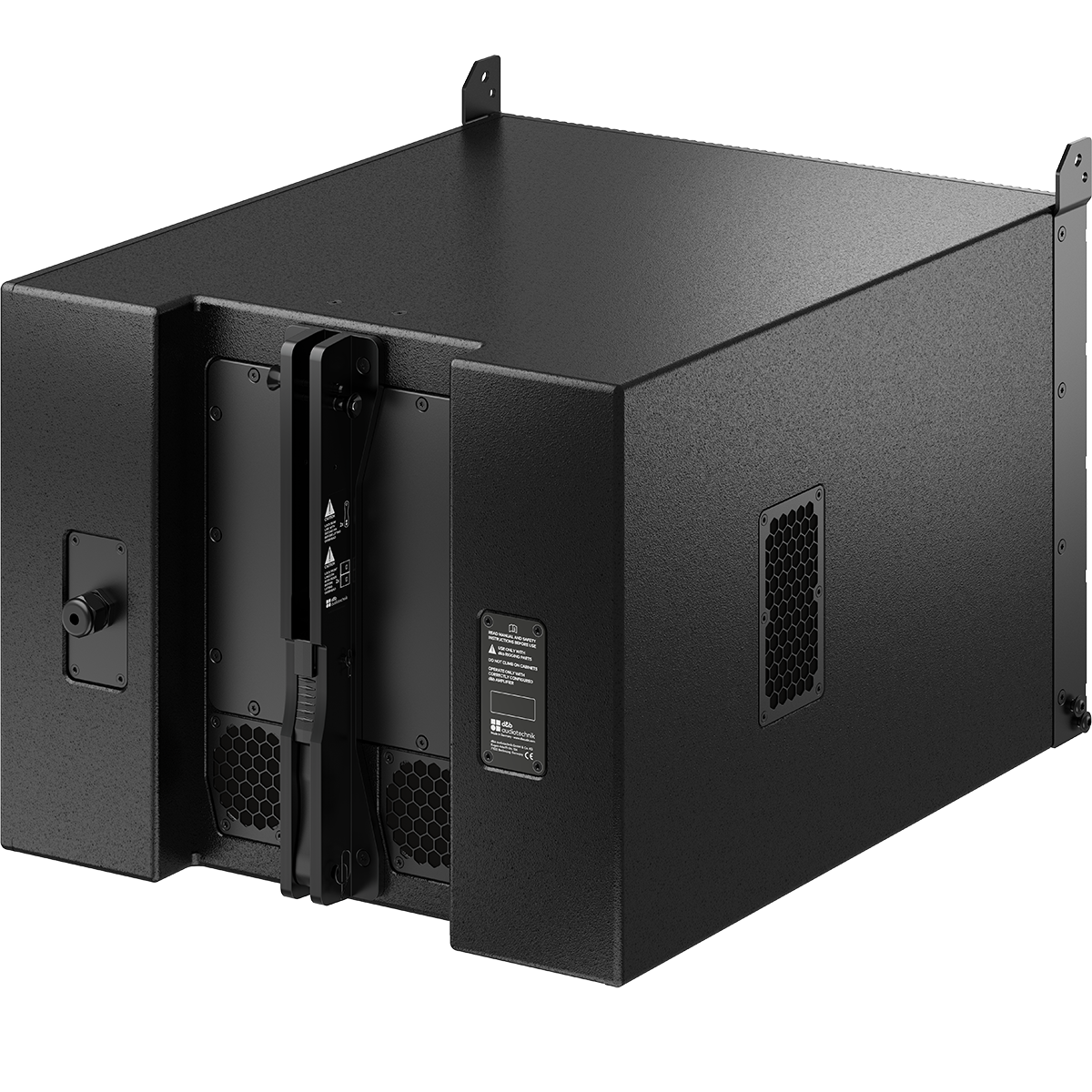

d&b audiotechnik CCLi Installation-specific Small to Medium Format Flyable Cardioid Subwoofer
The CCLi is a compact flyable cardioid subwoofer engineered for fixed installations within the CCLi system. Featuring dual long-excursion neodymium drivers, a front-facing 15" bass-reflex unit and rear-facing 10" bandpass driver, it delivers cardioid dispersion from a single amplifier channel, effectively minimising rear energy and enhancing low-frequency control. With a frequency response spanning 39 Hz to 150 Hz, this subwoofer provides tight, articulate bass performance in a small footprint.
The rugged plywood enclosure features a weather-protected 2K finish and rigid metal grilles backed by acoustically transparent, water-repellent fabric, making it ideal for demanding installation environments.
Features:
- Components 1 x 15” + 1 x 10”
- Dispersion Cardioid
- SPLmax 132 dB
- Weight 42.4 kg / 93.5 lb
Specifications:
System Data:
- Max. sound pressure
with D25/25D: 129 dB
with D40/D80/D90/40D: 132 dB
- Frequency Response (-5 dB Standard): 39 Hz - 150 Hz
- Frequency Response (-10 dB Standard, IEC60268): 35 Hz - 180 Hz
-
Frequency Response (-5 dB 100 Hz Mode): 39 Hz - 100 Hz
-
Frequency Response (-10 dB 100 Hz Mode, IEC60268): 35 Hz - 140 Hz
- Cabinets per D40/D80/D90/40D: 8
Loudspeaker Data:
System Data:
with D25/25D: 129 dB
with D40/D80/D90/40D: 132 dB
- Nominal Impedance: 10 ohms
- Power Handling Capacity (RMS/Peak 10 ms): 500/1200 W
-
Components: 1 x 15" driver front
1 x 10" driver rear - Connections: Phoenix socket
Dimensions / Weight:
- Dimensions (h x w x d): 457 x 590 x 835 mm
18 x 23.3 x 33"
- Weight: 42.4 kg / 93.5 lb
