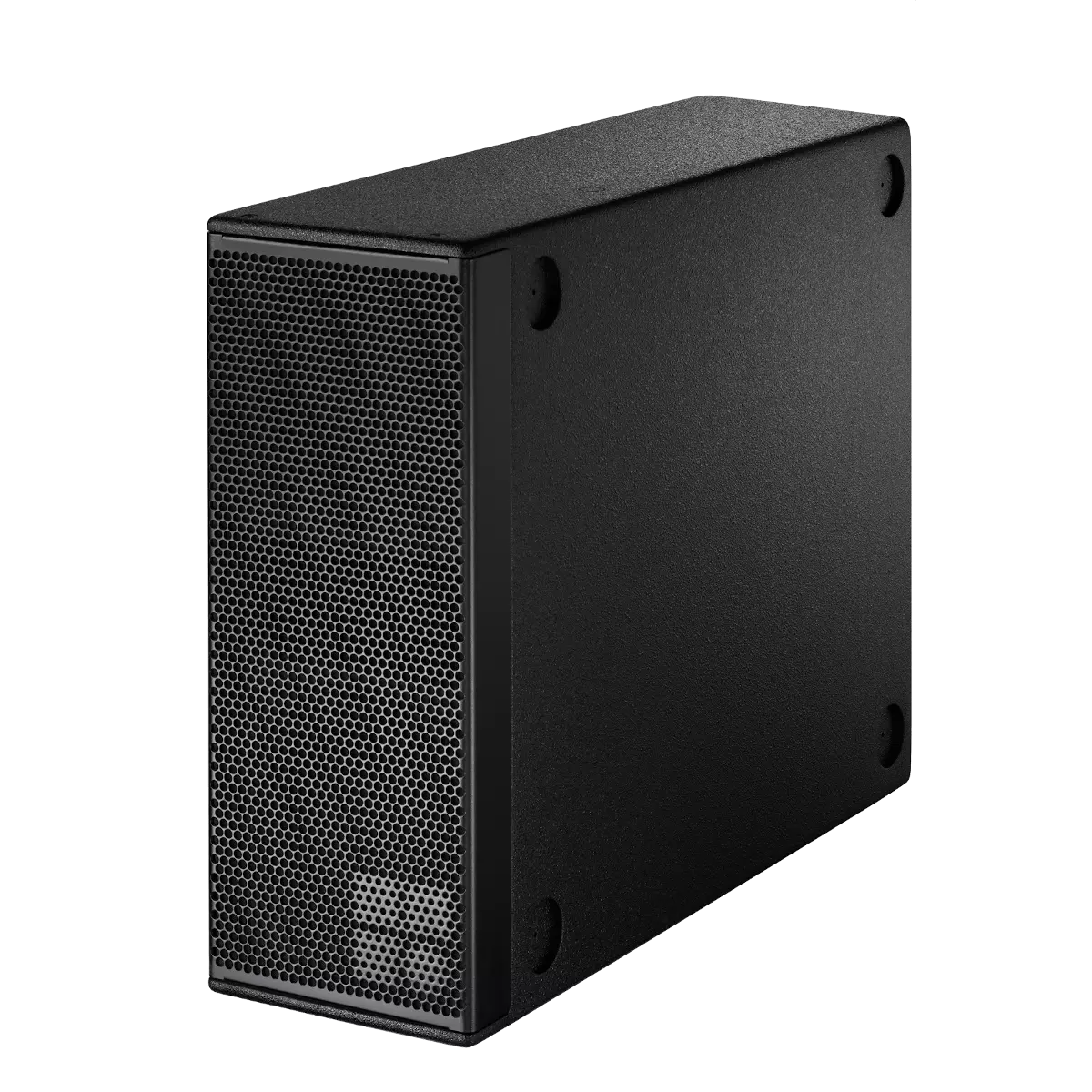

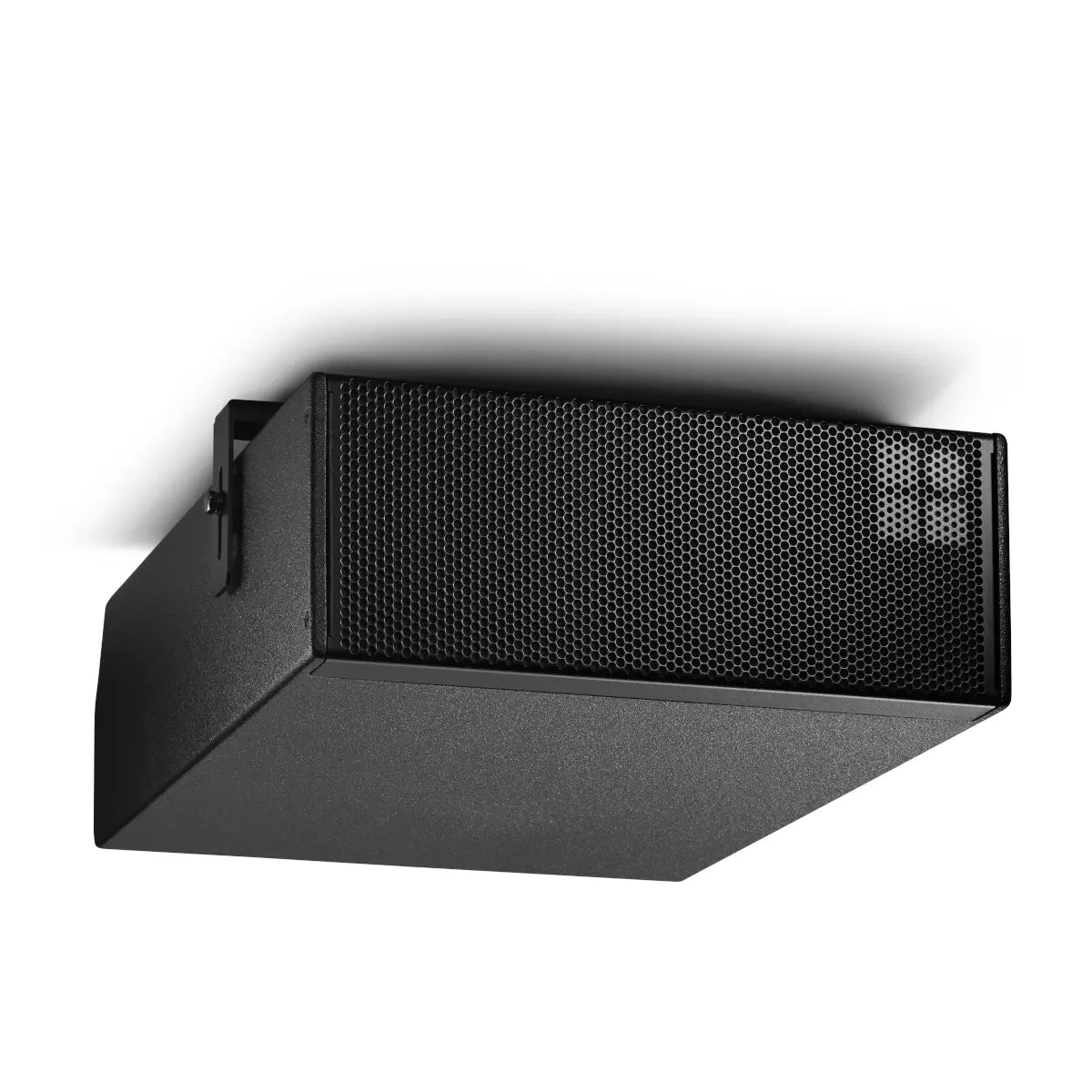

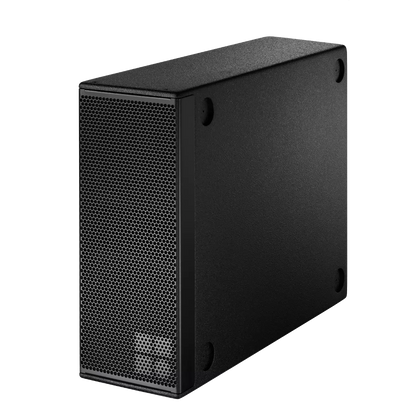

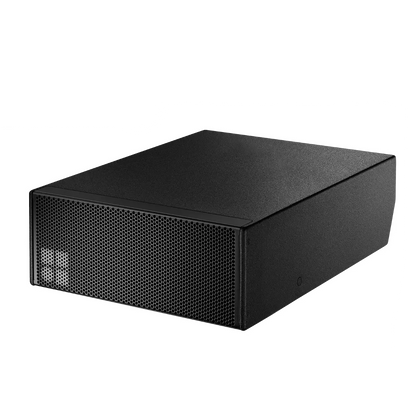

d&b audiotechnik Bi8-Sub Subwoofer
The Bi8-Sub is an ultra compact subwoofer that pairs with the d&b xC, xS and E-Series loudspeakers. It features two 6.5” drivers housed within a bass-reflex cabinet design.
The frequency response extends from 43 Hz to 170 Hz and when operating in 100 Hz mode, the upper operating frequency of the subwoofer is reduced from 170 Hz to 125 Hz.
The Bi8-Sub is available weather-resistant.
The Bi8-Sub is the install specific of the d&b audiotechnik B8-Sub Subwoofer.
Features:
- Components 2 x 6.5"
- Dispersion omnidirectional
- SPL max 122 dB
- Weight 17 kg / 37.5 lb
Specifications:
- System data:
- Frequency response (-5 dB standard): 43 Hz - 170 Hz
- Frequency response (-5 dB 100 Hz mode): 43 Hz - 125 Hz
- Max. sound pressure:
- with 10D: 120 dB
- with D20/30D: 122 dB
- with D40/D80/40D: 122 dB
- Cabinets per amplifier channel: 2
- Loudspeaker data:
- Configuration: Ultra compact subwoofer
- Nominal impedance: 8 Ω
- Power handling capacity (RMS/peak 10 ms): 200/800 W
- Components: 2 x 6.5" driver with ferrite magnet

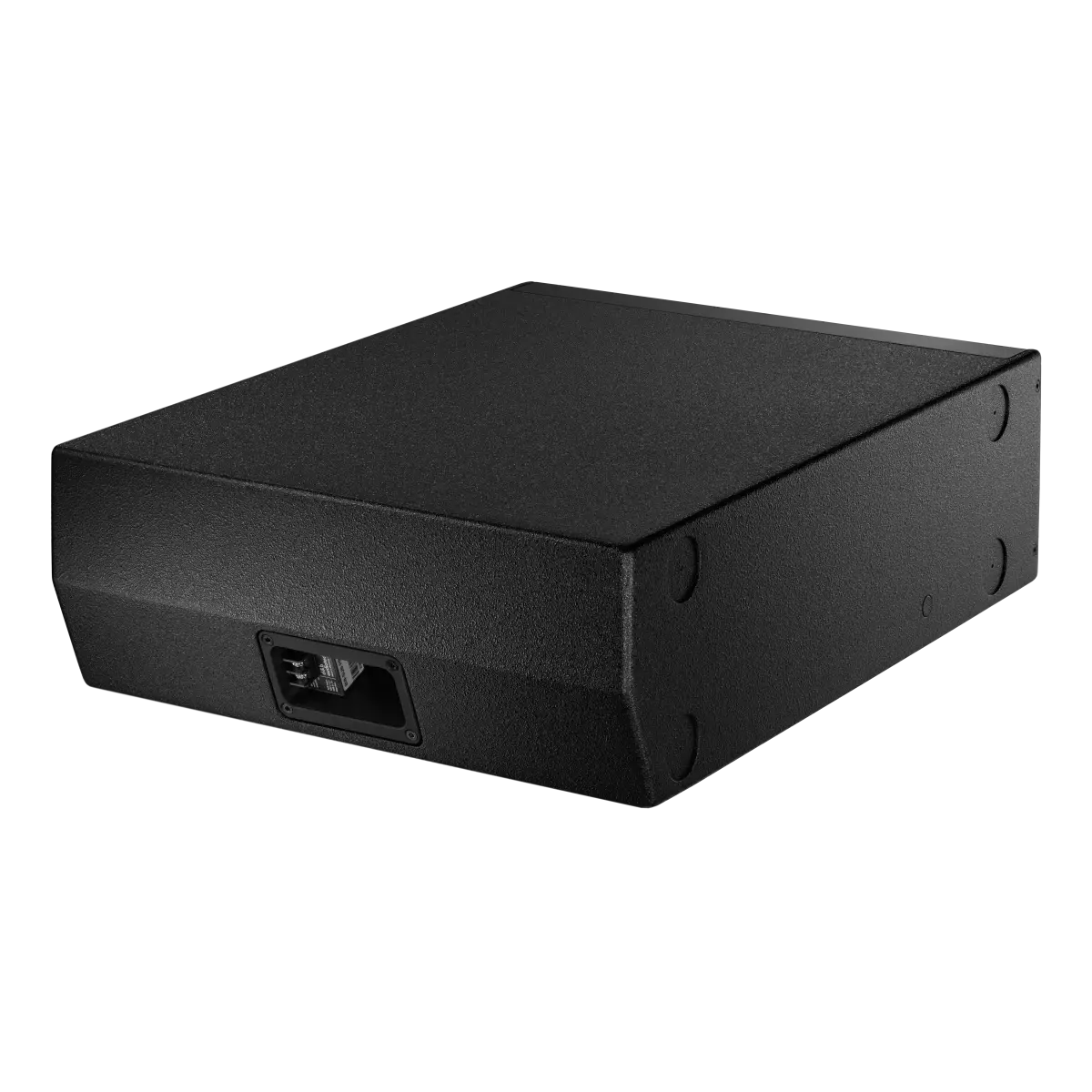

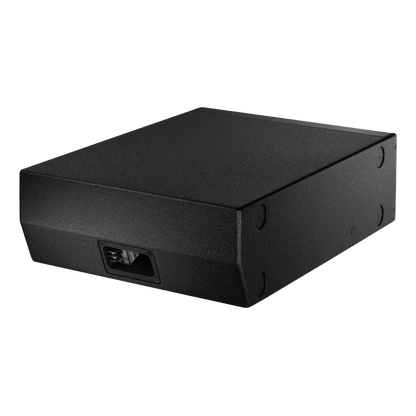

- Connections: 2 x NL4 M
- Pin assignment:
- NL4 M: 2+/2–
- Dimensions / weight:
- Dimensions (H x W x D): 170 x 436 x 580 mm / 6.7 x 17.2 x 22.8"
- Weight: 17 kg / 37.5 lb
