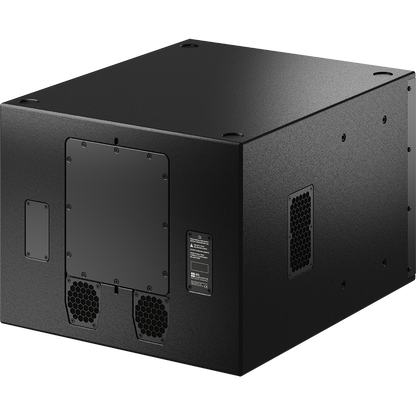

d&b audiotechnik Bi12 Installation-specific Small to Medium Format Ground Cardioid Subwoofer

The Bi12 is a compact cardioid ground subwoofer engineered for fixed installations within the CCLi system. Featuring dual long-excursion neodymium drivers, a front-facing 15" bass-reflex unit and rear-facing 10" bandpass driver, it delivers true cardioid dispersion from a single amplifier channel.

This innovative design minimises rear radiation while maximizing low-frequency control and precision. With a frequency response spanning 39 Hz to 150 Hz, the Bi12 provides powerful, articulate bass extension in a remarkably compact footprint, making it ideal for venues requiring controlled directional low-end performance.

Features:

• Components 1 x 15” + 1 x 10”
• Dispersion Cardioid
• SPLmax 132 dB
• Weight 41.5 kg / 90.5 lb

Specifications:

System Data:

• Max. sound pressure
  with D25/25D: 129 dB
  with D40/D80/D90/40D: 132 dB
• Frequency Response (-5 dB Standard): 39 Hz - 150 Hz
• Frequency Response (-10 dB Standard, IEC60268): 35 Hz - 180 Hz
• Frequency Response (-5 dB 100 Hz Mode):39 Hz - 100 Hz
• Frequency Response (-10 dB 100 Hz Mode, IEC60268): 35 Hz - 140 Hz
• Cabinets per D40/D80/D90/40D: 8

Loudspeaker Data:

• Nominal Impedance: 10 ohms
• Power Handling Capacity (RMS/Peak 10 ms): 500/1200 W
• Components: 1 x 15" driver front
  1 x 10" driver rear
• Connections: Phoenix socket

Dimension / Weight:

• Dimensions (h x w x d): 457 x 590 x 688 mm
  18 x 23.23 x 27.1"
• Weight: 41.5 kg / 90.5 lb

Amplifiers:

• d&b audiotechnik D40 Amplifier
• d&b audiotechnik D80 Amplifier
• d&b audiotechnik D25 Amplifier
• d&b audiotechnik D90 Amplifier
• d&b audiotechnik 40D Amplifier
• d&b audiotechnik 25D Amplifier
