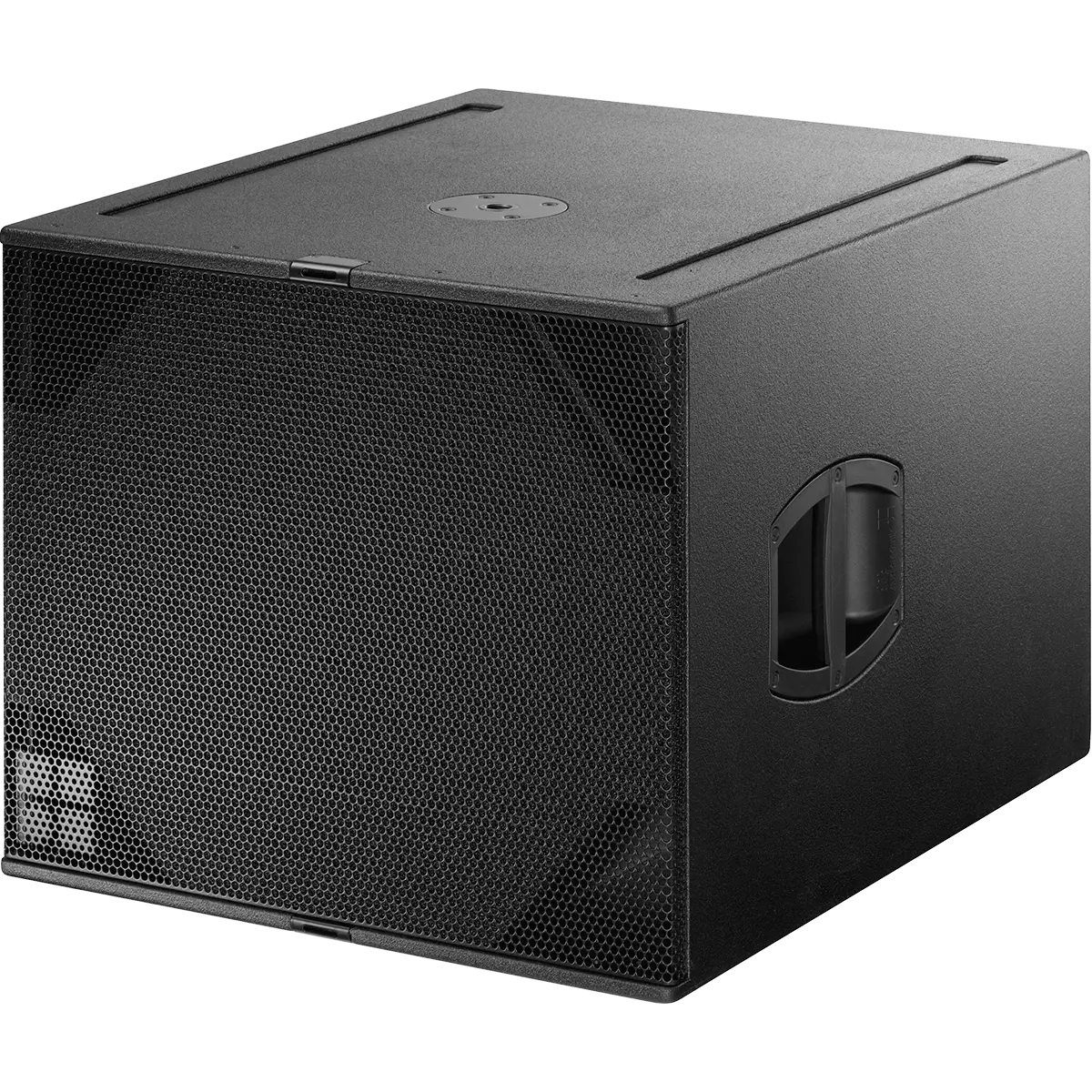

d&b audiotechnik B6 Subwoofer High Performance Subwoofer
The B6-Sub is a high performance subwoofer designed for ground stack applications. It features a long excursion 18” driver built into a bass-reflex design.
When three or any multiple of three B6-SUBs are used and positioned in a Cardioid Subwoofer Array, it achieves exceptional directivity control in lower frequencies and significantly reduces the energy radiating towards to the rear.
The B6-Sub is available with NL4 Connections or NLT4 F/M Connections.
Features:
- Components 18"
- Dispersion Omni directional
- SPLmax 134 dB
- Weight 41 kg / 90 lb
Specifications:
- System data:
- Frequency response (-5 dB standard): 37 Hz - 140 Hz
- Frequency response (-5 dB 100 Hz mode): 37 Hz - 110 Hz
- Frequency response (–5 dB INFRA mode): 35 Hz - 80 Hz
- Max. sound pressure:
- with 10D: 128 dB
- with D20/30D: 131 dB
- with D40/D80/40D: 134 dB
- Cabinets per amplifier channel: 2
- Loudspeaker data:
- Configuration: High performance subwoofer
- Nominal impedance: 8 Ω
- Power handling capacity (RMS/peak 10 ms): 500/2000 W
- Components: 1 x 18" driver
- Connections: 2 x NLT4 F/M
- Dimensions / weight:
- Dimensions (H x W x D): 490 x 580 x 7002 / 805 mm (19.3 x 22.8 x 27.52 / 31.7")
- Weight: 41 kg (90 lb)
