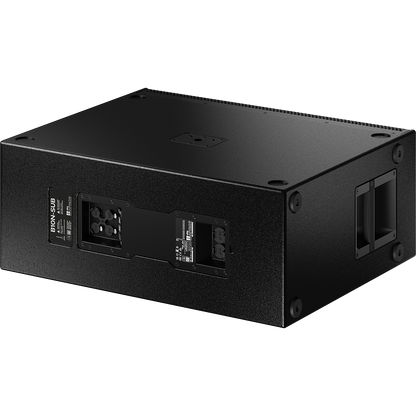

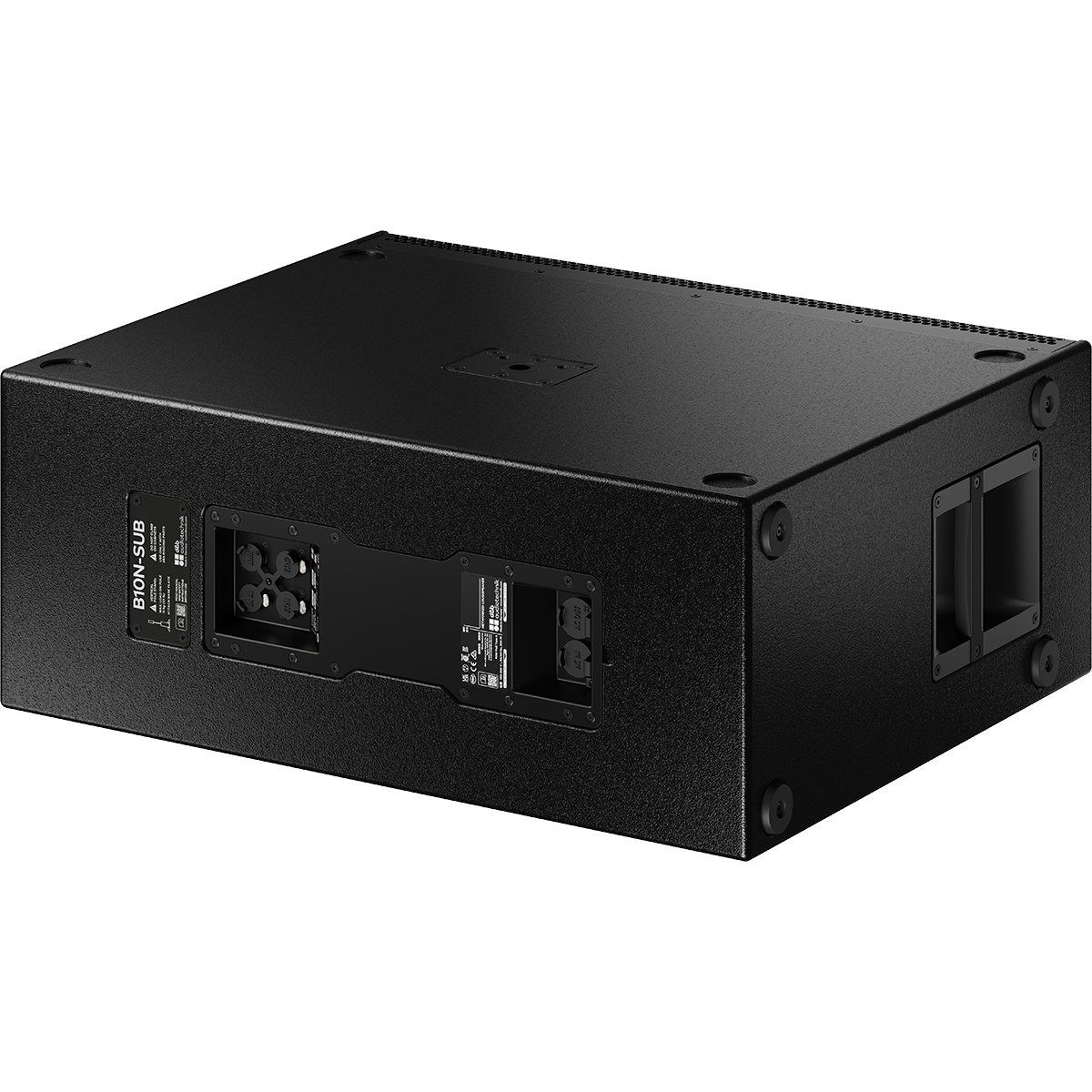

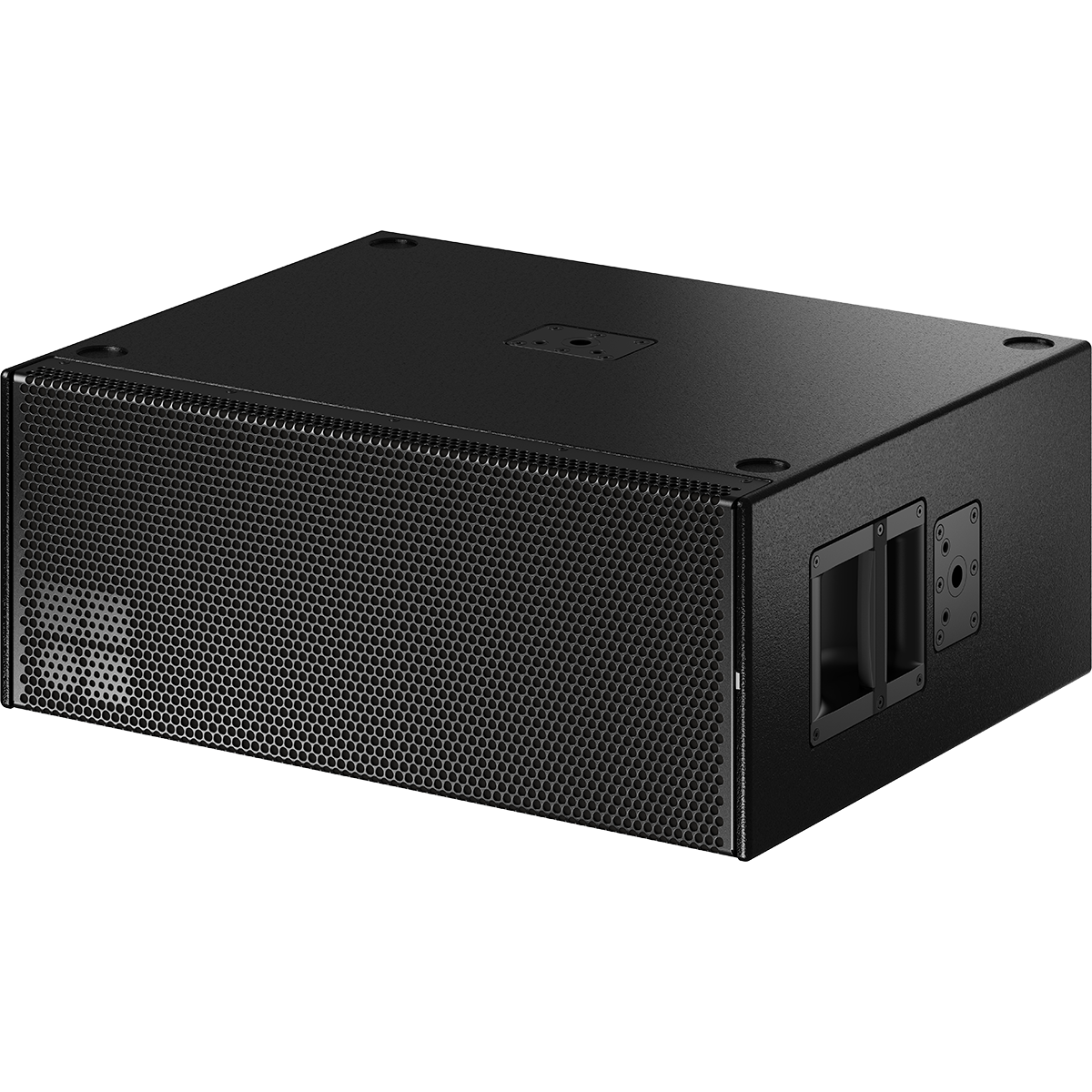

d&b audiotechnik B10N-SUB Mobile Specific Compact Multipurpose Networked Subwoofer
The B10 is a compact subwoofer, featuring dual 10" drivers in a bass-reflex cabinet with optimised port geometry, it delivers controlled LF extension without sacrificing footprint.
The subwoofer has a refined electroacoustic design that achieves full output capability when paired with a 5D amplifier, and optimal configuration recommendations are available through the 5D PowerShare Calculator.
The subwoofer features a hybrid power topology, running on AC, PoE++, or both simultaneously, with single-cable operation carrying power, signal, control, and monitoring, while dual-cable redundancy (2x PoE++ + 2x Milan) supports mission-critical installations and ensures compatibility with the DN2 Milan PoE++ switch or equivalent third-party PoE++ hardware.
Features:
- Components 2 x 10”
- Dispersion Omnidirectional
- SPLmax 129 dB*
- Weight 28.5 kg / 63 lb
Specifications:
- Frequency response (-5 dB standard): 38 Hz- 130 Hz
- Frequency response (-5 dB 100 Hz mode, IEC60268): 38 Hz - 100 Hz
- Max. sound pressure
- PoE++: 129 dB
- AC: 129 dB
- Equalizer: 2 user definable 16-band equalizer
- Latency analog input: 1.1 ms
- Frequency generator: Pink noise or sine wave 10 Hz to 20 kHz
- Delay: 1.1 ms to 1 sec.
- INPUT ANALOG: 3 pin XLR female
- ANALOG LINK: 3 pin XLR male, parallel to input
- MILAN INPUT: 1 stream with up to 8 channels @ 48/96 kHz
- Network Connection: 2 x RJ 45 (etherCON)
- Network Switch: integrated 2-port, 100 Mbit/1 Gbit
- ETH1/PRI: Milan, Remote control via R1 star topology
- ETH2/SEC: Milan redundancy only, no remote control star topology
- Mains voltage: powerCON TRUE1 TOP In and Thru
- Power supply: Switched mode power supply with automatic mains range selection and active Power Factor Correction (PFC).
- Rated mains voltage: 100 - 240 V, 50 - 60 Hz
- Dimensions (h x w x d): 280 x 706 x 565 mm, 11 x 27.8 x 22.25"
- Weight: 28.5 kg / 63 lb
