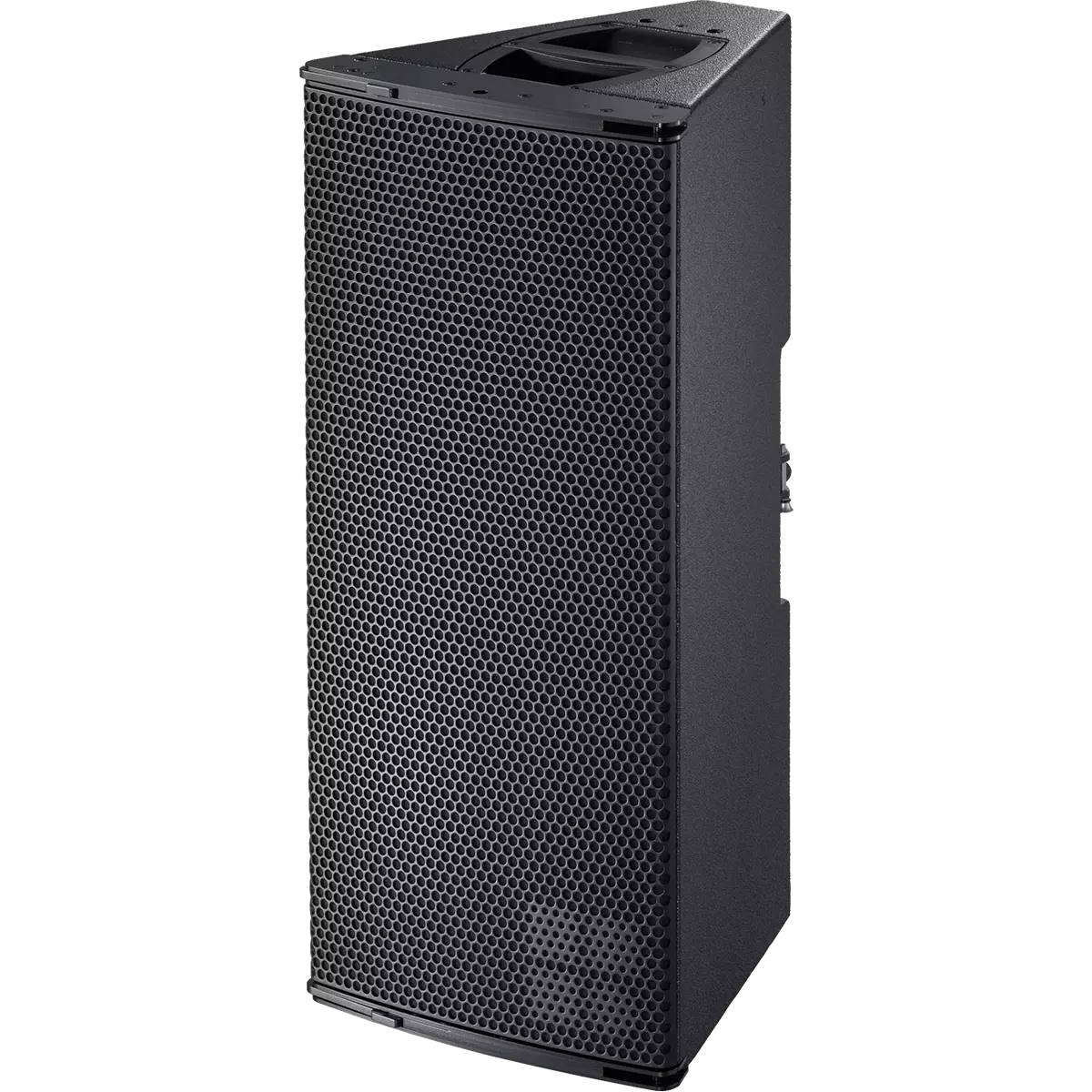

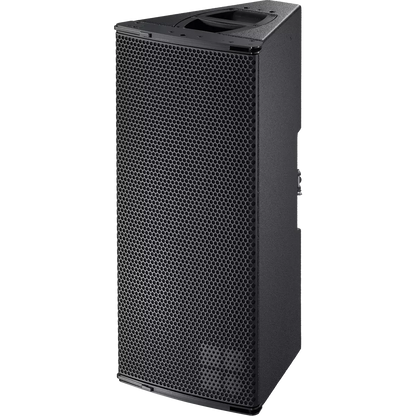

d&b audiotechnik AL60 Loudspeaker

The AL60 is a passive 2-way loudspeaker featuring two 10" neodymium LF drivers and a 1.4" exit HF compression driver with a 3" diaphragm.

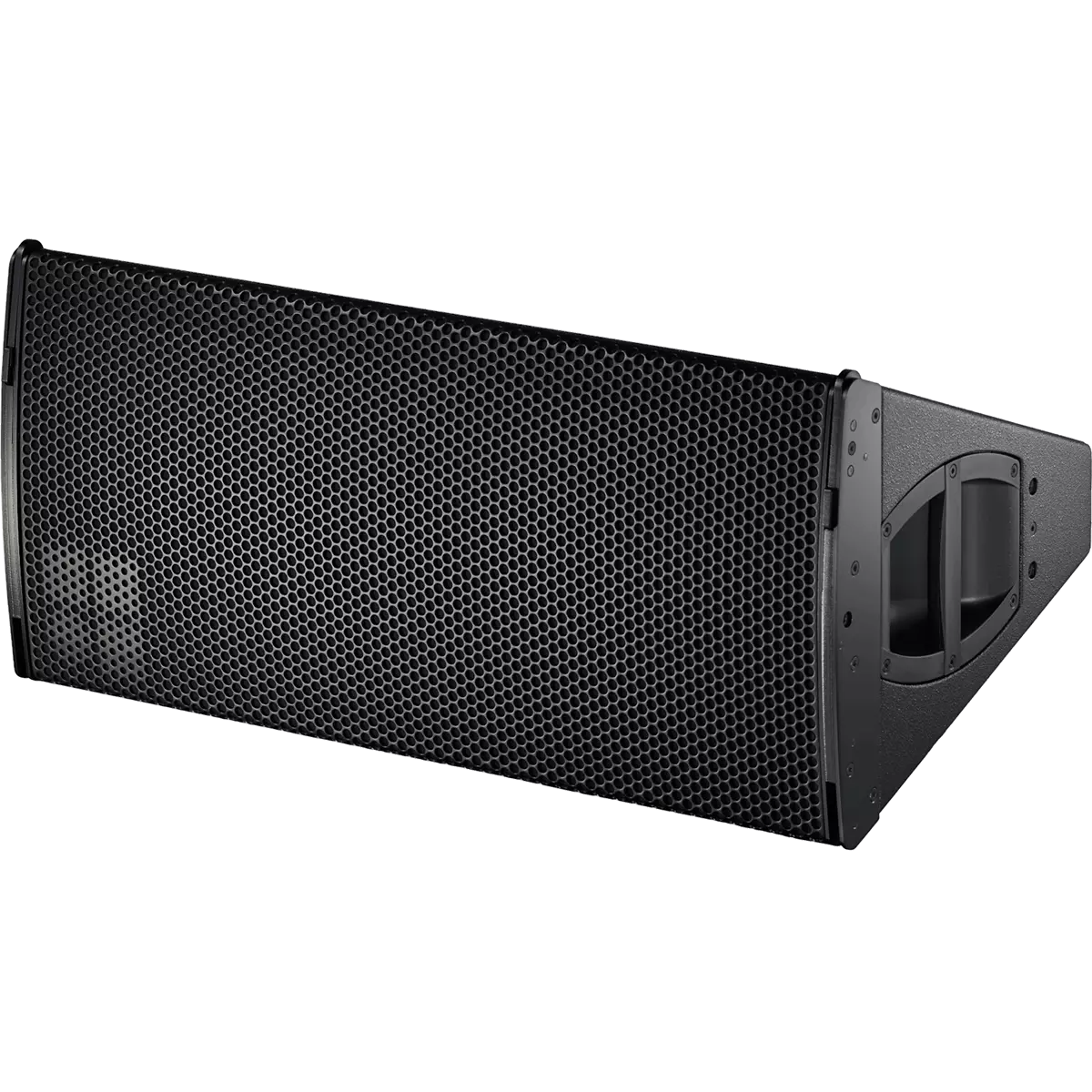

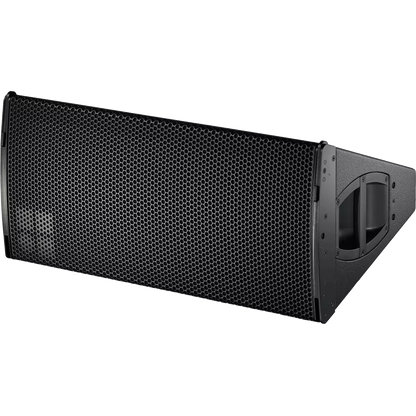

The AL60 can be flown in vertical columns of up to four cabinets using the AL Flyingframe, offering a consistent 60° vertical dispersion. When placed horizontally, up to four units can be arrayed with adjustable splay angles from 20° to 40°, providing total coverage from 50° to 150°.

The loudspeakers enhanced horizontal dispersion control extends down to approximately 550 Hz.

The AL60 is available with NL4 Connections or NLT4 F/M Connections.

Features:

• Components 2 x 10" LF driver, 1 x 1.4” exit compression driver with 3" coil
• Dispersion 60° x 30°
• SPLmax 139 dB
• Weight 23 kg / 51 lb

Specifications:

• System data:
  • Frequency response (-5 dB standard): 60 Hz - 18 kHz
  • Frequency response (-5 dB CUT mode): 95 Hz - 18 kHz
  • Max. sound pressure:
    • with D20/30D: 138 dB
    • with D40/D80/40D: 139 dB
  • Cabinets per amplifier channel: 2
• Loudspeaker data:
  • Nominal dispersion angle (h x v - horizontal setup): 60 ° x 30 °
  • Nominal impedance: 8 ohms
  • Power handling capacity (RMS/peak 10 ms): 400/1800 W
  • Splay angle settings: 20 … 40° (5° increment)
  • Components:
    • 2 x 10" LF driver
    • 1 x 1.4" exit compression driver with 3" coil
    • Passive crossover network

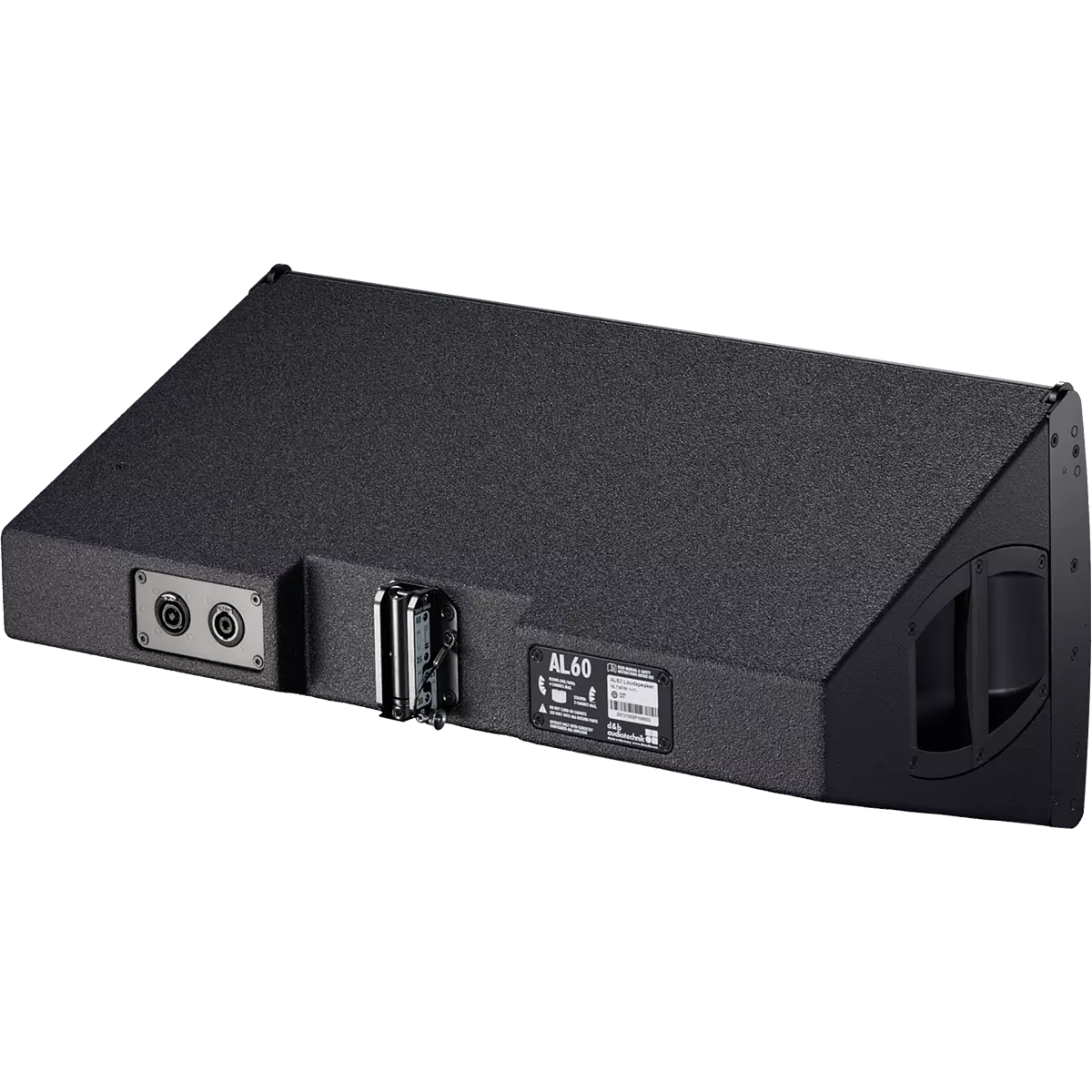

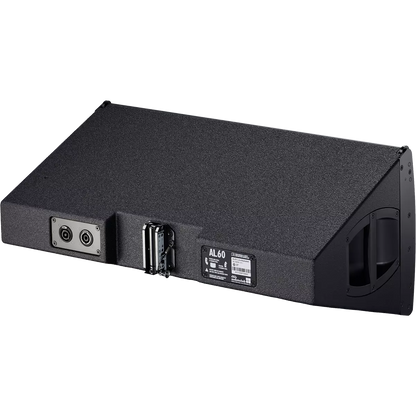

  • Connections: 1 x NL4
• Dimensions / weight:
  • Dimensions (H x W x D)322 x 700 x 356 mm (12.7 x 27.6 x 14")
  • Weight: 23 kg (51 lb)
