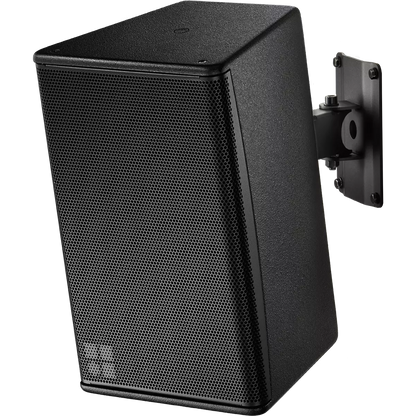

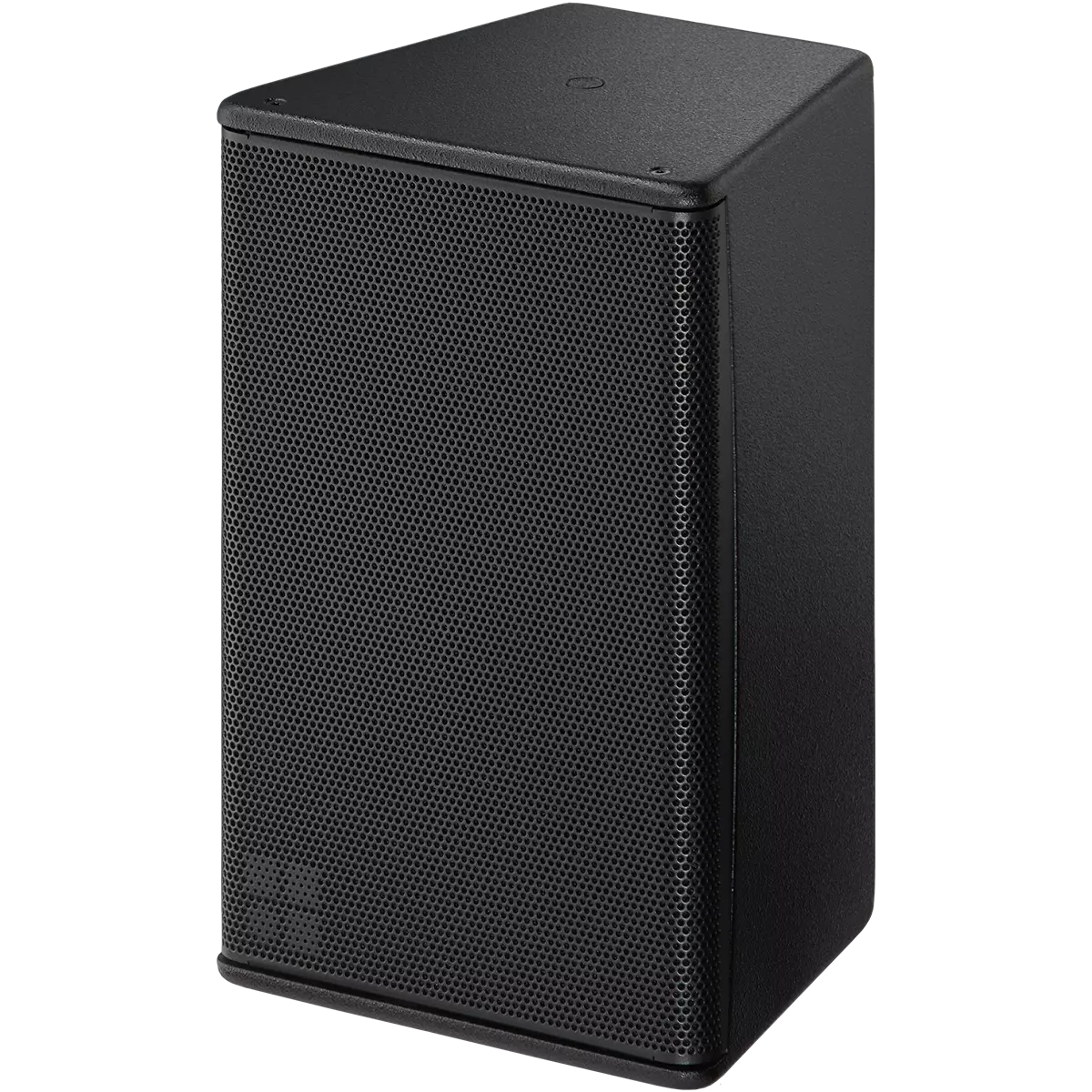

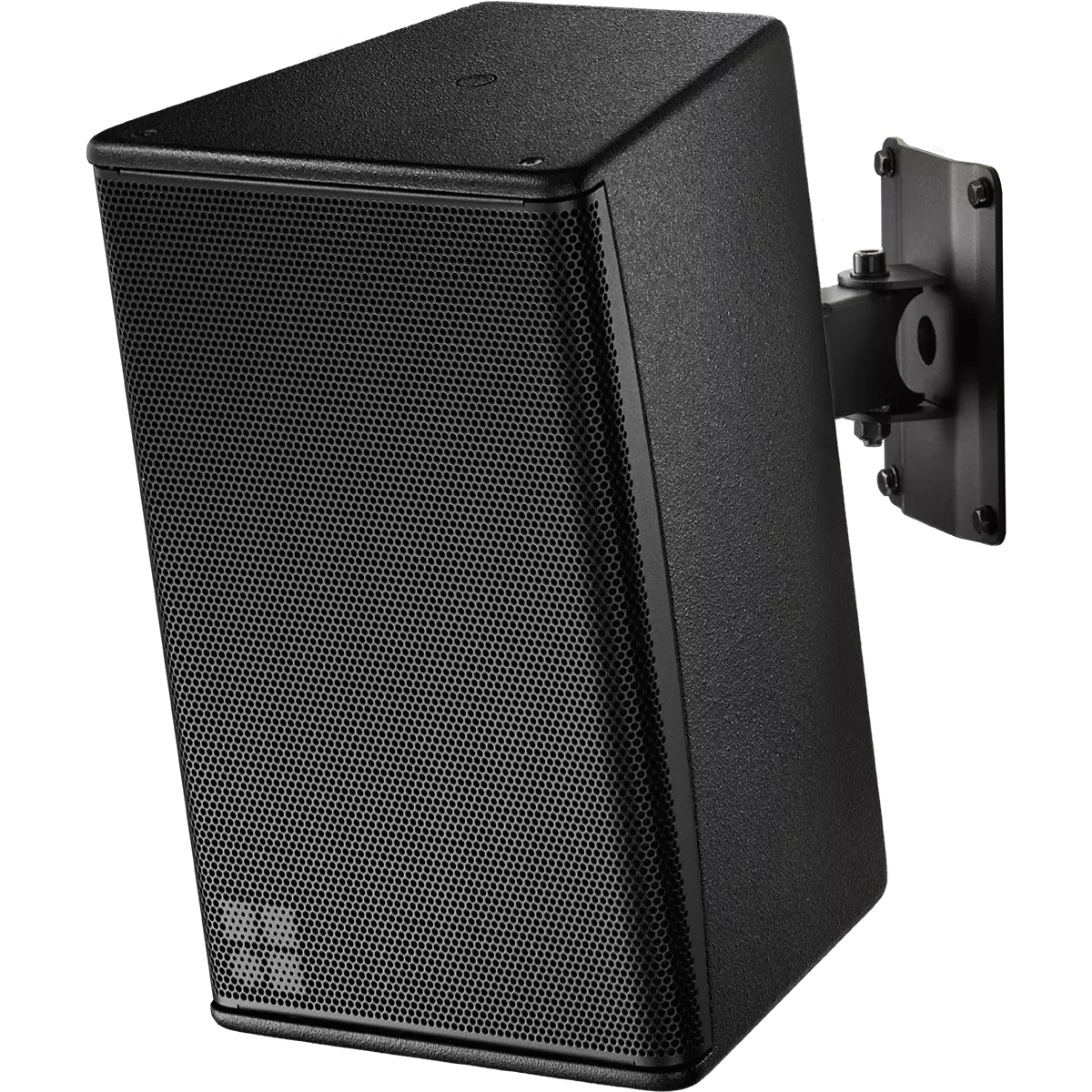

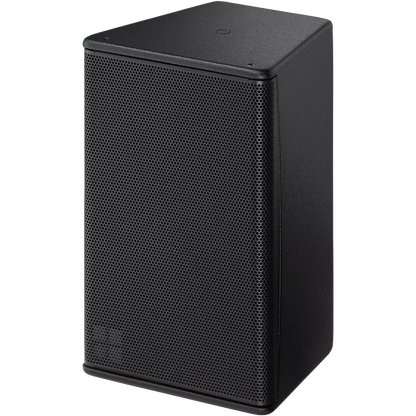

d&b audiotechnik 8S Loudspeaker
The 8S is a full range, 2-way loudspeaker in a bass-reflex enclosure, utilising an 8"/1" coaxial driver combination with a passive crossover. It offers a symmetrical dispersion pattern, with its frequency response available from 70 Hz to 20 kHz.
The 8S is ideal in a full range system and can also be supplemented by subwoofers from the xS-Series.
The 8S is available weather-resistant.
Features:
- Components: 8"/1"
- Dispersion: 100° conical
- SPLmax: 127 dB
- Weight: 7.4 kg / 16 lb
Specifications:
- System data:
- Frequency response (-5 dB standard): 70 Hz - 20 kHz
- Frequency response (-5 dB CUT mode): 110 Hz - 20 kHz
- Max. sound pressure:
- with 10D: 124 dB
- with D20/5D/30D: 127 dB
- with D40/D80/40D: 127 dB
- Cabinets per amplifier channel: 3
- Loudspeaker data:
- Configuration: Installation specific 2-way compact coaxial loudspeaker
- Nominal impedance: 12 Ω
- Power handling capacity (RMS/peak 10 ms): 150/800 W
- Nominal dispersion angle (h x v): 100° conical
- Components:
- 8" driver with neodymium magnet
- 1" compression driver coaxially mounted
- passive crossover network

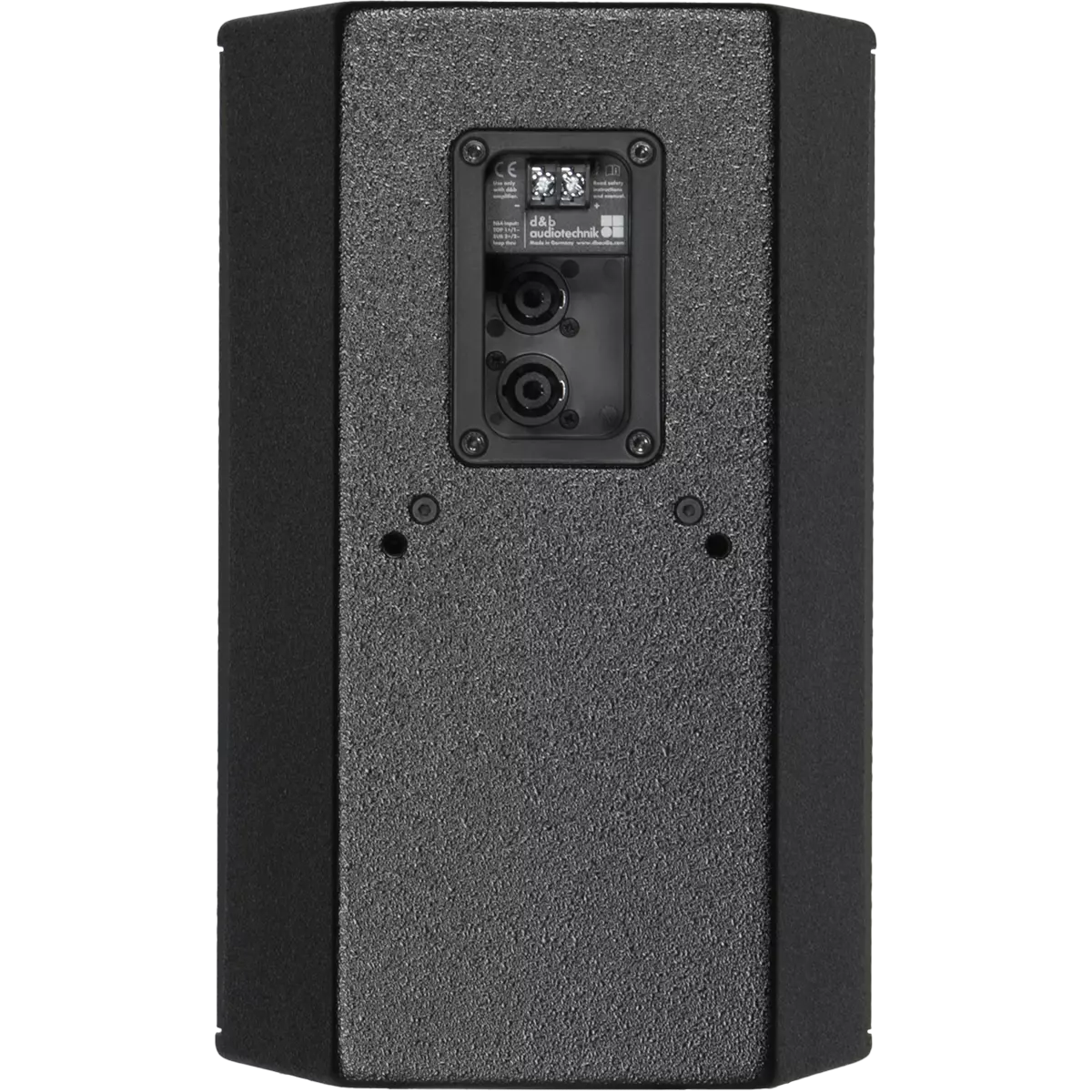

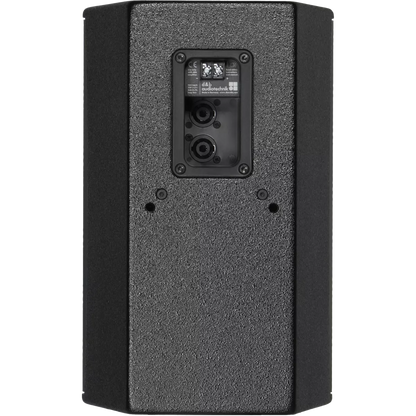

- Connections:
- 2 x NL4
- screw terminal block
- Dimensions / Weight:
- Dimensions (H x W x D): 352 x 224 x 205 mm / 13.9 x 8.8 x 8.1"
- Weight: 7.4 kg / 16 lb
- System data:
- Frequency response (-5 dB standard): 70 Hz - 20 kHz
- Frequency response (-5 dB CUT mode): 110 Hz - 20 kHz
- Max. sound pressure:
- with 10D: 124 dB
- with D20/5D/30D: 127 dB
- with D40/D80/40D: 127 dB
- Cabinets per amplifier channel: 3
- Loudspeaker data:
- Configuration: Installation specific 2-way compact coaxial loudspeaker
- Nominal impedance: 12 Ω
- Power handling capacity (RMS/peak 10 ms): 150/800 W
- Nominal dispersion angle (h x v): 100° conical
- Components:
- 8" driver with neodymium magnet
- 1" compression driver coaxially mounted
- passive crossover network
- Connections:
- 2 x NL4
- screw terminal block
- Dimensions / Weight:
- Dimensions (H x W x D): 352 x 224 x 205 mm / 13.9 x 8.8 x 8.1"
- Weight: 7.4 kg / 16 lb
