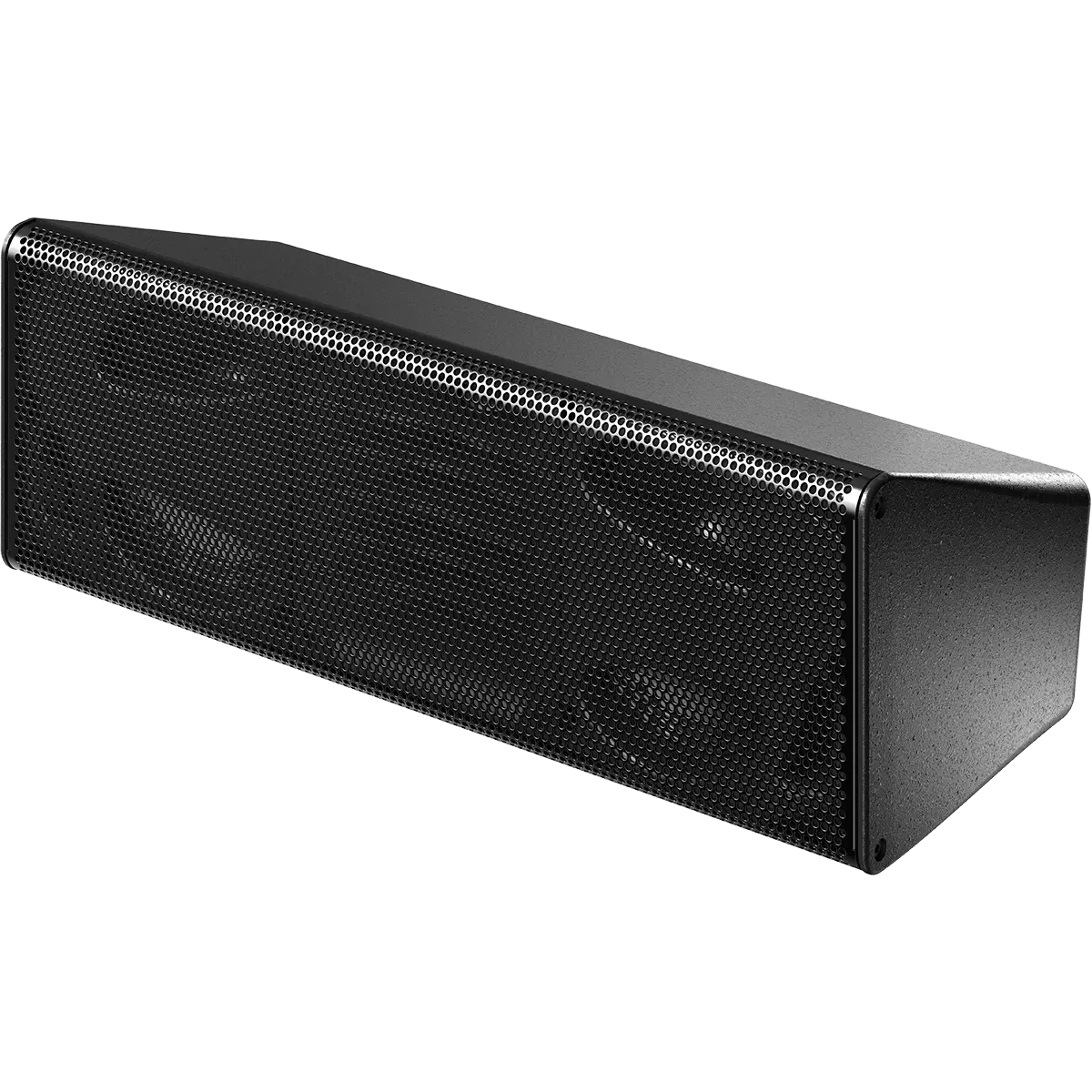

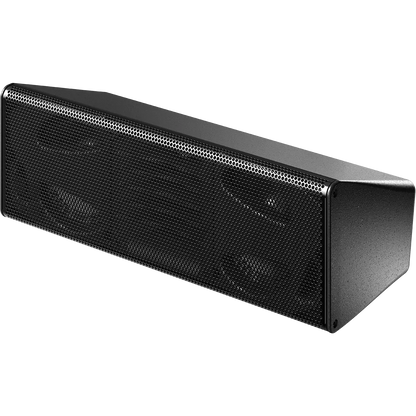

d&b audiotechnik 44S Loudspeaker

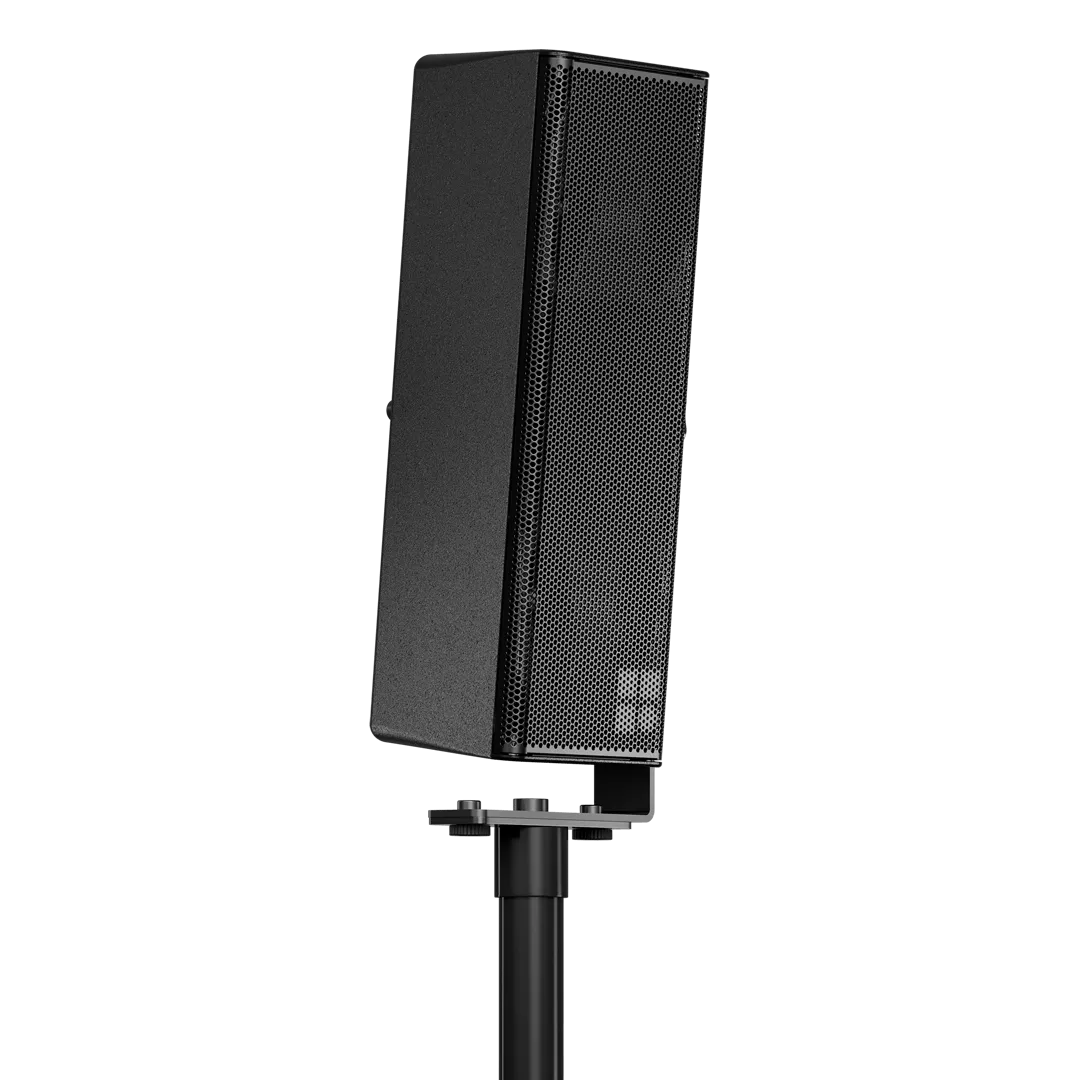

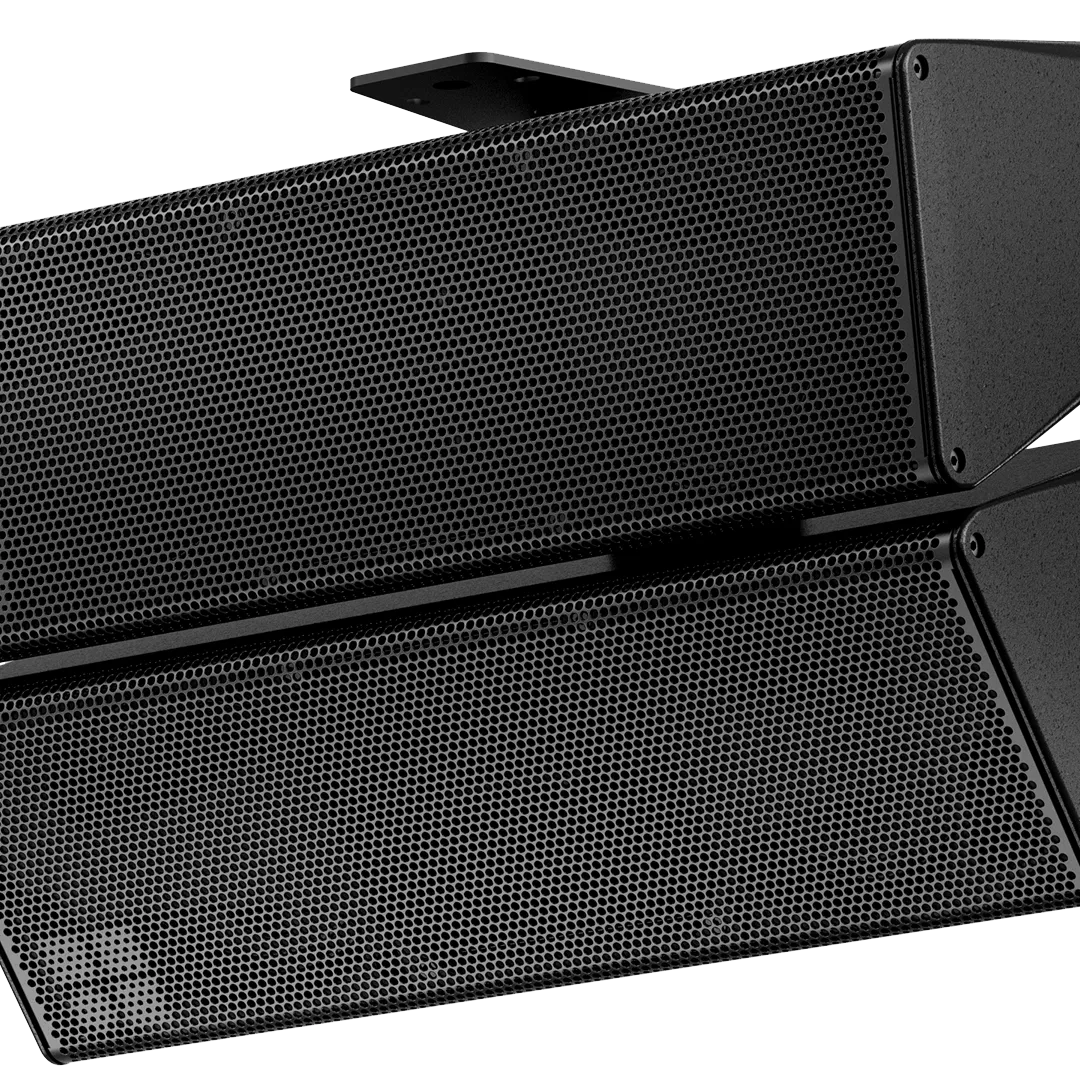

The 44S is a passive 2-way system featuring two 4.5” neodymium LF drivers and two 1.25” HF dome tweeters integrated into a rotatable CD horn. This design offers a versatile 90° x 30° dispersion pattern.

The 44S is ideal for standalone use or combined with actively driven d&b subwoofers.

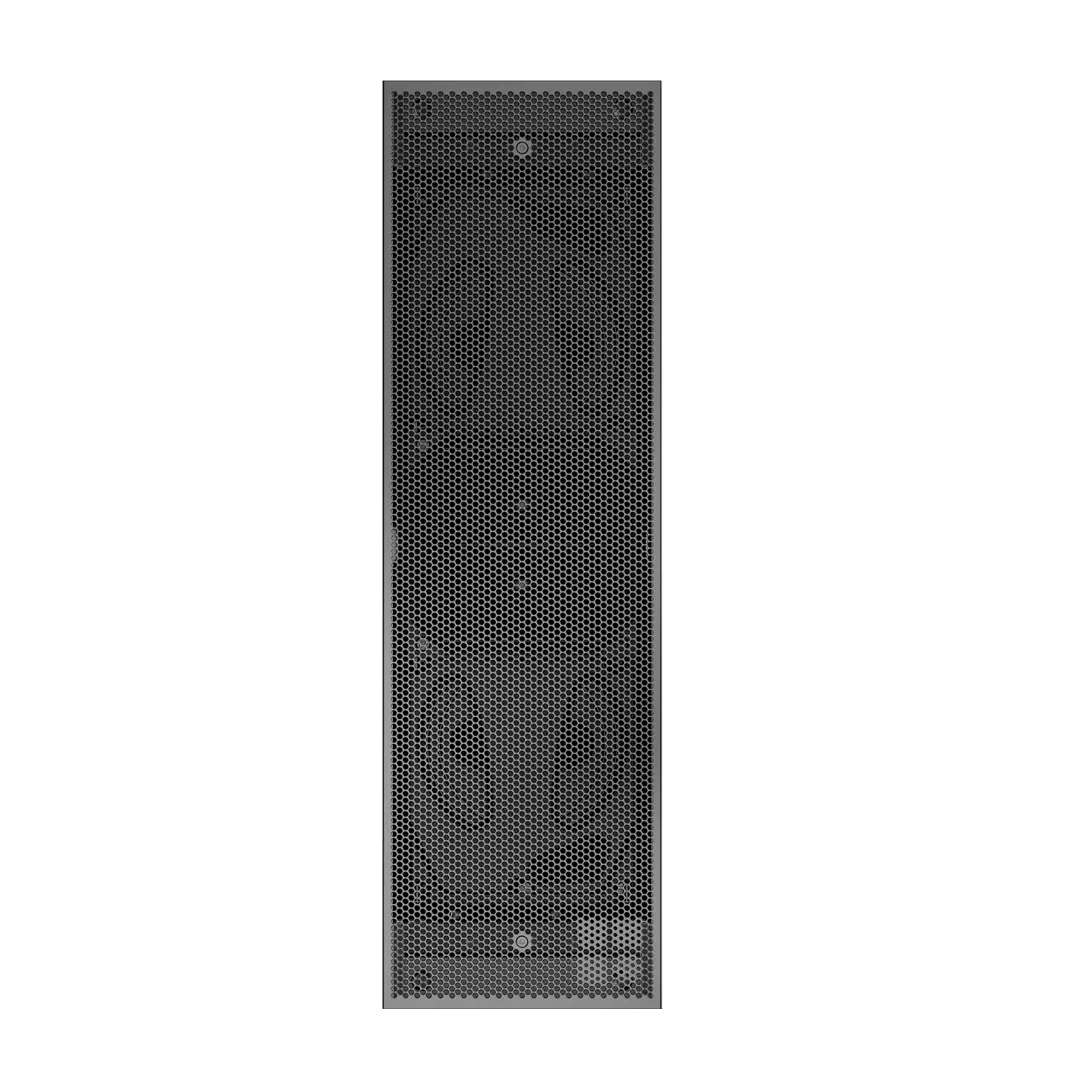

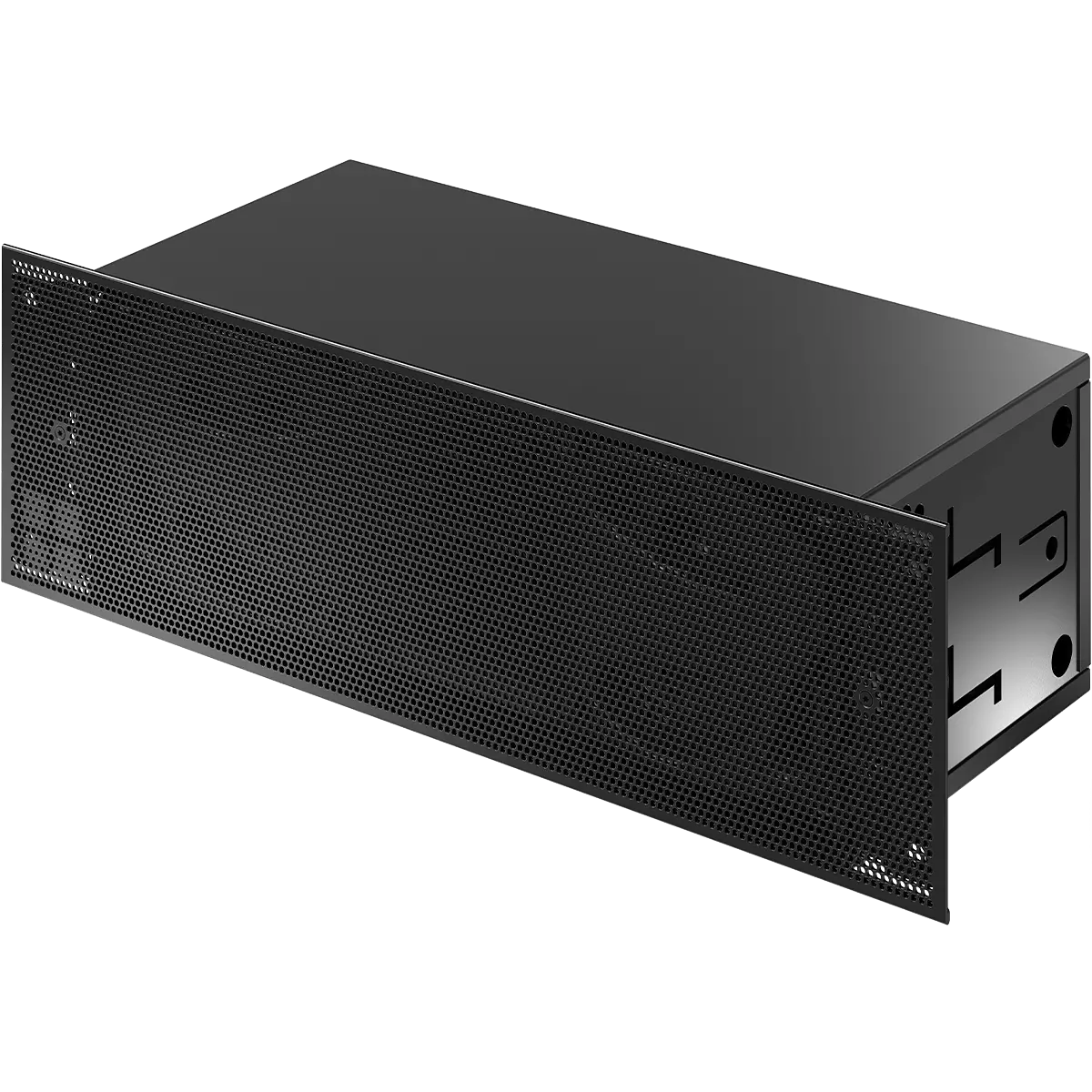

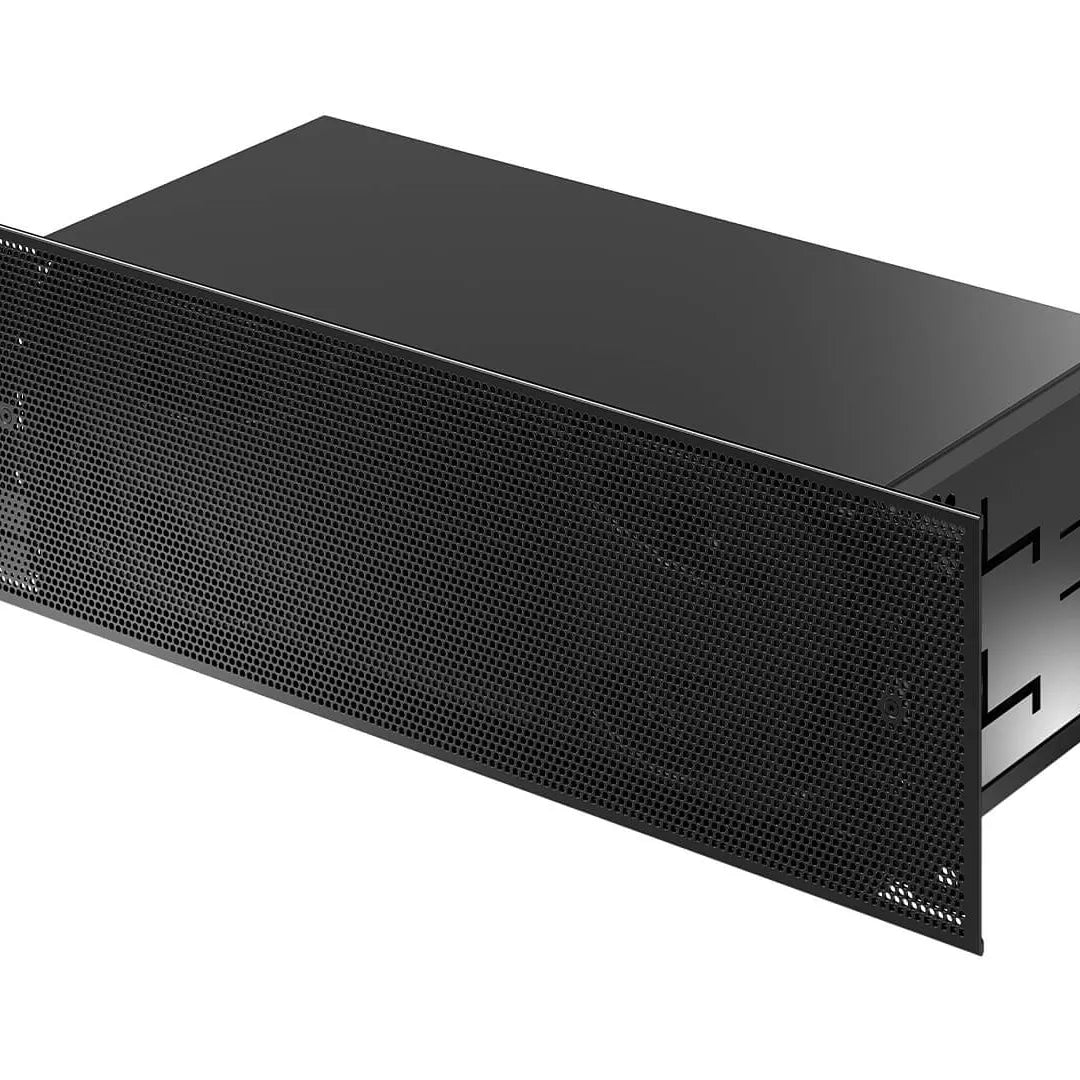

The 44S is available in black, white, Flushmount Version or weather-resistant.

Features:

• Components 2 x 4.5″, 2 x 1.25″
• Dispersion 90° x 30° rotatable
• SPLmax 123 dB
• Weight 3.6 kg (8 lb)

Specifications:

• System data:
  • Frequency response (-5 dB standard): 90 Hz - 17 kHz
  • Frequency response (-5 dB CUT mode): 150 Hz - 17 kHz
  • Max. sound pressure:
    • with 10D: 121 dB
    • with D20/5D/30D: 123 dB
    • with D40/D80/40D: 123 dB
  • Cabinets per amplifier channel: 4
• Loudspeaker data:
  • Configuration: Compact universal high performance 2-way loudspeaker with an asymmetric cabinet shape
  • Nominal impedance: 16 ohms
  • Power handling capacity (RMS/peak 10 ms): 150/500 W
  • Nominal dispersion angle (h x v): 90° x 30°
  • Components:
    • 2 x 4.5″ driver with neodymium magnet
    • 2 x 1.25″ dome tweeter mounted on CD horn

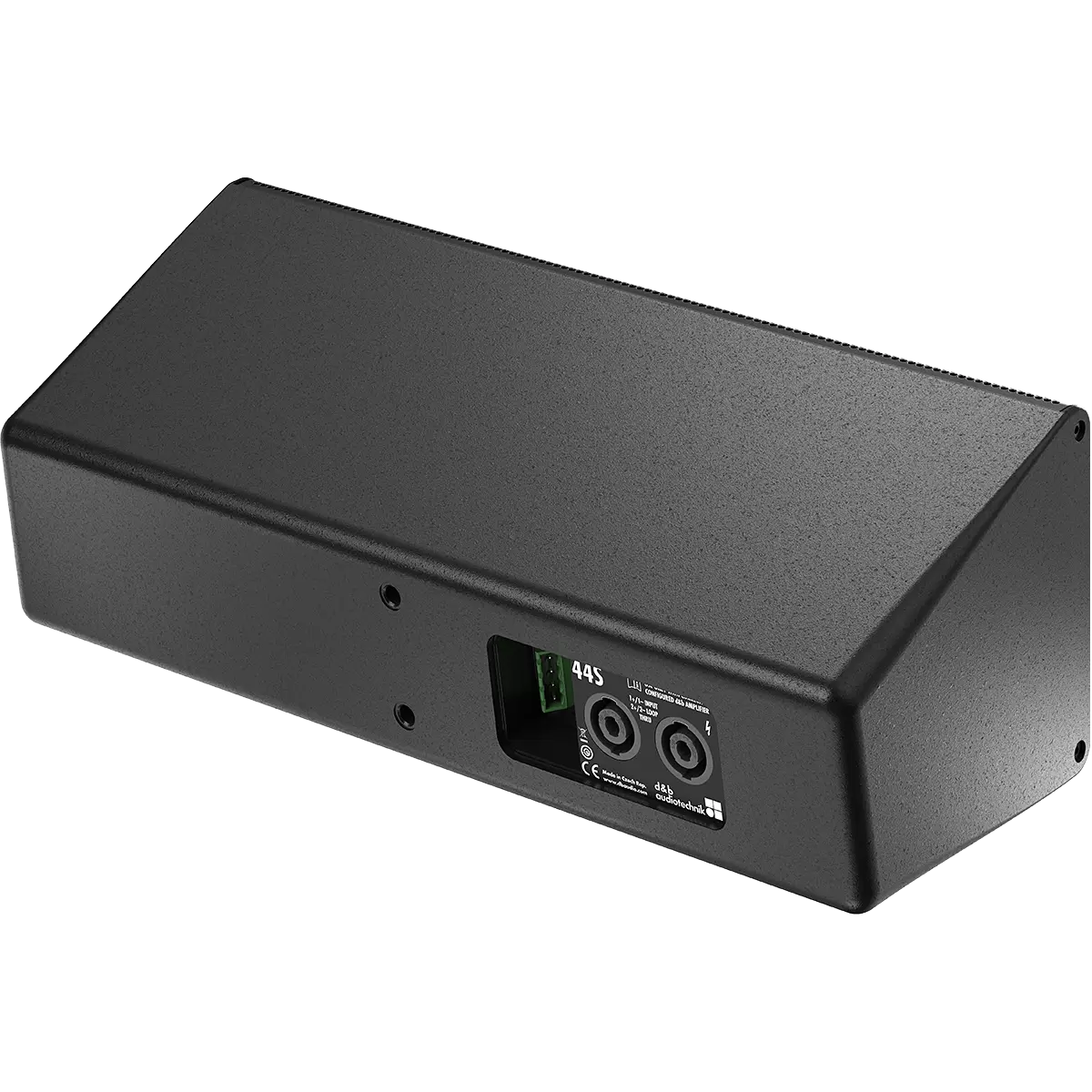

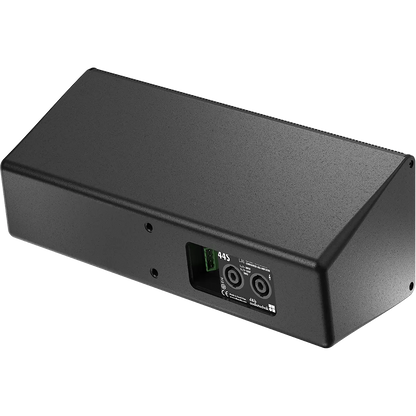

  • Connections: 4-pin Phoenix Euroblock and 2 x NL4 M
• Dimensions / Weight:
  • Dimensions (H x W x D):
  • 390 x 128 x 150 mm

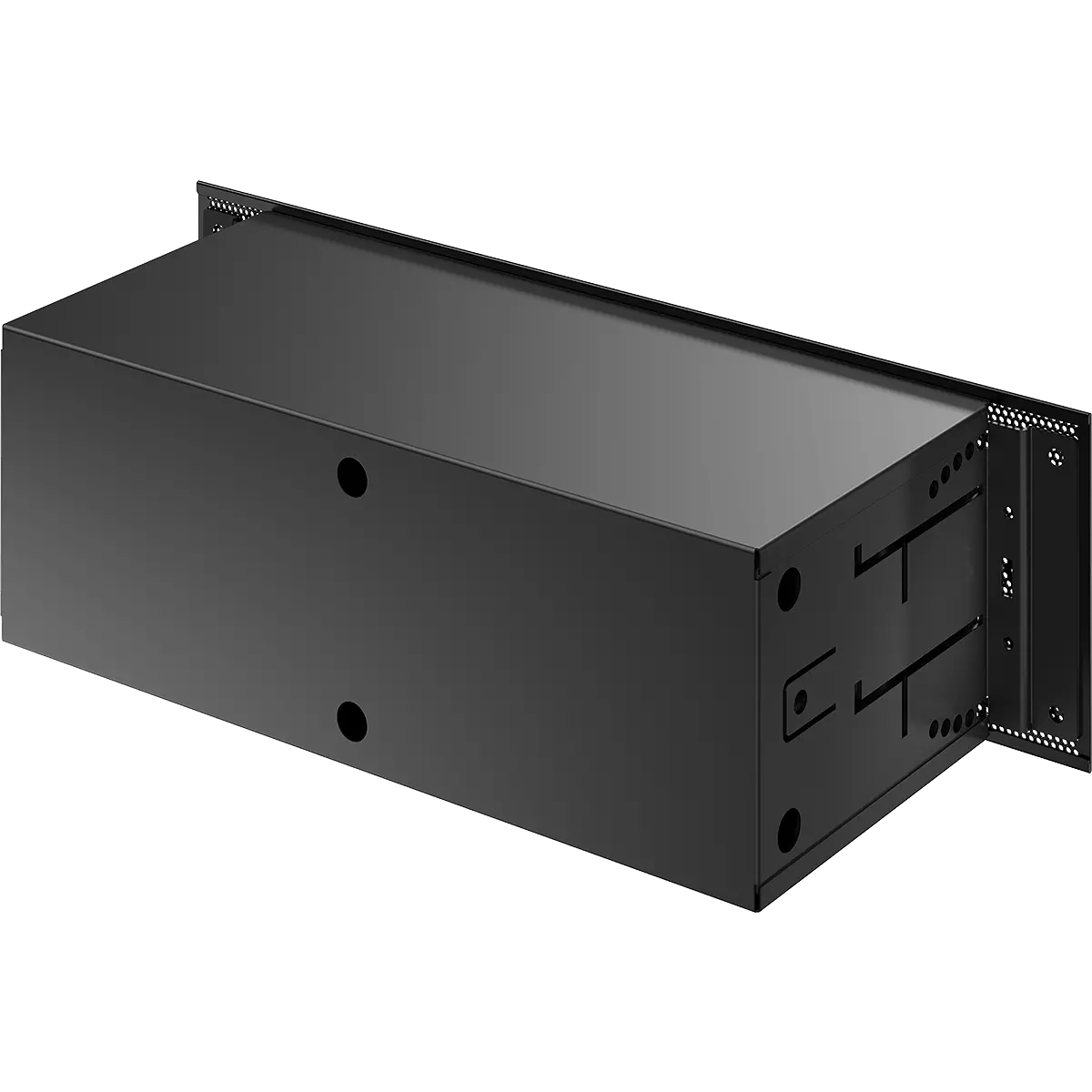

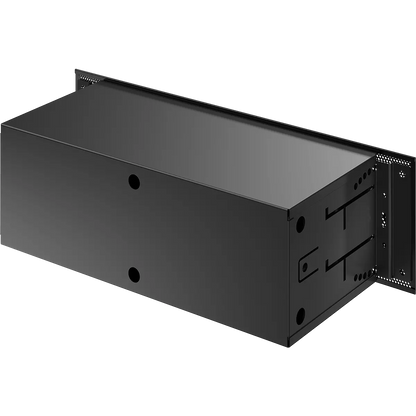

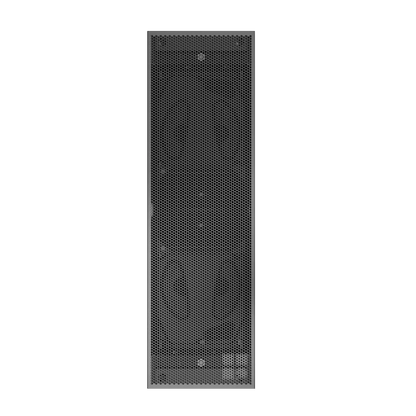

  • 480 x 140 x 180 mm with Backbox
  • 15.3 x 5 x 5.9″
  • 18.9 x 5.5 x 7.1″ with Backbox
  • Weight:
  • 3.6 kg
  • 6.2 kg with Backbox
  • 8 lb
  • 13.7 lb with Backbox
