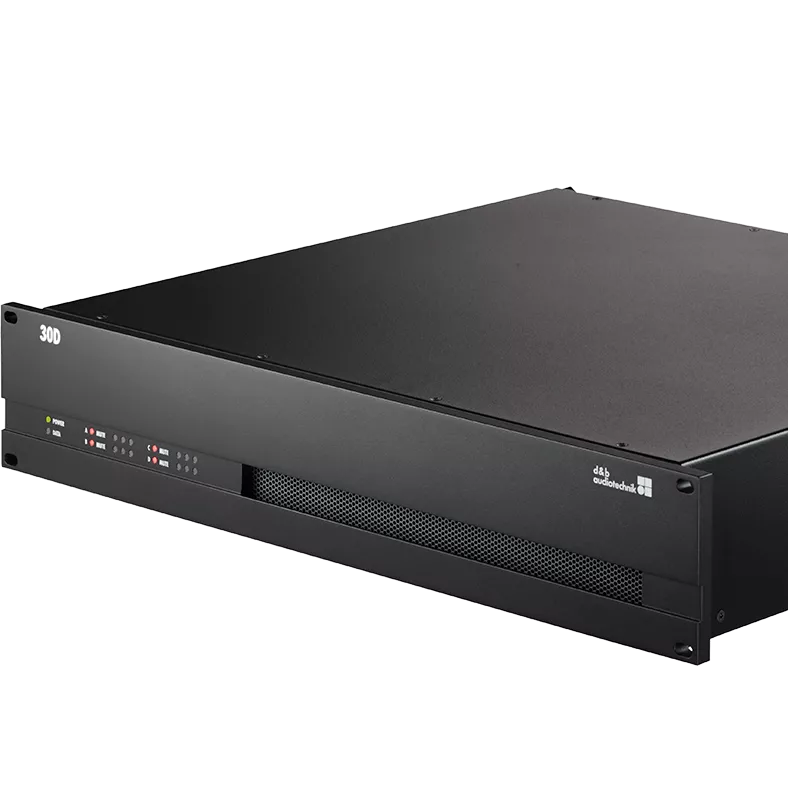

d&b audiotechnik 30D Installation Specific Four Channel Amplifier

The d&b audiotechnik 30D is a four-channel installation amplifier engineered for medium-high SPL permanent systems.

Built on d&b's latest DSP platform, it delivers comprehensive signal processing with dual 16-band EQs, parametric/shelving/notch filters, and up to 10 seconds of delay per channel. Per-channel input gain, GPIO, and General Fault connectors enable seamless system integration and safety monitoring. Input, Load, and System Check functions verify loudspeaker and speaker cable health in real time. LoadMatch technology compensates for cable losses without additional conductors, preserving tonal accuracy across extended cable runs. Control via Ethernet (OCA/AES70) or CAN-Bus through the web interface or R1 Remote software provides flexible system management.

Class D amplification with active PFC ensures stable operation on weak mains supplies (100/127 V and 208/240 V, 50–60 Hz).

The amplifier accepts 4 analogue and 4 AES/EBU digital inputs on Euroblock connectors, with all 8 inputs available for simultaneous use, summing, and flexible routing to any output.

Features:

Maximum output power 4 x 1600 W into 4 Ω
All current d&b loudspeaker setups except SL-Series
5 freely assignable GPIOs (General Purpose Input Output) + General fault

Specifications:

Digital Signal Processing:

Equalizer: 2 x 16-band PEQ/notch/shelving/asymmetric
Latency Analog and Digital Inputs: 0.3 ms
Delay Setting: 0.3 ms - 10 s
Configurations: Current d&b loudspeakers (except SL-Series) and linear mode
Function Switches: d&b loudspeaker specific circuits
Frequency Generator: Pink noise or Sine wave 10 Hz - 20 kHz
SRC (Sample Rate Converter): Selectable for AES 1/2 and 3/4
Sampling Rate: 96 kHz/27 Bit ADC/24 Bit DAC

Controls and Indicators:

Power: Mains power switch (rear panel)
ISP, GR, OVL A/B: LED indicators

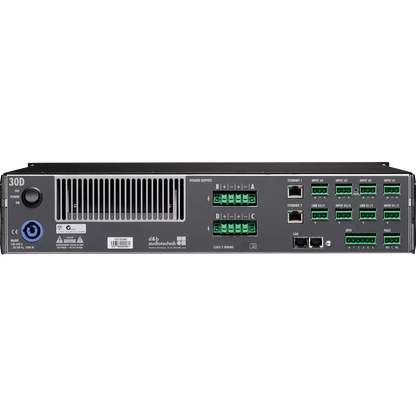

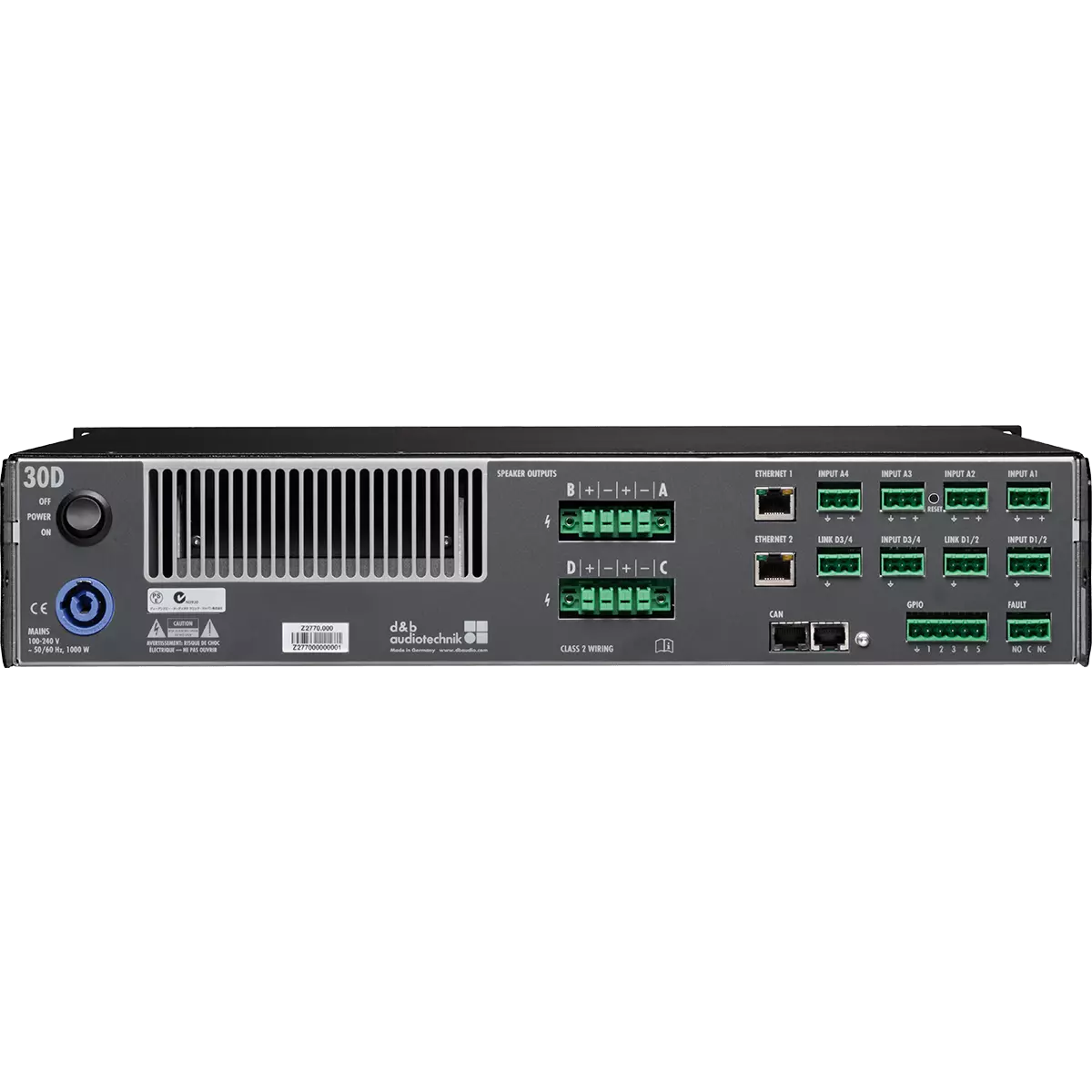

Connectors:

INPUT ANALOG (A1 - A4): 3-pin Phoenix Euroblock male
ANALOG LINK (A1 - A4): 3-pin Phoenix Euroblock male
INOUT DIGITAL (D1/2, D3/4): 3-pin Phoenix Euroblock male, AES3
DIGITAL LINK (Outout): 3-pin Phoenix Euroblock male
Sampling Digital AES/EBU: 48 kHz/96 kHz
Mix TOP/SUB / 2-Way Active Output A/B and C/D: 2 x 4-pin Phoenix Euroblock female
Sampling Rate: 48/96 kHz / 2 Ch/n
GPIO (General Purpose Input Output): 1 x 6-pin Phoenix Euroblock male
CAN: 2 x RJ 45 parallel
Ethernet: 2 x RJ 45, 10/100 Mbit Ethernet
FAULT: 1 x 3-pin Phoenix Euroblock male
Speaker Outputs A/B/C/D: 2 x 4-pin Phoenix Euroblock female
Mains Connector: powerCON

Data (Linear Setting with Subsonic Filter):

Maximum Output Power per Channel (THD+N < 0.5%, All Channels Driven)
CF = 6 dB at 4 / 8 ohms: 4 x 1000/800 W
CF = 12 dB at 4 / 8 ohms: 4 x 1600/800 W
S/N Ratio (Unweighted, RMS)
Analog input: > 104 dBr
Digital input: > 106 dBr
