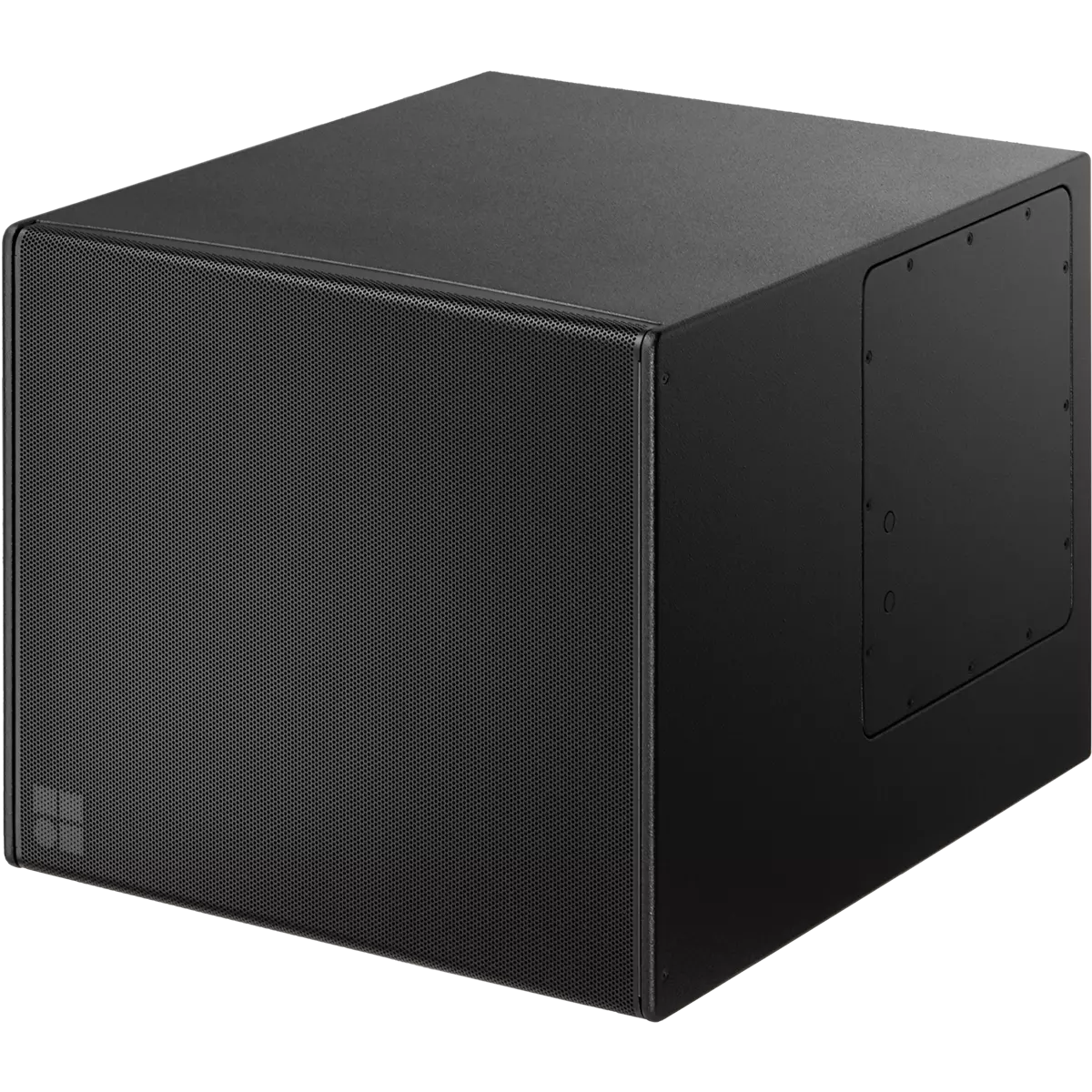

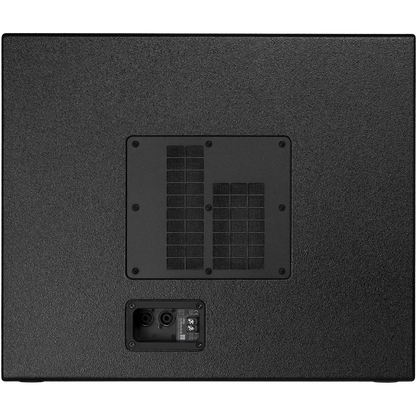

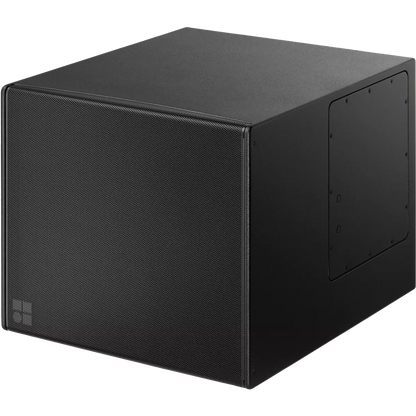

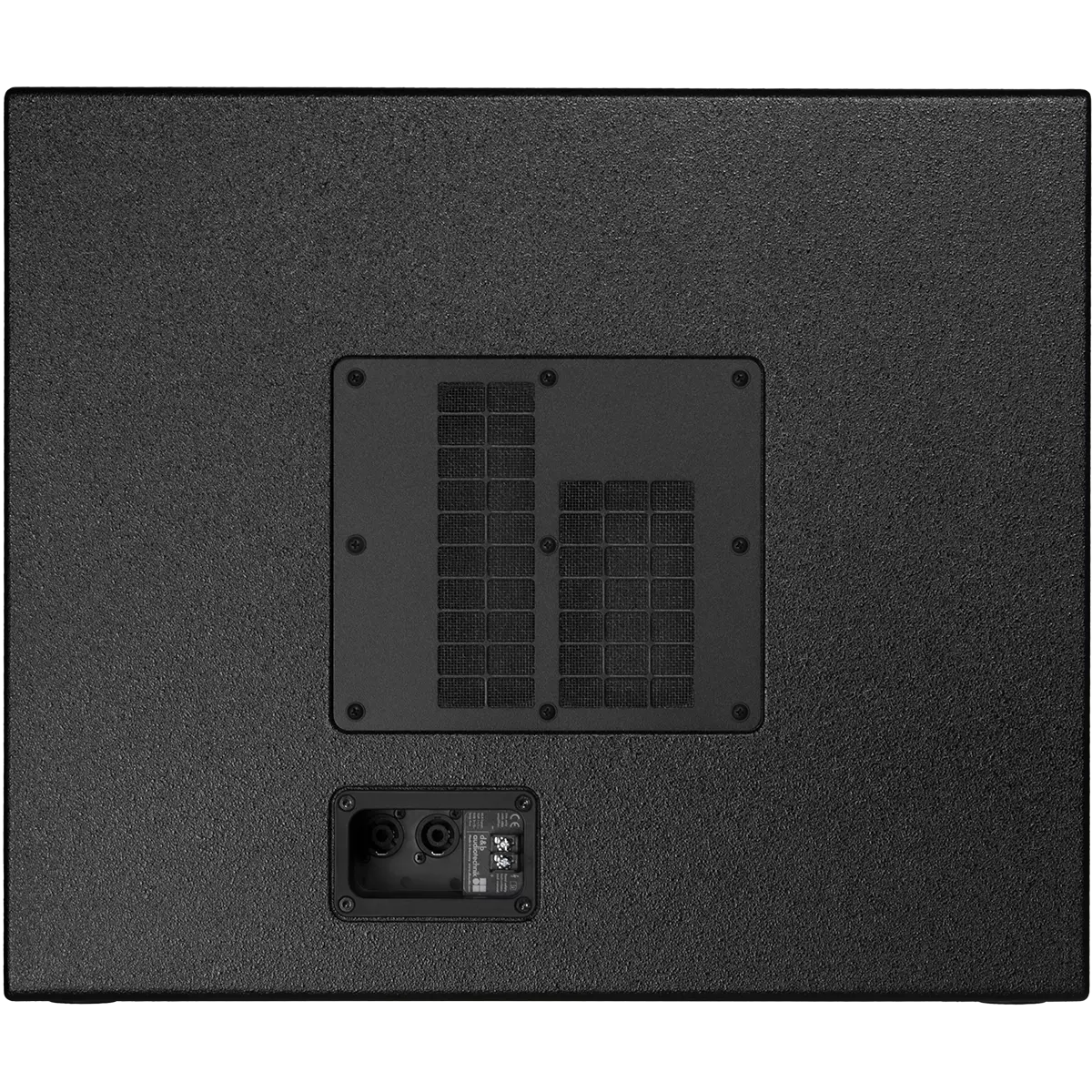

d&b audiotechnik 27S-Sub Subwoofer
The 27S-Sub is a high-performance subwoofer designed to complement xS-Series and xA-Series loudspeakers and is powered by a single amplifier channel. It features two long excursion neodymium drivers in an integrated cardioid setup: a 15“ driver in a bass-reflex design facing to the front and a 12” driver in a two chamber bandpass design radiating to the rear.
The 27S-Sub can be ground stacked or flown.
The 27S-Sub is available weather-resistant.
Features:
- Components 15"/12"
- Dispersion Cardioid
- SPLmax 131 dB
- Weight 41 kg / 90 lb
Specifications:
- System data:
- Frequency response (-5 dB standard): 40 - 140 Hz
- Frequency response (-5 dB CUT mode): 40 - 100 Hz
- Max. sound pressure:
- with 10D: 128 dB
- with D20/5D/30D: 131 dB
- with D40/D80/40D: 131 dB
- Cabinets per amplifier channel: 2
- Loudspeaker data:
- Configuration: Installation specific cardioid subwoofer
- Nominal impedance: 6 Ω
- Power handling capacity (RMS/peak 10 ms): 500/2000 W
- Nominal dispersion angle (h x v): 110° x 55° rotatable
- Components:
- 15" driver with neodymium magnet front
- 12" driver with neodymium magnet rear
- Connections:
- 2 x NL4
- screw terminal block
- Dimensions / Weight:
- Dimensions (H x W x D): 490 x 580 x 700 mm / 19.3 x 22.8 x 27.6"
- Weight: 41 kg / 90 lb
