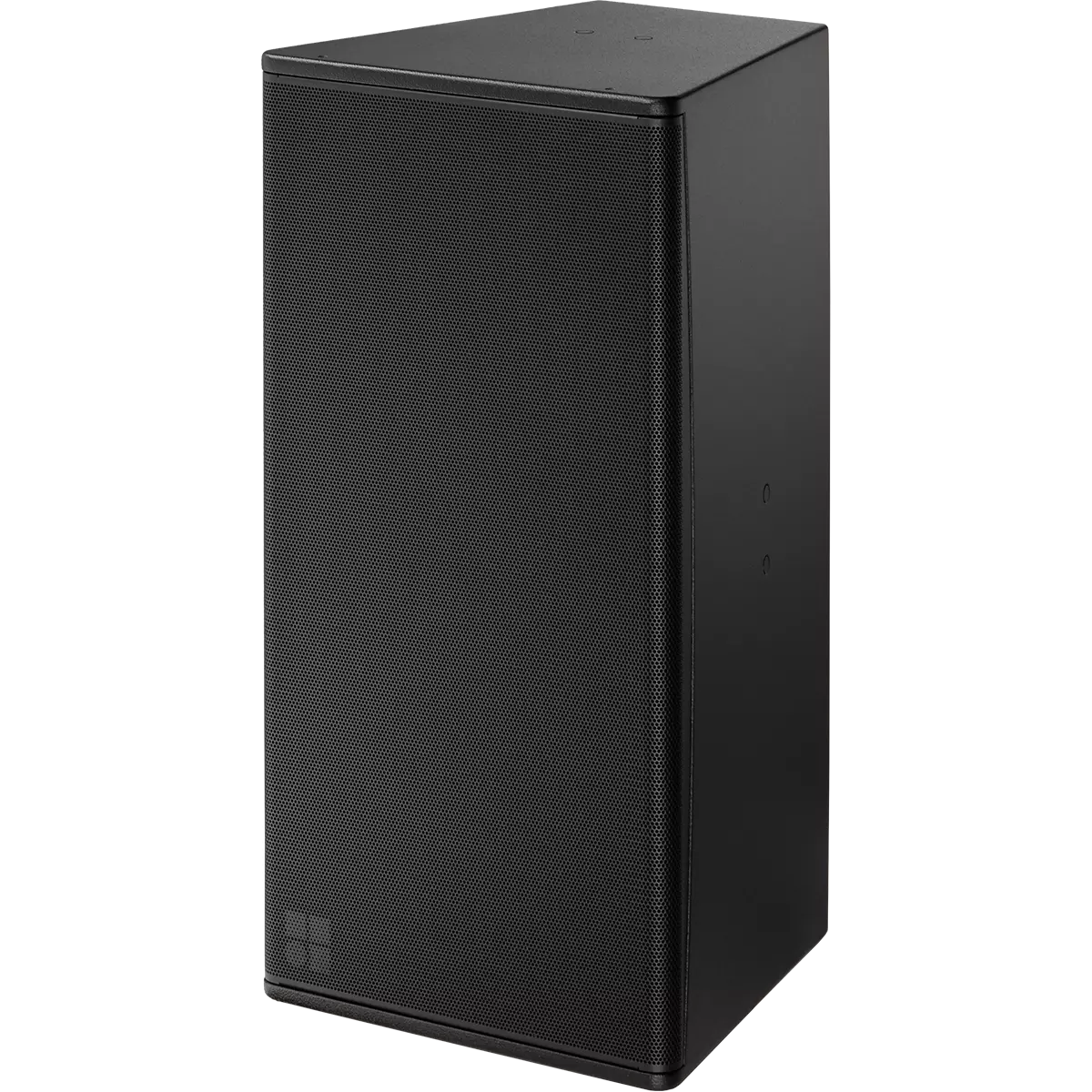

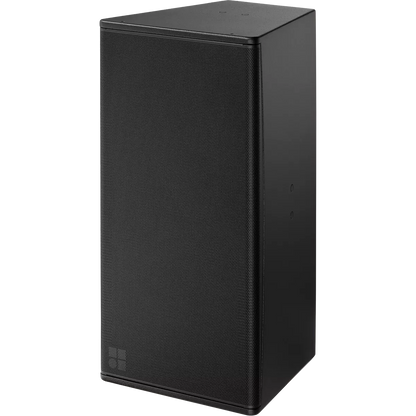

d&b audiotechnik 24S Loudspeaker

The 24S is a 2-way passive system featuring two 12” drivers in a bass-reflex enclosure and a 1.4” exit compression driver paired with a large rotatable CD horn. Its dipolar driver arrangement provides directivity control down to 500 Hz.

The 24s covers frequencies from 55 Hz to 18 kHz, and functions effectively as a standalone full-range speaker or in combination with d&b subwoofers. Also, the loudspeaker can be ground stacked or flown individually.

The rotatable HF horn can be adjusted 90° to support both vertical and horizontal orientations.

The 24S is available weather-resistant.

Features:

• Components 2 x 12"/1.4"
• Dispersion 75° x 45°
• SPLmax 138 dB
• Weight 33 kg / 73 lb

Specifications:

• System data:
  • Frequency response (-5 dB standard): 55 Hz - 18 kHz
  • Frequency response (-5 dB CUT mode): 90 Hz - 18 kHz
  • Max. sound pressure:
    • with D20/30D: 138 dB
    • with D40/D80/40D: 138 dB
  • Cabinets per amplifier channel: 1
• Loudspeaker data:
  • Configuration: Installation specific high performance full range 2-way loudspeaker
  • Nominal impedance: 4 Ω
  • Power handling capacity (RMS/peak 10 ms): 500/2000 W
  • Nominal dispersion angle (h x v): 75° x 45° rotatable
  • Components:
    • 2 x 12“ driver with neodymium magnet
    • 1.4” exit compression driver
    • Passive crossover network

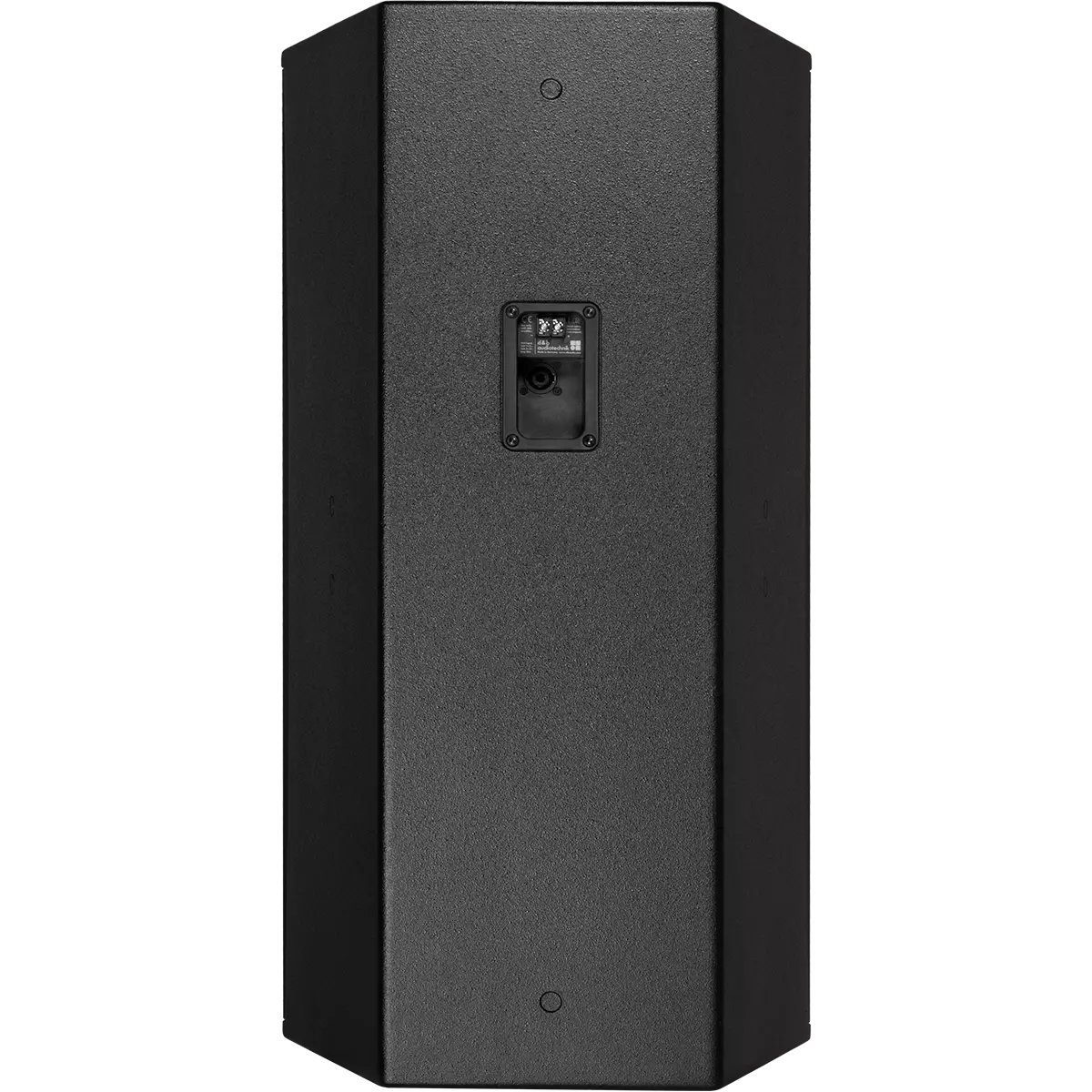

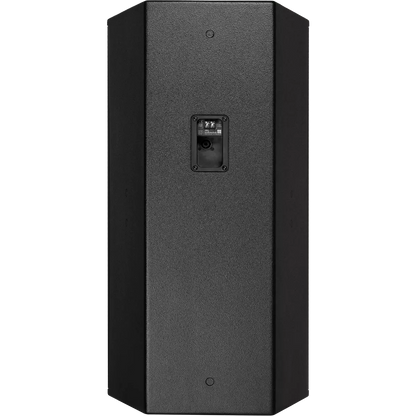

  • Connections:
    • 1 x NL4
    • 1 x screw terminal block
• Dimensions / weight:
  • Dimensions (H x W x D): 800 x 410 x 420 mm / 31.5 x 16 x 16.5”
  • Weight: 33 kg / 73 lb
