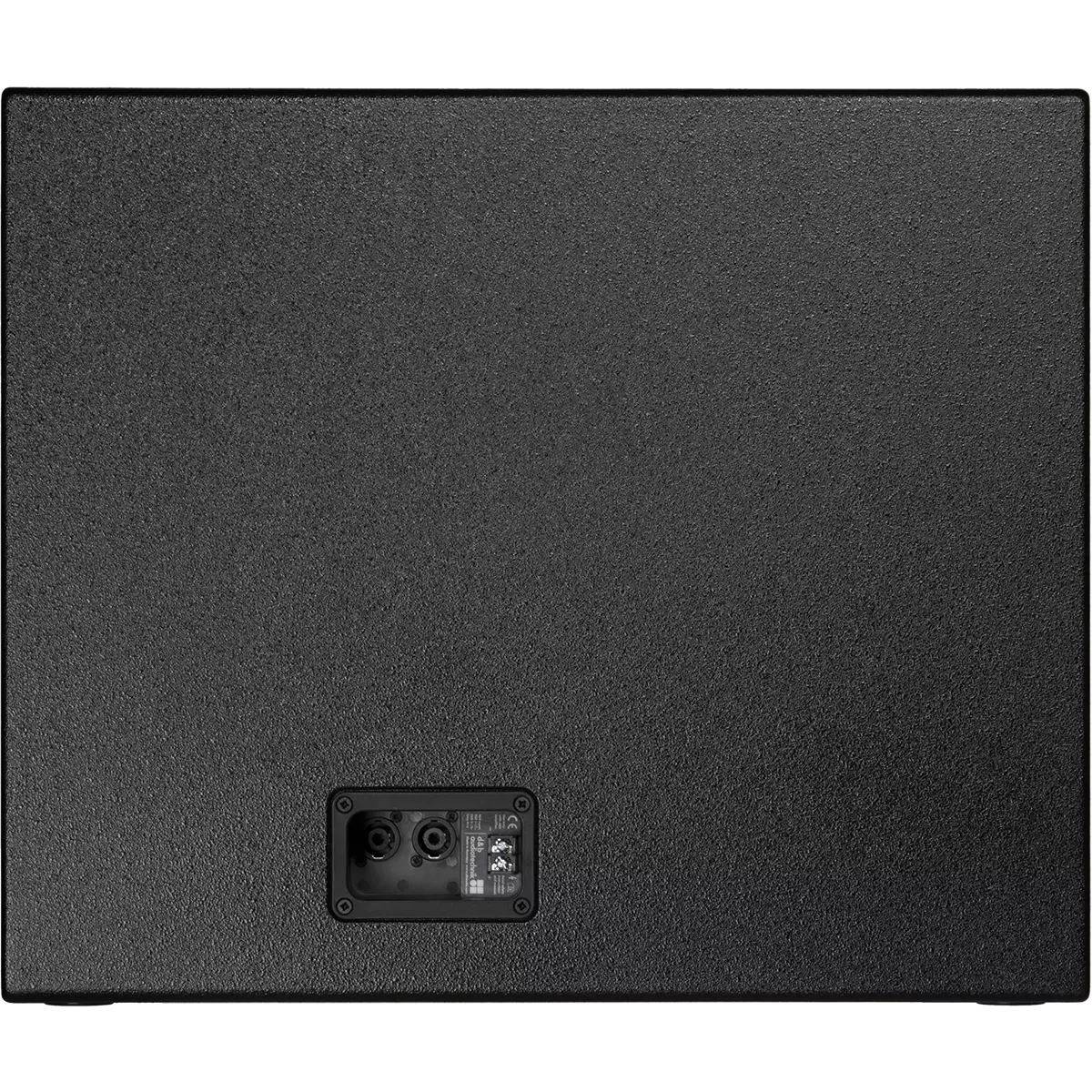

d&b audiotechnik 18S Subwoofer Installation Specific Compact Subwoofer
The 18S-Sub is a compact, high-performance subwoofer designed to complement xS-Series and xA-Series loudspeakers. It features a long-excursion 18" neodymium driver in a bass-reflex design.
The 18S-Sub is designed to be versatile allowing itself for stand-alone use, stacking, or individual flying.
The 18S-Sub is available weather-resistant.
Features:
- Components 18"
- Dispersion Omni directional
- SPLmax 132 dB
- Weight 32 kg / 71 lb
Specifications:
- System data:
- Frequency response (-5 dB standard): 37 - 140 Hz
- Frequency response (-5 dB CUT mode): 37 - 100 Hz
- Max. sound pressure:
- with 10D: 129 dB
- with D20/5D/30D: 132 dB
- with D40/D80/40D: 132 dB
- Cabinets per amplifier channel: 2
- Loudspeaker data:
- Configuration: Installation specific compact subwoofer
- Nominal impedance: 8 Ω
- Power handling capacity (RMS/peak 10 ms): 400/1600 W
- Nominal dispersion angle (h x v): 110° x 55° rotatable
- Components: 18" driver with neodymium magnet
- Connections:
- 2 x NL4
- screw terminal block
- Dimensions / Weight:
- Dimensions (H x W x D): 490 x 580 x 700 mm / 19.3 x 22.8 x 27.6"
- Weight: 32 kg / 71 lb
