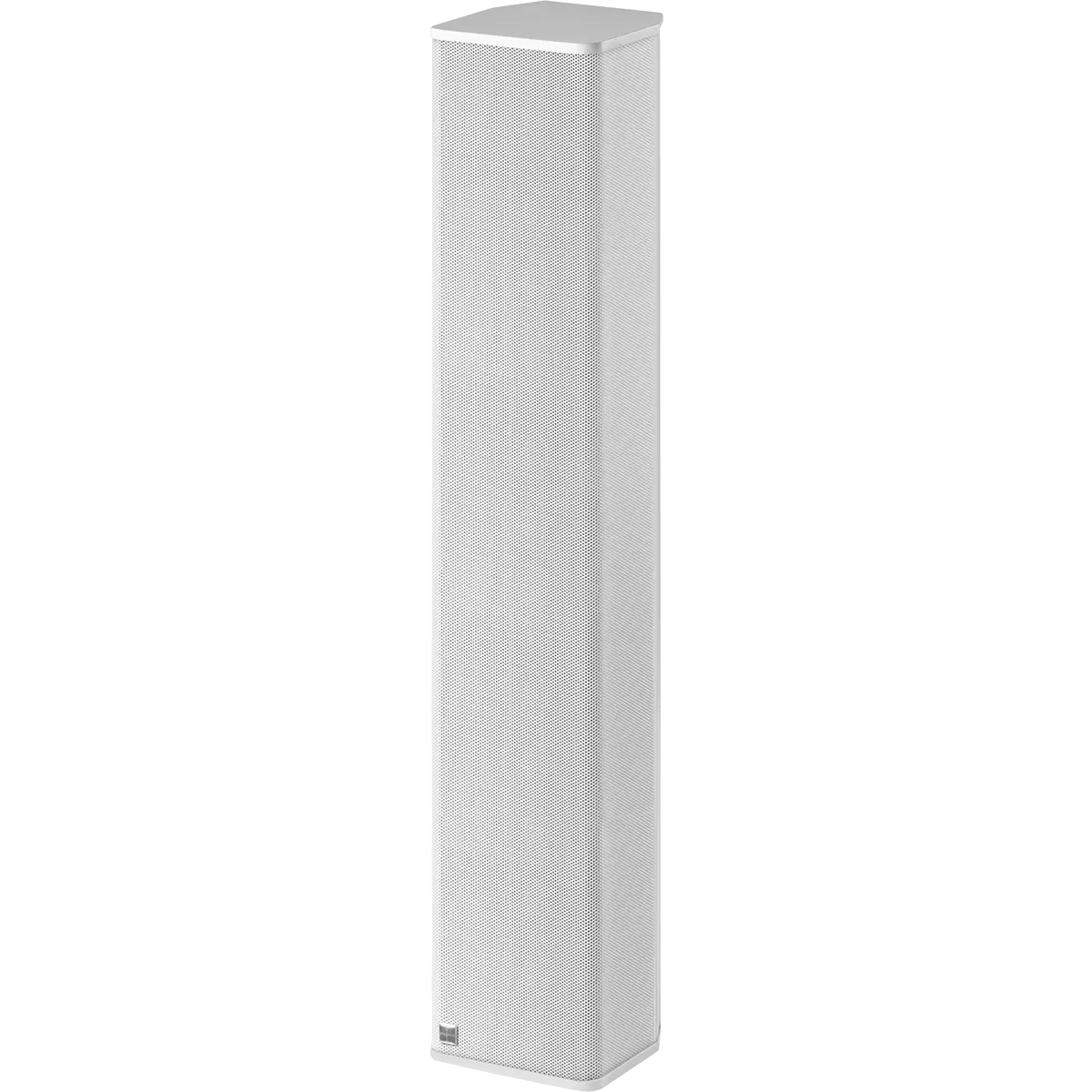

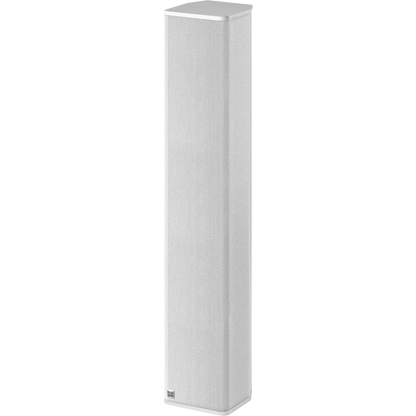

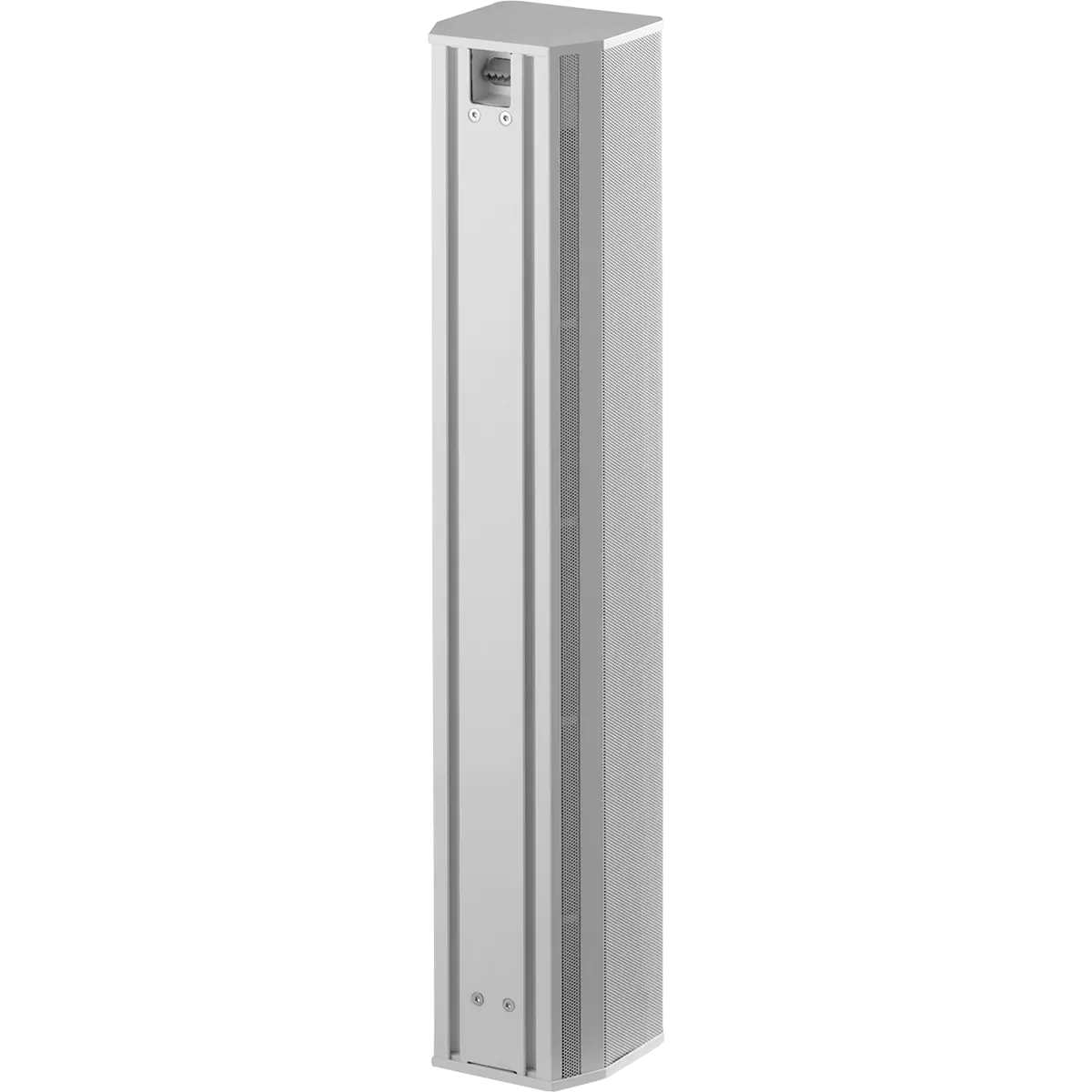

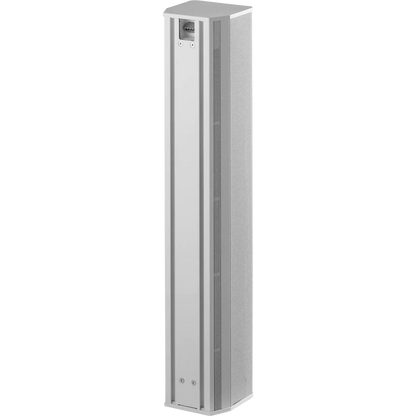

d&b audiotechnik 16C Loudspeaker
The 16C is a 2-way passive column speaker featuring four 4” neodymium drivers alongside a 0.75” compression driver on a CD horn.
The 16C covers 90° x 40° horizontal and vertical dispersion, while delivering a stable directivity pattern and approximately 18 dB rear.
The 16C is available weather-resistant.
Features:
- Components 4 x 4"/0.75"
- Dispersion 90° x 40°
- SPLmax 122 dB
- Weight 5 kg / 11 lb
Specifications:
- System data:
- Frequency response (-5 dB standard): 110 Hz - 18 kHz
- Max. sound pressure: 122 dB
- Cabinets per amplifier channel: 3
- Loudspeaker data:
- Configuration: Installation specific cardioid column loudspeaker
- Power handling capacity (RMS/peak 10 ms): 100/500 W
- Nominal dispersion angle (h x v): 90° x 40°
- Components:
- 4 x 4" driver with neodymium magnet
- 1 x 0.75" compression driver mounted on CD horn
- Passive crossover network
- Connections: 4-pole Phoenix terminal NL4
- Dimensions / Weight:
- Dimensions (H x W x D): 650 x 124.5 x 124 mm / 25.6 x 4.9 x 4.88"
- Weight: 5 kg / 11 lb
- System data:
- Frequency response (-5 dB standard): 110 Hz - 18 kHz
- Max. sound pressure: 122 dB
- Cabinets per amplifier channel: 3
- Loudspeaker data:
- Configuration: Installation specific cardioid column loudspeaker
- Power handling capacity (RMS/peak 10 ms): 100/500 W
- Nominal dispersion angle (h x v): 90° x 40°
- Components:
- 4 x 4" driver with neodymium magnet
- 1 x 0.75" compression driver mounted on CD horn
- Passive crossover network
- Connections: 4-pole Phoenix terminal NL4
- Dimensions / Weight:
- Dimensions (H x W x D): 650 x 124.5 x 124 mm / 25.6 x 4.9 x 4.88"
- Weight: 5 kg / 11 lb
