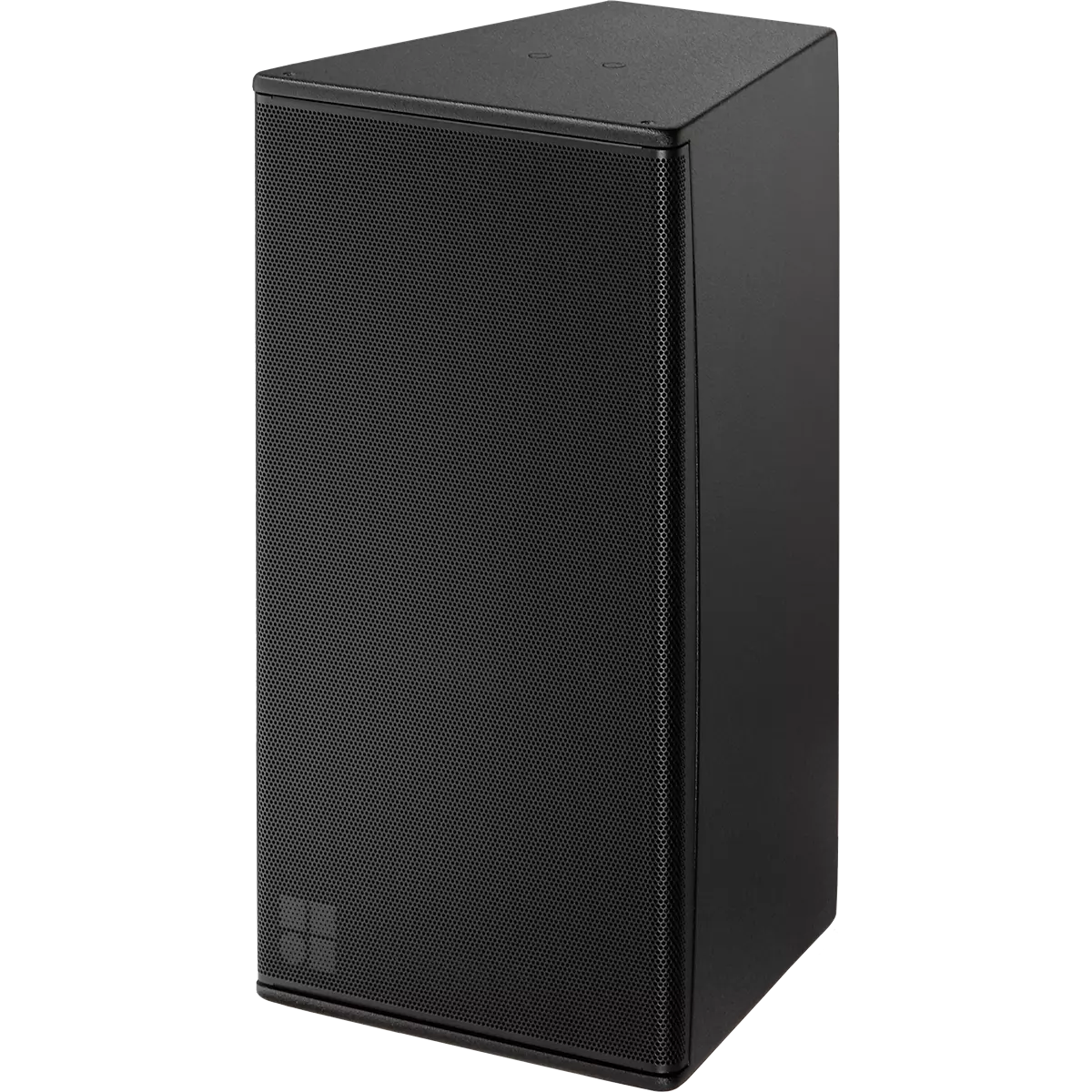

d&b audiotechnik 12S Loudspeaker

The 12S is a sophisticated 2-way system featuring a single 12” driver in a bass-reflex enclosure paired with advanced high-frequency sections. Its lightweight, passive design utilises neodymium drivers and large horns to deliver pattern control with rotatable dispersion options of 75° x 50° or 110° x 55°.

The 12S is equipped with a 1.4” exit compression driver, and offers an extended frequency response from 48 Hz to 18 kHz.

The 12S is available weather-resistant.

Features:

• Components 12"/1.4"
• Dispersion 75° x 50° rotatable
• SPLmax 133 dB
• Weight 17 kg / 37 lb

Specifications:

• System data:
  • Frequency response (-5 dB standard): 48 Hz - 18 kHz
  • Frequency response (-5 dB CUT mode): 100 Hz - 18 kHz
  • Max. sound pressure:
    • with 10D: 130 dB
    • with D20/5D/30D: 133 dB
    • with D40/D80/40D: 133 dB
  • Cabinets per amplifier channel: 2
• Loudspeaker data:
  • Configuration: Installation specific high performance 2-way loudspeaker
  • Nominal impedance: 8 Ω
  • Power handling capacity (RMS/peak 10 ms): 300/1600 W
  • Nominal dispersion angle (h x v): 75° x 50° rotatable
  • Components:
    • 12" driver with neodymium magnet 1.4" compression driver with CD horn passive crossover network

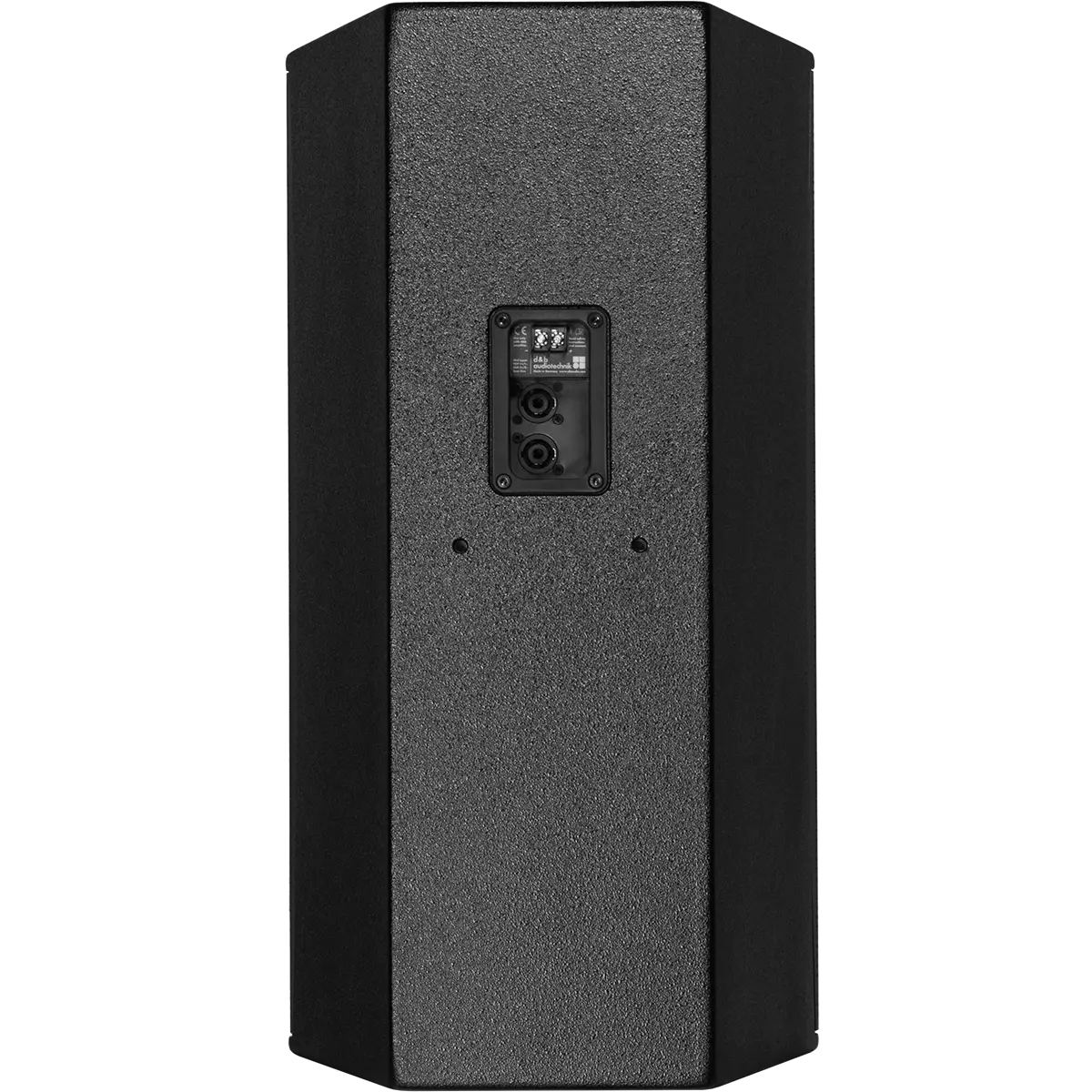

  • Connections:
    • 2 x NL4
    • screw terminal block
• Dimensions / Weight:
  • Dimensions (H x W x D): 638 x 338 x 365 mm / 25.1 x 13.3 x 14.4"
  • Weight: 17 kg (37 lb)
