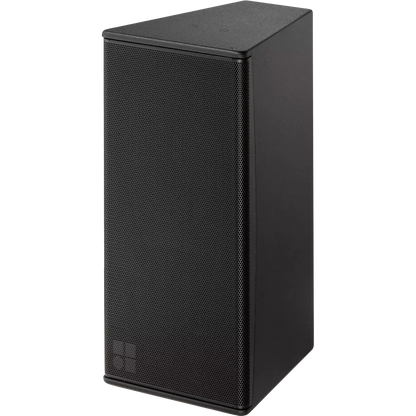

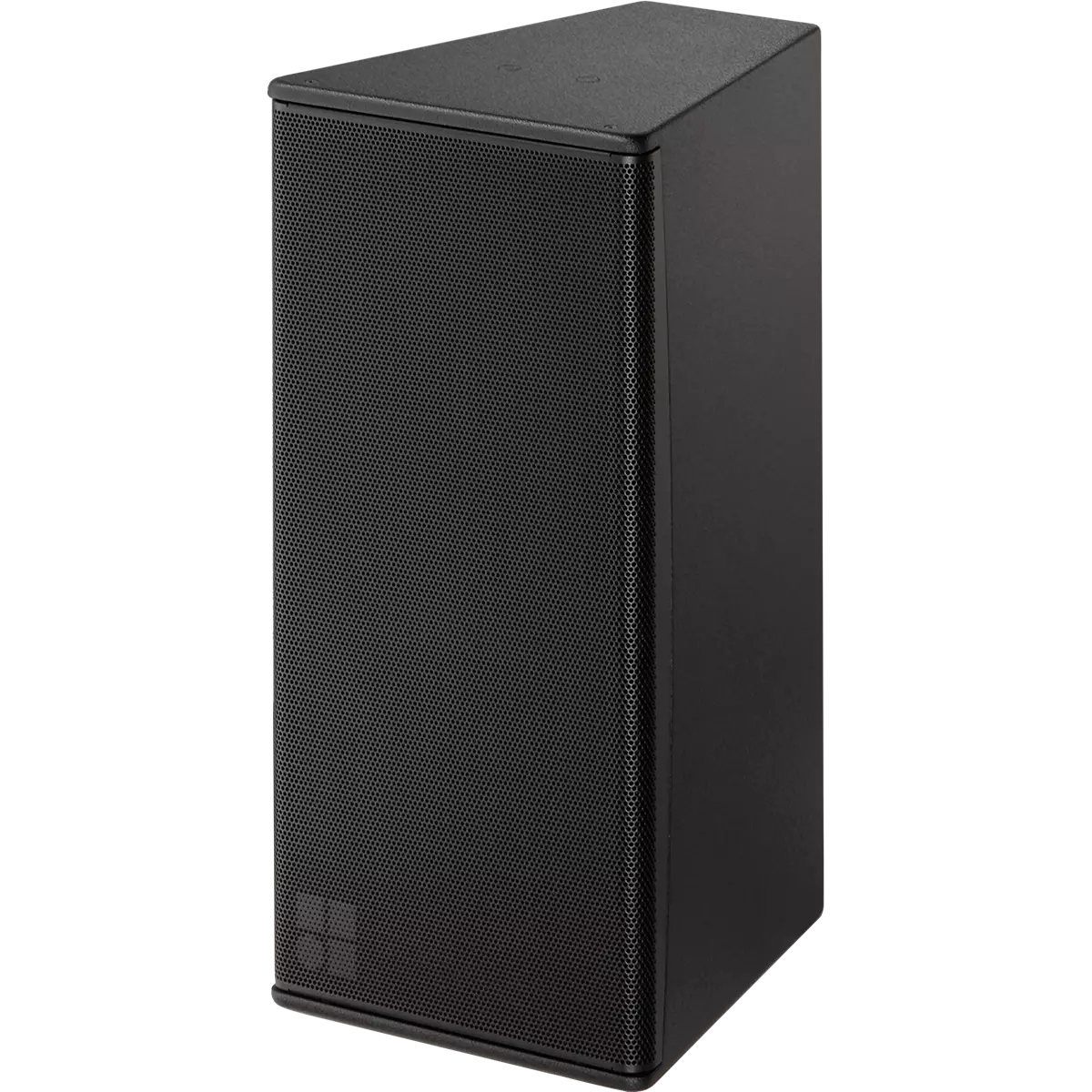

d&b audiotechnik 10S-D Loudspeaker

The 10S-D is a lightweight, passive 2-way loudspeaker featuring a single 10" driver in a bass-reflex enclosure and different HF sections.

The 10S-D is equipped with neodymium drivers and large horns, and delivers pattern control with rotatable dispersion options of 75° x 50° and 110° x 55°.

This loudspeaker offers a frequency response range from 60 Hz to 18 kHz.

This 10S-D is available weather-resistant.

Features:

• Components 10"/1.4"
• Dispersion 110° x 55° rotatable
• SPLmax 130 dB
• Weight 13 kg / 29 lb

Specifications:

• System data:
  • Frequency response (-5 dB standard): 60 Hz - 18 kHzz
  • Frequency response (-5 dB CUT mode): 100 Hz - 18 kHz
  • Max. sound pressure:
    • with 10D: 127 dB
    • with D20/5D/30D: 130 dB
    • with D40/D80/40D: 130 dB
  • Cabinets per amplifier channel: 3
• Loudspeaker data:
  • Configuration: Installation-specific high-performance 2-way loudspeaker with wide dispersion
  • Nominal impedance: 12 Ω
  • Power handling capacity (RMS/peak 10 ms): 200/1200 W
  • Nominal dispersion angle (h x v): 75° x 50° rotatable
  • Components:
    • 10" driver with neodymium magnet
    • 1.4" compression driver with CD horn
    • Passive crossover network

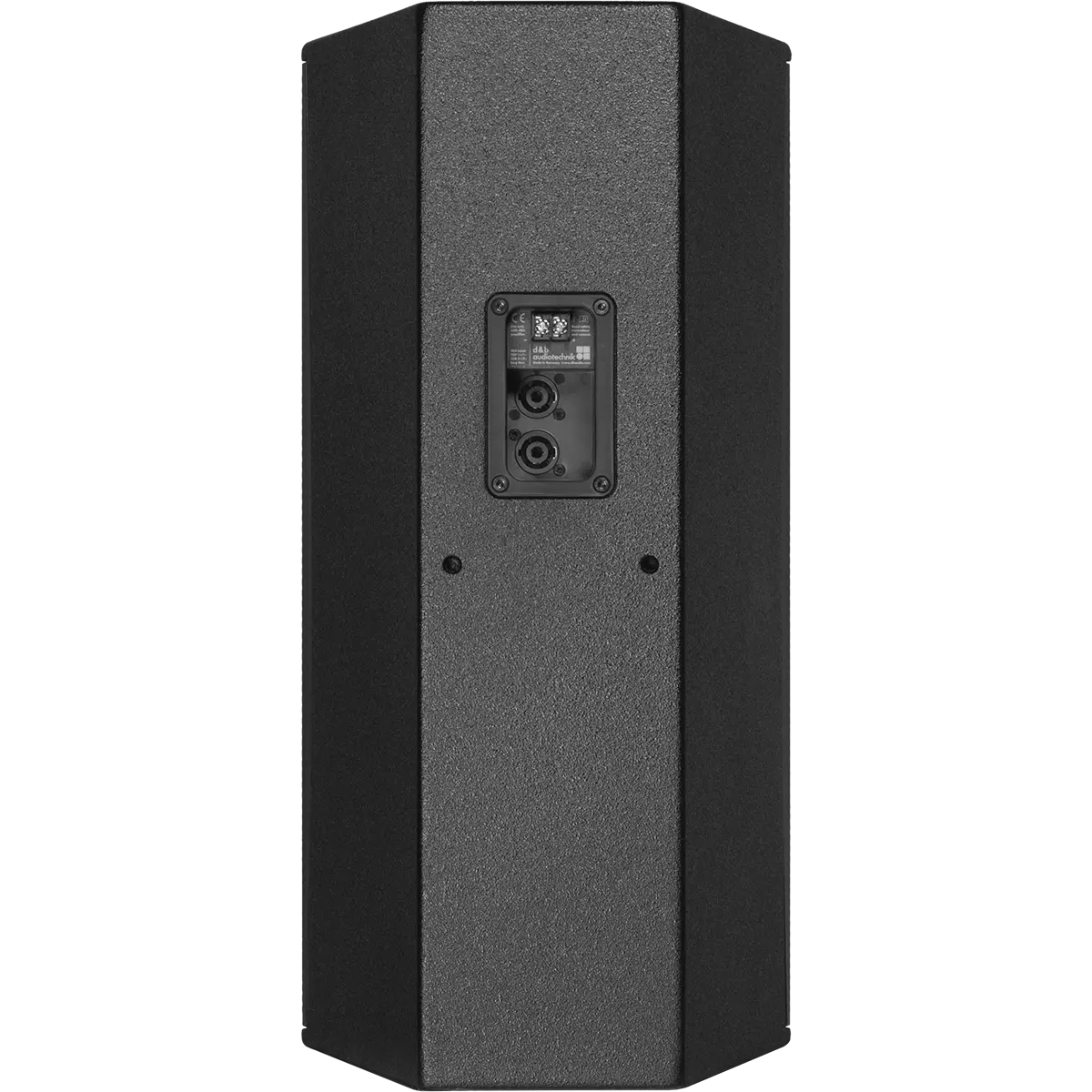

  • Connections:
    • 2 x NL4
    • screw terminal block
• Dimensions / Weight:
  • Dimensions (H x W x D):
  • H: 22-13/16″ (638 mm)
  • W: 11-3/32″ (338 mm)
  • D: 13-13/16″ (365 mm)
  • Weight: 29 lb. (13 kg)
