d&b audiotechnik 10D Amplifier
d&b audiotechnik 10D Amplifier
SKU: Z2760.000
Shipping calculated at checkout.
Available options
Description

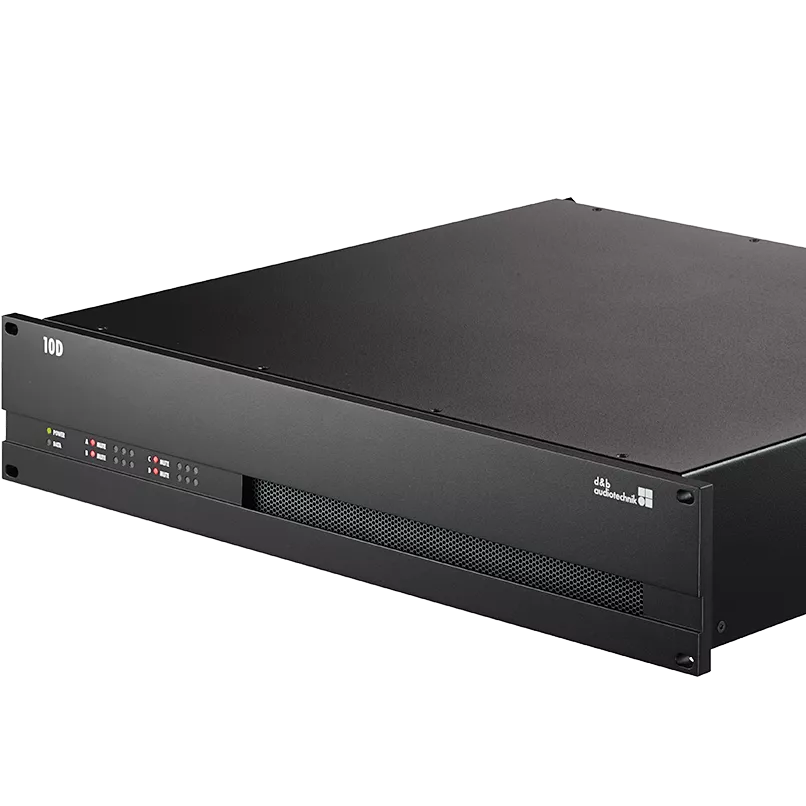

d&b audiotechnik 10D Amplifier Installation Specific Four Channel Amplifier
The 10D is a compact 2 RU, four-channel Class D amplifier designed permanent integration with applications that require lower SPL capabilities.
This amplifier contains extended input management functionalities with separate Input Gain control for each input channel, GPIO and a General Fault connector. Also, it features an advanced power supply with active PFC, compatible with a broad range of mains voltages including 100 V/127 V and 208 V/240 V at 50–60 Hz.
Features:
- Maximum output power 4 x 700 W into 4 Ω
- All current d&b loudspeaker setups except A-Series, J-Series, SL-Series, V-Series, M2, B22-SUB
- 5 freely assignable GPIOs (General Purpose Input Output) + General fault
Speakers and Subs:
- d&b audiotechnik T10 Loudspeaker
- d&b audiotechnik Ti10L Loudspeaker
- d&b audiotechnik Y8 Loudspeaker
- d&b audiotechnik Y12 Loudspeaker
- d&b audiotechnik Yi8 Loudspeaker
- d&b audiotechnik Yi12 Loudspeaker
- d&b audiotechnik 4S Loudspeaker
- d&b audiotechnik 5S Loudspeaker
- d&b audiotechnik 8S Loudspeaker
- d&b audiotechnik 10S Loudspeaker
- d&b audiotechnik 10S-D Loudspeaker
- d&b audiotechnik 12S Loudspeaker
- d&b audiotechnik 12S-D Loudspeaker
- d&b audiotechnik 42S Loudspeaker
- d&b audiotechnik 44S Loudspeaker
- d&b audiotechnik E4 Loudspeaker
- d&b audiotechnik E5 Loudspeaker
- d&b audiotechnik E6 Loudspeaker
- d&b audiotechnik E8 Loudspeaker
- d&b audiotechnik E12 Loudspeaker
- d&b audiotechnik E12-D Loudspeaker
- d&b audiotechnik Ti10P Loudspeaker
- d&b audiotechnik U3 Loudspeaker
- d&b audiotechnik U5 Loudspeaker
- d&b audiotechnik U7 Passive Loudspeaker
- d&b audiotechnik Y7P Loudspeaker
- d&b audiotechnik Y10P Loudspeaker
- d&b audiotechnik Yi7P Loudspeaker
- d&b audiotechnik Yi10P Loudspeaker
- d&b audiotechnik 12S Subwoofer
- d&b audiotechnik 18S Subwoofer
- d&b audiotechnik 27S Subwoofer
- d&b audiotechnik B4 Subwoofer
- d&b audiotechnik B6 Subwoofer
- d&b audiotechnik B8 Subwoofer
- d&b audiotechnik Bi6 Subwoofer
- d&b audiotechnik Bi8 Subwoofer
- d&b audiotechnik E12X Subwoofer
- d&b audiotechnik E15X Subwoofer
- d&b audiotechnik Ti Subwoofer
- d&b audiotechnik Y Subwoofer
- d&b audiotechnik Yi Subwoofer
- d&b audiotechnik 16C Loudspeaker
- d&b audiotechnik 24C Loudspeaker
- d&b audiotechnik 24C-E Loudspeaker
- d&b audiotechnik M4 Stage Monitor
- d&b audiotechnik M6 Stage Monitor
- d&b audiotechnik MAX2 Stage Monitor
