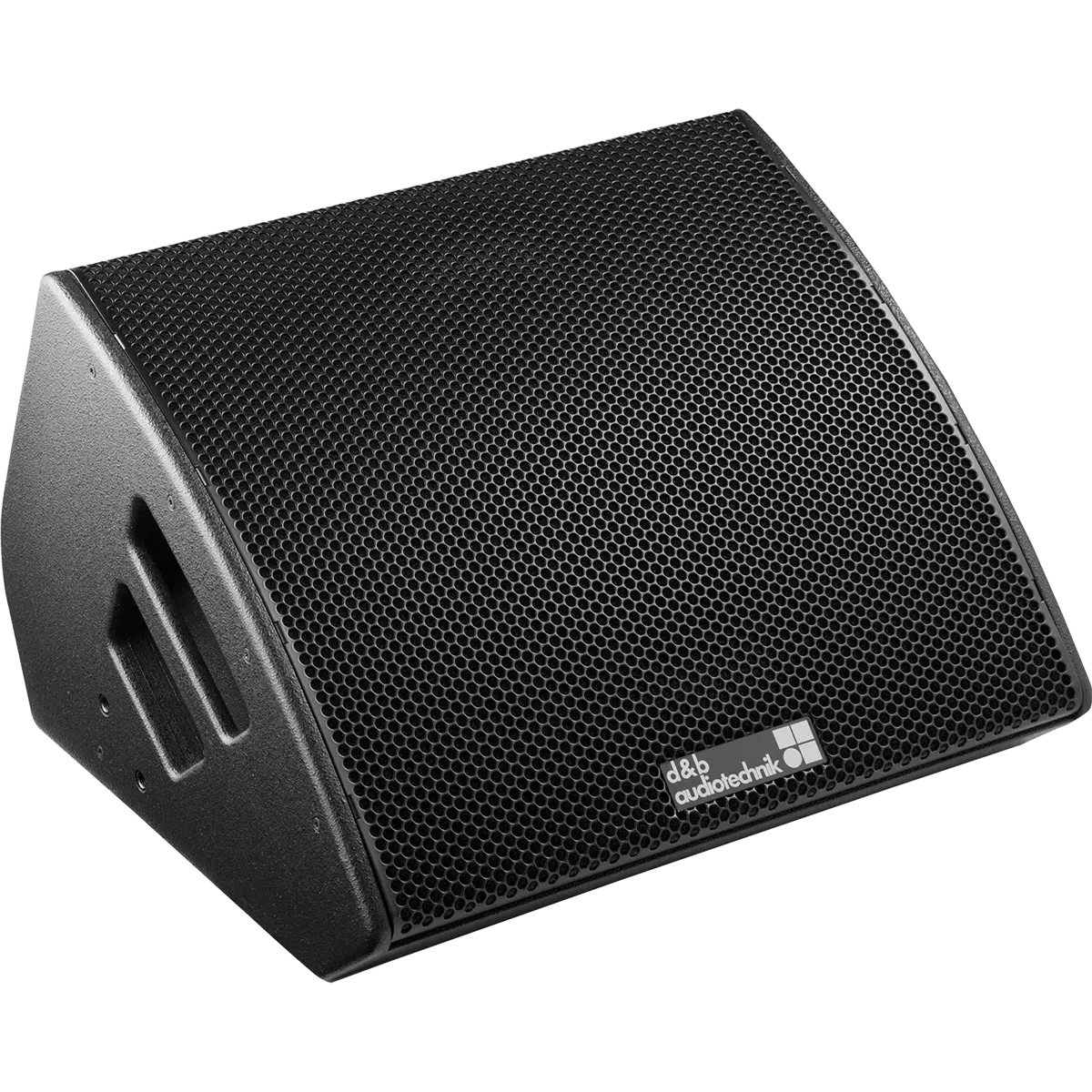

d&b audiotechnik M4 Stage Monitor

The M4 is a high performance 2-way stage monitor which features an integrated 15” LF and 1.3” exit horn loaded HF coaxial driver designed using neodymium magnets.

The stage monitor delivers constant directivity dispersion of 50° x 70°, and when positioned upright, it can function as a PA loudspeaker with a 70° x 50° dispersion pattern.

The M4 driver assembly rotates in 45° increments, allowing dedicated installation applications.

The M4 is available with NL4 Connections or NLT4 F/M Connections.

Features:

• Components 15"/1.3"
• Dispersion 50° x 70° rotatable
• SPLmax 140 dB
• Weight 20 kg / 44 lb

Specifications:

• System data:
  • Frequency response (-5 dB standard): 55 Hz - 17 kHz
  • Max. sound pressure:
    • with 10D: 134 dB3 / 135 dB
    • with D20/30D: 138 dB3 / 140 dB
    • with D40/D80/40D: 138 dB3 / 140 dB
  • Cabinets per amplifier channel (passive mode): 2
  • Cabinets per D20/D80 (active mode): 4
• Loudspeaker data:
  • Configuration: 2-way stage monitor
  • Nominal impedance: 8 Ω
  • Power handling capacity (RMS/peak 10 ms): 400/1600 W
  • Nominal dispersion angle (h x v): 50° x 70° rotatable
  • Components:
    • 15" driver with neodymium magnet
    • coaxial 1.3" exit compression driver with 3" coil and CD horn
    • passive crossover network
  • Connections: 2 x NLT4 F/M
• Dimensions / weight:
  • Dimensions (H x W x D): 363 x 580 x 505 mm (14.3 x 22.8 x 19.9" 2)
  • Weight: 20 kg (44 lb)
