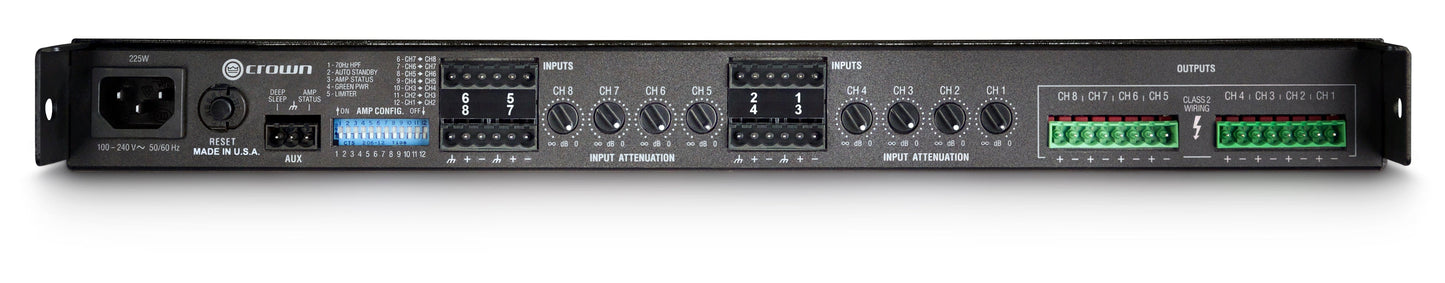

Crown CT875 DriveCore 8-Channel Rackmount Power Amplifier

The CT875, part of the ComTech DriveCore series from Crown Audio, is an 8-channel power amplifier that offers professional audio quality in a slim design. The amplifier has a 1RU chassis, allowing you to install it in any standard equipment rack. It provides 75W per channel into 8 ohms for strong, clear audio with low distortion. DriveCore technology provides excellent efficiency of over 90% for a fantastic performance to power ratio. It does not require a cooling fan, providing silent operation.

The amplifier offers flexible input routing, allowing you to send an input signal to any of the 4 outputs. Integrated Life-Safety features and patented feedback and protection circuitry protect the amplifier from damage to ensure a lifetime of reliable operation. A universal power supply lets you use the amplifier internationally, ideal for touring applications.

  • Slim 1RU chassis can be installed in any standard equipment rack
  • Delivers 75W per channel into 8 ohms for strong, clear audio with low distortion
  • DriveCore technology provides excellent efficiency of over 90% for a fantastic performance to power ratio
  • No cooling fan required, providing silent operation
  • Flexible input routing allows you to send an input signal to any of the 4 outputs
  • Integrated Life-Safety features and patented feedback and protection circuitry protect the amplifier from damage to ensure a lifetime of reliable operation
  • A universal power supply lets you use the amplifier internationally, ideal for touring applications

Specifications

  • Number of Channels
    • 8
  • Power Rating
    • 8 Ohms:
      • 75 W per Channel

Performance

  • Frequency Response
    • 20 Hz to 20 kHz ±0.5 dB
  • Input Sensitivity
    • 1.4 V
  • SNR
    • 110 dB
  • THD
    • < 0.05%
  • Intermodulation Distortion
    • < 0.05% (SMPTE)
  • Crosstalk
    • > 70 dB
  • CMRR
    • > 55 dB

Connectivity

  • I/O
    • 8 x Block 3-Pin Input
    • 8 x Block 2-Pin Output

Power

  • AC Input Power
    • Universal:
      • 100 to 240 VAC, 50 / 60 Hz

Physical

  • Display & Indicators
    • 1 x LED (Power)
    • 8 x LED (Signal)
    • 8 x LED (Clip)
    • 8 x LED (Thermal)
    • 8 x LED (Fault)
  • Cooling
    • Convection
  • Dimensions
    • 1.8 x 19.0 x 14.2" / 44.0 x 483.0 x 362.0 mm
  • Weight
    • 10 lb / 4.5 kg
