Clear-Com FSII-BASE-II-5 FreeSpeak II Base Station 5 Beltpacks / 1RU with 4-Wire / 2-Wire

The FSII-BASE-II-5 is a base station for the wireless FreeSpeak II 1.9 GHz and 2.4 GHz active transceiver antennas and beltpacks. The FSII-BASE-II has four 2-wire connections for analog partyline connection, four 4-wire audio connections and four displays with soft keys. Dedicated stage announce (SA) output and program audio input are provided.

Features:

• Routing and configuration of up to 5 FSII belt packs
• Browser-based configuration tool
• Four 2-wire ports with call signal, auto-nulling
• Four 4-wire ports with call signal
• Matrix and party line configurations support up to 12 channels and/or groups

Specifications:

• Capacity:
  • FreeSpeak Wireless Intercom
  • (10) E1 Transceivers (1.9, 2.4 GHz)
  • (5) or (25) Beltpacks (1.9, 2.4 GHz)
• Configuration:
  • (12) Channels
  • (12) Groups
  • (50) Roles for FreeSpeak
• Connectors:
  • Headset: 4-pin XLR-M (X4), 5-pin XLR-F (X5)
  • 2-Wire I/O: (4) XLR-3F
  • 4-Wire I/O: (4) RJ45
  • Program Audio Input: XLR-3F
  • Stage Announce Output: XLR-3M
  • GPIO: (1) DB15F (2 GPI, 4 GPO)
  • FreeSpeak II E1 TCVR/SPL Ports: (2) RJ45, (2) SFP (RJ45 or SFP selectable)
  • FSII DECT Synchronization: (2) RJ45 (Input and Output)
  • LAN: (2) RJ45
  • AC Power Connector: IEC-C14
  • DC Power Connector: KPJX-4S-S
  • Grounding Screw: Terminal
• Note:
  • While mechanically identical, SFPs are designed with different properties for data rates, power, and fiber cable type. Please refer to the Clear-Com SFP Compatibility Chart for compatible SFP transceivers.
• Controls and Indicators:
  • Front Panel:
    • (4) OLED Displays
    • (2) Power Supply Status LED
    • (1) Headset Mic Button
    • (1) Front Panel Mode Button
    • (1) Menu Access Button
    • (4) Encoders for Menu & Level Control
    • (4) Call & Talk Buttons
    • (1) Stage Announce Button
    • (1) All Talk Button
    • (1) Remote Mic Kill Button
    • (2) Status LEDs
    • (1) Main Listen Level Encoder
    • (1) Program Audio Level Encoder

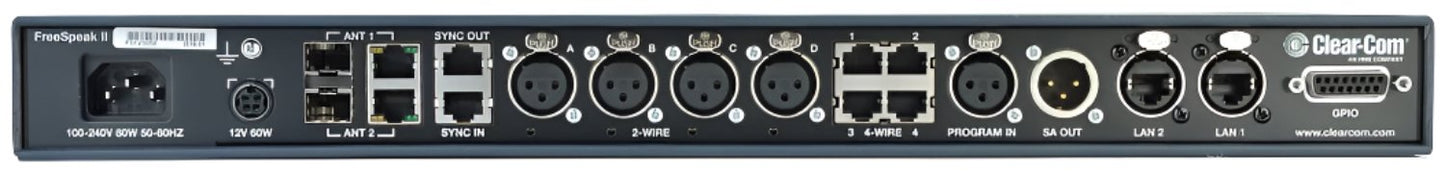

  • Rear Panel:
    • (2) LAN RJ45 Link/Activity LEDs
    • (2) FSII E1 TCVR RJ45 Link/Activity LEDs
    • (4) 2-Wire Power / Configuration Indicator LEDs
• Microphone Input:
  • Input Type: Dynamic/Electret – Selectable
  • Headset Mic Voltage: 5V
  • Input Level (nominal): -58dBu
  • Input Level (max): -10dBu
  • Frequency Response: 300Hz to 22kHz ±3dB
  • Mic Limiter Threshold: -35dBu ±3dB
  • Mic Limiter Range: ≥ 20dB
• 4-Wire Line Level Interfaces:
  • Transformer balanced input and output
  • Input:
    • Nominal Level: 0dBu (adjustable -12dB to +12dB)
    • Maximum Level: +18dBu
    • Frequency Response: 80Hz to 22kHz ±3dB
    • Impedance: >= 10KΩ
  • Output:
    • Nominal Level: 0dBu (adjustable -12dB to +12dB)
    • Maximum Level: +18dBu
    • Frequency Response: 80Hz to 22kHz ±3dB
    • Impedance: 120Ω + 10%
• 2-Wire Partyline Interfaces:
  • Unbalanced High-Impedance bridging
  • Compatibility: Clear-Com, RTS-TW with Call and Remote Mic Kill
  • Termination: Optional per pair (A/B or C/D)
  • Nulling: User initiated Auto-Calibration
  • Null Depth: >60dB at 12kHz
  • Nominal Level: CC: -18dBu, RTS-TW: -12dBu (adjustable -3dB to +3dB)
  • Headroom: 18dB
  • Frequency Response: 80Hz to 12kHz ±3dB
  • Impedance: >= 10KΩ bridging
  • Total Harmonic Distortion (THD): < 0.1% THD @ 1 kHz
  • Power: 400mA optional per pair (A/B or C/D)
  • Voltage: 26-28V DC
• Use Encore Partyline Power Calculator to validate power requirements of the analog partyline intercom system.
• Frequency Response:
  • Headset Mic: 300Hz to 22kHz
  • Headset Speaker: 50Hz to 18kHz
  • FreeSpeak II: 200Hz to 7.1kHz
  • 4-Wire: 80Hz to 22kHz
  • 2-Wire: 80Hz to 12kHz
• Logic Inputs – GPI:
  • Assignable to activation of audio crosspoints
  • Input: 2
  • Style: Opto-Isolated. Powered input, close contact to ground
  • Input Voltage Range: 0 - 12V DC or AC
  • Input Current: >=1mA required
• Logic Outputs – GPO/Relay:
  • Assignable to talk, call keys, audio crosspoints or call
  • Style: SPDT / Power Relay
  • Normalized: Open or Closed, separate pins
  • Switching Voltage (Max): 60V DC
  • Switching Current (Max): 2A
• Power:
  • AC Internal Power Supply:
    • Input Voltage Range: 100 - 240V AC
    • Input Frequency Range: 50 - 60Hz
    • Input Power (Max): 48W
    • BTU (Max): 164BTU/h
    • Input Power Connector: IEC-C14
  • DC Power Input:
    • Voltage: 12V DC ± 5%
    • Current (Max): 4A
    • Power (Max): 48W
    • BTU (Max): 164BTU/hr
    • Input Power Connector: KPJX-4S-S
  • This unit can be powered via DC input using:
    • AC Adapter - Inline:
      • Type: PSU-EXT-002 (supplied)
      • Input Voltage Range: 100 - 240V AC
      • Input Frequency Range: 50 - 60Hz
      • Input Power Connector: IEC-C14
      • Output Voltage: 12V DC ± 5%
      • Output Current (Max): 5A
      • Output Power (Max): 60W
      • Output Power Connector: KPPX-4-P
• Environmental:

  • Operating: 32° to 113°F (0° to 45°C)
  • Storage: -22° to 158°F (-30° to 70°C)
  • Humidity: 20-90% Non-Condensing
• Dimensions (WxHxD): 19 x 1.7 x 10.2in (482.6 x 43.2 x 259.0mm)
• Weight: 5.57lbs (2.5kg)
