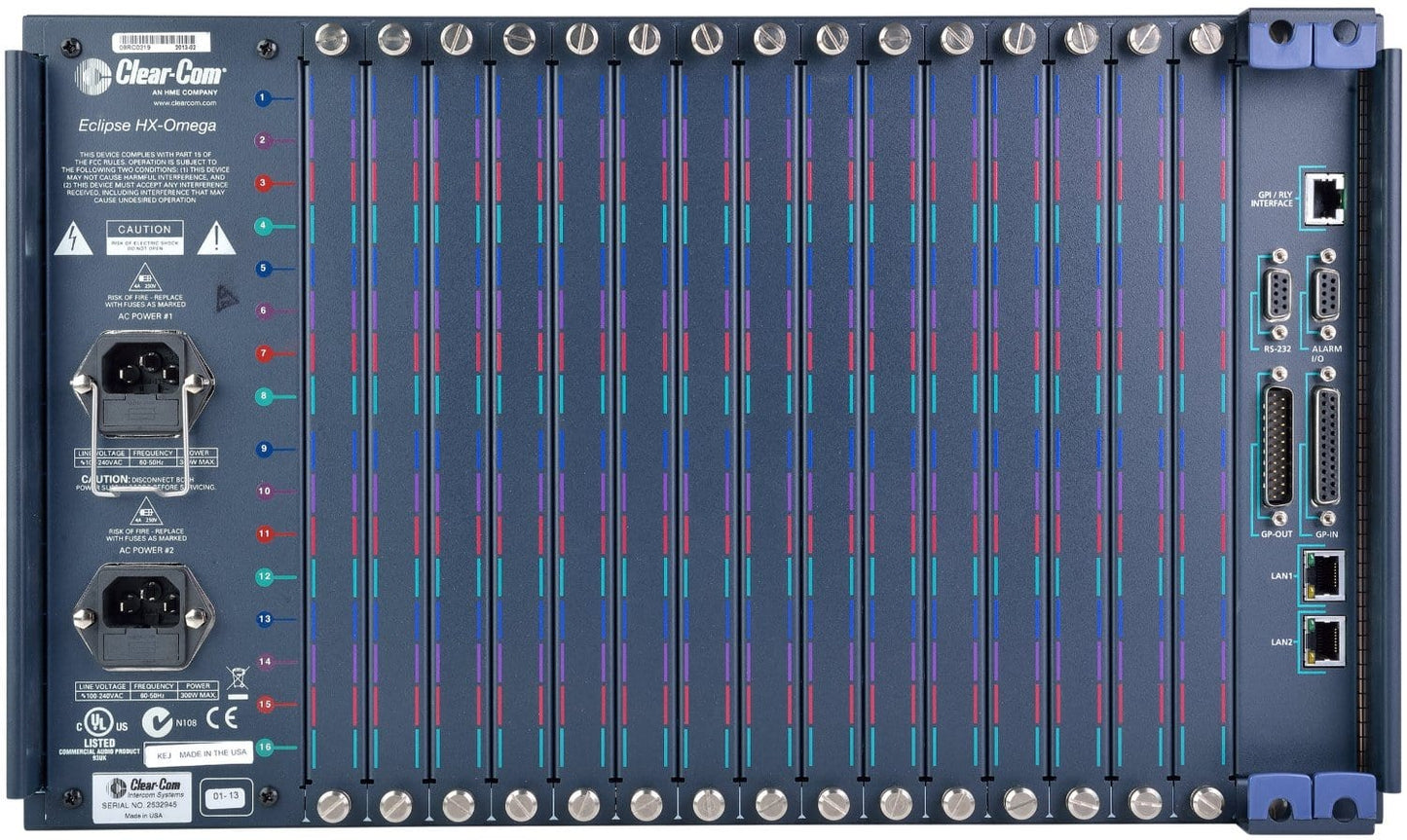

Clear-Com Eclipse HX-OMEGA 16P Frame with 15 Card Slots
The Clear-Com Eclipse HX-OMEGA is a 16-port frame with 15 card slots, designed for high-capacity communication systems. It offers seamless connectivity and flexibility for managing large-scale audio networks. Ideal for professional environments, it ensures reliable and efficient communication across multiple channels.
Features:
- Slots for 2 CPU cards and 15 interface cards
- Up to 490 audio ports
- Dual-redundant CPU-HX processors fitted as standard
- Dual-redundant power supplies fitted as standard
- 8 general purpose inputs and 8 relays
- Expandable to become a multi-frame system with redundant non-blocking fiber
- Intelligent trunking between systems over Telecom (E1/T1), IP (LAN, WAN, or Internet), DANTE, AoIP (AES67 & SMPTE 2110-30), Analog or MADI
- Seamless integration with FreeSpeak II and FreeSpeak Edge
- Fully-compatible with Clear-Com V-Series Iris and I-Series panels
- Supports EHX software (Eclipse HX Configuration software)
Specifications:
- Sample Rate: 48 kHz
- Resolution: 24 bit
- Frequency Response: 30 Hz - 22 kHz ± 3 dBu at 48 kHz sampling
- Crosstalk (adjacent channel): <-70 dBu
- Nominal Level: 0 dBu
- Matrix headroom: +18 dBu
- Distortion: <0.05 %, @ 0 dBu, 300 Hz to 10 kHz; <0.1 %, @ 0 dBu, 100 Hz to 20 kHz
- Off Noise: <-70 dBu (20 Hz - 22 kHz)
- On Noise: <-65 dBu (20 Hz - 22 kHz)
- Key Response, Intra-System: <40 ms for audio route
- Linked Systems: <60 ms for audio between matrices
- Operating Temperature: 32°F - 104°F (0°C - 40°C)
- Storage Temperature: -67°F - 158°F (-55°C - 70°C)
- Humidity: 90% non-condensing
- Dimensions: 19 x 10.6 x 16 in (482 x 267 x 410 mm)
- Weight: 44 - 77 lbs (20 - 35 kg)
