Clear-Com Eclipse HX IP Matrix Card - Licensed for 48 Ports

The E-IPA-HX is a high density IP interface card that supports up to 64 Clear-Com intercom devices. The interface card can be used with the Eclipse HX-Delta Lite, HX-Delta, HX-Median, and HX-Omega matrix frames. Eclipse HX Configuration Software (EHX™) configures each port for its intended application and provides a dedicated IP Manager screen to monitor connections and add users. The E-IPA-HX card also supports SMPTE ST2110 and AES67 connectivity

Features:

• Available in 16, 32, 48, and 64 port cards (16 port upgrade)
• Max of 3 E-IPA cards in an Eclipse HX-Delta, max of 4 in -Median, and max of 5 in -Omega frames
• SMPTE ST2110/AES67 connection to third-party devices; available in bundles of 8 port licenses
• AES67-based connection to V-Series Iris panels providing intercom and 2 auxiliary audio channels
• AES128 encryption and silence suppression on all Agent-IC clients (not available in certain countries)
• Supports connection to V-Series and V-Series Iris panels, Agent-IC mobile app, Station-IC Workstation App, FreeSpeak II wireless beltpacks, and LQ Series devices
• Remote I.V. Core connection to V-Series and V-Series Iris panels providing intercom and 2 auxiliary audio channels
• Supports up to 64 IP ports (endpoint connections) and additionally up to 64 FreeSpeak IP Transceivers
• Compatible with Eclipse HX-Delta Lite, -Delta, -Median and –Omega frames
• Software definable port configuration to support multiple IP connection and standards

Specifications:

• Maximum Cards Per Frame: 1 for -Delta Lite, 3 for -Delta, 4 for -Median, and 5 for -Omega
• Ports Per Card: 48
• Physical LAN: 4x 100/1000BASE-T Full-Duplex Ethernet (auto-negotiation not supported), 2x 1G SFP fiber
• I.V. Core Interfaces:
  • Protocols: Clear-Com I.V. Core
  • CODEC: G.722 @ 16khHz sample rate
  • IP addressing: Static and DHCP
  • Network compatibility: Layer 1, Layer 2 and Layer 3, LAN, WAN, and VPN infrastructure. Routable via 3G, 4G, LTE data services
  • Firewall: One open port required (configurable)
  • Quality of Service: TOS set for Priority Immediate and Critical
  • Minimum Network bandwidth required: 140kb/s per each direction (I.V. Core)
• AoIP Interfaces:
• Protocols: RTP/RTSP/SAP, AES67, SMPTE 2110-10, SMPTE 2110-30
  • Conformance level A (TX 1 to 4 ch, RX 1 to 8 ch)
  • Conformance level B (TX 1 to 4, RX 1 to 8 ch)
  • Packet time for Card (1ms or 125us)
• Audio Sampling: 24 bit Linear 48KHz (by default)
• IP Addressing: Static, mDNS & DHCP
• Network compatibility: Layer 2 & 3 LAN only
• Quality of Service: DiffServ RFC2474, IGMP: On (AoIP)
• Multicast: On (AoIP)
• Network Timing: PTP v2 (AoIP)
• Minimum Network bandwidth required: Per duplex connection: 11Mb/s
• Power (front and rear cards combined):
• Min: +3.3V 4.75A
• Max: +20.3V 5.7A
• Environmental:
• Operating Temperature: +32º to +104ºF (0º to +40ºC)
• Storage Temperature: -67º to +158ºF (-55º to +70ºC)
• Humidity: 40 - 90%, non-condensing
• Dimensions:

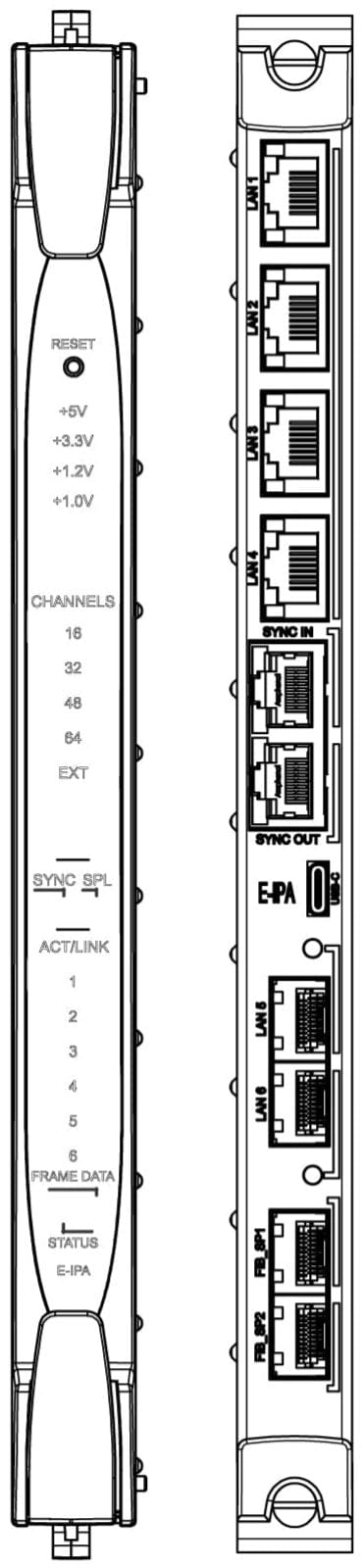

• Front Panel: 0.78 x 10.44 x 12.99 in (WxHxD) (20 x 265 x 330 mm)
• Rear Panel: 0.78 x 10.44 x 3.79 in (WxHxD) (20 x 265 x 96 mm)
• Weight:
• Front Card: 1.64 lbs (0.75 kg)
• Rear Card: 9.2 oz (0.26 kg)
