Clear-Com Eclipse HX-DELTA 64P Intercom Frame
The Clear-Com Eclipse HX-DELTA 64P Intercom Frame is a three rack unit (3RU) matrix intercom system frame with slots for two CPU cards, four I/O interface cards and three interface modules. Two external power supplies are provided. RJ45 and fiber connectors are located on the rear of the chassis, connecting the CPU and interface cards to intercom devices and media, such as user keypanels, interfaces, 4-wire audio equipment, wireless equipment and fiber optic cables.
With 64 user channels, the Clear-Com Eclipse HX-DELTA 64P Intercom Frame is best suited for very large installations or complex productions that demand extensive communication capabilities.
Features:
- Slots for 2 CPU cards, 4 interface cards and 3 interface modules
- Ports/Channels: 64 user channels
- Dual PSUs for redundancy
- Dual cooling fans
- Alarms for frame temperature, external PCU failure and fan failure
- Front to rear LAN/Panel patch
- Front carrying handles for easy rack installation and extraction
- Fully compatible with Clear-Com V-Series Iris, V-Series, iStation, ICS panels and Agent-IC® mobile app
- Replaceable fan/alarm card
- Replaceable power card
- Supported by EHX software for configuration and management
Specifications:
- Matrix Capabilities:
- Maximum Expansion Cards: 4
- Maximum CPU Cards: 2 (included)
- Maximum Power Supply Units: 2 (included)
- Maximum Fiber Expansion Cards: 2
- Ports per MVX Port Card: 16
- Maximum MVX Port Cards: 4
- Maximum E-IPA Port Cards: 3
- Maximum E-QUE, IVC-32, LMC-64 Port Cards: 4
- Maximum EMADI-64 Port Cards: 4
- Maximum RJ45 Ports per Matrix: 64
- Maximum Timeslots: 512
- Matrix Performance:
- Sample Rate: 48 kHz
- Resolution: 24 bit
- Frequency Response: at 48 kHz sampling: 30 Hz - 22 kHz ± 3 dBu
- Crosstalk (adjacent channel): <-70 dBu
- Nominal Level: 0 dBu
- Matrix headroom: +18 dBu
- Distortion: <0.05 %, @ 0 dBu, 300 Hz to 10 kHz; <0.1 %, @ 0 dBu, 100 Hz to 20 kHz
- Off Noise: <-70 dBu (20 Hz - 22 kHz)
- On Noise: <-65 dBu (20 Hz - 22 kHz)
- Key Response, Intra-System: <40 ms for audio route
- Linked Systems: <60 ms for audio between matrices

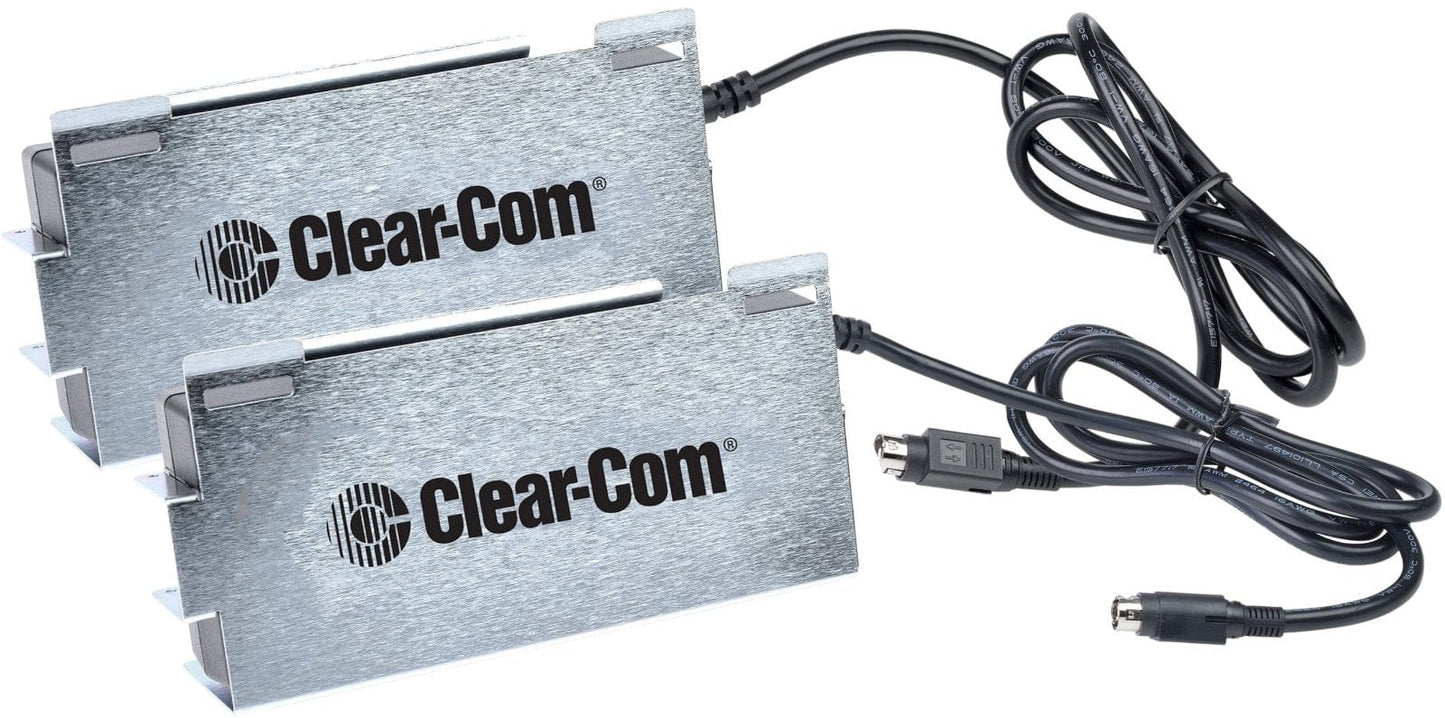

- Power Supplies:
- Quantity: 2 per matrix
- Mounting: External
- AC Power Input: IEC (1 per PSU)
- Input Voltage: AC 100 Volts - 240 Volts, 50/60 Hz
- Power Consumption: 150 Watts
- Maximum Status Indicators: LEDs viewable from front of rack
- Environmental:
- Operating Temperature: 32°F - 104°F (0°C - 40°C)
- Storage Temperature: -67°F - 158°F (-55°C - 70°C)
- Humidity: 90% non-condensing
- Dimensions:
- 19 x 5.25 x 17.5in.(WxHxD)
- (482 x 133 x 444.5mm)
- Weight:
- Empty: 18 lbs (8.2 kg)
- Fully Loaded: 32.5 lbs (14.7 kg)
