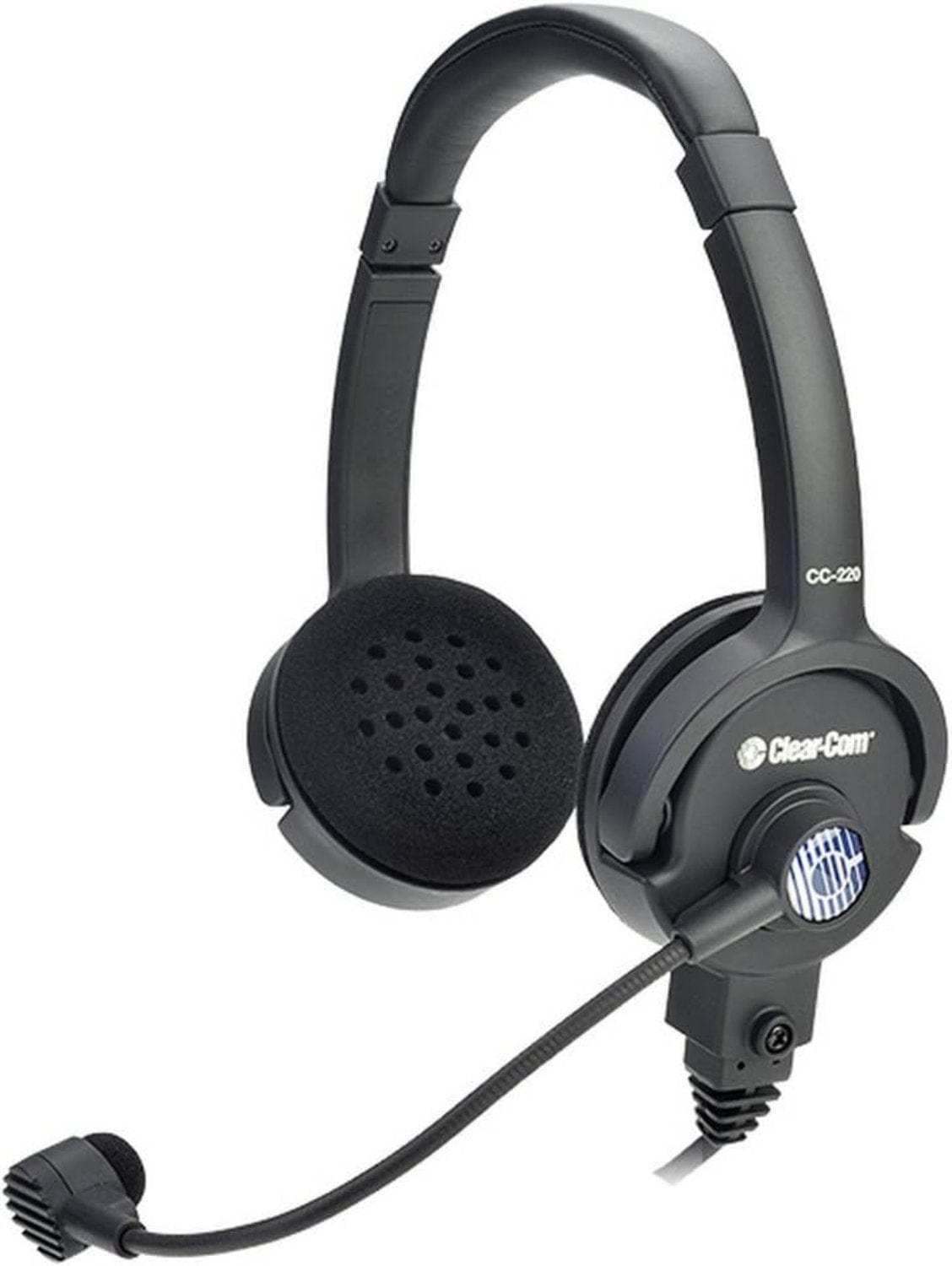

Clear-Com CC-220-MD4 Double Headset Ear Mini DIN (M) 4-Pin with Dynamic Mic
Clear-Com's CC-220-MD4 is part of their CC-220 line of premium versatile light-weight headsets, all designed to provide excellent audio quality. Comfortable and easy to use, this double-ear headset is made to suit a range of communications applications. It's easily adjusted to accommodate the preference of any user, via the 300° rotation of the microphone boom to allow the microphone to be worn on the left or right side of the head-as well as the rotating, flexible gooseneck-all offering optimal positioning. This particular model, the -MD4 version, comes equipped with a 4-pin Male DIN Connector.
Features:
- High quality dynamic cardioid microphone
- 20Hz -20KHz frequency response
- Choice of earpads: leatherette or foam
- Flexible gooseneck microphone positioning
- Boom rotation ON/OFF switch for quick microphone muting
- Interchangable cabling for easy connector change and repair
- Fully serviceable headset
- Rugged design
Specifications:
- Headphone:
- Type: Closed-back
- Driver: 36mm diameter, neodymium magnet, copper-clad aluminum wire voice coil
- Frequency Response: 20Hz - 20kHz
- Impedance:
- CC-110: 400Ω ±30% at 1kHz typical
- CC-220: 200Ω ±30% at 1kHz typical
- Microphone:
- Element: Dynamic
- Driver: 15mm, neodymium magnet
- Polar Pattern: Cardioid
- Frequency Response: 250Hz - 20kHz
- Impedance: 200Ω ±30% at 1kHz typical (for both CC-110 and CC-220)
- Power: 500mW Maximum
- Sensitivity:
- Microphone Open Circuit Sensitivity: -64dB ±3.5dB (0dB=1V/1Pa, at 1kHz typical)
- Headphone Sensitivity:
- CC-110: 99dB ±3dB (SPL) / 1mW, at 1kHz typical
- CC-220: 96dB ±3dB (SPL) / 1mW, at 1kHz typical
- Connector: Cable: 5ft (1.55m) long with 4-pin connector at headset end; 4-pin Male DIN Connector
- Dimensions:
- Packaging for CC-110 and CC-220: 6.7 x 8 x 3.5in (WxHxD), (170 x 205 x 90mm)
- Weight:
- CC-110: 5.1oz (145g) without 8-pin cable assembly and M3*18mm SCREW
- CC-220: 6.8oz (195g) without 8-pin cable assembly and M3*18mm SCREW
