Clear-Com AX-704 IFB Expansion Control Panel

IFB Expansion Talent Access Station - requires MA-704, for console or optional rack mount (CEP-RK)

• Frequency Response
• Extension Line - Talent: 200 - 18KHz ± 3dB
• Max Distortion
• Extension Line - Talent: <= 0.1%
• Noise: Extension Line - Talent: < -85dBu
• Power
• Input Voltage Range: 20-30 VDC
• Input Current (Idle) : <= 120mA
• Input Current (Max): <= 150mA

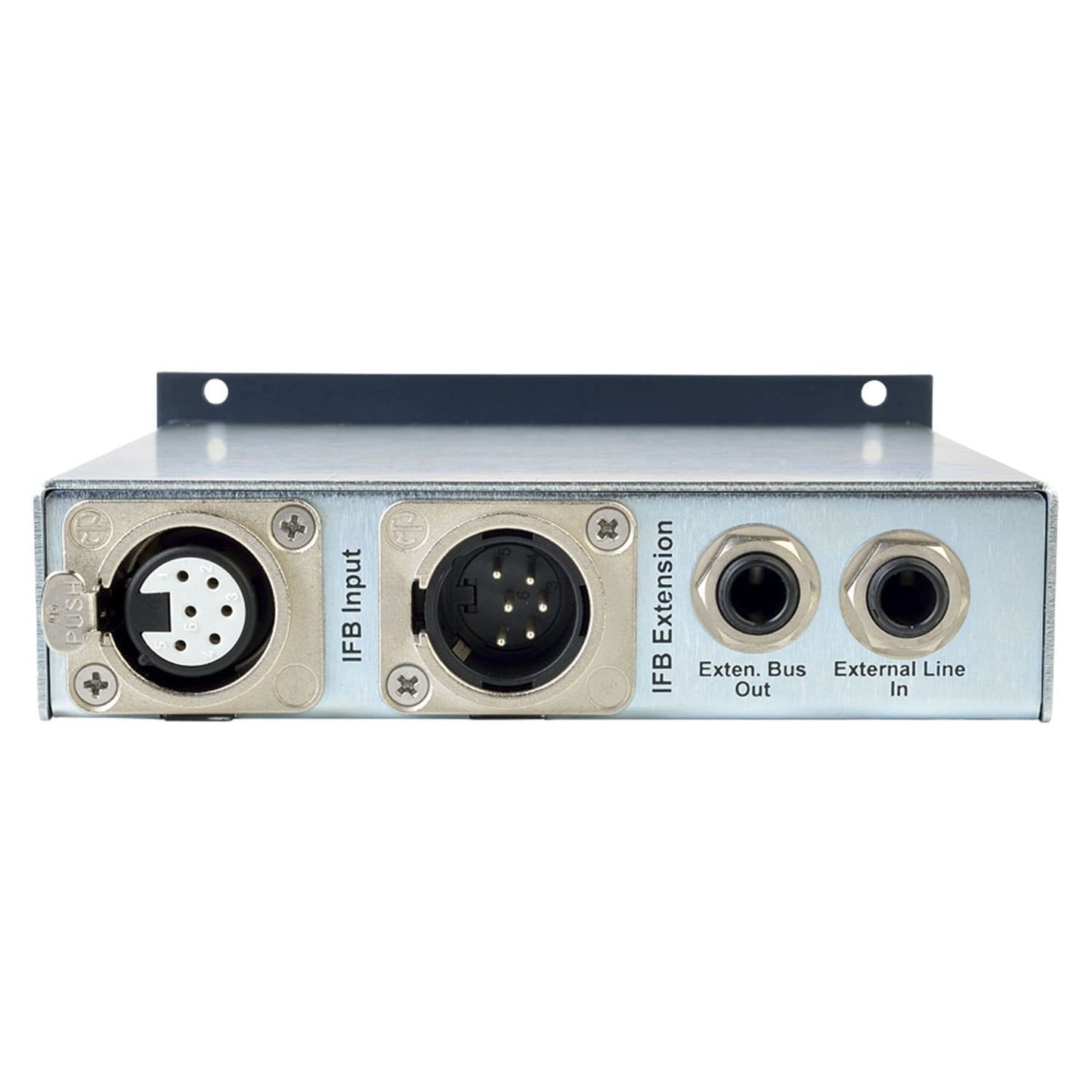

• Rear Panel Connectors
• IFB Input: (1) XLR6F
• IFB Extension: (1) XLR6M
• Extension Bus Out: (1) 1/4 jack socket
• External Line In: (1) 1/4 jack socket
• Front Panel Controls & Indicators: (4) Talk buttons
• Environmental: 32?F - +122?F (0?C - +50?C)
• Dimensions: 4.9 x 1.75 x 5.5 in (125 x 44 x 140 mm) (WxHxD)
• Weight: 1.35 lbs (0.61 kg)
