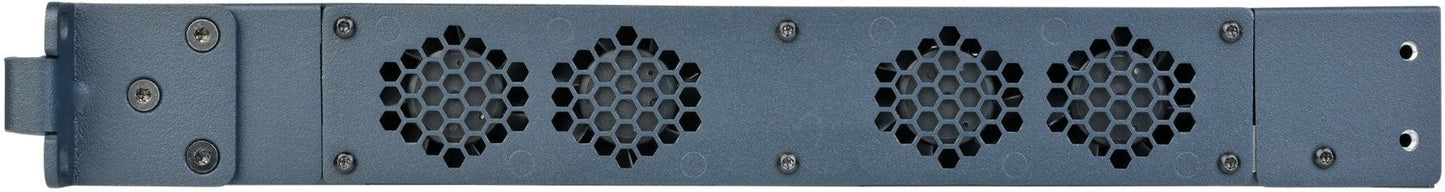

Clear-Com Arcadia Central Station 64 Licensed Ports 1RU with HelixNet 4-Wire / 2-Wire with Dante

The Arcadia X5 64P includes an Arcadia Central Station and one 5-pin XLR male headset. The Central Station supports up to 32 Free Speak II or Free Speak Edge beltpacks, 16 IPT transceivers, and up to 10 E1 transceivers with 64 ports of connectivity. Two large high-resolution TFT color touch screens and four rotary encoders allow you to easily navigate menus and pages to administer changes on the fly. Clear-Com's integrated Core Configuration Manager makes setup quick and trouble-free its intuitive interface.

Features:

• Supports up to 32 beltpacks (FSII and/or FSE), 16 IPT transceivers (FSII and/or FSE) and up to 10 E1 transceivers (1.9 or 2.4GHz)
• Supports up to 100 channels
• 64 ports of connectivity
• Standard 1 rack unit (RU) device
• High quality 12kHz audio to FS Edge beltpacks
• 2 large full-color touch screen TFT displays
• 4 rotary encoders for gain and menu operation
• Headset or Microphone and Speaker connection
• Stage Announce and Prog. Audio cable
• Functions as PTP Leader Clock
• Wireless 5GHz Edge transceivers and beltpacks
• Wireless 1.9GHz and 2.4GHz FSII splitters, transceivers and beltpacks
• Dante enabled audio devices

Specifications:

• Capacity
• Beltpacks per Station: 32 BPs (FSII or FSE)
• Transceivers/Antennas Supported by Station: 16 x IPT or FSE TCVR, 10 x E1 TCVRs (1.9 or 2.4GHz)
• Gooseneck Microphone Input
• Input Type: Dynamic/Electret – Selectable
• Frequency Response: Gooseneck Mic – Partyline: 200Hz – 12kHz + 3dBu
• Frequency Response: Gooseneck Mic – Line Out: 200Hz – 20kHz + 3dBu
• Mic Limiter Threshold: -35dBu ±3dB
• Mic Limiter Range: ≥ 20dB
• Max Input Level: -10dBu
• Input Level: -45dBu nominal; -10dBu MAX
• Headset Mic Voltage: 5V (Electret selectable)
• Speaker Output
• Speaker Type: 1.6 x 2.8in oval
• Load Impedance: 4Ω
• Max Output Level before 1% Distortion: 18dBu ± 2dB
• Total Harmonic Distortion (THD): < 0.5% THD at 1kHz
• Max Speaker Level: 87dB ± 2dB SPL A Weighted at 3ft
• Frequency Response: 100Hz – 10kHz ± 9dB
• Power
• AC Mains input: 100-240V AC, 50-60Hz, 160W Max, IEC60320 C14 inlet.
• DC Low Voltage Input: 12V DC +/- 5%, 12A
• External AC/DC Power Supply (453G020-1 Supplied)
• Input: 100-240V AC, 50-60Hz, 2.2A Max, IEC60320 C14 inlet.
• Output: 12V DC +/- 5%, 12.5A
