Description

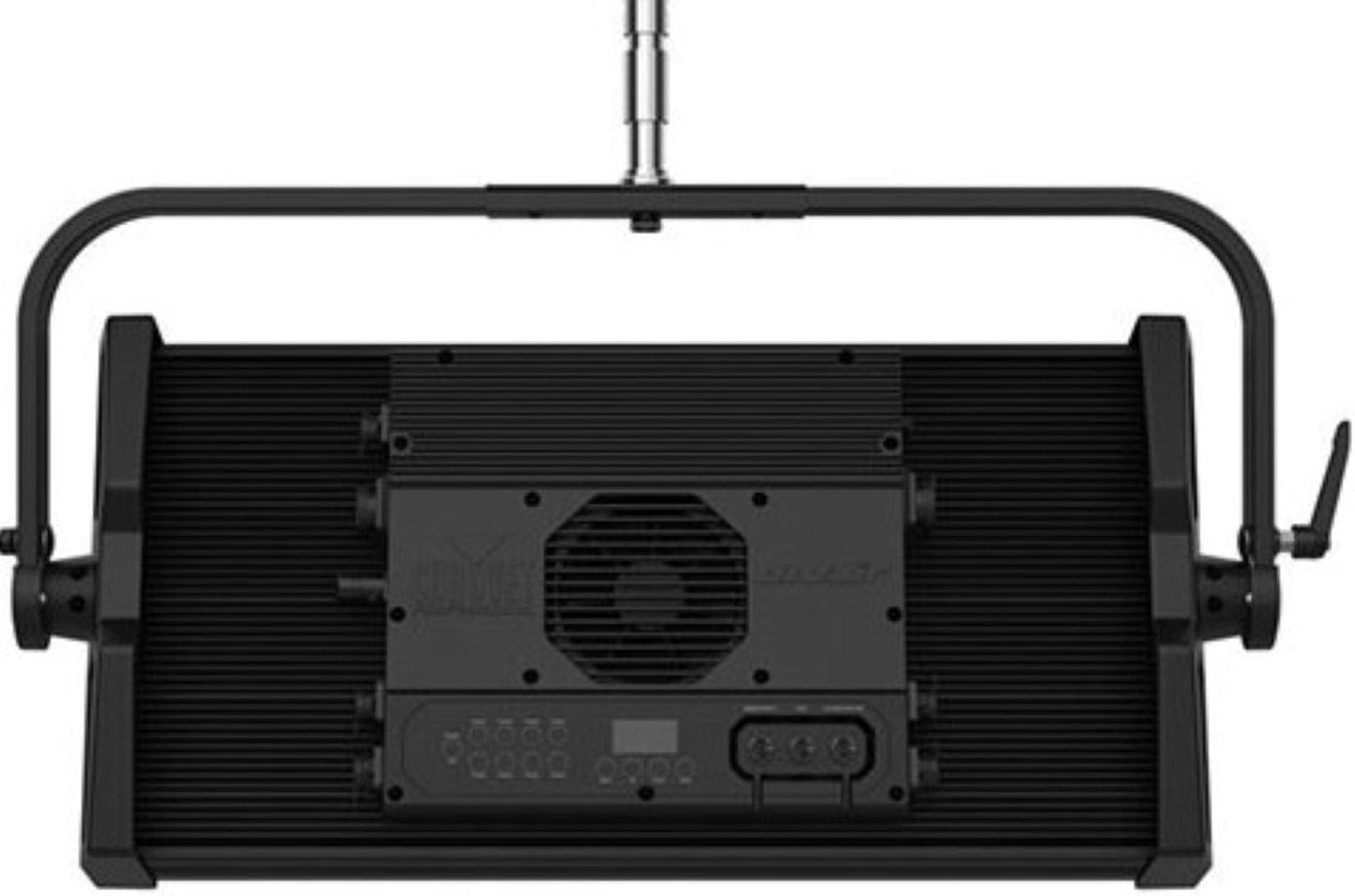

ChauvetPro ONAIRPANEL2IP OnAir Panel 2 IP IP65 Full-Spectrum LED Soft Light Fixture

onAir Panel 2 IP is a rugged IP65, full-spectrum LED soft light with a 1×2 format that is capable of facing all of the elements, outdoors or in. Ready to go on-location for any broadcast setting, onAir Panel 2 IP features a superior quality of white light with high CRI/ TLC and TM-30 scores; a smooth 16-bit dimming curve and +/- green adjustment, an emulated redshift, and the ability to produce a pop of color to achieve the exact look you are aiming to create along with built-in, customizable effects accessible from the onboard control menu. Easily switch mounting options from Jr Pin to Omega Bracket on a rugged build, designed with a drop-in slot to ensure ease of use when changing accessories. PWM, DMX, RDM, CRMX, Art-Net, sACN, and an onboard control option ensure camera-ready use. An optional 28 VDC input via 3-pin XLR powers the fixture from an external battery pack to add increased flexibility for all of your remote needs.

Features:

  • Full-spectrum LED 2x1 format soft light panel style fixture for broadcast, film, and special events
  • IP65 rating for all weather use indoors or out.
  • Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS
  • Virtual color wheel with color matched to popular gel colors
  • +/- Green adjustment and emulated red-shift via DMX or on-board control
  • RDM (Remote Device Management) and CRMX Wireless Control for added flexibility
  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
  • Virtually silent operation for use in studio applications
  • Ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme.
  • Easily switch mounting options from Jr Pin to Omega Bracket
  • Drop-in slot for diffusers and intensifier filter (sold separately)
  • Rugged design for years of rough use in the most extreme conditions.
  • Easy to use on-board control with full access to all the features of the fixture without the need for a dedicated controller.
  • USB port for fixture software updates
  • 28 VDC power input via 3-pin XLR to power the fixture from an external battery pack

Specifications:

  • Optical:
    • Light Source: 448 LEDs (tri-color RGB) 1.4 W, (150 mA), 50,000 hours life expectancy
    • Light Source: 448 LEDs (WW) 0.50 W, (150 mA), 50,000 hours life expectancy
    • Color Temperature (range): 2800 to 8000 K
    • Color Temperature (range): 2800 to 8000 K
    • Color Temperature (at full): 7220 K
    • CRI (3200 K): 90.8
    • Beam Angle: 100.2°
    • Field Angle: 157°
    • Lumens: 22,508
    • Illuminance: 349 lux @ 5 m
    • Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz
  • Dynamic Effects:
    • Dimmer: Electronic
    • Shutter/Strobe: Electronic
    • Strobe Rate: 0 to 30 Hz
    • Standalone Color Mixing: Yes
    • Color Temperature Presets: Yes
    • Dim Modes: 4
    • Dim Curves: 4
    • Built-in Automated Programs: Yes
  • Connections:
    • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
    • Power Input: Seetronic Powerkon IP65
    • Power Output: Seetronic Powerkon IP65
    • Power Input: 28 VDC, 3-pin IP65 XLR
    • Data Connectors: 5-pin IP65 XLR, Seetronic ethercon compatible
    • Cable Length (power): 5 ft (1.5 m)
    • Software Connection: USB
  • Control:
    • Control Protocol: Art-Net, sACN, DMX, CRMX, RDM
    • DMX Channels: 1, 3, 4, 5, 6, 8, 11, 15, 16, 18, 23 or 32
    • Art-Net Channels: 1, 3, 4, 5, 6, 8, 11, 15, 16, 18, 23 or 32
    • Modes/Personalities: 12 personalities (1, 3, 4, 5, 6, 8, 11, 15, 16, 18, 23, 32)
  • Electrical:
    • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
    • Power Linking: 3 units @ 100 V; 4 units @ 120 V; 7 units @ 208 V; 8 units @ 230 V, 8 units @ 240 V
    • Power and Current: 372 W, 3.104 A @ 120 V, 60 Hz
    • Power and Current: 371 W, 1.774 A @ 208 V, 60 Hz
    • Power and Current: 370 W, 1.608 A @ 230 V, 50 Hz
  • Certifications/Qualifications:
    • CE, MET, FCC
    • IP Rating: IP65, temporary outdoor use, with pressure equalizing M12 GORE valve
    • Temperature (Ambient): -4°F to 113°F (-20°C to 45°C)
  • Physical:
    • Dimensions: 33.4" x 5.4" x 21.6" (849 x 139 x 553 mm)
    • Weight: 37.9 lb (17.1 kg)
    • Exterior Color: Black
    • Housing Material: Aluminum alloy
