Description

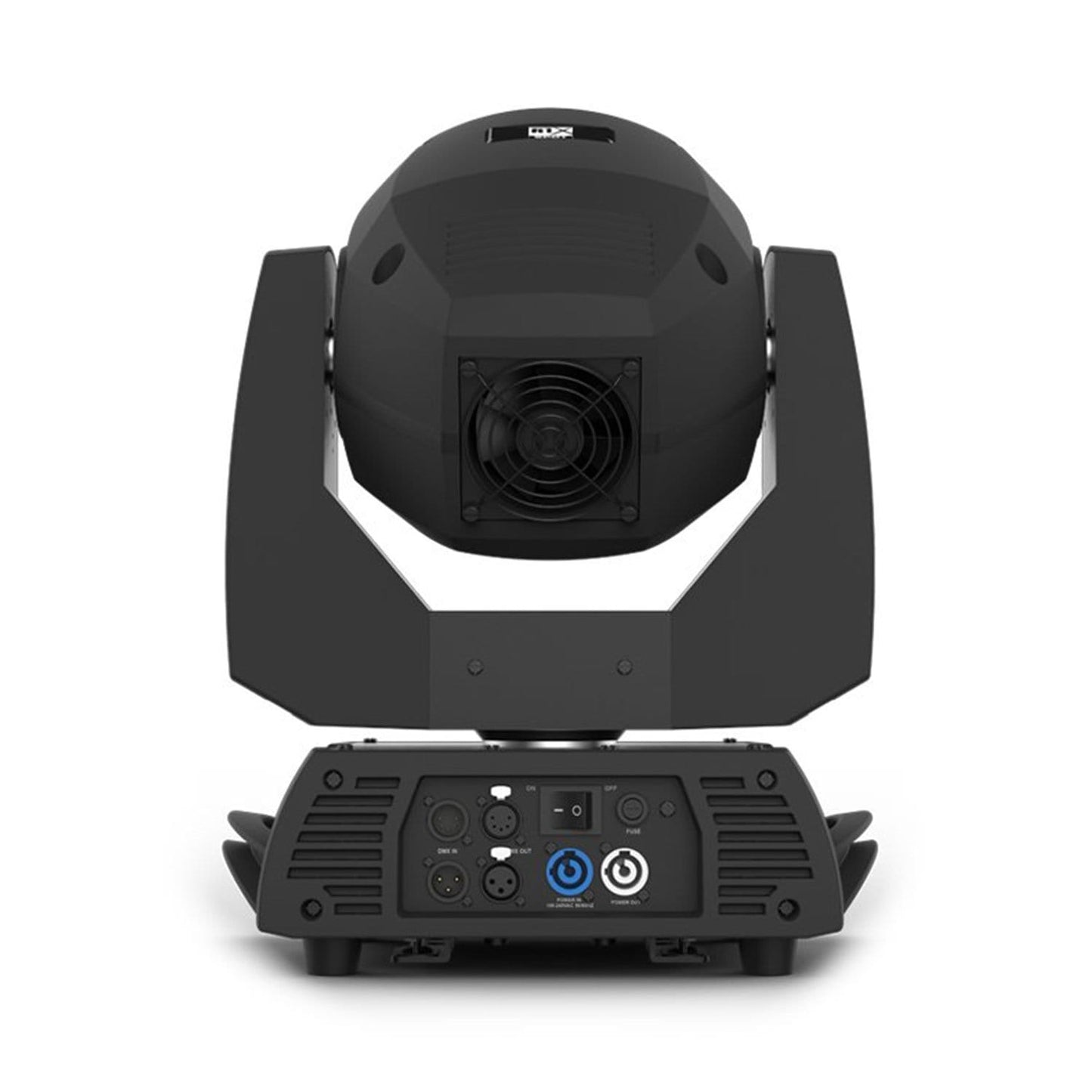

Chauvet Rogue R1X Spot LED Moving Head Light

Rogue R1X Spot brings innovation and creativity with a rotating 3-facet prism for stunning aerial effects, a motorized iris and focus for beam shaping, as well as two gobo wheels, one of which rotates and has 7 interchangeable gobos for custom looks. Rogue R1X Spot shines brightly with a 170 W LED light source in a 16° beam angle for crisp gobo projections in a range of eight beautiful colors.

Features:
  • Bold, bright 170 W LED light engine for punchy, solid beams
  • Color wheel with 8 colors, split color ability, and continuous variable-speed scrolling
  • Two gobo wheels: one fixed slot scrolling wheel and one rotating, interchangeable, scrolling wheel
  • Iris and 3-facet prism for stunning visual effects
  • Neutrik® powerCON® power input/output connections for power linking
  • 3- and 5-pin DMX input/output connections
  • RDM enabled for remote addressing and trouble shooting
  • Selectable LED maximum output to match legacy Rogue R1 Spots
  • Selectable PWM settings to maintain flicker free operation on camera
  • Simple and complex DMX channel profiles for programming versatility

Specifications:

  • Optical:
    • Light Source: 1 LEDs (CW) 170 W, (7.4 A), 9491 K, 50,000 hours life expectancy
    • Color Temperature (at full): 9491 K
    • Beam Angle: 16°
  • Dynamic Effects:
    • Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 250° tilt
    • Colors: 8 + white, split colors, continuous scroll at variable speeds
    • Gobo Size: Gobo Wheel 1 (rotating): Positions 1, 2, 3, 4, and 7 (metal); size: 26.9 mm (outside), 22.5 mm (image), 0.5 mm (max. thickness)
    • Gobo Size: Gobo Wheel 1 (rotating): Positions 5 and 6 (glass); size: 25 mm (outside), 23 mm (image), 3 mm (max thickness)
    • Prism: 3 Facets, motorized, rotating
  • Construction
    • Dimensions (single unit): 11.10 x 14.20 x 17.60 in (282 x 360 x 447 mm)
    • Weight (single unit): 37.6 lb (17.1 kg)
    • Exterior Color: Black
    • Housing Material: High-impact flame-retardant polymer
