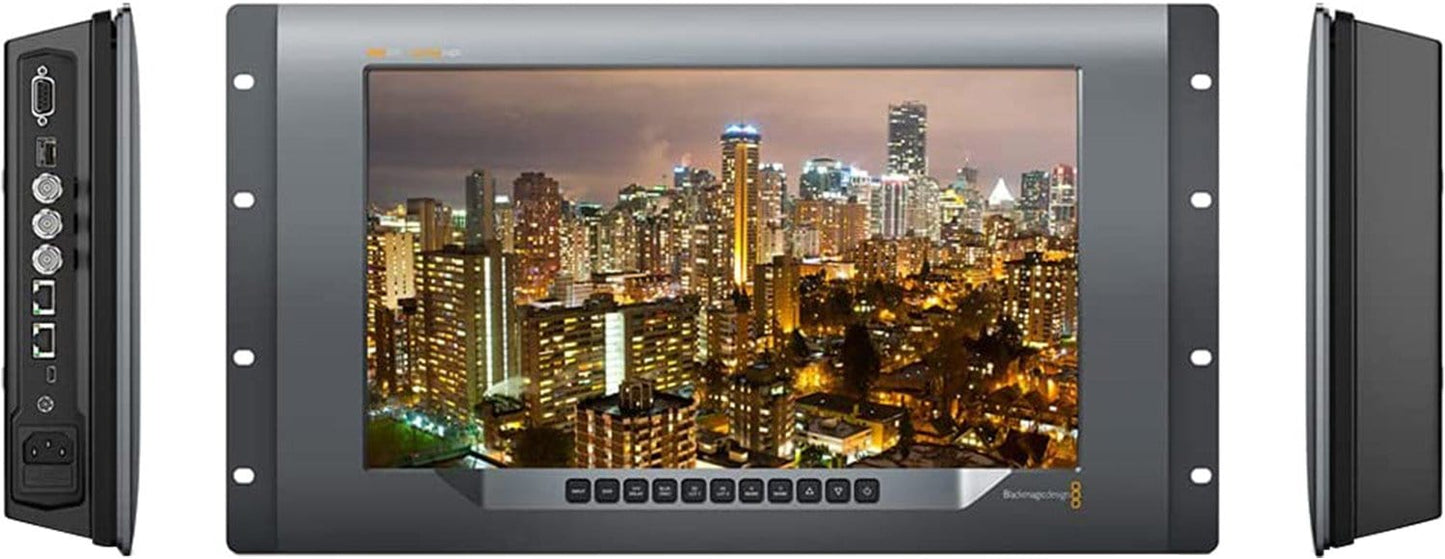

Blackmagic SmartView 4K 2 Broadcast Monitor

SmartView 4K is the world’s first full resolution rack mount Ultra HD broadcast monitor with 12G-SDI for native display of up to 2160p60. You get a professional broadcast monitor that supports the latest Ultra HD resolutions, plus automatically switches to SD and HD-SDI formats using high quality Teranex processing for a clean and professional display. The machined metal design includes a built in control panel for using features such as the built in 3D LUTs, H/V delay, blue only, zoom, focus peaking, customizable frame markers and more, either from the front panel or via external Ethernet! SmartView 4K supports VESA mounting so you can install on articulated monitor arms or rack mounting.

Features:

  • 15.6" 3840 x 2160 Active-Matrix TFT LCD
  • Supports up to DCI 4K60 Video
  • 2 x Multi-Rate 12G-SDI Inputs
  • 1 x Optical Fiber SDI Socket
  • SDI Loop-Through Output, Tally Input
  • Dual 3D LUT Support
  • Peaking, Zoom & Adjustable Markers
  • H/V Delay, Blue Only & Frame Markers
  • Front Panel & Ethernet Control
  • Upscales SD/HD to UHD

Specifications:

  • Display:
    • Panel Type: TFT LCD
    • Display Size: 15.6" / 39.6 cm
    • Aspect Ratio: 16:9
    • Touchscreen: No
    • Contrast Ratio: 1000:1
    • Bit Depth / Color Support: 8-Bit (16.7 Million Colors)
    • Pixels Per Inch (ppi): 282 ppi
    • Response Time: 25 ms
    • Color Gamut: 100% Rec. 709
    • Real-Time LUT Monitoring: SDR, HDR
    • Image Controls: Blue Only, Focus Peaking, H/V Delay, Pixel Zoom
  • I/O:
    • Video:
      • 2 x BNC (12G-SDI) Input
      • 1 x BNC (12G-SDI) Output
    • Embedded Audio: SDI: 16-Channel
    • Audio: None
    • Built-In Speaker: None
    • Other I/O:
      • 2 x LAN (RJ45)
      • 1 x Tally (DE-9/DB-9)
      • 1 x USB 2.0 (Mini-USB)
    • Expansion Slots: 1 x SFP+ Slot
    • Card Slot: None
  • Format Support:
    • Video Format:
      • SDI:
        • DCI 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
        • UHD 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
        • DCI 2K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
        • DCI 2K PsF: 30/29.97/25/24/23.98
        • 1080p: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
        • 1080PsF: 30/29.97/25/24/23.98
        • 1080i: 60/59.94/50
        • 720p: 60/59.94/50
  • Power:
    • Battery Type: None
    • Power Consumption: 24 W (Maximum)
  • Mounting:
    • Rack Form Factor: 6 RU
  • Environmental:
    • Operating Temperature: 32 to 104°F / 0 to 40°C
    • Operating Humidity: 0 to 90%
    • Storage Temperature: -4 to 140°F / -20 to 60°C
  • General:
    • Material of Construction: Metal
    • Dimensions: 18.98 x 10.47 x 2.75" / 48.21 x 26.59 x 6.96 cm
    • Weight: 7.94 lb / 3.60 kg
    • Warranty Length: Limited 1-Year Warranty
  • Packaging Info:
    • Package Weight: 9.585 lb
    • Box Dimensions (LxWxH): 20.8 x 12.3 x 3.7"
