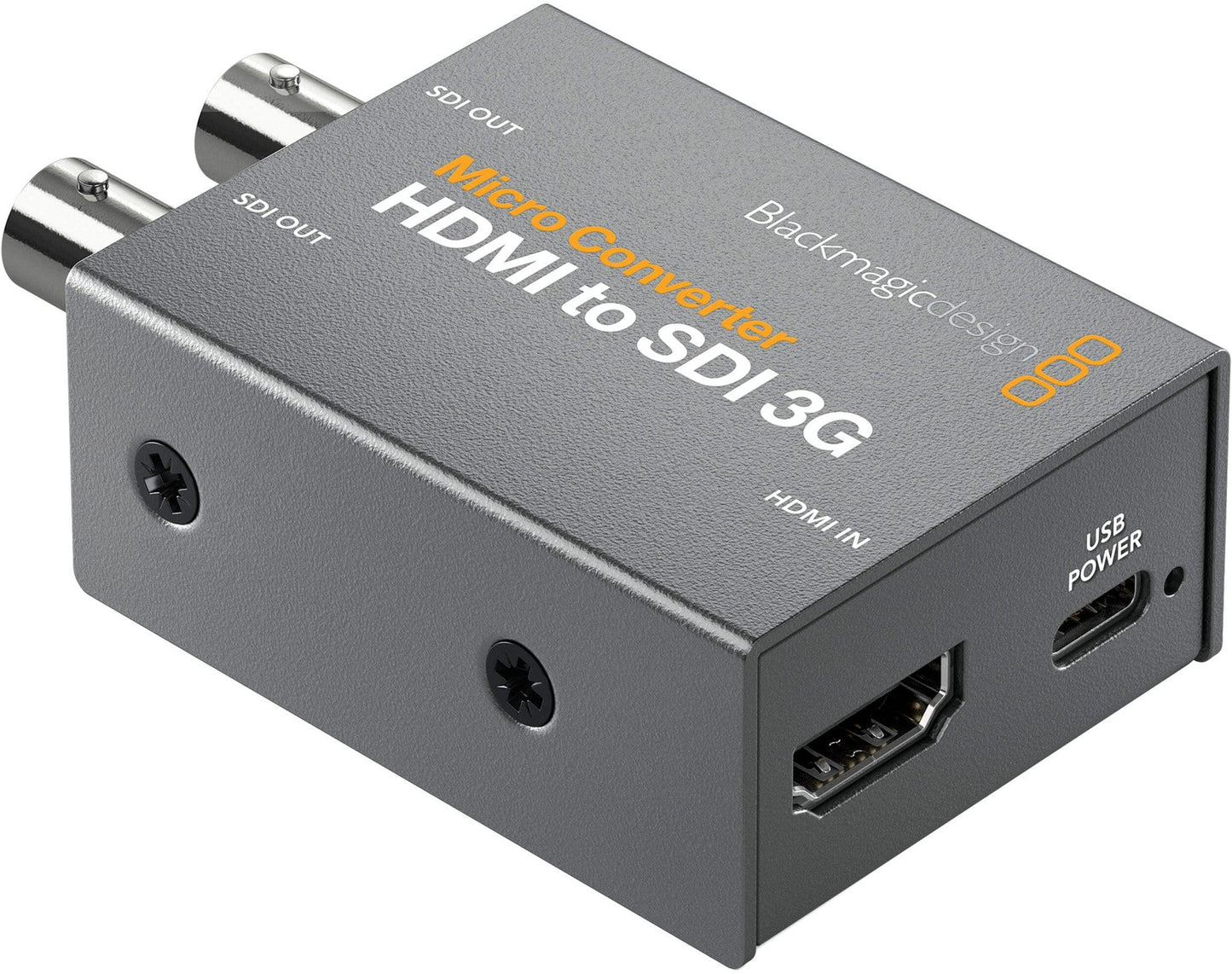

Blackmagic Micro Converter HDMI to SDI 3G with PSU
This model is perfect for connecting HDMI cameras and computers to professional SDI equipment! You get two 3G-SDI outputs which can be set to level A or level B formats. Unlike cheap converters, it even supports feature film video formats including 1080p24, 1080p47.95, and 1080p48. Includes 100 to 240V AC power supply with international socket adapters.
Specifications:
- Connections:
- SDI Video Outputs: 2 x SD, HD, or 3G‑SDI. Automatically matches the HDMI video input.
- HDMI Video Inputs: HDMI Type A in.
- Multi Rate Support: Auto detection of SD or HD.
- Updates, Configurations and Power: USB Type‑C.
- Reclocking: Yes
- Standards:
- SD Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards:
- 720p50, 720p59.94, 720p60
- 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
- 1080PsF25, 1080PsF29.97, 1080PsF30
- 1080i50, 1080i59.94, 1080i60
- SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
- SDI Video Rates: SDI video connections are automatically switchable between standard definition and high definition, and user selectable for level A or B via setup utility.
- SDI Color Precision: 4:2:2
- SDI Color Space: YUV
- SDI Auto Switching: Automatically detects SD, HD and 3G-SDI
- HDMI Video Standards:
- 525i59.94 NTSC, 625i50 PAL
- 720p50, 720p59.94, 720p60
- 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
- 1080i50, 1080i59.94, 1080i60
- HDMI Color Precision: 4:2:2
- HDMI Color Space: YUV
- Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
- Software:
- Software Control: Mac and Windows™ software via USB.
- Internal Software Upgrade: Via USB.
- Operating Systems:
- Mac 10.15 Catalina, Mac 11.1 Big Sur or later.
- Windows 10, 64-bit.
- Settings Control: Via software utility.
- Power Requirements:
- Power Supply: +5V universal power supply included with international socket adapters for most countries.
- Power Consumption: 2.5 W
- Operational Voltage Range: 4.4 to 5.25V DC
- Environmental Specifications:
- Operating Temperature: 0° to 40° C (32° to 104° F)
- Storage Temperature: -20° to 60° C (-4° to 140° F)
- Relative Humidity: 0% to 90% non-condensing
- SDI Video Outputs: 2 x SD, HD, or 3G‑SDI. Automatically matches the HDMI video input.
- HDMI Video Inputs: HDMI Type A in.
- Multi Rate Support: Auto detection of SD or HD.
- Updates, Configurations and Power: USB Type‑C.
- Reclocking: Yes
- SD Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards:
- 720p50, 720p59.94, 720p60
- 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
- 1080PsF25, 1080PsF29.97, 1080PsF30
- 1080i50, 1080i59.94, 1080i60
- SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
- SDI Video Rates: SDI video connections are automatically switchable between standard definition and high definition, and user selectable for level A or B via setup utility.
- SDI Color Precision: 4:2:2
- SDI Color Space: YUV
- SDI Auto Switching: Automatically detects SD, HD and 3G-SDI
- HDMI Video Standards:
- 525i59.94 NTSC, 625i50 PAL
- 720p50, 720p59.94, 720p60
- 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
- 1080i50, 1080i59.94, 1080i60
- HDMI Color Precision: 4:2:2
- HDMI Color Space: YUV
- Software Control: Mac and Windows™ software via USB.
- Internal Software Upgrade: Via USB.
- Mac 10.15 Catalina, Mac 11.1 Big Sur or later.
- Windows 10, 64-bit.
- Power Supply: +5V universal power supply included with international socket adapters for most countries.
- Power Consumption: 2.5 W
- Operational Voltage Range: 4.4 to 5.25V DC
- Operating Temperature: 0° to 40° C (32° to 104° F)
- Storage Temperature: -20° to 60° C (-4° to 140° F)
- Relative Humidity: 0% to 90% non-condensing
