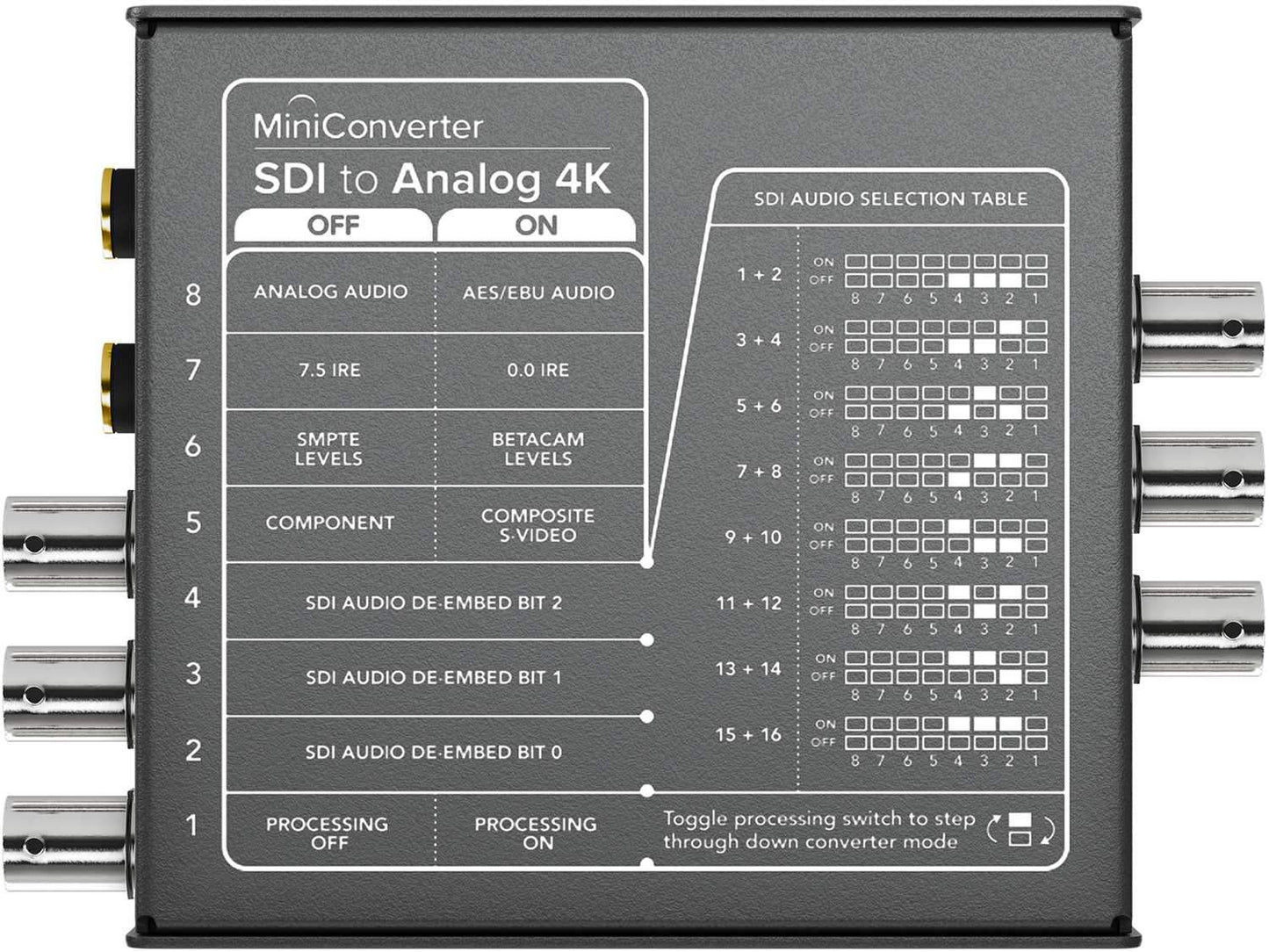

Blackmagic Design Mini Converter SDI to Analog 4K

Mini Converter SDI to Analog 4K includes everything you need to convert from SD, HD, 3G and 6G?SDI video to analog in HD/SD component, NTSC and PAL video. The built in down converter means you can even connect Ultra HD sources to component video in SD or HD as well as NTSC and PAL video! Easily connect any analog equipment such as Betacam SP, VHS, and video monitors!

Specifications:

    Connections

  • SDI Video Inputs: 1 x SD, HD or 6G?SDI. 1 x ALT SDI Input for automatic switch over if main input fails.
  • SDI Video Outputs: 1 x SDI Video Loop Output.
  • Analog Video Outputs: NTSC, PAL, S?Video and component SD/HD from 6G?SDI input.
  • Analog Audio Outputs: 2 channels of professional balanced analog audio with standard 1/4 inch jack connections.
  • Digital Audio Outputs: 2 channels of professional balanced digital with standard 1/4 inch jack connections.
  • SDI Redundant Input: Automatically switches over if main SDI input is lost.
  • Multi Rate Support: Auto detection of SD, HD or 6G?SDI.
  • Updates and Configuration: USB
  • Reclocking: Yes
  • Standards

  • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
  • HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
  • 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
  • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
  • 4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
  • SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M?B, SMPTE 425M, SMPTE ST?2081, ITU?R BT.656, ITU?R BT.601.
  • SDI Video Rates: SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K.
  • SDI Video Sampling: 4:2:2
  • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
  • SDI Color Precision: 4:2:2
  • SDI Color Space: YUV
  • SDI Auto Switching: Automatically detects SD, HD or 6G?SDI.
  • Analog Format Support: 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60
  • Analog Color Space: YUV
  • Analog Color Precision: 4:2:2
  • Format Conversion

  • HD down conversion
  • Software

  • Software Control: Mac™ and Windows™ software upgrade via USB.
  • Internal Software Upgrade: Via included updater application.
  • Operating Systems

  • Mac 10.12 Sierra, Mac 10.13 High Sierra or later.
  • Windows 8.1 or Windows 10.
  • Settings Control

  • Mini Switches or USB software.
  • Power Requirements

  • Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point.
  • Power Consumption: 8.04 Watts
  • Operational Voltage Range: 12 ? 31V DC
  • Environmental Specifications

  • Operating temperature: 0° to 40° C (32° to 104° F)
  • Storage temperature: -20° to 45° C (-4° to 113° F)
  • Relative Humidity: 0% to 90% non?condensing
  • What's Included

  • Mini Converter SDI to Analog 4K
  • Software CD
  • 12V universal power supply with international socket adapters
  • Warranty

  • 3 Year Limited Manufacturer's Warranty.
