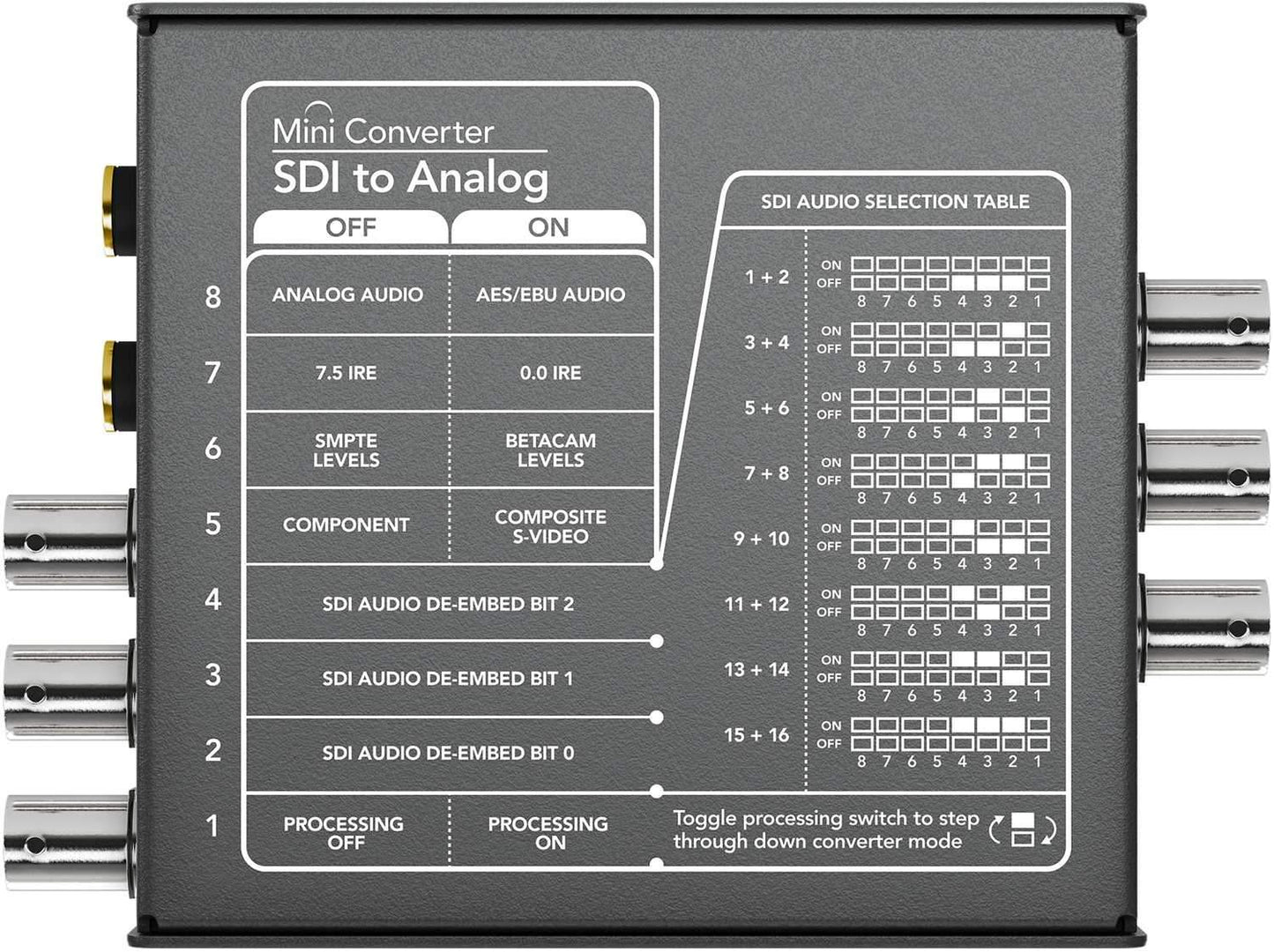

Blackmagic Design Mini Converter SDI to Analog

The perfect way to convert from SD and HD?SDI to analog component, s?video or NTSC/PAL composite. Mini Converter SDI to analog supports all SD and HD input formats up to 1080p30 and includes a down converter for when you need to convert from HD to standard definition analog formats such as s?video and composite. Audio can be de?embedded to balanced analog or AES/EBU. Mini Converter SDI to Analog is ideal for converting to older analog equipment when you don’t need the extra cost of the 6G?SDI 4K model.

Specifications:

Connections

• SDI Video Inputs: 1 x SD, HD or 1.5G?SDI. 1 x ALT SDI Input for automatic switch over if main input fails.
• SDI Video Outputs: 1 x SDI Loop Output.
• SDI Rates: 270Mb, 1.5G
• Analog Video Outputs: NTSC, PAL, S?Video and component SD/HD from 1.5G?SDI input.
• Analog Audio Outputs: 2 channels of professional balanced analog audio with standard 1/4 inch jack connections.
• Digital Audio Outputs: 2 channels of balanced AES/EBU audio.
• SDI Redundant Input: Automatically switches over if main SDI input is lost.
• Multi Rate Support: Auto detection of SD, HD or 1.5G?SDI.
• Updates and Configuration: USB
• Reclocking: Yes

Standards

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
• SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M?B, SMPTE 425M, ITU?R BT.656 and ITU?R BT.601.
• SDI Video Rates: SDI video connections are switchable between SD and HD.
• SDI Video Sampling: 4:2:2
• SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
• SDI Color Precision: 4:2:2
• SDI Color Space: YUV
• SDI Auto Switching: Auto detection of SD, HD or 3G?SDI.
• Analog Video Standards: 525i29.97 NTSC, 625i25 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60
• Analog Color Space: YUV
• Analog Color Precision: 4:2:2

Format Conversion

• HD to SD down converter.

Software

• Software Control: Mac™ and Windows™ software upgrade via USB.
• Internal Software Upgrade: Via included updater application.

Operating Systems

• Mac 10.12 Sierra,
  Mac 10.13 High Sierra or later.
• Windows 8.1 or Windows 10.


Settings Control

• Mini Switches or USB software.

Power Requirements

• Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point.
• Power Consumption: 8.04 Watts
• Operational Voltage Range: 12 ? 15V DC

Environmental Specifications

• Operating temperature: 0° to 40° C (32° to 104° F)
• Storage temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non-condensing

What's Included

• Mini Converter SDI to Analog
• 12V universal power supply with international socket adapters

Warranty

• 3 Year Limited Manufacturer's Warranty.
