Description

Blackmagic Web Presenter HD

Blackmagic Web Presenter is a complete streaming solution that includes a professional hardware streaming engine for direct streaming via Ethernet to YouTube, Facebook, Twitter, and more! Plus you can stream to the internet using Ethernet or connect a 5G or 4G phone to use mobile data! The built in USB connections also work like a webcam, so you can connect a computer and use any video software. You even get a monitoring output with video, audio meters, trend graphs and more!

Specifications:

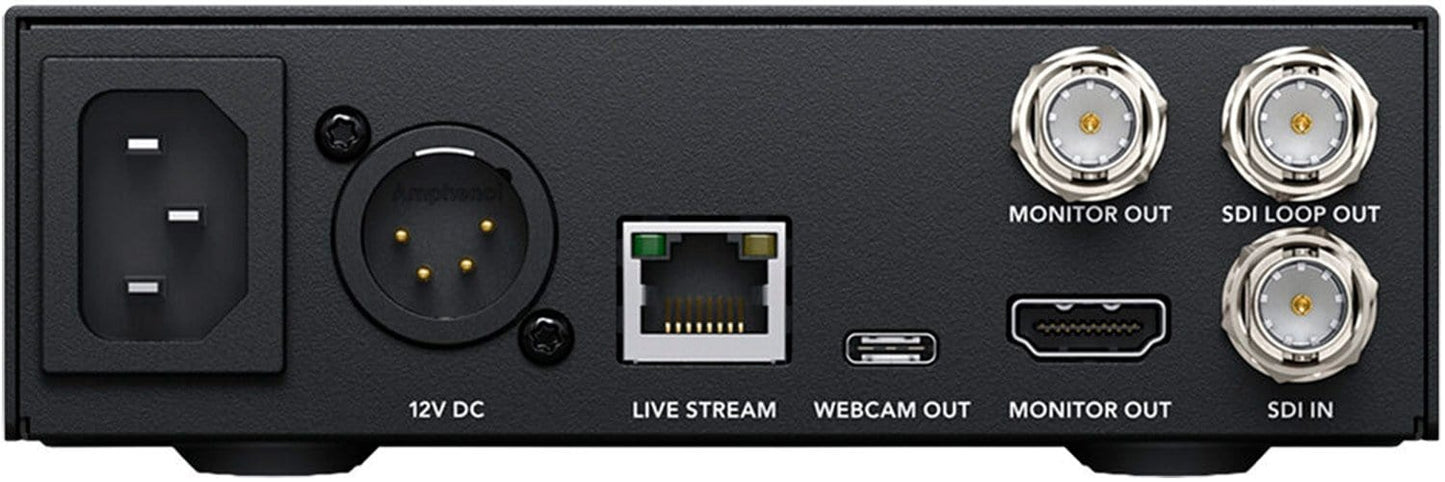

  • Connections:
    • SDI Video Inputs: 1
    • SDI Video Outputs: 1 x loop out, 1 x monitor out.
    • SDI Rates: 1.5G, 3G, 6G, 12G
    • HDMI Video Outputs: 1 x monitor out
    • Webcam Output: 1 x USB-C up to 1080p60
    • Ethernet: Ethernet supports 10/100/1000 BaseT for live streaming, software control and software updates.
  • Standards:
    • HD Video Input Standards:
    • 720p50, 720p59.94, 720p60
    • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    • 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
    • 1080i50, 1080i59.94, 1080i60
  • Ultra HD Video Input Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
  • Video Input Color Space: Rec.601, Rec.709, Rec.2020
  • 3G SDI: Auto detects SMPTE level A or B on SDI input.
  • SDI and HDMI Monitor Out Video Standards: 1080p50, 1080p59.94, 1080p60
  • Video Streaming Standards
  • 720p25, 720p30, 720p50, 720p60
  • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  • Streaming:
    • Direct Streaming: Blackmagic Web Presenter HD supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP).
    • Closed Captions: Web Presenter HD supports embedding CEA-608 and CEA-708 closed captions in your live RTMP stream.
  • Control:
    • Control Panel: Built in control panel with 2.2 inch color display for video preview, audio meters and status.
    • Device Control: Front panel, USB‑C or ethernet.
  • Software:
    • Compatible Services and Software: YouTube Live, Facebook Live, Twitter, Twitch, Skype, Microsoft Teams, Open Broadcaster, and Wowza Streaming Engine.
  • Operating Systems:
    • Mac 10.15 Catalina, Mac 11.1 Big Sur or later.
    • Windows 10, 64-bit.
    • Linux
    • Chrome OS
  • Power Requirements:
    • Power Supply: 1 x Internal 100 - 240V AC.
    • 12V DC Input: 1 x +12V DC 4‑pin XLR.
    • Power Usage: 21 W
  • Physical (H x W x D): 1.75 in x 6.51 in x 6.9 in
  • Environmental Specifications:
    • Operating Temperature: 0° C to 40° C (32° - 104°F)
    • Storage Temperature: -20° to 45° C (-4° to 113° F)
    • Relative Humidity: 0% to 90% non-condensing
