Blackmagic Blackmagic Web Presenter 4K
Blackmagic Web Presenter 4K is the ultimate HD and Ultra HD streaming solution that includes a professional hardware streaming engine for streaming up to 2160p60 directly to YouTube, Facebook, Twitter and more! Plus you can stream to the internet using Ethernet or connect a 5G or 4G phone to use mobile data! The built in USB connections also work like a webcam, so you can connect a computer and use any video software. You even get a monitoring output with video, audio meters, trend graphs and more!
Specifications:

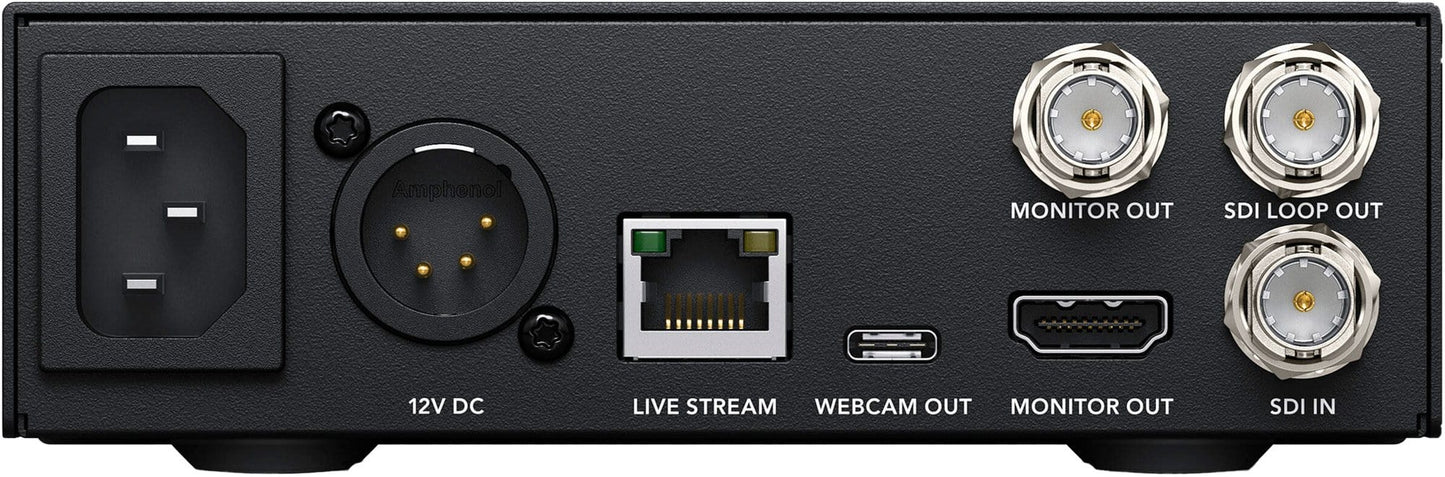

- Connections:
- SDI Video Inputs: 1
- SDI Video Outputs: 1 x loop out, 1 x monitor out.
- SDI Rates: 1.5G, 3G, 6G, 12G
- HDMI Video Outputs: 1 x monitor out
- Webcam Output: 1 x USB-C up to 2160p60
- Ethernet: Ethernet supports 10/100/1000 BaseT for live streaming, software control and software updates.
- Standards:
- HD Video Input Standards:
- 720p50, 720p59.94, 720p60
- 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
- 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
- 1080i50, 1080i59.94, 1080i60
- Ultra HD Video Input Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
- Video Input Color Space: Rec.601, Rec.709, Rec.2020
- 3G SDI: Auto detects SMPTE level A or B on SDI input.
- SDI and HDMI Monitor Out Video Standards: 1080p50, 1080p59.94, 1080p60
- Video Streaming Standards:
- 720p25, 720p30, 720p50, 720p60
- 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
- 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
- Streaming:
- Direct Streaming: Blackmagic Web Presenter 4K supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP).
- Closed Captions: Web Presenter 4K supports embedding CEA‑608 and CEA‑708 closed captions in your live RTMP stream.
- Control:
- Control Panel: Built in control panel with 2.2 inch color display for video preview, audio meters and status.
- Device Control: Front panel, USB‑C or ethernet.
- Software:
- Compatible Services and Software: YouTube Live, Facebook Live, Twitter, Twitch, Skype, Microsoft Teams, Open Broadcaster and Wowza Streaming Engine.
- Operating Systems:
- Mac 10.15 Catalina, Mac 11.1 Big Sur or later.
- Windows 10, 64-bit.
- Linux
- Chrome OS
- Power Requirements:
- Power Supply: 1 x Internal 100 - 240V AC.
- 12V DC Input: 1 x +12V DC 4‑pin XLR.
- Power Usage: 25 W
- Physical (H x W x D): 1.75 in x 5.51 in x 6.9 in
- Environmental Specifications:
- Operating Temperature: 0° C to 40° C (32° - 104°F)
- Storage Temperature: -20° to 45° C (-4° to 113° F)
- Relative Humidity: 0% to 90% non-condensing
- SDI Video Inputs: 1
- SDI Video Outputs: 1 x loop out, 1 x monitor out.
- SDI Rates: 1.5G, 3G, 6G, 12G
- HDMI Video Outputs: 1 x monitor out
- Webcam Output: 1 x USB-C up to 2160p60
- Ethernet: Ethernet supports 10/100/1000 BaseT for live streaming, software control and software updates.
- HD Video Input Standards:
- 720p50, 720p59.94, 720p60
- 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
- 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
- 1080i50, 1080i59.94, 1080i60
- Ultra HD Video Input Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
- Video Input Color Space: Rec.601, Rec.709, Rec.2020
- 3G SDI: Auto detects SMPTE level A or B on SDI input.
- SDI and HDMI Monitor Out Video Standards: 1080p50, 1080p59.94, 1080p60
- Video Streaming Standards:
- 720p25, 720p30, 720p50, 720p60
- 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
- 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
- Direct Streaming: Blackmagic Web Presenter 4K supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP).
- Closed Captions: Web Presenter 4K supports embedding CEA‑608 and CEA‑708 closed captions in your live RTMP stream.
- Control Panel: Built in control panel with 2.2 inch color display for video preview, audio meters and status.
- Device Control: Front panel, USB‑C or ethernet.
- Compatible Services and Software: YouTube Live, Facebook Live, Twitter, Twitch, Skype, Microsoft Teams, Open Broadcaster and Wowza Streaming Engine.
- Mac 10.15 Catalina, Mac 11.1 Big Sur or later.
- Windows 10, 64-bit.
- Linux
- Chrome OS
- Power Supply: 1 x Internal 100 - 240V AC.
- 12V DC Input: 1 x +12V DC 4‑pin XLR.
- Power Usage: 25 W
- Operating Temperature: 0° C to 40° C (32° - 104°F)
- Storage Temperature: -20° to 45° C (-4° to 113° F)
- Relative Humidity: 0% to 90% non-condensing
