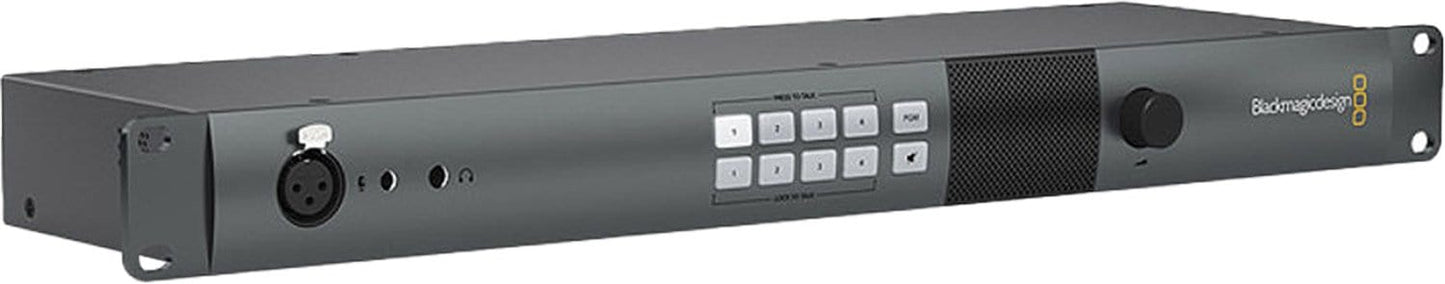

Blackmagic ATEM Studio Converter 2
The BlackMagic Design ATEM Studio Converter 2 is the ideal partner for the ATEM Camera Converter. Connect up to four Camera Converters via optical fiber up to 28 miles away with bi-directional video plus tally and talkback! Connect your ATEM switcher program output to the ATEM Studio Converter and this is distributed to the four Camera Converters. Multiple Studio converters can be cascaded together when more than 4 cameras are needed. Studio converter can also be used as four independent SDI or Fiber to HDMI converters and four independent simultaneous SDI to Optical and Optical to SDI converters.
Specifications:
- Standards:
- Format Support:
- 4K:
- DCI 4096 x 2160p: 60/50/30/29.97/25/24/23.98
- UHD 3840 x 2160p: 60/59.94/50/30/29.97/25/24/23.98
- 2K:
- 2048 x 1080p: 25/24/23.98
- 2048 x 1080PsF: 25/24/23.98
- HD:
- 1080p: 60/59.94/50/30/29.97/25/24/23.98
- 1080PsF: 60/59.94/50/30/29.97/25/24/23.98
- 1080i: 60/59.94/50
- 720p: 60/59.94/50
- SD:
- NTSC
- 525i: 59.94
- PAL
- 625i: 50
- Video:
- SDI Video:
- Input 4 x 10-bit SD/HD switchable camera inputs
- 1 x 10-bit SD/HD switchable program input from switcher, including Tally information embedded in the SDI signal
- SDI Compliance: SMPTE 259M, SMPTE 292M
- Video Sampling: 4:2:2
- Color Precision: 10-bit
- Color Space:
- REC 601
- REC 709
- Optical Fiber Video Input: 4 x single mode SD/HD switchable camera inputs with LC connector
- Optical Fiber:
- Input:
- 4 x single mode LC connectors for video with embedded audio
- Channels 1 & 2 are camera audio
- Channels 15 & 16 are talkback audio
- Output:
- 4 x single mode LC connectors for video with embedded audio
- Channels 1 & 2 are camera audio
- Channels 15 & 16 are talkback audio
- Audio:
- Audio Sampling:
- 48 kHz
- 24-bit A/D conversion
- Analog Audio Output:
- 4 x 3-Pin XLR Balanced Audio Pairs (1 x pair per fiber input)
- 2 x RCA jacks provide a L/R stereo pair
- Talkback:
- 1 x 1/4" TRS headphone jack
- 1 x .206" TRS mic input for use with aviation style headset
- 1 x 3-pin XLR connector for talkback microphone
- 1 x Integrated speaker
- Talkback Control: 8 x Front panel buttons for camera operator selection, lock, mute and un-mute
- AES/EBU Talkback Loops:
- Input:
- 1 x BNC mic input
- 1 x BNC headphone input
- Output:
- 1 x BNC mic output
- 1 x BNC headphone output
- General:
- OS Compatibility:
- Mac:
- OS X 10.7 Lion and later
- OS X 10.8 Mountain Lion and later
- Windows:
- Windows 7
- Windows 8
- Computer Interface: 1 x mini-B type USB 2.0 connector for initial setup, firmware updates and Converter Utility software control
- Temperature :
- Operating: 32 to 104°F (0 to 40°C)
- Storage: -4 to 113°F (-20 to 45°C)
- Power Requirements:
- 110 - 220 VAC, 50/60 Hz
- 12 - 31 VDC redundant input
- Dimensions:
- 1.7 x 18.9" (44 x 482 mm)
- 1 RU size with built-in rackmount ears
- Weight: 4 lbs. (1.81 kg)
- Format Support:
- 4K:
- DCI 4096 x 2160p: 60/50/30/29.97/25/24/23.98
- UHD 3840 x 2160p: 60/59.94/50/30/29.97/25/24/23.98
- 2K:
- 2048 x 1080p: 25/24/23.98
- 2048 x 1080PsF: 25/24/23.98
- HD:
- 1080p: 60/59.94/50/30/29.97/25/24/23.98
- 1080PsF: 60/59.94/50/30/29.97/25/24/23.98
- 1080i: 60/59.94/50
- 720p: 60/59.94/50
- SD:
- NTSC
- 525i: 59.94
- PAL
- 625i: 50
- NTSC
- 4K:
- SDI Video:
- Input 4 x 10-bit SD/HD switchable camera inputs
- 1 x 10-bit SD/HD switchable program input from switcher, including Tally information embedded in the SDI signal
- SDI Compliance: SMPTE 259M, SMPTE 292M
- Video Sampling: 4:2:2
- Color Precision: 10-bit
- Color Space:
- REC 601
- REC 709
- Optical Fiber Video Input: 4 x single mode SD/HD switchable camera inputs with LC connector
- Optical Fiber:
- Input:
- 4 x single mode LC connectors for video with embedded audio
- Channels 1 & 2 are camera audio
- Channels 15 & 16 are talkback audio
- Output:
- 4 x single mode LC connectors for video with embedded audio
- Channels 1 & 2 are camera audio
- Channels 15 & 16 are talkback audio
- Input:
- Audio Sampling:
- 48 kHz
- 24-bit A/D conversion
- Analog Audio Output:
- 4 x 3-Pin XLR Balanced Audio Pairs (1 x pair per fiber input)
- 2 x RCA jacks provide a L/R stereo pair
- 1 x 1/4" TRS headphone jack
- 1 x .206" TRS mic input for use with aviation style headset
- 1 x 3-pin XLR connector for talkback microphone
- 1 x Integrated speaker
- Input:
- 1 x BNC mic input
- 1 x BNC headphone input
- Output:
- 1 x BNC mic output
- 1 x BNC headphone output
- OS Compatibility:
- Mac:
- OS X 10.7 Lion and later
- OS X 10.8 Mountain Lion and later
- Windows:
- Windows 7
- Windows 8
- Mac:
- Computer Interface: 1 x mini-B type USB 2.0 connector for initial setup, firmware updates and Converter Utility software control
- Temperature :
- Operating: 32 to 104°F (0 to 40°C)
- Storage: -4 to 113°F (-20 to 45°C)
- Power Requirements:
- 110 - 220 VAC, 50/60 Hz
- 12 - 31 VDC redundant input
- Dimensions:
- 1.7 x 18.9" (44 x 482 mm)
- 1 RU size with built-in rackmount ears
- Weight: 4 lbs. (1.81 kg)
