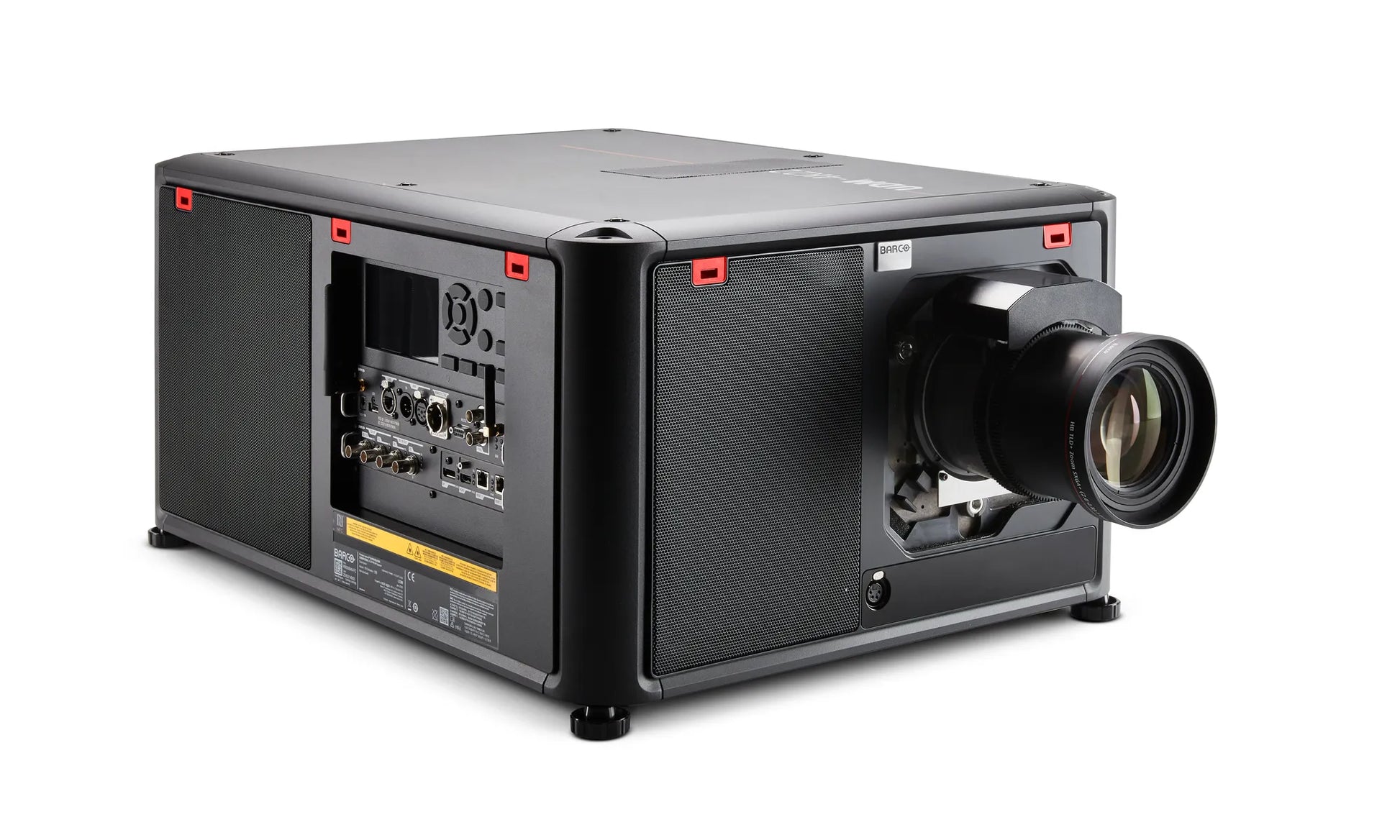

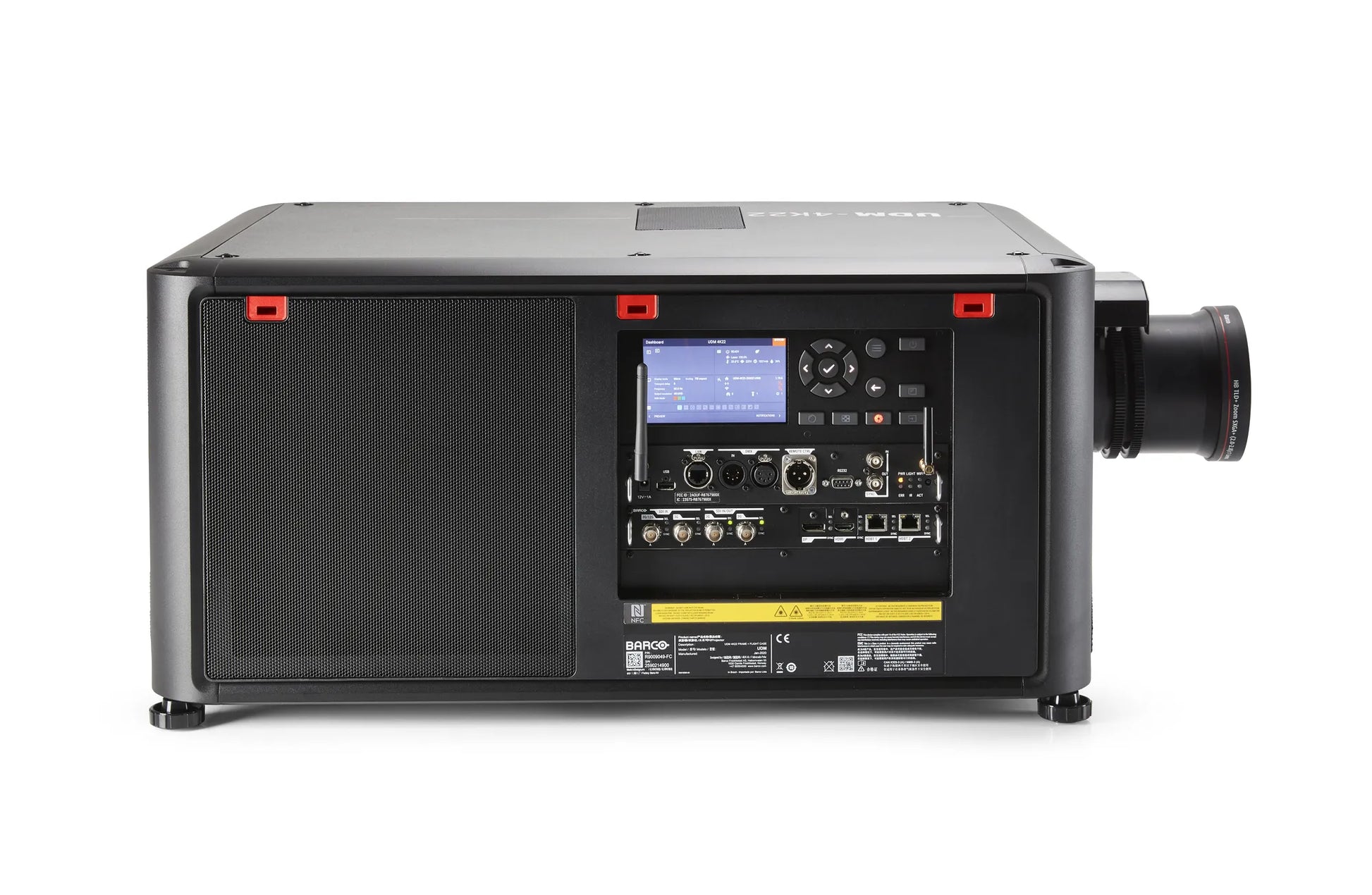

Barco UDM‑W30 Projector

Barco UDM‑W30 30,000 Lumens, WUXGA, 3-chip DLP Large Venue Projector

The UDM‑W30 delivers exceptional brightness and colour performance in a lightweight package under 50kg, the lightest projector in its class.

Its compact design reduces installation time, shipping costs, and labour expenses without sacrificing projection quality or the stunning 30,000-lumen output. WUXGA resolution combined with the widest colour spectrum available in 30K laser phosphor projection ensures vibrant, impactful visuals that exceed Rec. 709 standards. Barco's proprietary Single Step Processing technology delivers razor-sharp images with market-leading low latency and minimal dark time.

The widest lens shift on the market and extensive peripheral options streamline installation and integration. FLEX2 tuning locks brightness and resolution for specific shows, while the modular design enables fast maintenance and field serviceability. Built on Barco's unified Pulse electronics platform, the UDM‑W30 features integrated laser cooling and a robust dust and pollution filter for road-ready durability.

The laser phosphor light source eliminates lamp costs, maintenance, and flicker. Constant Light Output guarantees consistent brightness and colour throughout the projector's lifetime. The Barco Insights Management Suite dashboard and cloud-based platform with 3G connectivity enable fleet brightness management, remote troubleshooting, and real-time monitoring from anywhere.

Features:

• Most compact and lightest laser projector in the 30K lumens
• Robust design made for the toughest conditions
• Extremely flexible with widest lens shift and modular design
• Fastest processing at lowest latency with Barco Pulse Single Step Processing
• Remote fleet management & connectivity with Barco Insights Management Suite
• 3 Chip DLP
• Laser Phosphor
• 30K Lumens
• 3D Ready
• Constant Light Output
• Reuse Lens
• PULSE Processing
• Flex2
• Barcolink
• Rugged
• 24/7 Operation
• HDBaseT Compliant
• WARPING
• Blending
• Remote
• Management Suite

Specifications:

• Projector type: WUXGA 3-chip DLP digital projector
• Technology: 0.96" DMD x3
• Resolution: 1,920 x 1,200
• Brightness:
  • 29,000 centre lumens*
  • 27,000 ANSI lumens*
  • 31,000 ISO lumens*
• Contrast ratio: Full field 2200:1
• Contrast ratio Barco DynaBlack: 20.000:1
• Optical lens shift:
  • Vertical: up to 160%, down to 150% (motorized), depending on lens
  • Horizontal: up to +/- 50% (motorized), depending on lens
  • with lens memory on TLD+ lenses
• Light source: Laser B + Red compensator and inorganic Ph wheel
• Brightness uniformity: 93%
• Light source lifetime @ 100% power, DynaBlack off, towards 50% brightness: 20000 hrs
• Colour correction: P7
• Optical dowser: Digital + mechanical internal
• Aspect ratio: 16:10
• Lenses: TLD+ 0,37; 0,65-0,85; 0.73:1 ; 1.2:1 ; 0,8-1,16; 1,25 -1.6:1 ; 1.5-2.0:1 ; 2.0-2.8:1 ; 2.8-4.5:1 ; 4.5-7.5:1 ; 7.5-11.5:1
• Orientation: 360°
• Sealed DLP core: Standard

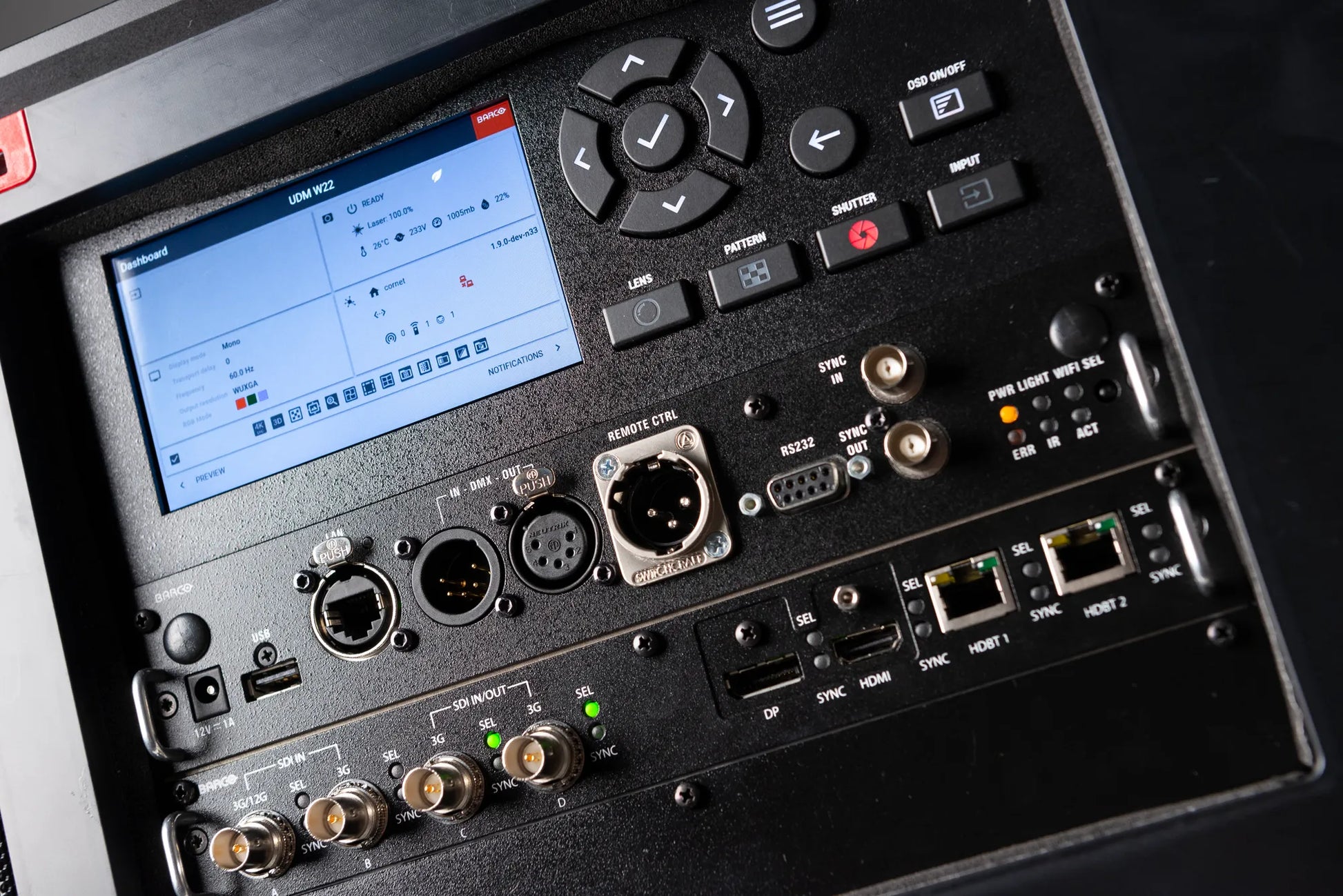

• Inputs: Single HDBaseT/ HDMI 2.0 (HDCP2.2 - HDR**)/ DP1.2 (HDCP 1.3)/ Quad 3G-12G SDI/BarcoLink ULTRA/ RJ45 Ethernet / RS232 / USB(5v) / 12V out/ BNC 3D sync in-out
• Input resolutions:
  • From NTSC up to 4K (4,096 x 2,160)
  • Refresh rates:
  • 24hz to 120 Hz 4K/4KUHD (4096 x 2160 / 3860 x 2400) to 240hz WQXGA (2560 x 1600)
• Processing: Pulse electronics
• Picture-by-picture: Two sources simultaneously
• CLO (constant light output): Standard
• DMX 512: Standard
• WARP: Direct adjust OSD + toolset
• ScenergiX: Horizontal and vertical edge blending
• Image processing: Embedded warp & blend
• Keystone correction: Yes
• Integrated web server: Yes
• Software tools: Projector Toolset + Android app + iOS app + Insights Management Suite (IMS)
• Control: DMX, Artnet, PJ Link, Remote control XLR/Jack wired + IR, RJ45, RS232, Wifi***, GSM***
• 3D: Active eye wear (optional), passive circular (optional); 2 flash up to 200Hz
• BTU per hour: 7.000 BTU/hr
• Optional Inputs: Quad DP1.2 / Fibre SFP
• Max. pixel clock: 600 MHz
• Network connection:
  • 10/100 base-T, RJ-45 connection, Wifi***, GSM*** (connected models)
  • IOT connected with IMS (in selected country's)
• Dimensions (WxLxH): 540 x 725 x 339 mm / 21.25 x 28.54 x 13.36 inches
• Weight: 48 kg (105 lbs) / shipping weight from factory: 61 kg 9134 lbs)
• Power requirements: 120-160 V (max 70% brightness)18.5A / 200-240V (+/- 10%), 13.5A, 50-60Hz
• Operational humidity: 0-80% (no condens)
• Power consumption:
  • 1900W nom/ 2300w max @ 230 volts ECO STBY<2W
  • 1300W nom/ 1530w max @ 120 volts ECO STBY<2W
• Noise level (typical at 25°C/77°F): 49 dB(A)
• Operational ambient temperature: 0-40°C / 32°-104°F ****
• Circuit board protection: Advanced coatings safeguard critical electronics from humidity and harmful substances
• Shipping dimensions (WxLxH): 665 x 850 x 613 mm / 26.18 x 33.46 x 24.13 " incl. pallet
• Dissipation BTU: Max. 7000 BTU/hr
• Standard accessories: Power cord, wireless / XLR wired rugged remote control
• Certifications: Compliant with UL60950-1 and EN60950-1, complies with FCC rules & regulations, part 15 Class A and CE EN55032 Class A, Rohs
• Warranty: 3 years
• *Note:
  • * Brightness levels +/- 10%
  • ** supporting HDR 10 (HLG, EOTF, PQ EOTF SMPTE 2084), Tonemapping (EETF ITU-R BT2408-4 Aneex 5)
  • *** Wifi and GSM options are not available in all countries. Check with your Barco representative for more info.
  • **** At higher altitude light output might be dimmed
