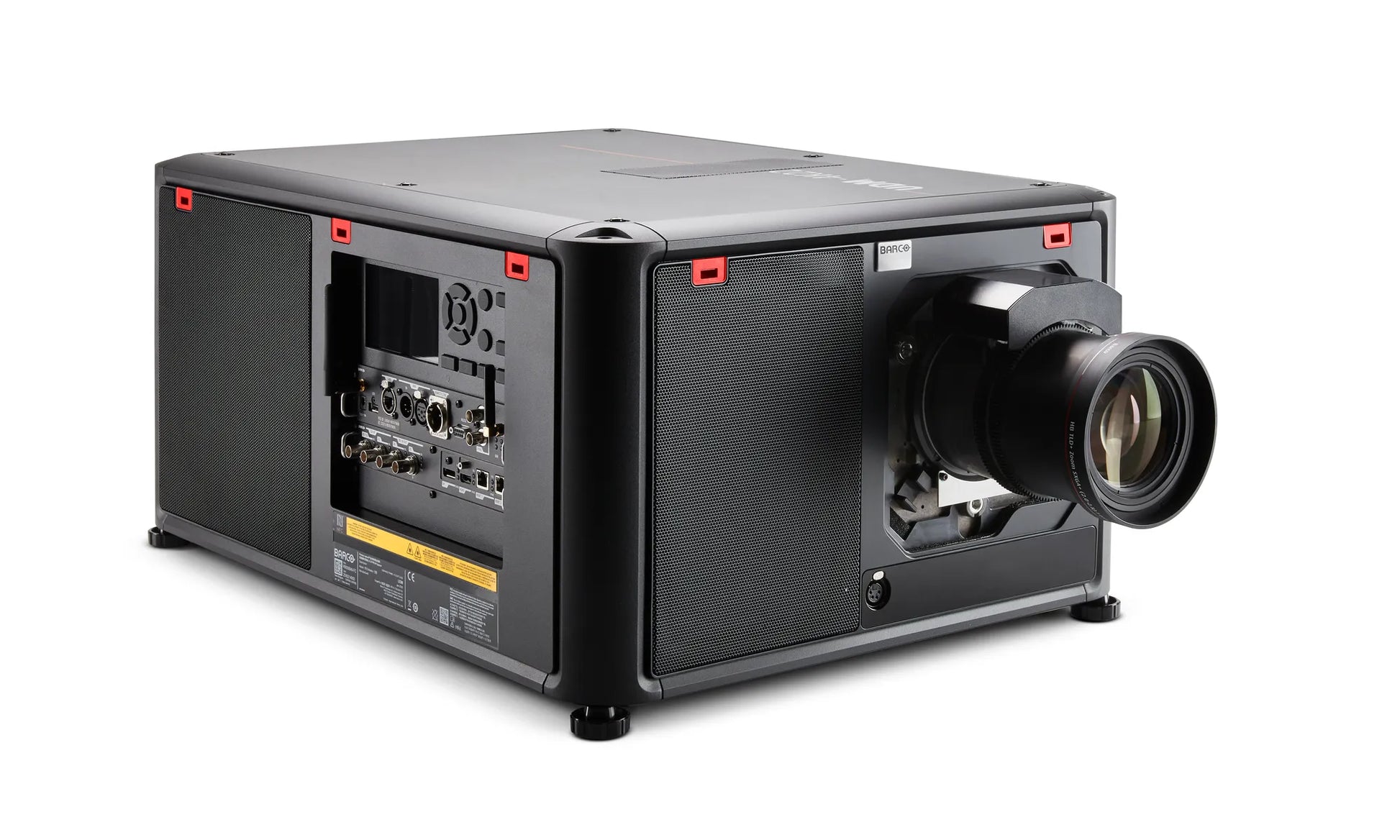

Barco UDM‑W22 Projector

Barco UDM‑W22 21,000 Lumens, WUXGA, 3-chip DLP Large Venue Projector

Weighing less than 50kgs, the UDM-W22 is the lightest 22K projector on the market. Its compact design reduces installation time, shipping, and labour costs without compromising brightness or image quality. Delivering WUXGA resolution and 21,000 lumens, it produces impactful visuals with exceptional colour accuracy, the widest colour spectrum for 22K laser phosphor projection, exceeding Rec. 709 standards.

The projector features the market's widest lens shift for flexible installation, modular design for easy field maintenance, and Barco's FLEX2 technology to lock brightness or resolution for specific shows. Pulse Electronics' Single Step Processing delivers razor-sharp images with industry-leading low latency and minimal dark time. Manage your entire projector fleet through Barco's cloud-based Insights Management Suite with remote diagnostics and 3G connectivity.

The laser phosphor light source eliminates lamp maintenance and flicker, while integrated laser cooling and Constant Light Output ensure reliable performance and consistent brightness throughout the projector's lifetime.

Features:

• Lightest 22K laser projector in the market
• High residual value thanks to rugged design
• Remote fleet management and connectivity with Barco Insights Management Suite
• Unified Pulse electronics with Single Step Processing
• 3 Chip DLP
• Laser Phosphor
• 22K Lumens
• 3D Ready
• Constant Light Output
• Reuse Lens
• PULSE Processing
• Flex2
• Barcolink
• Rugged
• 24/7 Operation
• HDBaseT Compliant
• Warping
• Blending
• Remote
• Management suite

Specifications:

• Projector type: WUXGA 3-chip DLP digital projector
• Technology: 0.96" DMD x3
• Resolution: 1,920 x 1,200
• Brightness:
  • 21,000 centre lumens*
  • 20,000 ANSI lumens*
  • 22,000 ISO lumens*
• Contrast ratio: Full field 2200:1
• Contrast ratio Barco DynaBlack: 20.000:1
• Optical lens shift:
  • Vertical: up to 160%, down to 150% (motorized), depending on lens
  • Horizontal: up to +/- 50% (motorized), depending on lens
  • with lens memory on TLD+ lenses
• Light source: Laser B + Red compensator and inorganic Ph wheel
• Brightness uniformity: 93%
• Light source lifetime @ 100% power, DynaBlack off, towards 50% brightness: 25000 hrs
• Colour correction: P7
• Optical dowser: Digital + mechanical internal
• Aspect ratio: 16:10
• Lenses: TLD+ 0,37; 0,65-0,85; 0.73:1 ; 1.2:1 ; 0,8-1,16; 1,25 -1.6:1 ; 1.5-2.0:1 ; 2.0-2.8:1 ; 2.8-4.5:1 ; 4.5-7.5:1 ; 7.5-11.5:1
• Orientation: 360°
• Sealed DLP core: Standard

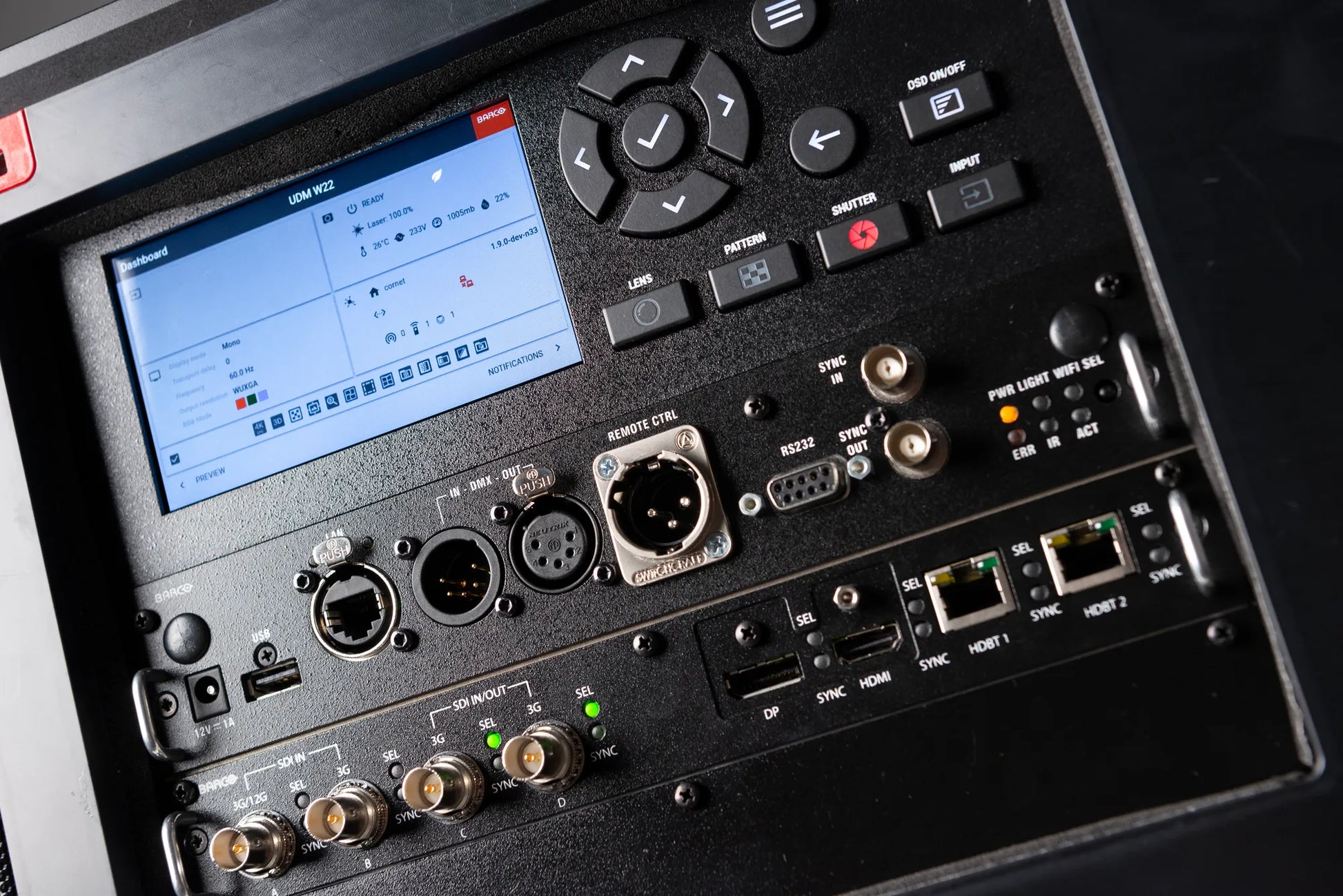

• Inputs: Single HDBaseT/ HDMI 2.0 (HDCP2.2 - HDR**)/ DP1.2 (HDCP 1.3)/ Quad 3G-12G SDI/BarcoLink ULTRA/ RJ45 Ethernet / RS232 / USB(5v) / 12V out/ BNC 3D sync in-out
• Input resolutions:
  • From NTSC up to 4K (4,096 x 2,160)
  • Refresh rates:
  • 24hz to 120 Hz 4K/4KUHD (4096 x 2160 / 3860 x 2400) to 240hz WQXGA (2560 x 1600)
• Processing: Pulse electronics
• Picture-by-picture: Two sources simultaneously
• CLO (constant light output): Standard
• DMX 512: Standard
• WARP: Direct adjust OSD + toolset
• ScenergiX: Horizontal and vertical edge blending
• Image processing: Embedded warp & blend
• Keystone correction: Yes
• Integrated web server: Yes
• Software tools: Projector Toolset + Android app + iOS app + Insights Management Suite (IMS)
• Control: DMX, Artnet, PJ Link, Remote control XLR/Jack wired + IR, RJ45, RS232, Wifi***, GSM***
• 3D: Active eye wear (optional), passive circular (optional); 2 flash up to 200Hz
• Optional Inputs: Quad DP1.2 / Fibre SFP
• Max. pixel clock: 600 MHz
• Network connection:
  • 10/100 base-T, RJ-45 connection, Wifi***, GSM*** (connected models)
  • IOT connected with IMS (in selected country's)
• Dimensions (WxLxH): 540 x 725 x 339 mm / 21.25 x 28.54 x 13.36 inches
• Weight: 48 kg (105 lbs) / shipping weight from factory: 61 kg (134 lbs)
• Power requirements: 120-160 V (max 70% brightness) 18.5A / 200-240V (+/- 10%), 13.5A, 50-60Hz
• Operational humidity: 0-80% (non condens)
• Power consumption:
  • 1800W nom/ 2200w max @ 230 volts ECO STBY<2W
  • 1300W nom/ 1530w max @ 120 volts ECO STBY<2W
• Noise level (typical at 25°C/77°F): 48 dB(A)
• Operational ambient temperature: 0-40°C / 32°-104°F ****
• Circuit board protection: Advanced coatings safeguard critical electronics from humidity and harmful substances
• Shipping dimensions (WxLxH): 665 x 850 x 613 mm / 26.18 x 33.46 x 24.12 " incl. pallet
• Dissipation BTU: Max. 6,890 BTU/h
• Standard accessories: Power cord, wireless / XLR wired rugged remote control
• Certifications: Compliant with UL60950-1 and EN60950-1, complies with FCC rules & regulations, part 15 Class A and CE EN55032 Class A Rohs
• Warranty: 3 years
• *Note:
  • * Brightness levels +/- 10%
  • ** supporting HDR 10 (HLG, EOTD, PQ EOTF SMPTE 2084), Tonemapping (EETF ITU-R BT2408-4 Annex 5)
  • *** Wifi and GSM options are not available in all countries. Check with your Barco representative for more info.
  • **** At higher altitude light output might be dimmed
