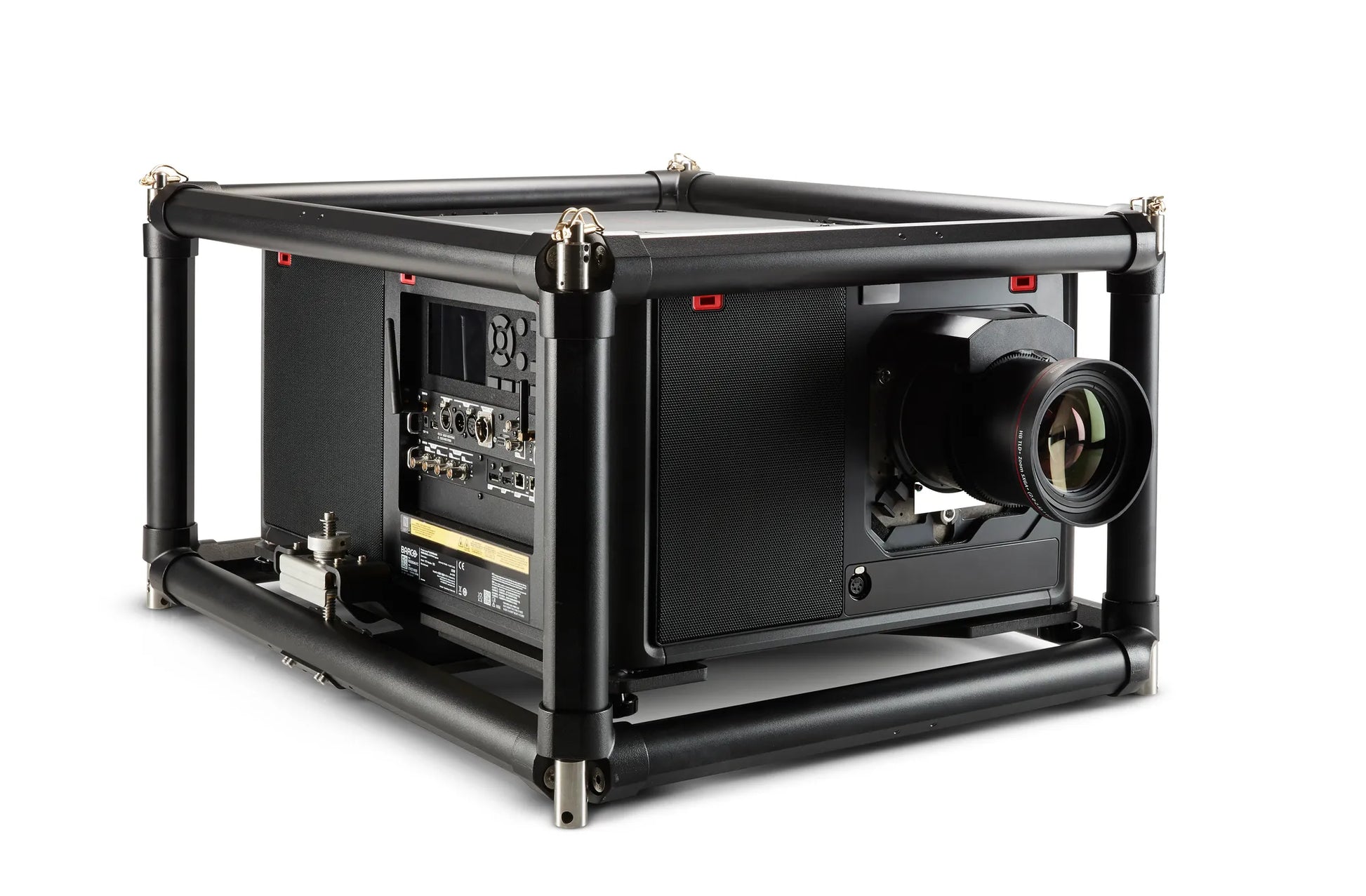

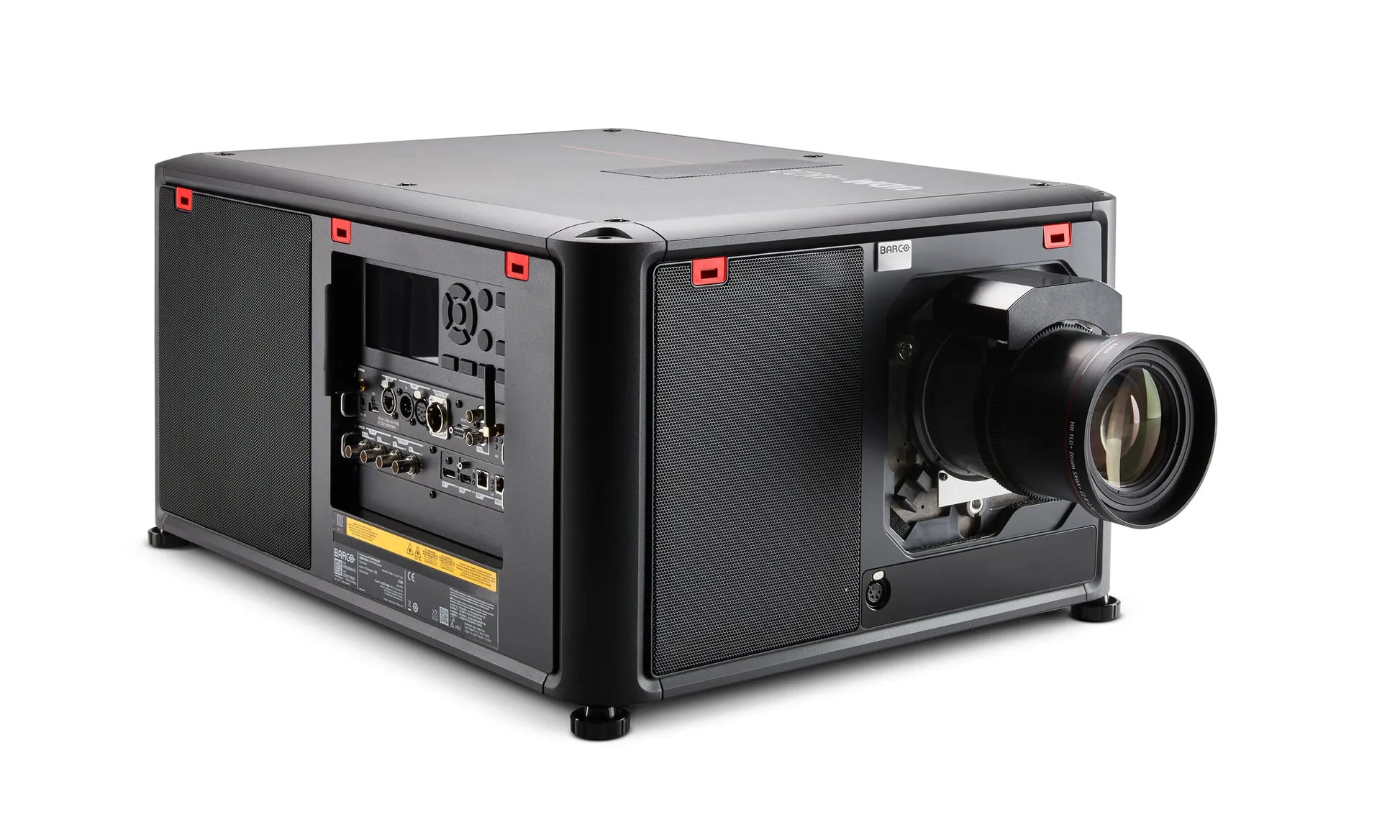

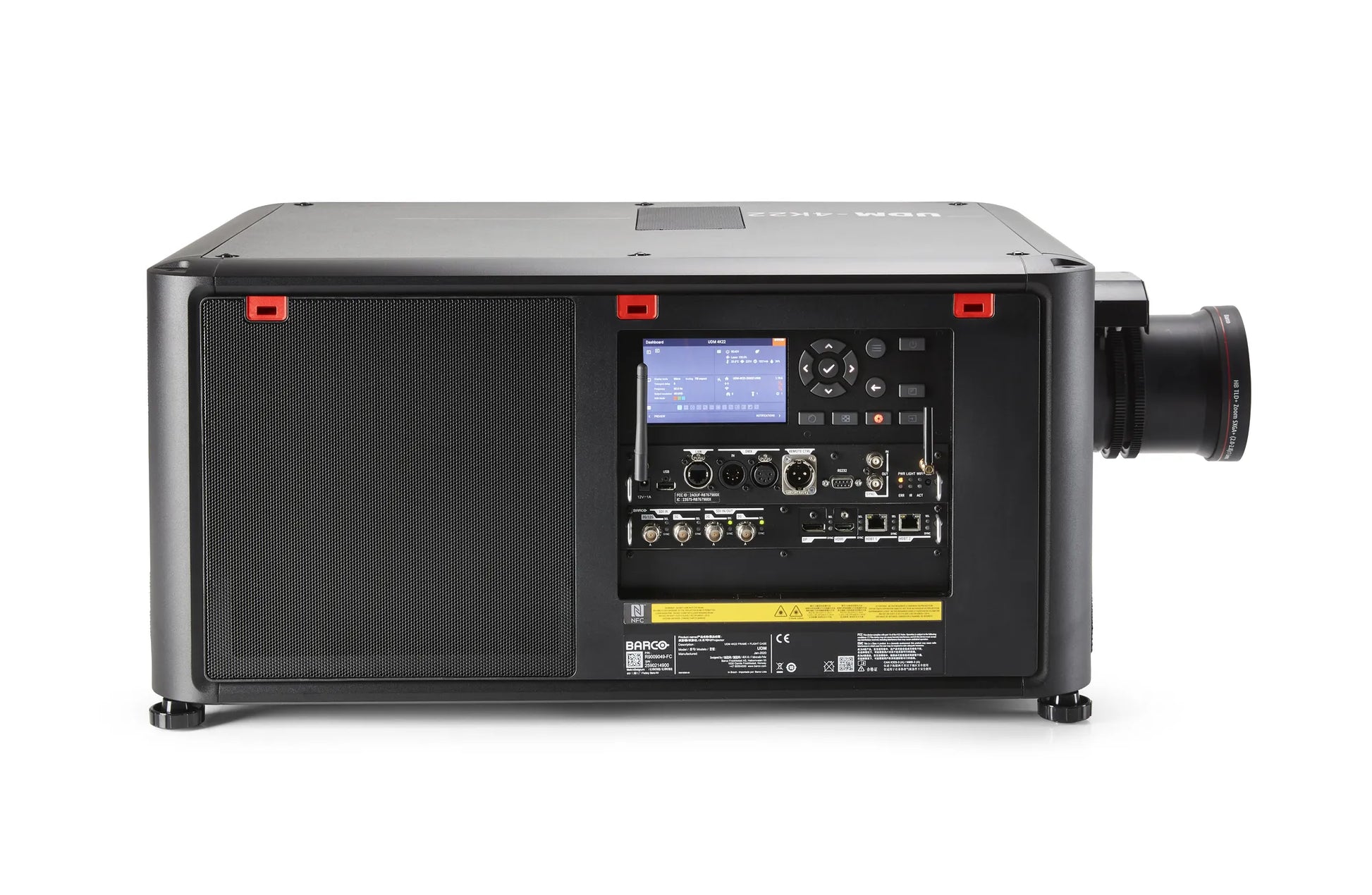

Barco UDM‑W19 Projector

Barco UDM‑W19 18,500 Lumens, WUXGA, 3-chip DLP Digital Large Venue Projector

The UDM‑W19 delivers exceptional brightness and image quality with 18,500 lumens and WUXGA resolution, ensuring vibrant, impactful visuals for large venues.

Its advanced laser phosphor light source eliminates lamp maintenance and image flicker while maintaining constant brightness and colour throughout its lifetime. Industry-leading lens shift capabilities and modular design enable seamless installation and fast field maintenance.

The exclusive FLEX2 feature lets you lock brightness and resolution settings for specific shows, while Barco's Pulse Single Step Processing technology delivers razor-sharp images with minimal latency and reduced dark time. Monitor and control your entire projector fleet remotely through the Barco Insights Management Suite Dashboard. Cloud-based platform with integrated 3G connectivity provides real-time access to operating conditions, brightness settings, and diagnostic logs from anywhere. Engineered for touring and permanent installations, the UDM‑W19 combines robust construction with intelligent thermal management.

The integrated laser cooling system prevents overheating, while Constant Light Output technology guarantees consistent performance across the projector's operational life.

Features:

• Dazzling colours outperforming the Rec. 709 colour space
• High residual value thanks to rugged design
• Remote fleet management and connectivity with Barco Insights Management Suite
• Unified Pulse electronics with Single Step Processing
• 3 Chip DLP Laser
• 19K Lumens
• 3D Ready
• Constant Light Output
• Reuse Lens
• Pulse Processing
• Flex2
• Barcolink
• Rugged
• 24/7 Operation
• 24/7 Operation
• HDBaseT Compliant
• Warping
• Blending
• Remote
• Management Suite

Specifications:

• Projector type: WUXGA 3-chip DLP digital projector
• Technology: 0.96" DMD x3
• Resolution: 1,920 x 1,200
• Brightness:
  • 18,500 center lumens*
  • 17,800 ANSI lumens*
  • 20,000 ISO lumens*
• Contrast ratio: Full field 2200:1
• Contrast ratio Barco DynaBlack: 20.000:1
• Optical lens shift:
  • Vertical: up to 160%, down to 150% (motorized), depending on lens
  • Horizontal: up to +/- 50% (motorized), depending on lens
  • with lens memory on TLD+ lenses
• Light source: Laser B + Red compensator and inorganic Ph wheel
• Brightness uniformity: 95%
• Light source lifetime @ 100% power, DynaBlack off, towards 50% brightness: 26000 hrs
• Colour correction: P7
• Optical dowser: Digital + mechanical internal
• Aspect ratio: 16:10
• Lenses: TLD+ 0,37; 0,65-0,85; 0.73:1 ; 1.2:1 ; 0,8-1,16; 1,25 -1.6:1 ; 1.5-2.0:1 ; 2.0-2.8:1 ; 2.8-4.5:1 ; 4.5-7.5:1 ; 7.5-11.5:1
• Orientation: 360°
• Sealed DLP core: Standard

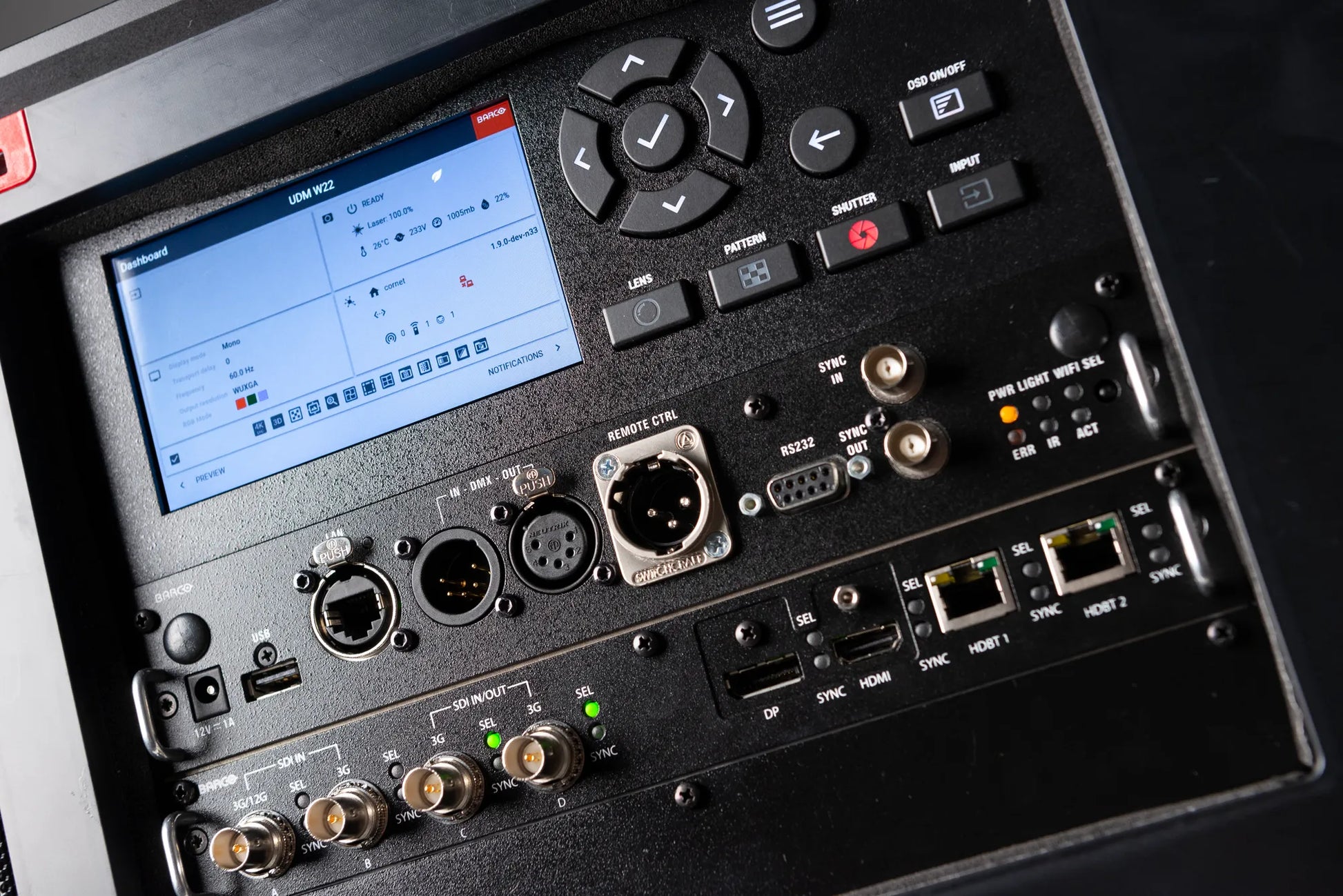

• Inputs: Single HDBaseT/ HDMI 2.0 (HDCP2.2 - HDR**)/ DP1.2 (HDCP 1.3)/ Quad 3G-12G SDI/BarcoLink ULTRA/ RJ45 Ethernet / RS232 / USB(5v) / 12V out/ BNC 3D sync in-out
• Input resolutions:
  • From NTSC up to 4K (4,096 x 2,160)
  • Refresh rates:
  • 24hz to 120 Hz 4K/4KUHD (4096 x 2160 / 3860 x 2400) to 240hz WQXGA (2560 x 1600)
• Processing: Pulse electronics
• Picture-by-picture: Two sources simultaneously
• CLO (constant light output): Standard
• DMX 512: Standard
• WARP: Direct adjust OSD + toolset
• ScenergiX: Horizontal and vertical edge blending
• Image processing: Embedded warp & blend
• Keystone correction: Yes
• Integrated web server: Yes
• Software tools: Projector Toolset + Android app + iOS app + Insights Management Suite (IMS)
• Control: DMX, Artnet, PJ Link, Remote control XLR/Jack wired + IR, RJ45, RS232, Wifi***, GSM***
• 3D: Active eye wear (optional), passive circular (optional); 2 flash up to 200Hz
• Optional Inputs: Quad DP1.2 / Fibre SFP
• Max. pixel clock: 600 MHz
• Network connection:
  • 10/100 base-T, RJ-45 connection, Wifi***, GSM *** (connected models)
  • IOT connected with IMS (in selected country's
• Dimensions (WxLxH): 540 x 725 x 339 mm / 21.25 x 28.54 x 13.36 inches
• Weight: 46 kg (105 lbs) / shipping weight from factory: 61 kg (134 lbs)
• Power requirements: 120-160 V (max 80 % brightness) 15A / 200-240V (+/- 10%), 9A, 50-60Hz
• Operational humidity: 0-80% (non condens)
• Power consumption:
  • 1480W nom/ 1700w max @ 230 volts ECO STBY<2W
  • 1300W nom/ 1530w max @ 120 volts ECO STBY<2W
• Noise level (typical at 25°C/77°F): 47 dB(A)
• Operational ambient temperature: 0-40°C / 32°-104°F ****
• Circuit board protection: Advanced coatings safeguard critical electronics from humidity and harmful substances
• Shipping dimensions (WxLxH): 665 x 850 x 613 mm / 26.18 x 33.46 x 24.13 " incl. pallet
• Dissipation BTU: Max. 5,780 BTU/h
• Standard accessories: Power cord, wireless / XLR wired rugged remote control
• Certifications: Compliant with UL60950-1 and EN60950-1, complies with FCC rules & regulations, part 15 Class A and CE EN 55032 Class A, Rohs
• Warranty: 3 years
• *Note:
  • * Brightness levels +/- 10%
  • ** supporting HDR 10 (HLG, EOTF, PQ EOTF SMPTE 2084), Tonemapping (EETF ITU-R BT2408-4 Annex 5)
  • *** Wifi and GSM options are not available in all countries. Check with your Barco representative for more infor.
  • **** At higher altitude light output might be dimmed
