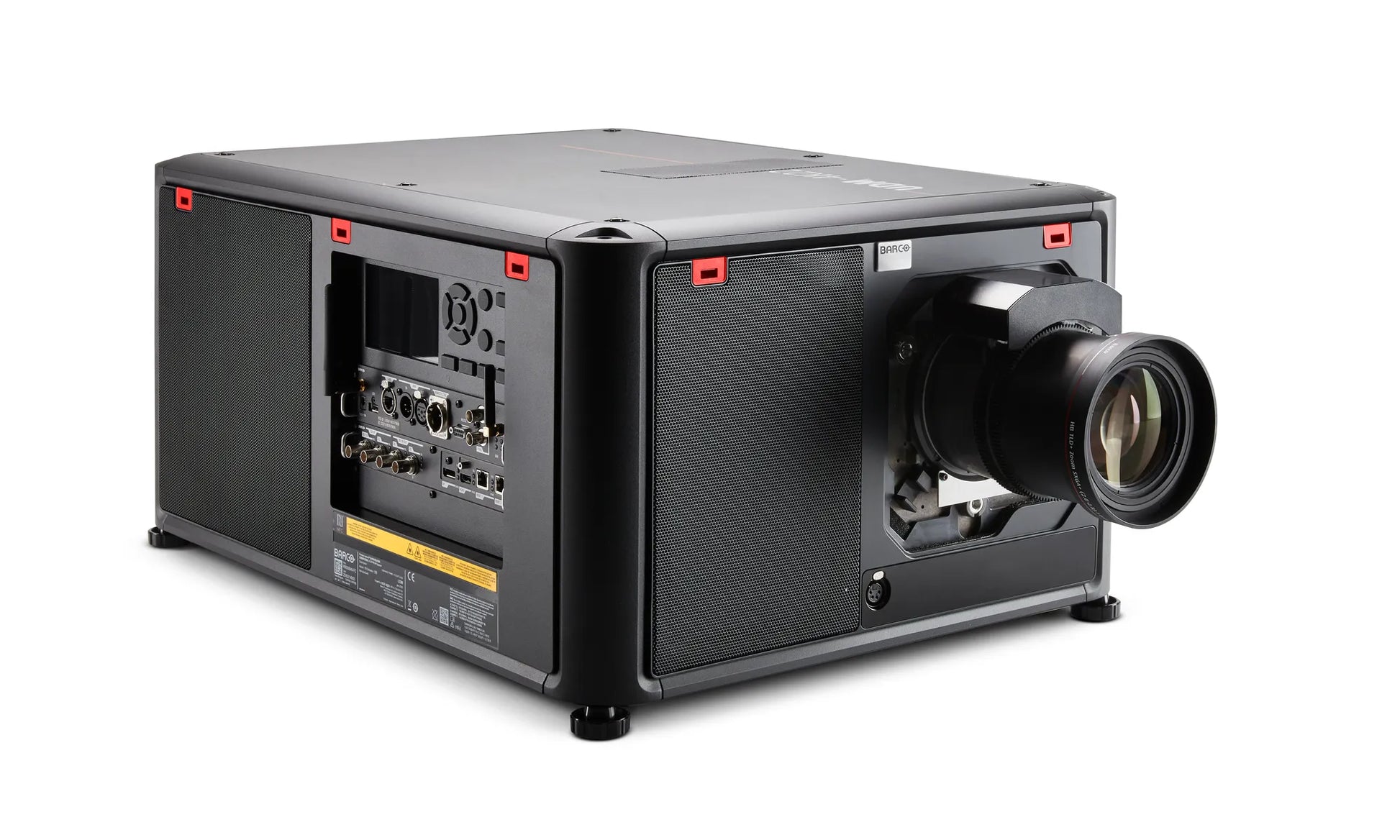

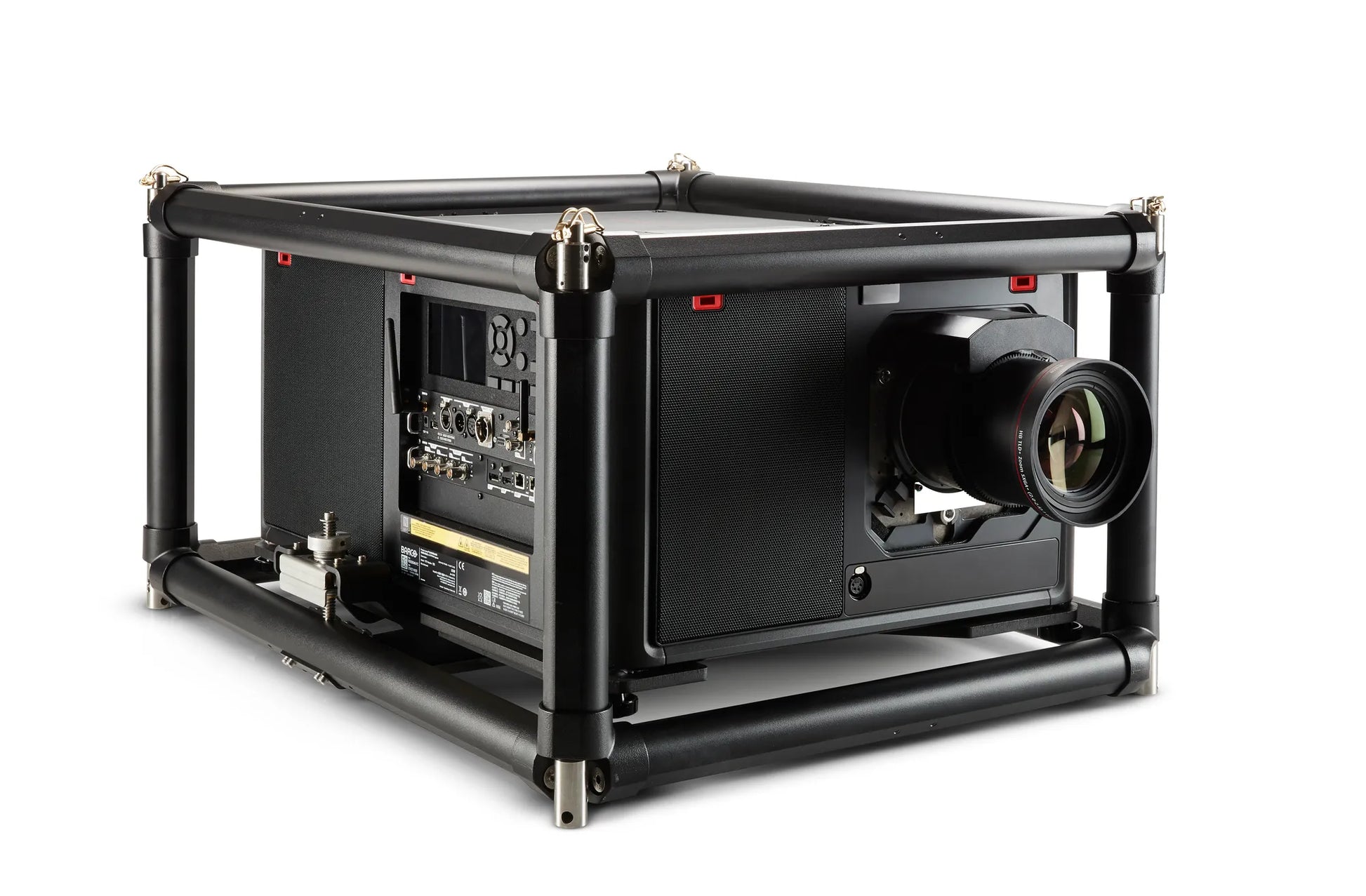

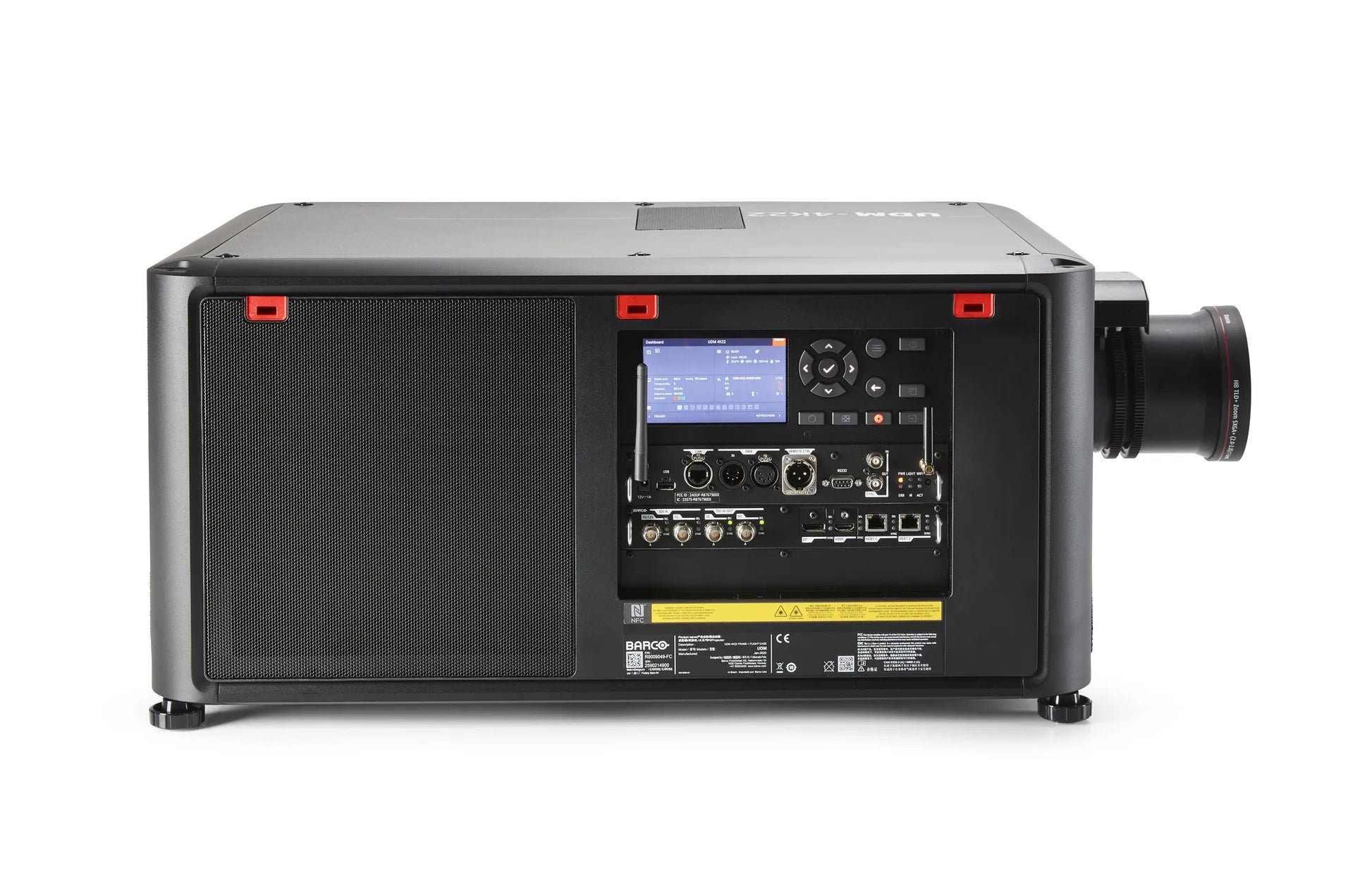

Barco UDM-W15 Projector

Barco UDM-W15 15,000 Lumens, WUXGA, 3-chip DLP Digital Large Venue Projector

The UDM-W15 delivers 15,000 lumens of light output with WUXGA resolution, ensuring vibrant, impactful projection experiences. Like its 22K counterpart, this projector never sacrifices quality or brightness for your most demanding applications. Maximize installation flexibility with the market's widest lens shift and comprehensive peripheral options. FLEX2 technology lets you lock brightness and resolution settings for specific shows.

The modular design enables rapid maintenance and field serviceability, keeping downtime to a minimum. Barco's proprietary Single Step Processing technology handles warping, scaling, and 4K UHD processing simultaneously, delivering razor-sharp images with industry-leading low latency and minimal dark time compared to competing solutions.

The Barco Insights Management Suite Dashboard provides remote monitoring and troubleshooting through a secure cloud platform with integrated 3G connectivity. Manage brightness across your entire projector fleet and track operating conditions in real time from anywhere. Engineered for road-tested durability, the UDM-W15 features a laser phosphor light source that eliminates lamp maintenance costs and image flicker. Advanced integrated laser cooling prevents overheating, while Constant Light Output technology guarantees consistent brightness and colour throughout the projector's lifetime.

Features:

• Dazzling colours outperforming the Rec. 709 colour space
• High residual value thanks to rugged design
• Remote fleet management and connectivity with Barco Insights Management Suite
• Unified Pulse electronics with Single Step Processing
• 3 Chip DLP
• Laser
• 15K Lumens
• 3D Ready
• Constant Light Output
• Reuse Lens
• PULSE Processing
• Flex2
• BARCOLINK
• Rugged
• 24/7 Operation
• HDBaseT Compliant
• Warping
• Blending
• Remote
• Management suite

Specifications:

• Projector type: WUXGA 3-chip DLP digital projector
• Technology: 0.96" DMD x3
• Resolution: 1,920 x 1,200
• Brightness:
  • 14,500 centre lumens*
  • 14,000 ANSI lumens*
  • 15,000 ISO lumens*
• Contrast ratio: Full field 2200:1
• Contrast ratio Barco DynaBlack: 20.000:1
• Optical lens shift:
  • Vertical: up to 160%, down to 150% (motorized), depending on lens
  • Horizontal: up to +/- 50% (motorized), depending on lens
  • with lens memory on TLD+ lenses
• Light source: Laser B + Red compensator and inorganic Ph wheel
• Brightness uniformity: 95%
• Light source lifetime @ 100% power, DynaBlack off, towards 50% brightness: 30000 hrs
• Colour correction: P7
• Optical dowser: Digital + mechanical internal
• Aspect ratio: 16:10
• Lenses: TLD+ 0,37; 0,65-0,85; 0.73:1 ; 1.2:1 ; 0,8-1,16; 1,25 -1.6:1 ; 1.5-2.0:1 ; 2.0-2.8:1 ; 2.8-4.5:1 ; 4.5-7.5:1 ; 7.5-11.5:1
• Orientation: 360°
• Sealed DLP core: Standard

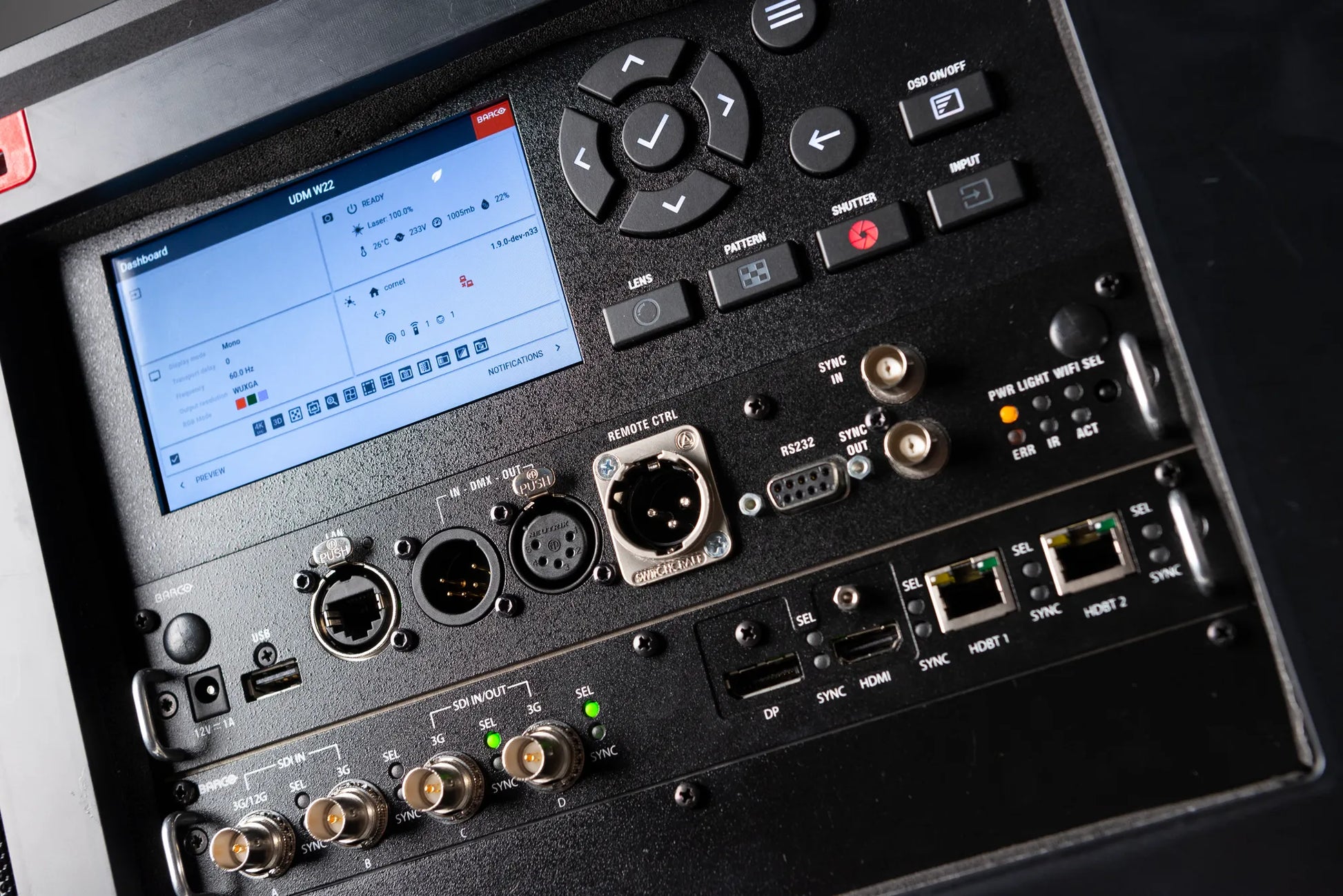

• Inputs: Single HDBaseT/ HDMI 2.0 (HDCP2.2 - HDR**)/ DP1.2 (HDCP 1.3)/ Quad 3G-12G SDI/BarcoLink ULTRA/ RJ45 Ethernet / RS232 / USB(5v) / 12V out/ BNC 3D sync in-out
• Input resolutions:
  • From NTSC up to 4K (4,096 x 2,160)
  • Refresh rates:
  • 24hz to 120 Hz 4K/4KUHD (4096 x 2160 / 3860 x 2400) to 240hz WQXGA (2560 x 1600)
• Processing: Pulse electronics
• Picture-by-picture: Two sources simultaneously
• CLO (constant light output): Standard
• DMX 512: Standard
• WARP: Direct adjust OSD + toolset
•  ScenergiX: Horizontal and vertical edge blending
• Image processing: Embedded warp & blend
• Keystone correction: Yes
• Integrated web server: Yes
• Software tools: Projector Toolset + Android app + iOS app + Insights Management Suite (IMS)
• Control: DMX, Artnet, PJ Link, Remote control XLR/Jack wired + IR, RJ45, RS232, Wifi***, GSM***
• 3D: Active eye wear (optional), passive circular (optional); 2 flash up to 200Hz
• Optical Inputs: Quad DP1.2 / Fiber SFP
• Max. pixel clock: 600 MHz
• Network connection:
  • 10/100 base-T, RJ-45 connection, Wifi***, GSM*** (connected models)
  • IOT connected with IMS (in selected country's)
• Dimensions (WxLxH): 540 x 725 x 339 mm / 21.25 x 28.54 x 13.36 inches
• Weight: 48 kg (105 lbs) / shipping weight from factory: 61 kg (134 lbs)
• Power requirements: 120-160 V (reduced power) 15A / 200-240V (+/- 10%), 8,5A, 50-6Hz
• Operational humidity: 0-80% (non condens)
• Power consumption:
  • 1330W nom/ 1550w max @ 230 volts ECO STBY<2W
  • 1330W nom/ 1550w max @ 120 volts ECO STBY<2W
• Noise level (typical at 25°C/77°F): 46 dB(A)
• Operational ambient temperature: 0-40°C / 32°-104°F ****
• Circuit board protection: Advanced coatings safeguard critical electronics from humidity and harmful substances
• Shipping dimensions (WxLxH): 665 x 850 x 613 mm / 26.18 x 33.46 x 24.13 " incl. pallet
• Dissipation BTU: Max. 5,200 BTU/h
• Standard accessories: Power cord, wireless / XLR wired rugged remote control
• Certifications: Compliant with UL60950-1 and EN60950-1, complies with FCC rules & regulations, part 15 Class A and CE EN55032 Class A, Rohs
• Warranty: 3 years
• *Note:
  • * Brightness levels +/- 10%
  • ** supporting HDR 10 ( HLG, EOTF, PQ EOTF SMPTE 2084), Tonemapping (EETF ITU-R BT2408-4 Annex 5)
  • *** Wifi and GSM options are not available in all countries. Check with your Barco representative for more info.
  • **** At higher altitude light output might be dimmed
