Barco UDM‑4K30 Projector

Barco UDM‑4K30 27,000 Lumens, 4K UHD, 3-chip DLP Digital Large Venue Projector

Weighing less than 50kgs, the Barco UDM‑4K30 is the lightest projector in its category.

Its compact, lightweight design slashes installation time and reduces shipping and labour costs without sacrificing quality or brightness. Delivering 27,000 lumens of 4K UHD resolution, it creates impactful visual experiences with mind-blowing colours and the widest colour spectrum for 30K laser phosphor projection on the market, outperforming Rec. 709 standards.

The UDM features the widest lens shift available, extensive peripherals for seamless integration, and Barco's unique FLEX2 technology to lock brightness or resolution for specific shows.

Its modular design enables fast maintenance and field serviceability. Built on Barco's unified Pulse electronics platform, the UDM uses proprietary Single Step Processing for razor-sharp images, market-leading lowest latency, and minimal dark time.

It's the first Barco projector fully connected via the Insights Management Suite Dashboard and 3G connectivity, enabling remote troubleshooting and fleet brightness management through a secured cloud platform.

The laser phosphor light source eliminates lamp-related costs and image flicker. Integrated laser cooling prevents overheating, while Constant Light Output guarantees consistent brightness and colour throughout the projector's lifetime. Built-in dust and pollution filters ensure durability for demanding road use.

Features:

• Most compact and lightest laser projector in the 30K lumen category
• Robust design made for the toughest conditions
• Extremely flexible with widest lens shift and modular design
• Best-in-class 4K UHD processing at lowest latency with Barco Pulse Single Step Processing
• Remote fleet management & connectivity with Barco Insights Management Suite
• 3 Chip DLP
• Laser Phosphor
• 4K UHD
• 30K Lumens
• 3D ready
• Constant Light Output
• Reuse Lenses
• Pulse Processing
• Flex2
• Barcolink
• Rugged
• 24/7 Operation
• HDBaseT Compliant
• WARPING
• Blending
• Remote
• Management Suite

Specifications:

• Projector type: 4K UHD 3-chip DLP digital projector
• Technology: 0.9" DMD x3
• Resolution: 3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (native) / 5,120 x 3,200 (processing)
• Brightness: 25,000 ansi lumens / 25,500 center lumens / 27,000 ISO lumens*
• Contrast ratio: Full field 2000:1
• Contrast ratio Barco DynaBlack: 20.000:1
• Optical lens shift:
  • Vertical: up to 160%, down to 150% (motorized), depending on lens
  • Horizontal: up to +/- 50% (motorized), depending on lens
  • with lens memory on TLD+ lenses
• Light source: Laser B + Red compensator and inorganic Ph wheel
• Brightness uniformity: 95%
• Light source lifetime @ 100% power, DynaBlack off towards 50% brightness: 20000 hrs
• Colour correction: P7
• Optical dowser: Digital

• Aspect ratio: 16:10
• Lenses: TLD+ 0,37; 0,65-0,85; 0,8-1,16; 1,25 -1.6:1 ; 1.5-2.0:1 ; 2.0-2.8:1 ; 2.8-4.5:1 ; 4.5-7.5:1 ; 7.5-11.5:1
• Orientation: 360°
• Sealed DLP core: Standard

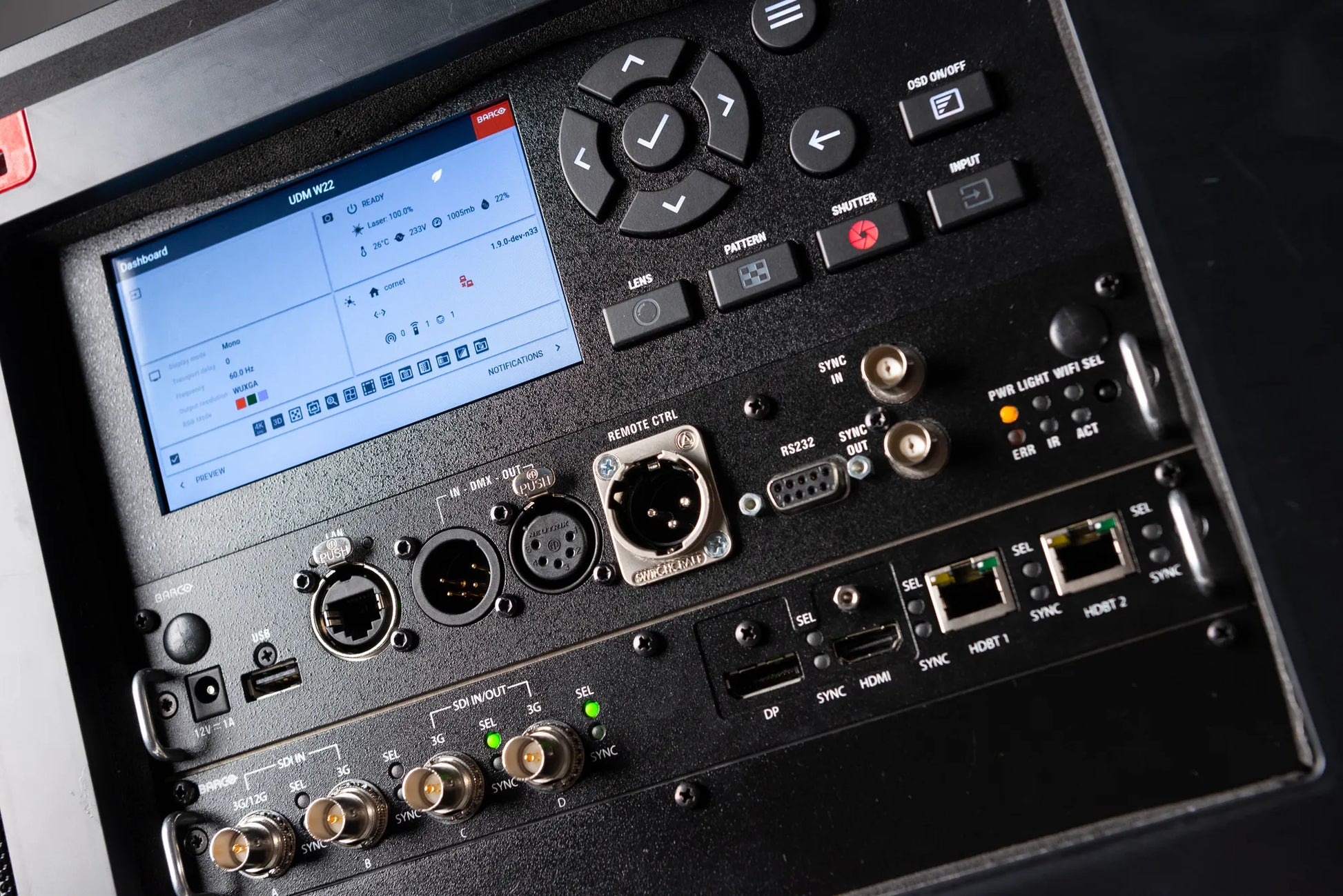

• Inputs: Single HDBaseT/ HDMI™ 2.0 (HDCP2.2 - HDR**)/ DP1.2 (HDCP 1.3)/ Quad 3G-12G SDI/BarcoLink ULTRA/ RJ45 Ethernet / RS232 / USB(5v) / 12V out/ BNC 3D sync in-out
• Input resolutions:
  • Including and up to
  • 3840 x 2400 @ 120Hz
  • 4096 x 2160 @ 120Hz
  • 2560 x 1600 @ 240Hz
• Processing: Pulse electronics
• Picture-by-picture: Two sources simultaneously
• CLO (constant light output): Standard
• DMX 512: Standard
• WARP: Direct adjust OSD + toolset
• ScenergiX: Horizontal and vertical edge blending

• Image processing: Embedded warp & blend
• Keystone correction: Yes
• Integrated web server: Yes
• Software tools: Projector Toolset + Android app + iOS app + Insights Management Suite (IMS)
• Control: DMX, Artnet, PJ Link, Remote control XLR/Jack wired + IR, RJ45, RS232, Wifi***, GSM***
• 3D: Active eye wear (optional), passive circular (optional); 2 flash up to 200Hz; optional Dual Eye Point 240Hz
• BTU per hour: 7.000 BTU/hr
• Optional Inputs: Quad DP1.2 / Fibre SFP
• Max. pixel clock: 600 Mhz
• Network connection:
  • 10/100 base-T, RJ-45 connection, Wifi***, GSM*** (connected models)
  • IOT connected with IMS (in selected county's)
• Dimensions (WxLxH): 540 x 725 x 339 mm / 21.25 x 28.54 c 13.36 inches
• Weight: 48 kg (105 lbs) / shipping weight from factory: 61 kg (134 lbs)
• Power requirements: 120-160 V (max 70% brightness~) 18.5A / 200-240V (+/- 10%), 13.5A, 50-60Hz
• Operational humidity: 0-80% (non condens)
• Power consumption:
  • 1900W nom/ 2300w max @ 230 volts ECO STBY<2W
  • 1300W nom/ 1530w max @ 120 volts ECO STBY<2W
• Noise level (typical at 25°C/77°F):  49 dB(A)
• Operational ambient temperature: -40°C / 32°104°F ****
• Circuit board protection: Advanced coatings safeguard critical electronics from humidity and harmful substances
• Shipping dimensions (WxLxH): 665 x 850 x 613 mm / 26.18 x 33.46 x 24.13 " incl. pallet
• Dissipation BTU: Max. 7000 BTU/hr
• Standard accessories: Power cord, wireless / XLR wired rugged remote control
• Certifications: Compliant with UL60950-1 and EN60950-1, complies with FCC rules & regulations, part 15 Class A and CE EN55032 Class A, Rohs
• Warranty: 3 years
• *Note:
  • * Brightness levels +/- 10%
  • ** supporting HDR 10 (HLG, EOTF, PQ EOTF SMPTE 2084), Tonemapping (EETF ITU-R BT2408-4 Annex 5)
  • *** Wifi and GSM options are not available in all countries. Check with your Barco representative for more info.
  • **** At higher altitude light output might be dimmed
