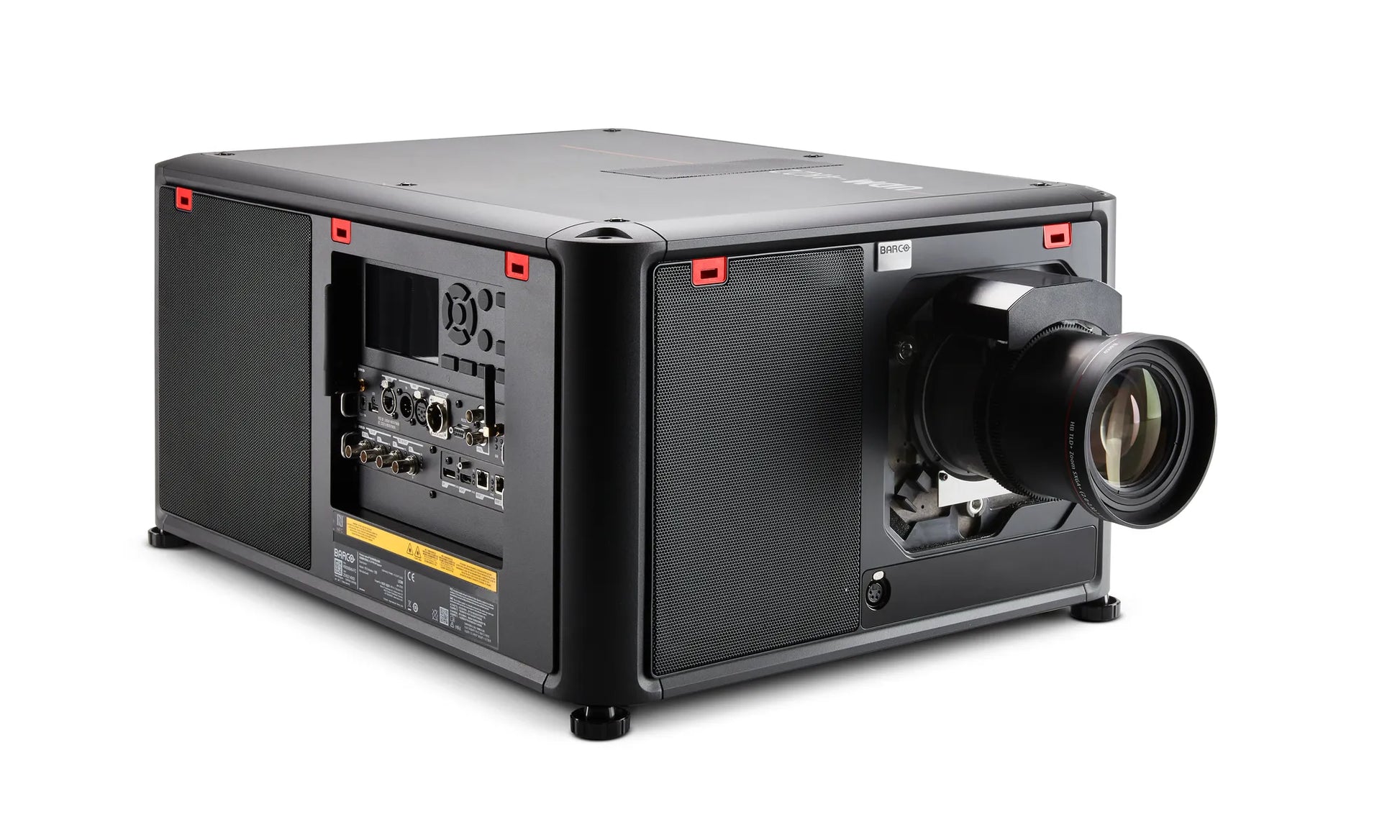

Barco UDM‑4K22 Projector

Barco UDM‑4K22 21,000 Lumens, 4K UHD, 3-chip DLP Digital Large Venue Projector

The Barco UDM‑4K22 is the lightest 22K projector on the market, weighing under 50kg.

Its compact design reduces installation time, shipping costs, and labour expenses without sacrificing performance. Delivering 21,000 lumens and 4K UHD resolution, it produces stunning visuals with the widest colour spectrum available for laser phosphor projection, exceeding Rec. 709 standards. Built for operational excellence, the UDM‑4K22 features the market's widest lens shift and modular design for fast maintenance. Barco's FLEX2 technology lets you lock brightness or resolution for specific shows, while Pulse Electronics' Single Step Processing ensures razor-sharp images with industry-leading low latency. Fully connected and cloud-enabled, the UDM‑4K22 integrates with Barco's Insights Management Suite for remote monitoring, fleet management, and faster troubleshooting across your entire setup.

The laser phosphor light source eliminates lamp maintenance and flicker, while advanced cooling and Constant Light Output guarantee consistent brightness and colour throughout the projector's lifetime, perfect for demanding touring and venue applications.

Features:

• Lightest 22K laser projector in the market
• High residual value thanks to rugged design
• Remote fleet management and connectivity with Barco Insights Management Suite
• Unified Pulse electronics with Single Step Processing
• 3 Chip DLP
• Laser Phosphor
• 4K UHD
• 22K Lumens
• 3D ready
• Constant Light Output
• Reuse Lenses
• Pulse Processing
• Flex2
• Barcolink
• Rugged
• 24/7 Operation
• HDBaseT Compliant
• WARPING
• Blending
• Remote
• Management Suite

Specifications:

• Projector type: 4K UHD 3-chip DLP digital projector
• Technology: 0.9" DMD x3
• Resolution: 3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (native) / 5,120 x 3,200 (processing)
• Brightness:
  • 20,000 centre lumens*
  • 19,000 ANSI lumens*
  • 22,000 ISO lumens*
• Contrast ratio: Full field 2200:1
• Contrast ratio Barco DynaBlack: 20.000:1
• Optical lens shift:
  • Vertical: up to 160%, down to 150% (motorized), depending on lens
  • Horizontal: up to +/- 50% (motorized), depending on lens
  • with lens memory on TLD+ lenses
• Light source: Laser B + Red compensator and inorganic Ph wheel
• Brightness uniformity: 95%
• Light source lifetime @ 100% power, DynaBlack off, towards 50% brightness: 25000 hrs
• Colour correction: P7
• Optical dowser: Digital
• Aspect ratio: 16:10
• Lenses: TLD+ 0,37; 0,65-0,85; 0,8-1,16; 1,25 -1.6:1 ; 1.5-2.0:1 ; 2.0-2.8:1 ; 2.8-4.5:1 ; 4.5-7.5:1 ; 7.5-11.5:1
• Orientation: 360°
• Sealed DLP core: Standard

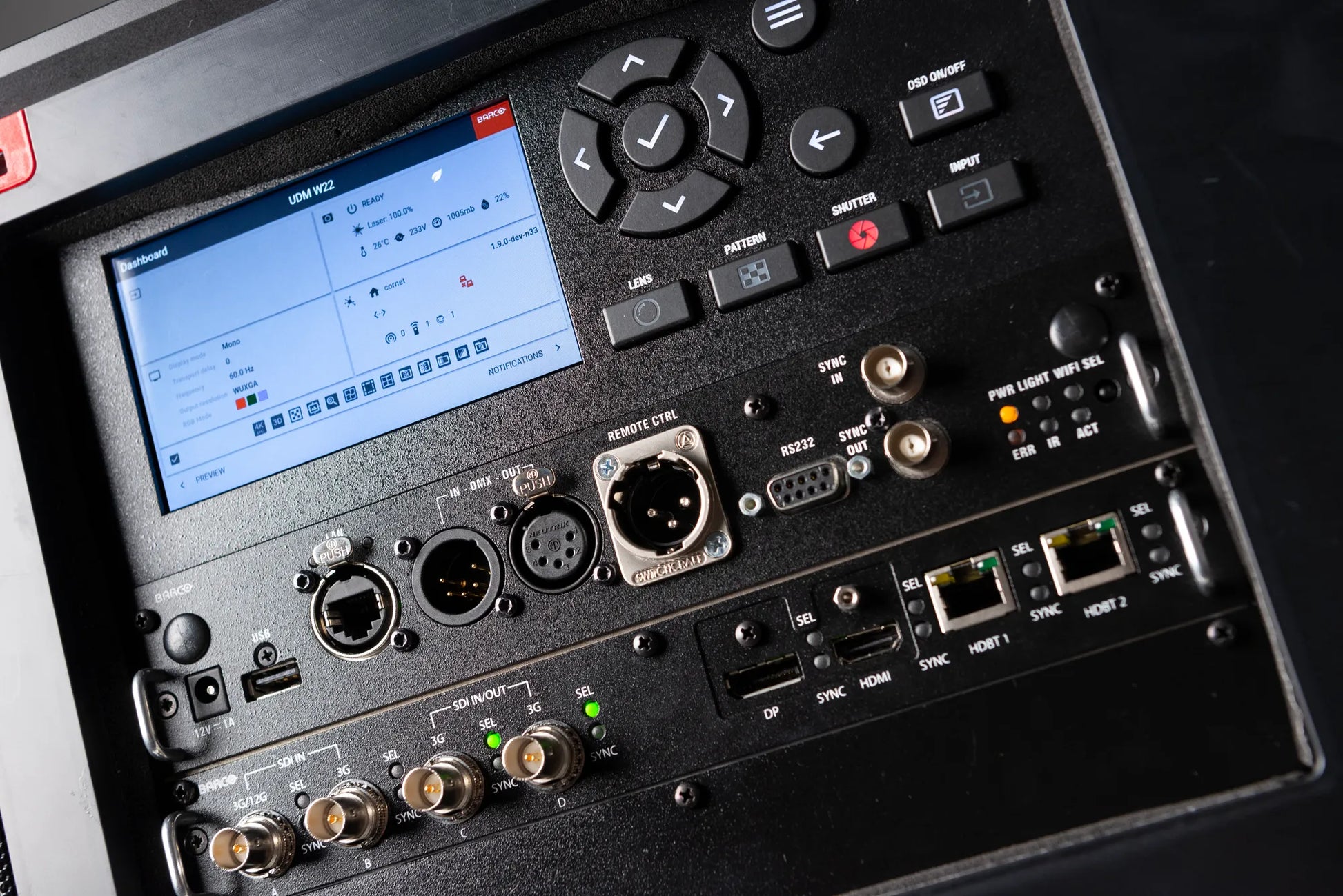

• Inputs: Single HDBaseT/ HDMI2.0 (HDCP2.2 - HDR**)/ DP1.2 (HDCP 1.3)/ Quad 3G-12G SDI/BarcoLink ULTRA/ RJ45 Ethernet / RS232 / USB(5v) / 12V out/ BNC 3D sync in-out
• Input resolutions:
  • Including and up to
  • 3840 x 2400 @ 120Hz
  • 4096 x 2160 @ 120Hz
  • 2560 x 1600 @ 240Hz
• Processing: Pulse Electronics
• Picture-by-picture: Two sources simultaneously
• CLO (constant light output): Standard
• DMX 512: Standard
• WARP: Direct adjust OSD + toolset
• ScenergiX: Horizontal and vertical edge blending
• Image processing: Embedded warp & blend
• Keystone correction: Yes
• Integrated web server: Yes
• Software tools: Projector Toolset + Android app + iOS app + Insights Management Suite (IMS)
• Control: DMX, Artnet, PJ Link, Remote control XLR/Jack wired + IR, RJ45, RS232, Wifi***, GSM***
• 3D: Active eye wear (optional), passive circular (optional); 2 flash up to 200Hz; optional Dual Eye Point; 240 Hz
• Optional Inputs: 0-80% (non condens)
• Max. pixel clock: 600 Mhz
• Network connection:
  • 1800W nom/ 2200w max @230 volts ECO STBY<2W
  • 1300W nom/ 1530w max @120 volts ECO STBY<2W
• Dimensions (WxLxH): 540 x 725 x 339 mm / 21.25 x 28.54 x 13.36 inches
• Weight: 48 kg (105 lbs) / shipping weight from factory 61 kg (134.5 lbs)
• Power requirements: 120-160 V (max 70% brightness) 18.5A / 200-240V (+/- 10%), 13.5A, 50-60Hz
• Operational humidity: 0-80% (non condens)
• Power consumption:
  • 1800W nom/ 2200w max @ 230 volts ECO STBY<2W
  • 1300W nom/ 1530w max @ 120 volts ECO STBY<2W
• Noise level (typical at 25°C/77°F): 48 dB(A)
• Operational ambient temperature: 0-40°C / 32°-104°F ****
• Circuit board protection: Advanced coatings safeguard critical electronics from humidity and harmful substances
• Shipping dimensions (WxLxH): 665 x 850 x 613 mm / 26.18 x 33.46 x 24.12 " incl. pallet
• Dissipation BTU: Max. 6,890 BTU/h
• Standard accessories: Power cord, wireless/XLR wired rugged remote control
• Certifications: Compliant with UL60950-1 and EN60950-1, complies with FCC rules & regulations, part 15 Class A and CE EN55032 Class A, Rohs
• Warranty: 3 years
• *Note:
  • * Brightness levels +/- 10%
  • ** supporting HDR 10 (HLG, EOTF, PQ EOTF SMPTE 2084), Tonemapping (EETF ITU-R BT2408-4 Annex 5)
  • *** Wifi and GSM options are not available in all countries. Check with your Barco representative for more info.
  • **** At higher altitude light output might be dimmed
