Barco UDM‑4K15 Projector

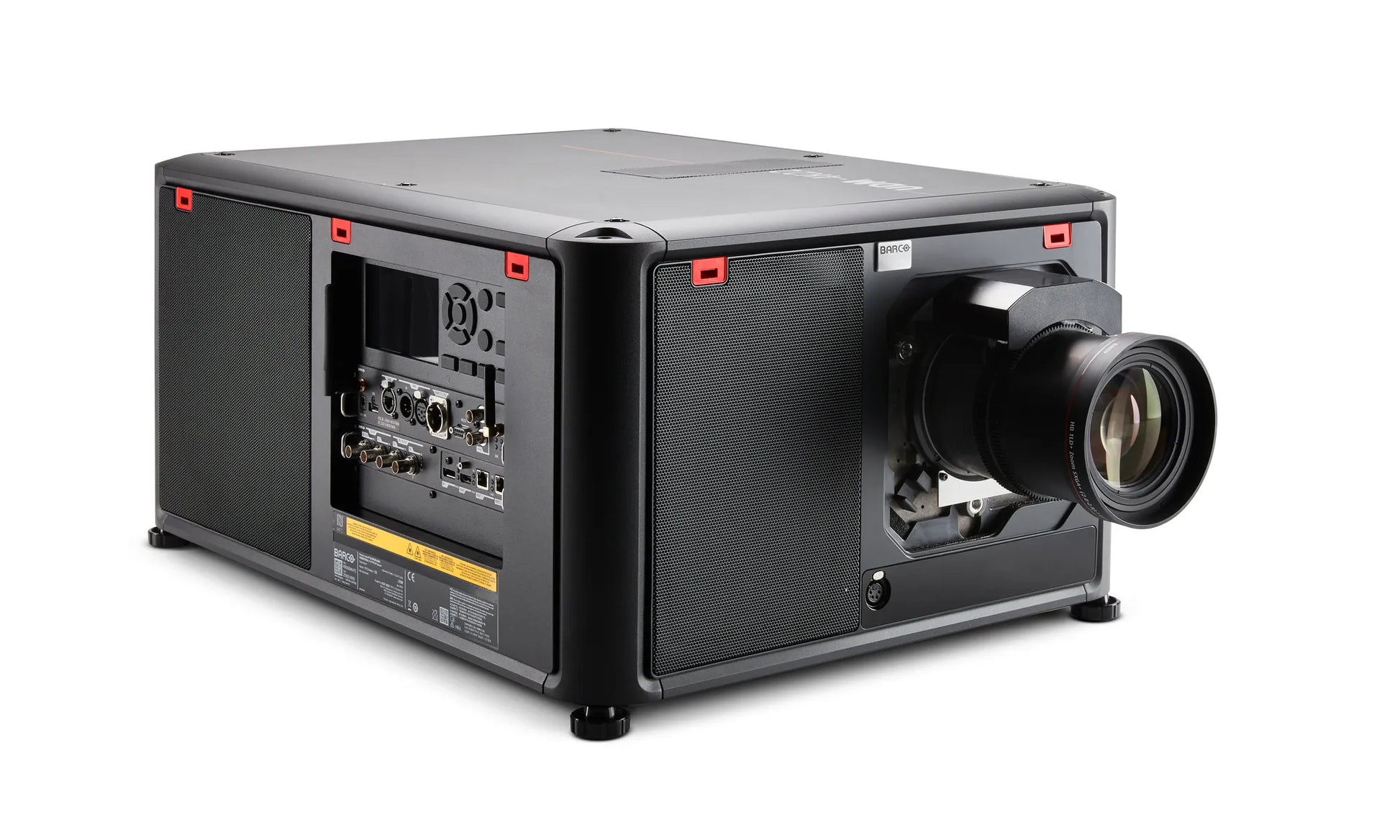

Barco UDM‑4K15 15,000 Lumens, 4K UHD, 3-chip DLP Digital Large Venue Projector

The Barco UDM-4K15 delivers uncompromising 4K UHD projection with 15,000 lumens of brightness, ensuring impactful visuals and mind-blowing colours for large venue applications. Built on Barco's proprietary Pulse Electronics platform, the Single Step Processing technology produces razor-sharp images with market-leading low latency and minimal dark time. Operational efficiency is maximized through the widest lens shift available and extensive peripheral support for seamless installation.

The FLEX2 feature lets you lock brightness or resolution for specific shows, while the modular design enables fast maintenance and field serviceability. Connectivity and fleet management are simplified via the Barco Insights Management Suite dashboard, offering remote troubleshooting, cloud-based brightness control, and real-time operating condition monitoring with integrated 3G connectivity. Built for durability, the UDM-4K15 features a laser phosphor light source that eliminates lamp maintenance costs and image flicker. Advanced integrated laser cooling prevents overheating, while Constant Light Output guarantees consistent brightness and colour throughout the projector's lifetime, making it ideal for demanding road and venue environments.

Features:

• Dazzling colours outperforming the Rec. 709 colour space
• High residual value thanks to rugged design
• Remote fleet management and connectivity with Barco Insights Management Suite
• Unified Pulse electronics with Single Step Processing
• 3 Chip DLP
• Laser
• 4K UHD
• 15K Lumens
• 3D Ready
• Constant Light Output
• Reuse Lens
• PULSE Processing
• Flex2
• Barcolink
• Rugged
• 24/7 Operation
• HDBaseT Compliant
• Warping
• Blending
• Remote
• Management Suite

Specifications:

• Projector type: 4K UHD 3-chip DLP digital projector
• Technology: 0.9" DMD x3
• Resolution: 3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (native) / 5,120 x 3,200 (processing)
• Brightness:
  • 14,500 (4K UHD) center lumens*
  • 14,000 ANSI lumens*
  • 15,000 ISO lumens*
• Contrast ratio: Full field 2200:1
• Contrast ratio Barco DynaBlack: 20.000:1
• Optical lens shift:
  • Vertical: up to 160%, down to 150% (motorized), depending on lens
  • Horizontal: up to +/- 50% (motorized), depending on lens
  • with lens memory on TLD+ lenses
• Light source: Laser B + Red compensator and inorganic Ph wheel
• Brightness uniformity: 95%
• Light source lifetime @ 100% power, DynaBlack off, towards 50% brightness: 30000 hrs

• Colour correction: P7
• Optical dowser: Digital
• Aspect ratio: 16:10
• Lenses: TLD+ 0,37; 0,65-0,85; 0,8-1,16; 1,25 -1.6:1 ; 1.5-2.0:1 ; 2.0-2.8:1 ; 2.8-4.5:1 ; 4.5-7.5:1 ; 7.5-11.5:1
• Orientation: 360°
• Sealed DLP core: Standard

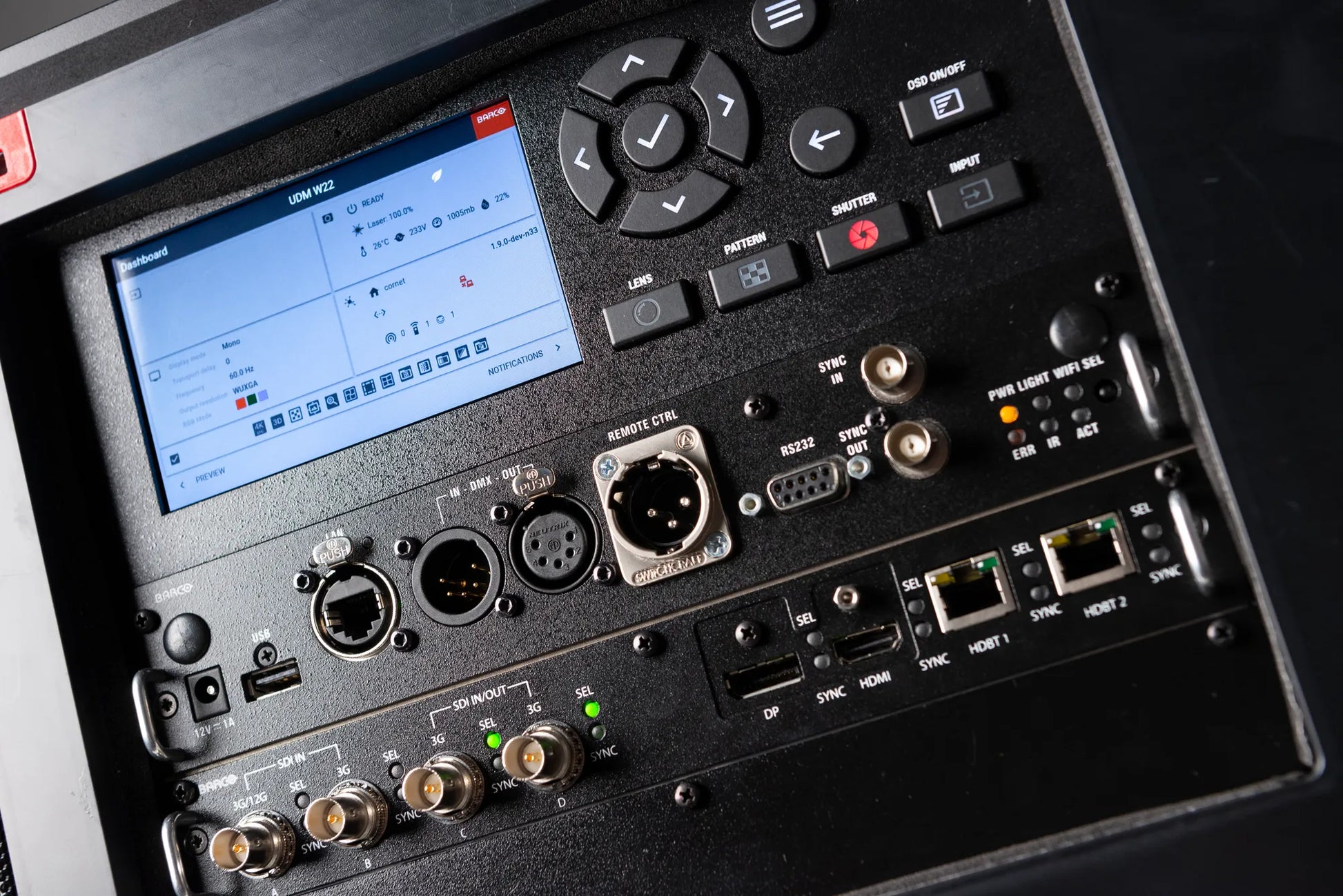

• Inputs: Single HDBaseT/ HDMI™ 2.0 (HDCP2.2 - HDR**)/ DP1.2 (HDCP 1.3)/ Quad 3G-12G SDI/BarcoLink ULTRA/ RJ45 Ethernet / RS232 / USB(5v) / 12V out/ BNC 3D sync in-out
• Input resolutions:
  • Including and up to
  • 3840 x 2400 @ 120Hz
  • 4096 x 2160 @ 120Hz
  • 2560 x 1600 @ 240Hz
• Processing: Pulse Electronics
• Picture-by-picture: Two sources simultaneously
• CLO (constant light output): Standard
• DMX 512: Standard
• WARP: Direct adjust OSD + toolset
• ScenergiX: Horizontal and vertical edge blending
• Image processing: Embedded warp & blend

• Keystone correction: Yes
• Integrated web server: Yes
• Software tools: Projector Toolset + Android*** app + iOS*** app + Insights Management Suite (IMS)
• Control: XLR wired + IR, RS232, Wifi***, GSM***
• 3D: Active eye wear (optional), passive circular (optional); 2 flash up to 200Hz; optional Dual Eye Point 240Hz
• Optional Inputs: Quad DP1.2, Fiber SFP
• Max. pixel clock: 600 Mhz
• Network connection:
  • 10/100 base-T, RJ-45 connection, Wifi***, GSM***, (connected models)
  • IOT connected with IMS (in selected country's)
• Dimensions (WxLxH): 725 x 540 x 339 mm / 28.54 x 21.26 x 13.3'
• Weight: 48 kg (105lbs) / shipping weight from factory: 61 kg (134.5 lbs)

• Power requirements: 120-160 V (reduced power) 15A / 200-240V (+/- 10%), 8.5A, 50-60 Hz
• Operational humidity: 0-80% (non condens)

• Power consumption:
  • 1330W nom/ 1550w max @ 230 volts ECO STBY <2W
  • 1330W nom/ 1550w max @ 120 volts ECO STBY <2W
• Noise level (typical at 25°C/77°F): 46 dB(A)
• Operational ambient temperature: 0-40°C / 32°-104°F ****
• Circuit board protection: Advanced coatings safeguard critical electronics from humidity and harmful substances
• Dissipation BTU: Max. 5,200 BTU/h
• Shipping Dimensions:
  • incl. pallet
  • (WxHxL) 850 x 665 x 613 mm / 33.46 x 26.18 x 24.13 inches
• Standard accessories: Power cord, wireless XLR wired rugged remote control
• Certifications: Compliant with UL60950-1 and EN60950-1, complies with FCC rules & regulations, part 15 Class A and CE EN55032 Class A, Rohs
• Warranty: 3 years
• *Note:
  • * Brightness levels +/- 10%
  • ** supporting HDR 1- (HLG, EOTF, PQ EOTF SMPTE 2084), Tonemapping (EETF ITU-R BT2408-4 Annex 5)
  • *** Wifi and GSM options are not available in all countries. Check with your Barco representative for more info.
  • **** At higher altitude light output might be dimmed
