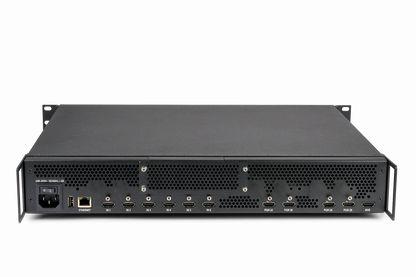

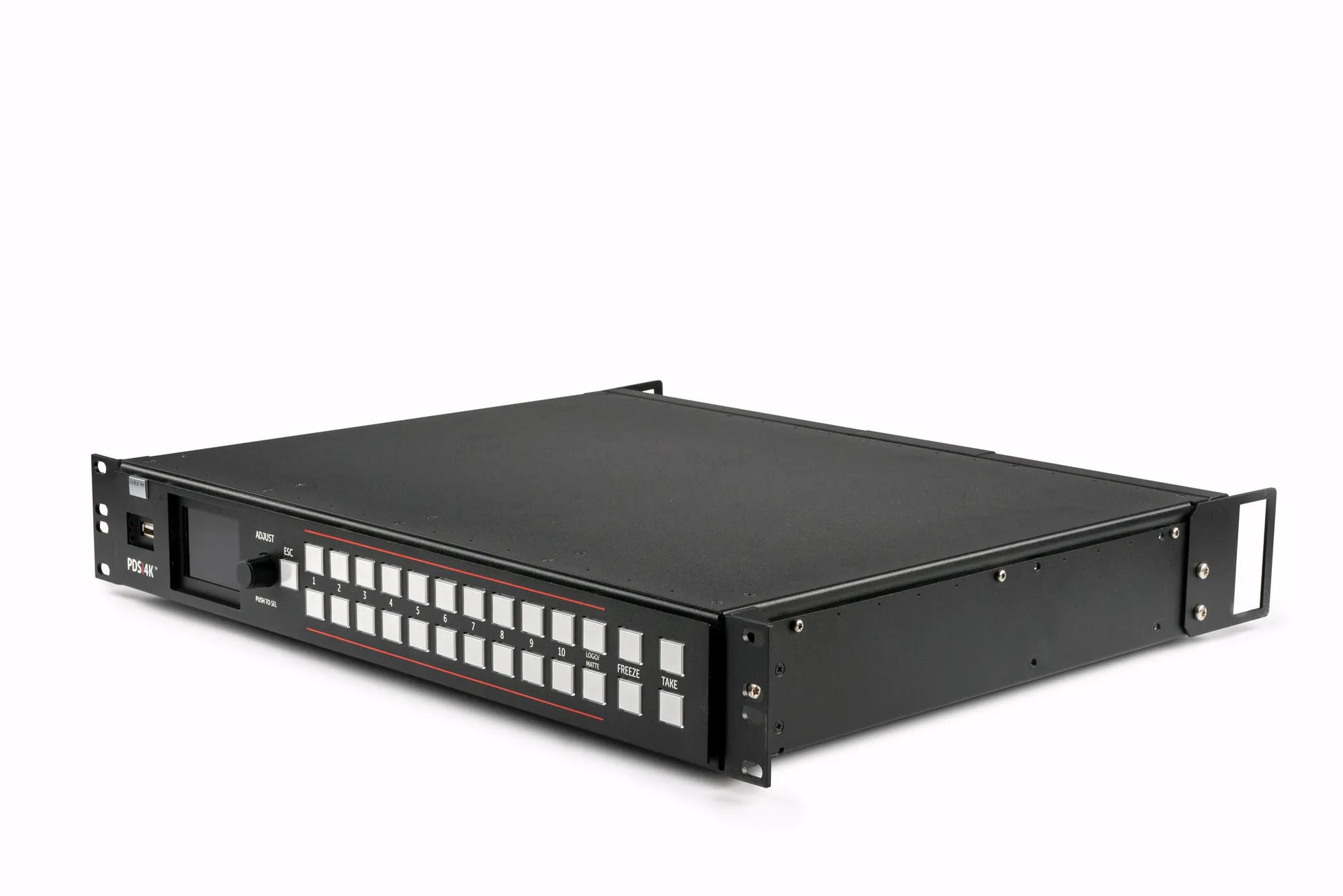

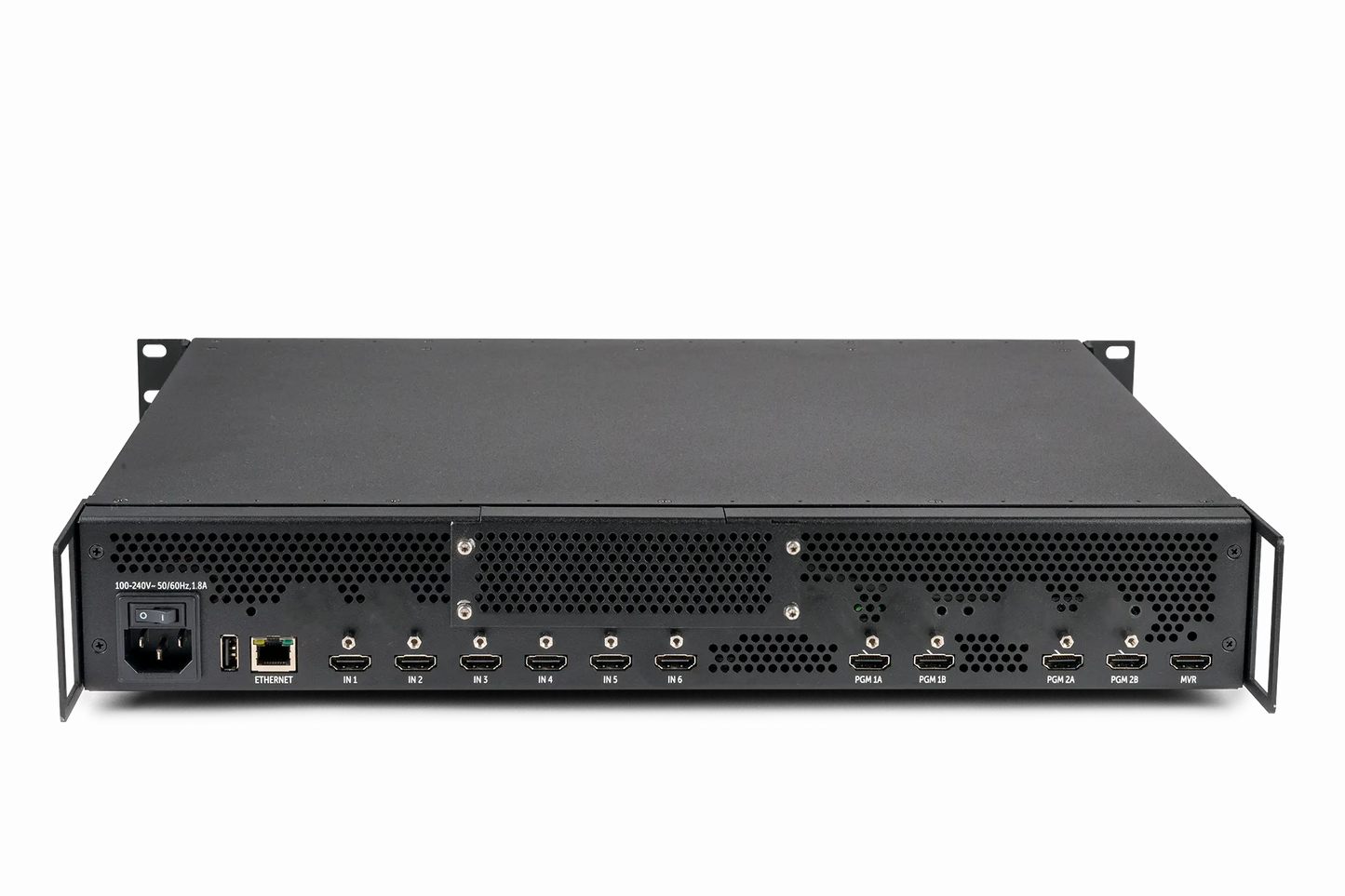

Barco PDS‑4K Switcher

Barco PDS‑4K Small Venue Presentation Switcher with 4K Capabilities

The PDS-4K is a high-quality, easy-to-use 4K switcher designed for mid-sized live events, breakout sessions, seminar rooms and boardrooms.

It features six HDMI 2.0 inputs and four seamless mixing program outputs at up to 4K resolution, with ultra-low latency processing (≤ 2 frames delay @60Hz) for smooth video display and seamless transitions. Support for Dante audio is available with an optional interface card.

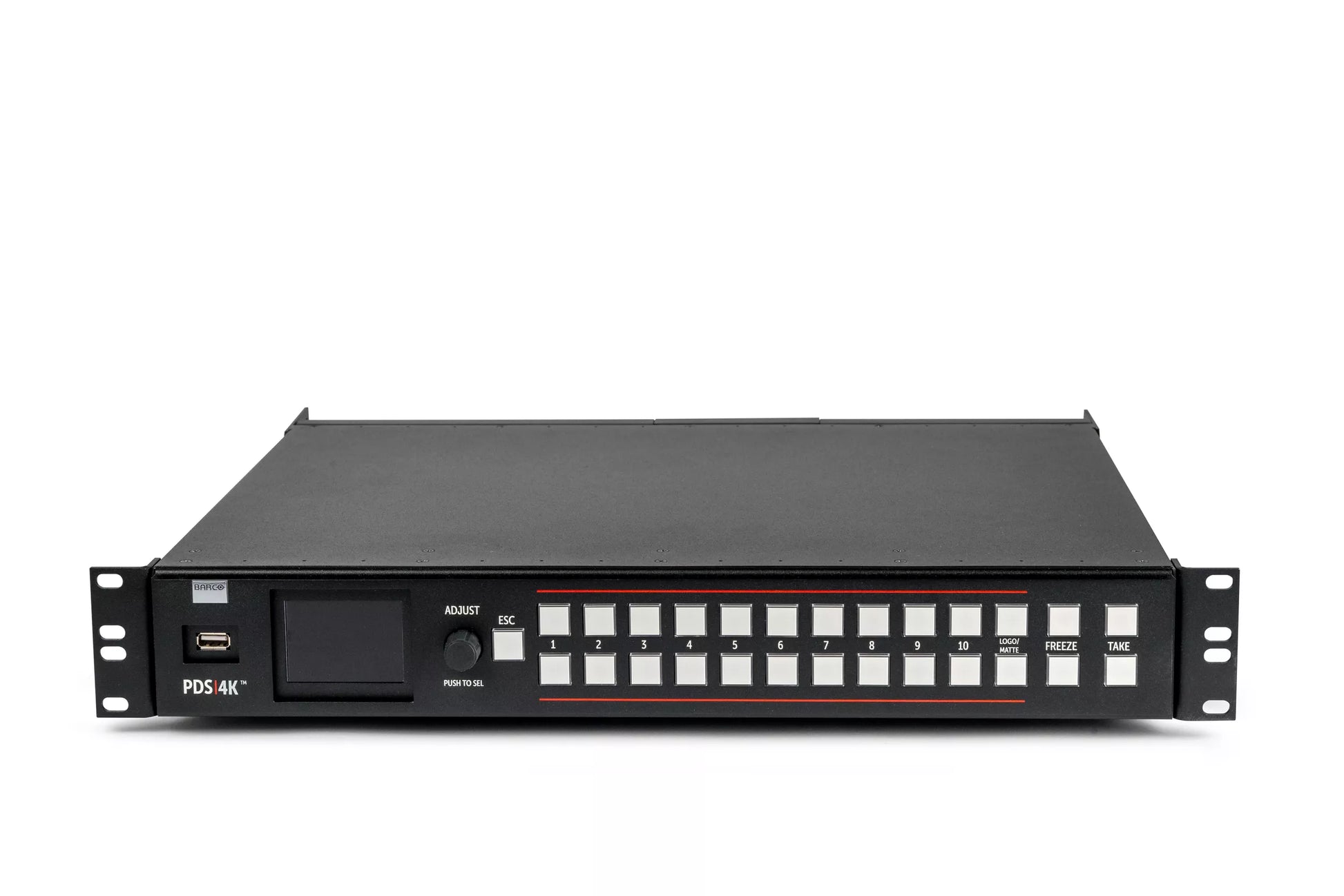

The intuitive front panel interface makes switching between input sources and preconfigured layouts simple, just one button press. Picture-in-Picture layers let you show up to two live inputs simultaneously, while Event Master Athena scaling technology ensures superior signal clarity with minimal artifacts. Compatible with Barco visualization solutions and presentation devices like ClickShare, the PDS-4K can be controlled via Event Master Toolset or third-party control panels through its API. Built for maximum availability and uptime, it offers expandable option cards for future-proof upgradability, a smart investment for any venue.

The Barco PDS‑4K Switcher is available with SDI, Audio/DisplayPort Card, or SDI with Audio/DisplayPort Card.

Features:

• Premium 4K Visuals
• Simple setup and easy to operate
• Compatibility for smooth integration
• 4K 3840x2160
• Atherna Scaling
• Multiviewer
• HDMI Compatible
• HDCP Compliant
• HDR Compatible
• Rugged
• Easy Install

Specifications:

• Notes: Option Card slot to support additional video input connectors, embedded audio processing and Dante Audio
• Live effects canvas:
  • 2x outputs up to 4K60 or 4x outputs up to 4K30
  • each with single mixing PiP or two non-mixing PiPs on a still background

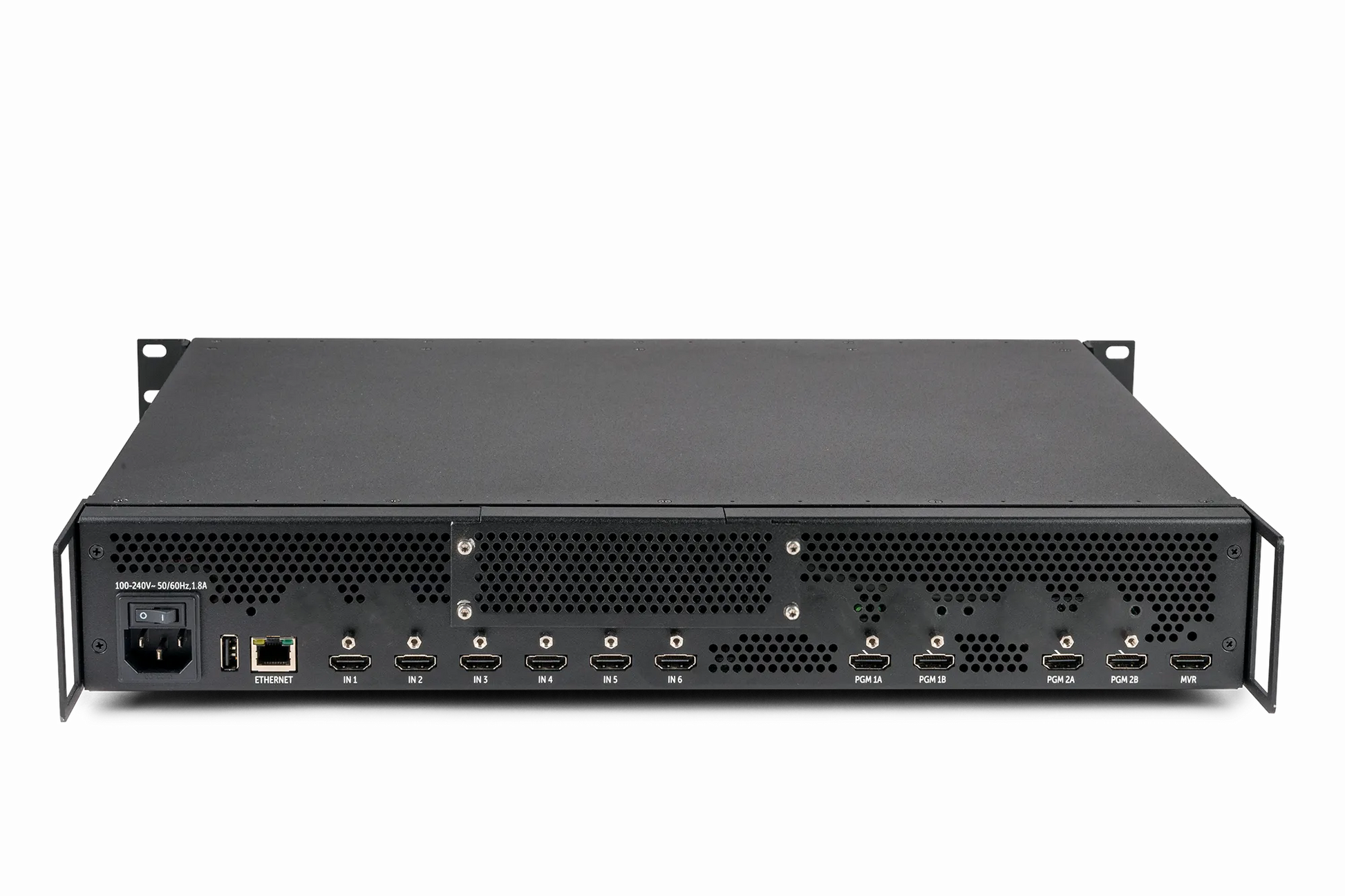

• Video inputs: 6x HDMI 2.0 connectors
• Video outputs: 4x HDMI 2.0 connectors
• Program output:
  • Two UHD @60 PGM
  • or Four UHD @30 / FHD @60 PGM
• Keying/Mixing: Luma and Chroma on non-mixing PiPs
• Mixers: 1 mixer per PGM output
• Still stores: Eight stills, up to 4K each
• Multiviewer: 1x UHD@60 output with user definable layouts consisting of inputs plus PVW and PGM for each screen
• Expandability: Option card slot for other video connector types and/or Dante® audio
• HDCP: HDCP 1.x and 2.2
• Dimensions (HxWxD): 6.62 cm (2.605 in) x 48.41 cm (19.06 in) x 40,9 cm (16.1 in)
• Control:
  • front panel mappable buttons
  • Event Master screen management software for PC or MAC
  • Event Master controllers
  • WebUI
  • Ethernet RJ-45, 1000/10 Mbps autosense
• Noise Level: 37 dB in a room temperature environment (23°C/73°F)
• Weight: 6.21 kg (13.7 lbs)
• Power: Input power: 100-240 VAC 50/60Hz 151W
• Environmental temperature: 0-40°C (32-104 F)
• Environmental humidity:
  • 0-95% non-condensing (non-operating)
  • 0-85% non-condensing (operational)
• Warranty: 3 years parts and labour
