Barco I600‑4K8 Projector

Barco I600‑4K8 8,000 ISO Lumen, 4K UHD, Single-chip Laser Phosphor Projector

The Barco I600-4K8 delivers exceptional 4K UHD image quality in a lightweight, compact single-chip projector designed for demanding installations. With 8,000 lumens of brightness and laser phosphor light source technology, it ensures vibrant colours and outstanding image uniformity across any venue. Powered by next-generation Barco Pulse electronics and SuperShift technology, the I600 produces smoother images with sharper pixels at minimal latency.

The proprietary DynaBlack enhancement technology achieves a remarkable 20,000:1 contrast ratio, bringing superlative black levels and dramatic depth to dark content. Built for flexibility, the I600 supports optional input slots, available in black or white chassis, and features a comprehensive lens library with variable throw ratios from 0.37 UST to 7.4:1 long-throw.

This adaptability makes it ideal for single and multi-channel projection systems across diverse applications. Fully integrated into Barco's Pulse ecosystem, the projector includes advanced software tools, Pulse Prospector, Pulse Mobile App, and Insights Management Suite, for seamless on-site and cloud-based control. Combined with Barco's swap-based service model and global support network, the I600-4K8 is engineered for reliability and ease of operation in professional environments.

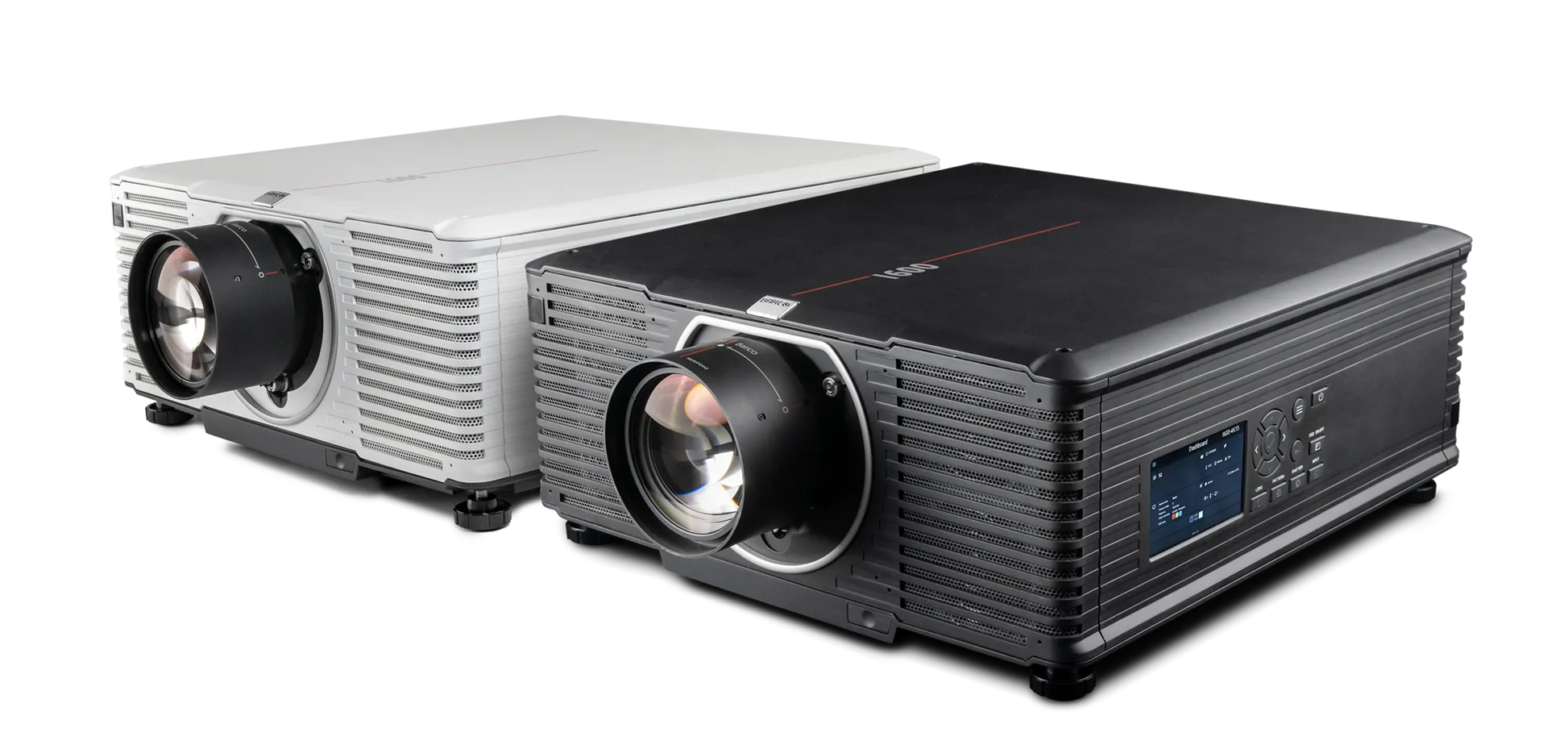

The Barco I600-4K8 Projector is available in black or white.

Features:

• Most compact & lightweight design in its category

• Premium 4K UHD image quality thanks to SuperShift
• DynaBlack contrast enhancement
• Smooth integration in single- and multi-channel set-ups
• Next-gen Barco Pulse electronics

Specifications:

• Projector type: 4K UHD 1-chip DLP digital projector
• Technology: 0.8" DMD
• IR for NVG: No
• Resolution:
  • 3840 x 2400 (4K UHD)
  • 1920 x 1200 (native)
• Brightness: 8000 ISO lumen
• Brightness uniformity: >90%
• Contrast ratio:
  • Full field 1.600:1
  • Barco DynaBlack 20.000:1
• Light source: Blue laser phosphor with inorganic phosphor wheel
• Light source lifetime: 20.000hrs (long life mode 30.000hrs)
• Aspect ratio: 16:10 Native
• Colour space: REC 709
• Orientation: 360° rotation no restrictions
• Sealed DLP core: Yes
• 24/7 operation: Yes
• Processing: Pulse electronics
• Colour correction: P7 RealColor
• CLO (constant light output): Yes
• Keystone correction: Yes
• Image processing: Embedded warp & blend
• 3D: Active stereoscopic 3D / Passive stereo compatible

• Picture-by-picture: Two sources simultaneously *
• Lens type: ILD
• Optical lens shift:
  • Vertical up to 110% depending on lens
  • Horizontal up to 30% depending on lens
• Throw Ratio: From 0.37 to 7.4
• Lens range: ILD lenses - 0.37:1 / 0.5:1 / 0.65-0.8:1 / 0.8-1.0:1 / 1.0-1.4:1 / 1.4-2.1:1 / 2.1-4.0:1 / 4.0-7.4:1
• Prime lenses: N/A

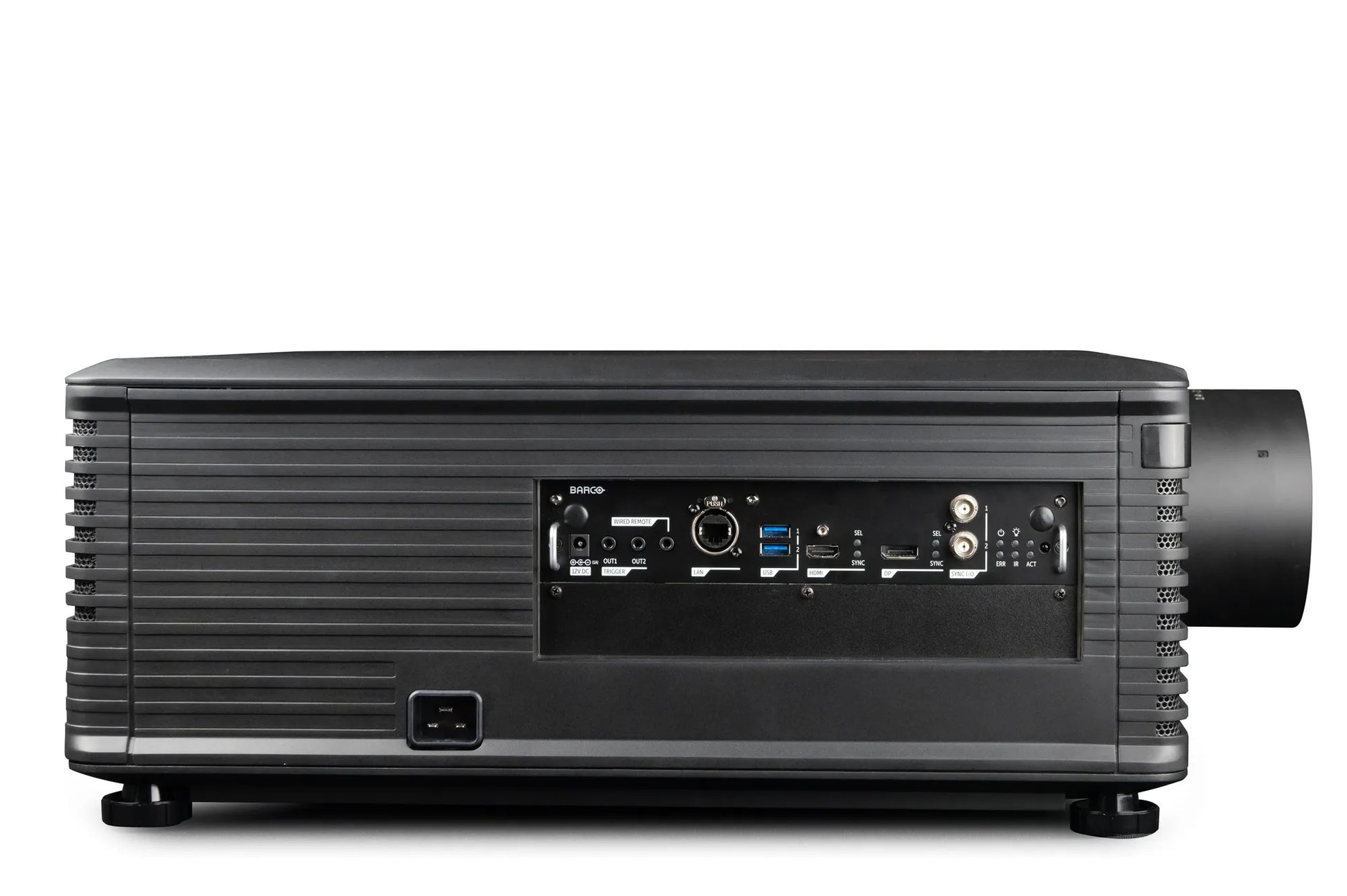

• Inputs: HDMI2.1 (HDCP2.2) / DP1.4 / RJ45 Ethernet / USB(5v) / 12V out / BNC 3D sync in-out
• Optional Inputs:
  • Quad DP1.2
  • Fiber SFP
  • HDBaseT(Lite)/ HDMI™/ Quad-3G/ 12G/ DMX/ remote CTRL
  • HDBaseT
• Input resolutions:
  • Including and up to:
  • WUXGA: 1920x1200@240Hz
  • 4K UHD: 3840x2400@120Hz
• Input colour depth: up to 36 bpp
• Software tools: Projector Toolset + Android app + iOS app + IMS
• Control: IR RJ45
• Network connection: 10/100/1000 Mbit, Wifi** (through optional dongle)
• User interface: LCD touch local keypath remote control wired remote control
• Web browser: Yes
• Power requirements:
  • 100-240V
  • 14a
  • 50/60Hz
• Power consumption: 640W Typical
• Standby power: < 0.5W
• Dissipation BTU: 2150 BTU/h
• Noise level (typical at 25°C/77°F): 40dB(A)
• Operating temperature: 5°-40°C / 41°-104°F (sea level)
• Operating humidity: 10% - 80% RH (non-condensed)
• Storage temperature: -20 to 60 °C
• Storage humidity: 10 - 90% RH (non-condensed)
• Dimensions (WxLxH): 522 x 494 x 198 mm / 20.5 x 19.4 x 7.8 in
• Weight: without lens: 21.5 kg / 47.4 lbs
• Standard accessories: Power cord, wireless remote control
• Housing: Plastic cover
• Certifications:
  • Compliant with UL: UL 62368-1, EN 62368-1, and GB 4943.1;
  • Complies with FCC rules & regulations: Part 15 Class A and CE EN55022 Class A, GB/T 9254.1 A and GB 17625.1; RoHS;

• Warranty:
  • Limited 3 years on parts and labor
  • Extendable up to 5 years
  • Service: single swap of projector
• Blend: horizontal and vertical edge blending
• DMX 512: Optional
• TAA compliancy: Optional
• *Note:
  • * Supported when using of the optional 4x1.2 DP input board
  • ** WIFI and GSM options are not available in all countries. Check with your Barco representative for more info.
