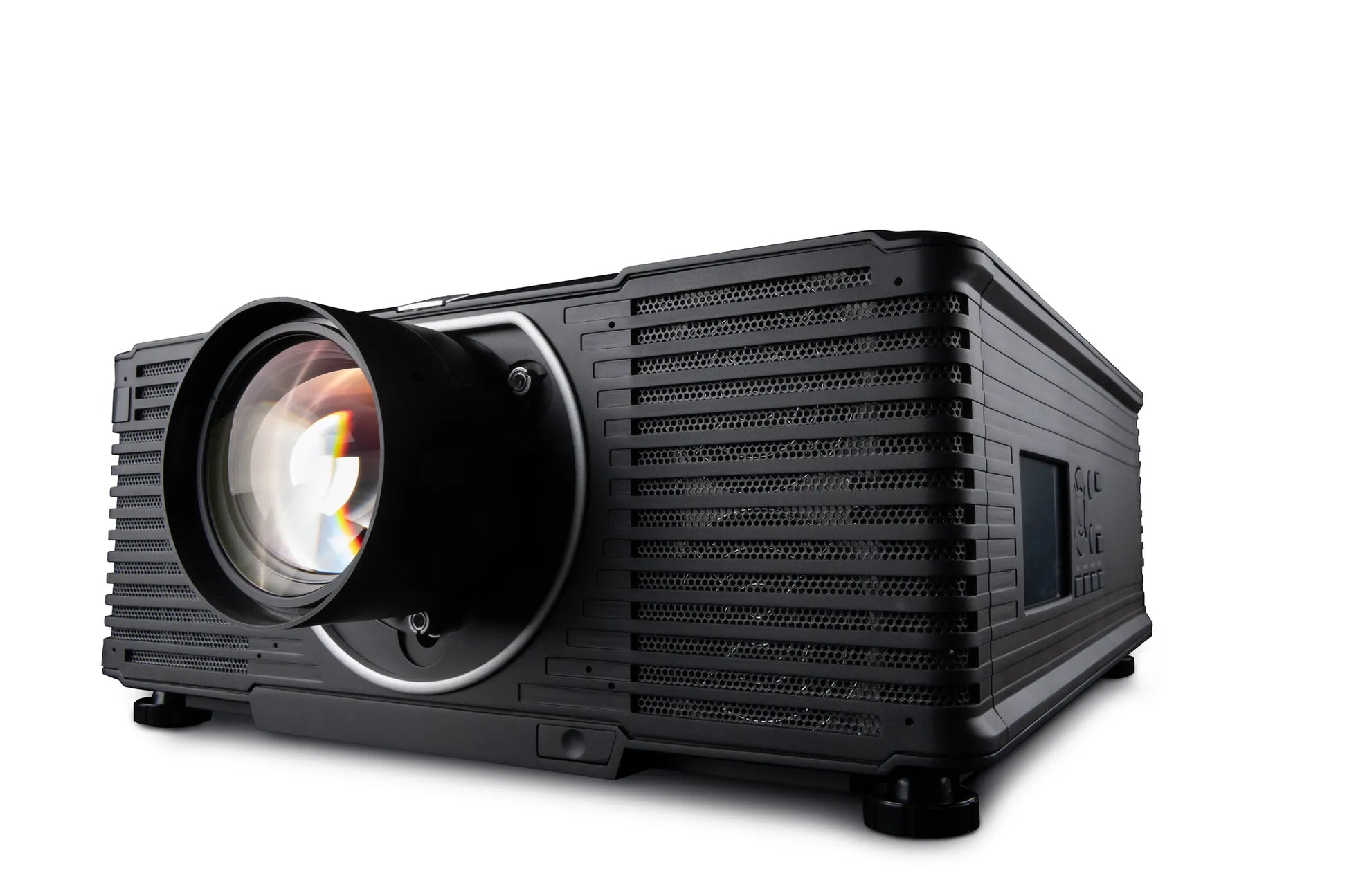

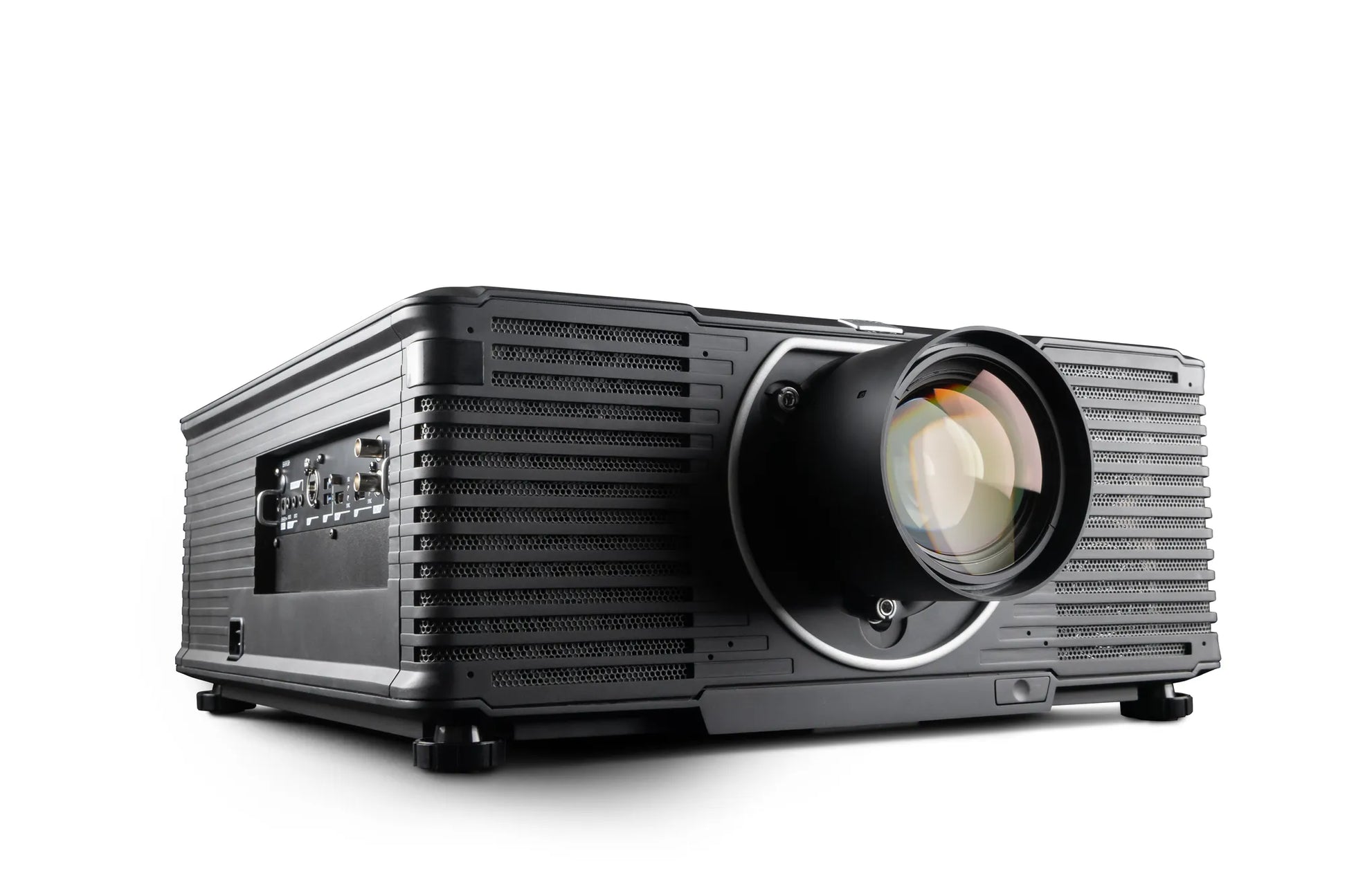

Barco I600‑4K10 Projector

Barco I600‑4K10 10,000 ISO Lumen, 4K UHD, Single-chip Laser Phosphor Projector

The Barco I600-4K10 delivers exceptional 4K UHD image quality in a compact, lightweight design built for demanding installations. With 10,000 lumens of brightness and laser phosphor light source technology, this single-chip projector ensures superior colour fidelity and image uniformity across any environment. Powered by next-generation Barco Pulse electronics and proprietary SuperShift technology, the I600 produces smoother images with sharper pixels at minimal latency.

The advanced DynaBlack contrast enhancement system achieves up to 20,000:1 contrast ratio, delivering superlative black levels that make dark content truly stand out. Engineered for flexibility, the I600 platform supports optional input slots, multiple chassis colours, and a comprehensive range of swappable ILD lenses with ratios from 0.37 UST to 7.4:1 long-throw.

This versatility makes it ideal for single and multi-channel installations across diverse applications. Fully integrated into Barco's Pulse ecosystem, the I600 provides seamless control through Pulse Prospector, the Pulse Mobile App, comprehensive toolsets, and the Insights Management Suite, enabling both on-site and cloud-based projector management. Backed by Barco's swap-based service model and global support network, the I600-4K10 is engineered for long-lasting performance and reliability.

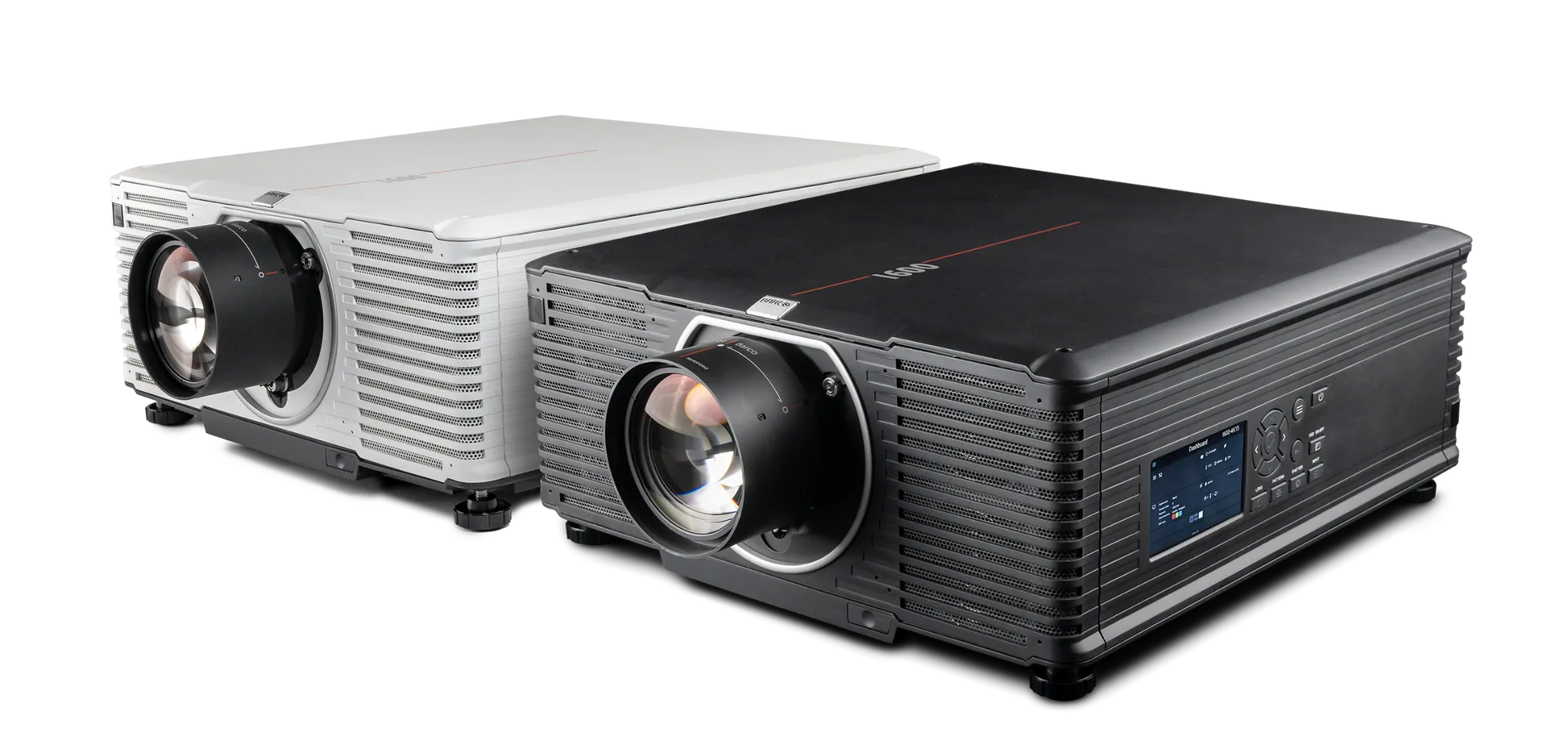

The Barco l600-4K10 Projector is available in black or white.

Features:

• Most compact & lightweight design in its category
• Premium 4K UHD image quality thanks to SuperShift
• DynaBlack contrast enhancement
• Smooth integration in single- and multi-channel set-ups
• Next-gen Barco Pulse electronic
• 10K Lumens
• 4K UHD
• Laser Phosphor
• 1 Chip DLP
• 3D Ready
• 24/7 Operation

Specifications:

• Projector type: 4K UHD 1-chip DLP digital projector
• Technology: 0.8" DMD
• IR for NVG: No
• Resolution:
  • 3840 x 2400 (4K UHD)
  • 1920 x 1200 (native)
• Brightness: 10000 ISO lumen
• Brightness uniformity: >90%
• Contrast ratio:
  • Full field 1.600:1
  • Barco DynaBlack 20.000:1
• Light source: Blue laser phosphor with inorganic phosphor wheel
• Light source lifetime: 20.000hrs (long life mode 30.000hrs)
• Aspect ratio: 16:10 Native
• Colour space: REC 709
• Orientation: 360° rotation no restrictions
• Sealed DLP core: Yes

• 24/7 operation: Yes

• Processing: Pulse electronics
• Colour correction: P7 RealColor
• CLO (constant light output): Yes

• Keystone correction: Yes
• Image processing: Embedded warp & blend

• 3D: Active stereoscopic 3D / Passive stereo compatible
• Picture-by-picture: Two sources simultaneously *
• Lens type: ILD
• Optical lens shift:
  • Vertical up to 110% depending on lens
  • Horizontal up to 30% depending on lens
• Throw Ratio: From 0.37 to 7.4
• Lens range: ILD lenses - 0.37:1 / 0.5:1 / 0.65-0.8:1 / 0.8-1.0:1 / 1.0-1.4:1 / 1.4-2.1:1 / 2.1-4.0:1 / 4.0-7.4:1
• Prime lenses: N/A
• Inputs: HDMI2.1 (HDCP2.2) / DP1.4 / RJ45 Ethernet / USB(5v) / 12V out / BNC 3D sync in-out
• Optional Inputs:
  • Quad DP1.2
  • Fiber SFP
  • HDBaseT(Lite)/ HDMI™/ Quad-3G/ 12G/ DMX/ remote CTRL
  • HDBaseT
• Input resolutions:
  • Including and up to:
  • WUXGA: 1920x1200@240Hz
  • 4K UHD: 3840x2400@120Hz
• Input colour depth: up to 36 bpp
• Software tools: Projector Toolset + Android app + iOS app + IMS
• Control: IR RJ45
• Network connection: 10/100/1000 Mbit, Wifi** (through optional dongle)
• User interface: LCD touch local keypath remote control wired remote control
• Web browser: Yes
• Power requirements:
  • 100-240V
  • 14A
  • 50/60 Hz
• Power consumption: 860W Typical
• Standby power: < 0.5w
• Dissipation BTU: 2900 BTU/h
• Noise level: (typical at 25°C/77°F): 40 dB(A)

• Operating temperature: 5°-40°C / 41° - 140°F (sea level)
• Operating humidity: 10% - 80% RH (non-condensed)
• Storage temperature: -20 to 60 °C
• Storage humidity: 10 - 90% RH (non-condensed)
• Dimensions (WxLxH): 522 x 494 x 198 mm / 20.5 x 19.4 x 7.8 in
• Weight: without lens: 23.6 kg / 52.0 lbs
• Standard accessories: Power cord, wireless remote control
• Housing: Plastic cover
• Certifications:
  • Compliant with UL: UL 62368-1, EN IEC 62368-1, and GB 4943.1;
  • Complies with FCC rules & regulations: Part 15 Class A and CE EN55022 Class A, CE EN55022 Class A, GB/T 9254.1 A and GB 17625.1;
  • RoHS;
• Warranty:
  • Limited 3 years on parts and labor
  • Extendable up to 5 years
  • Service: single swap of projector
• Blend: Horizontal and vertical edge blending
• DMX 512: Optional
• TAA compliancy: Optional
• Note*:
  • * Supported when using of the optional 4x1.2 DP input board

  • ** Wifi and GSM options are not available in all countries. Check with your Barco representative for more info.
