Barco G62‑W14 Projector

Barco G62‑W14 13,600 Lumens, WUXGA, DLP Laser Phosphor Projector

The G62-W14 delivers professional-grade projection with 13,600 lumens of WUXGA brightness, expanding single-chip capabilities across diverse applications.

Its laser phosphor light source provides exceptional image quality while reducing maintenance demands compared to traditional lamp-based systems. HDMI 2.0 connectivity and enhanced bandwidth enable 4K compatibility and 3D capability, letting you showcase premium content with precision. Barco's Projector Toolset software simplifies installation and multi-projector management from your desktop. Available in black or white chassis, the compact G62-W14 fits seamlessly into any environment. Wide lens shift range, compatibility with Barco ecosystem products, and flexible mounting options maximize deployment possibilities. Backed by Barco's trusted service and support infrastructure.

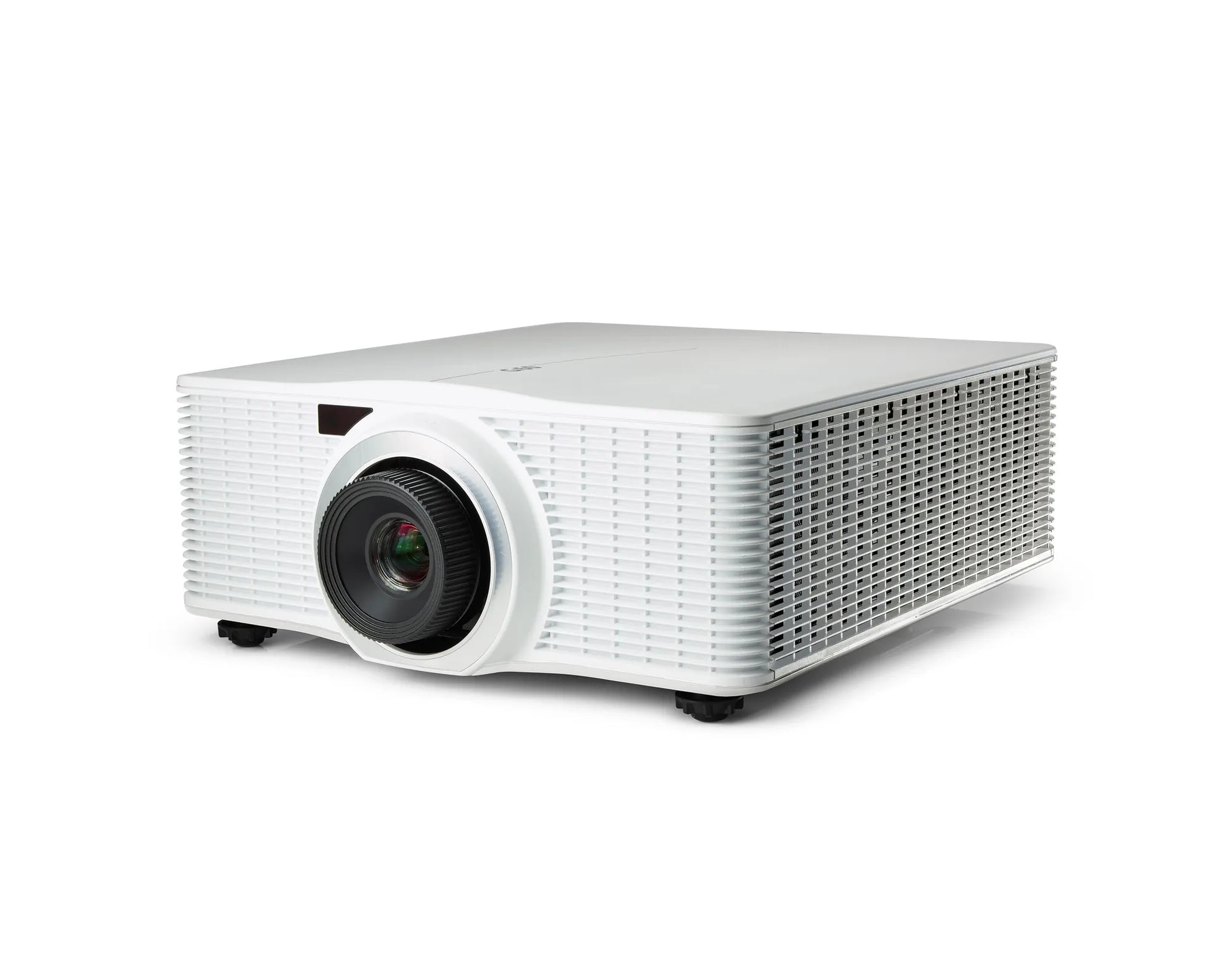

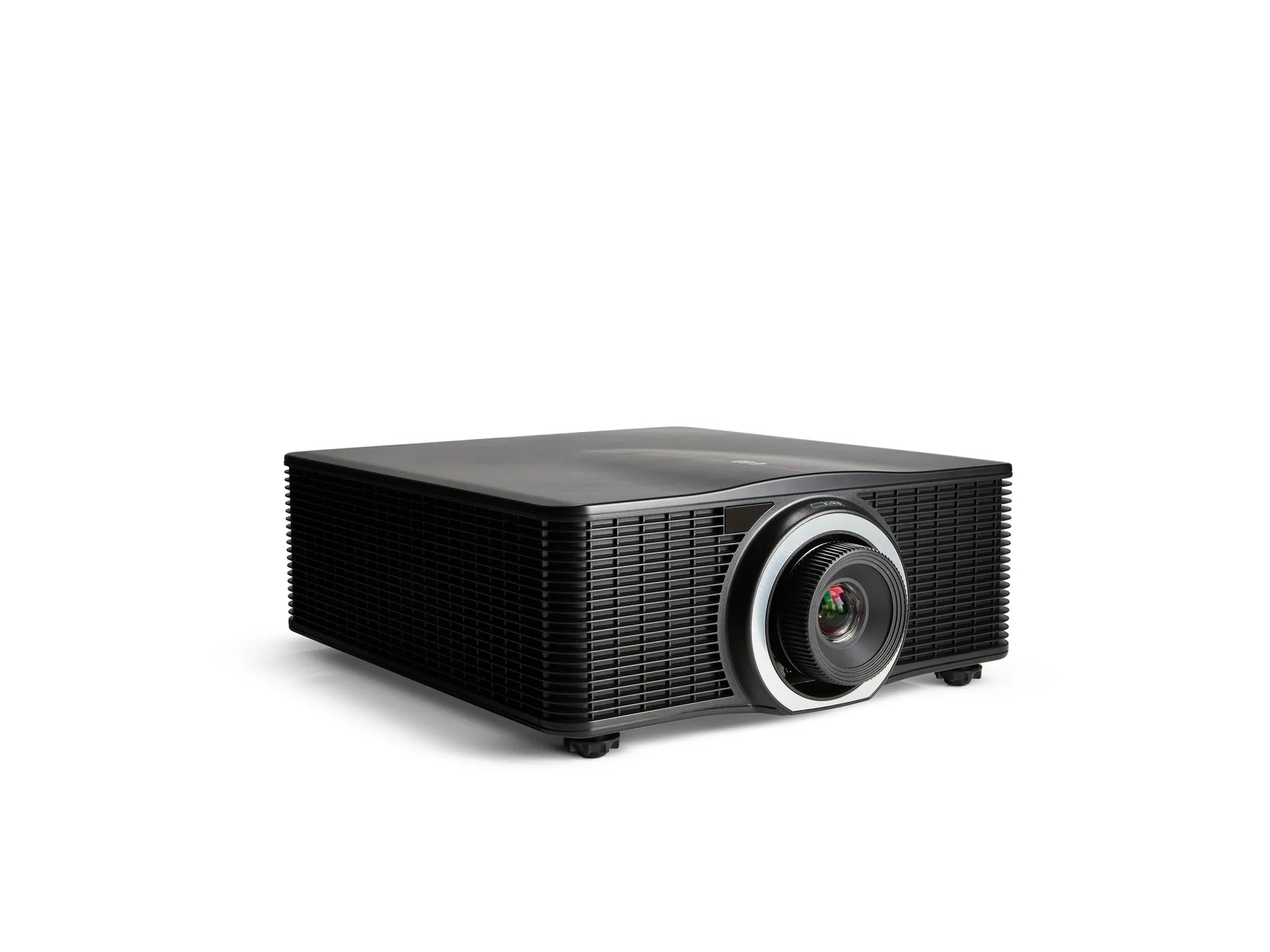

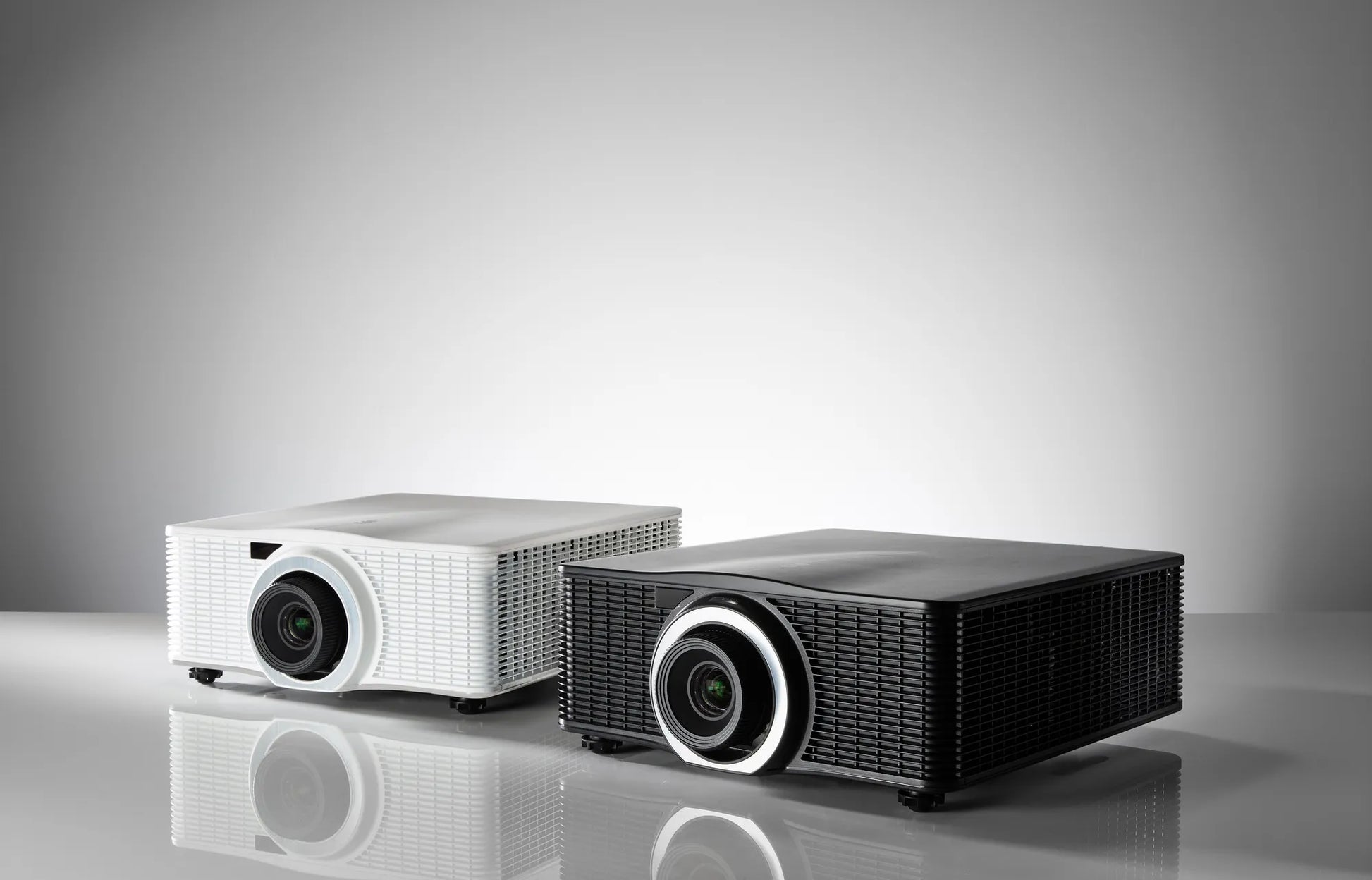

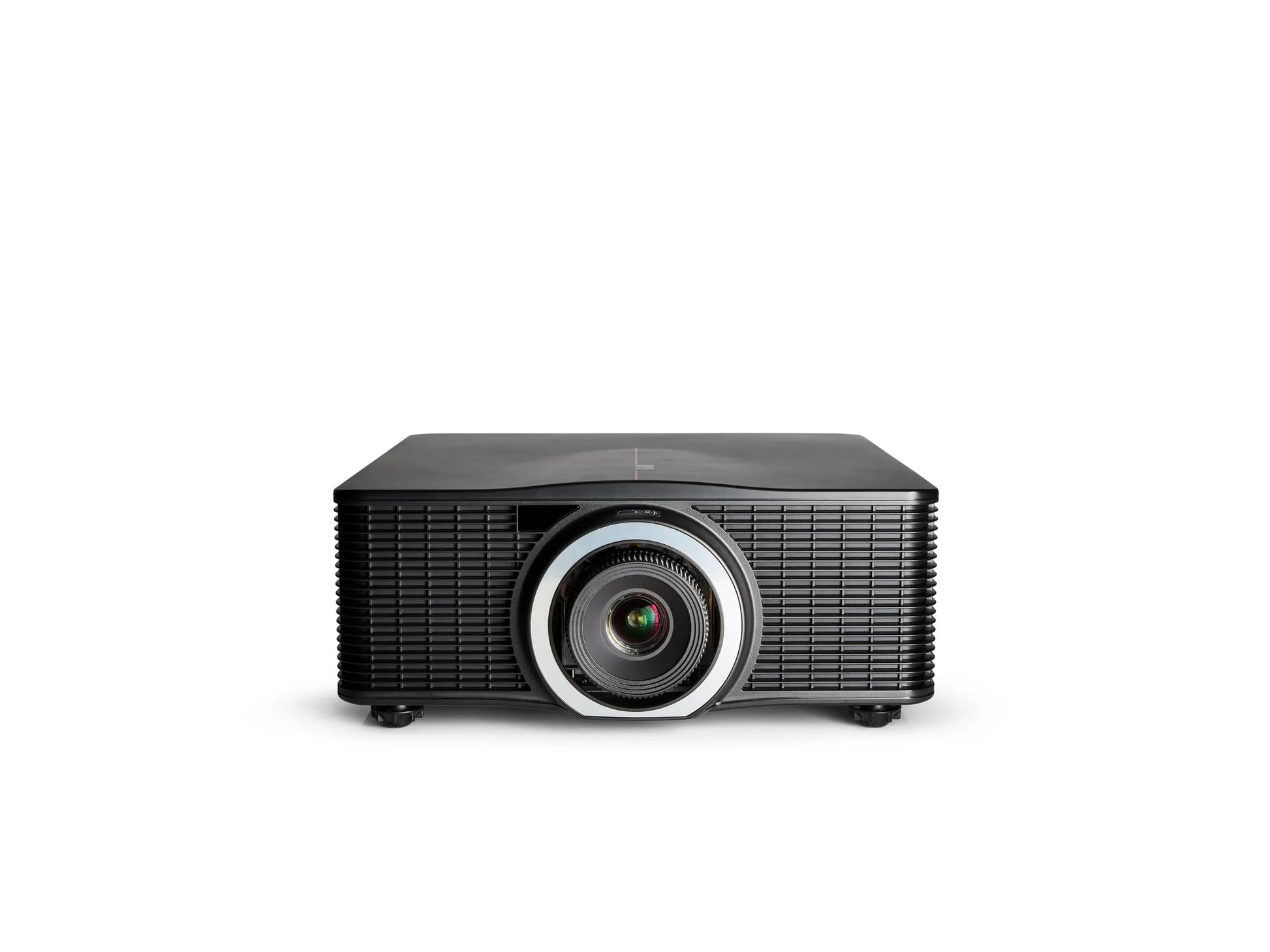

The Barco G62‑W14 Projector is available in black or white.

Features:

• Great image quality
• Optimal integration capabilities
• 4K compatible and 3D-ready
• Guaranteed service and support
• 14K Lumens
• 4K Input
• 1 Chip DLP
• Laser Phosphor

Specifications:

• Projector type: Single chip DLP laser phosphor projector
• Resolution: 1,920 x 1,200 (WUXGA)
• Brightness: 11,500 ANSI lumens 12,800 center lumens 13,600 ISO lumens
• Brightness uniformity: 90%
• Contrast ratio: 1,200:1 sequential; 6,000:1 dynamic; Extreme black: 750,000:1
• Light source: Laser phosphor
• Light source lifetime: Up to 20,000hrs
• Aspect ratio: 16:10
• Orientation: 360° rotation, no restrictions
• Sealed DLP core: Yes
• Colour correction: Yes
• CLO (constant light output): Yes
• Image processing: Embedded warp & blend possible via Ptoolset
• 3D: Active stereoscopic 3D
• Lens type: G-lenses - 0.36:1 / 0.37-0.4:1 / 0.65-0.75:1 / 0.75-0.95:1 / 0.95-1.22:1 / 1.22-1.53:1 / 1.52-2.92:1 / 2.90-5.50:1
• Optical lens shift:
  • Vertical up to 100%, depending on lens
  • Horizontal up to 30%, depending on lens
  • Motorized zoom and focus
  • Motorized lens shift
• Inputs: 2x HDMI In (version 2.0) (with locking screw) / 1x DVI-D (only support digital signal) / 1x HDBaseT / 1x 3D SYNC In / 1x 3G-SDI
• Input resolutions:
  • Up to 4K @60Hz

  • Refresh rates: 24Hz to 60Hz for WUXGA and 4K/4KUHD (4096 x 2160 / 3840 x 2160)

  • 4K input signals will be scaled to the projector’s output resolution
• Software tools: Projector Toolset and Insight Management Suite (IMS)
• Control: IR, RS232, RJ45, 3.5mm phone jack for wired remote
• Network connection: 10/100 Ethernet, RJ45
• Power requirements: 100-240V / 50-60Hz
• Power consumption: 810W nominal, 970W maximum
• Standby power: less than 0.5W
• BTU per hour: 2.747 BTU/h nominal, 2883 BTU/h maximum
• Noise level (typical at 25°C/77°F): 35dB(A) - 39dB(A) depending on the used mode
• Operating temperature: 0~ 40 °C (sea level)
• Operating humidity: 10 - 85% RH, non-condensing
• Storage temperature: -10 ~ 60 °C
• Storage humidity: 5 - 90% RH, non-condensing
• Dimensions (WxLxH):
  • without feet: 484 x 529 x 195 mm / 19.1 x 20.8 x 7.7 inch
  • with feet: 484 x 529 x 206 mm / 19.1 x 20.8 x 8.1 inch
• Weight: without lens: 22.7 kg / 50.1 lbs
• Standard accessories: Power cord, wireless remote control
• Certifications: CE, FCC Class A, cTUVUS, CCC, EAC, KCC, RCM, BIS, BSMI
• Warranty: Limited 3 years parts and labour
